Model # 85054126 Official Kenmore ductless range hood

Here are the diagrams and repair parts for Official Kenmore 85054126 ductless range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Bulb 6861

#NI

All parts diagram

Bulb

Part #6861

Replaced by #40A15

?
Manufacturer substitution
This part replaces 6861. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Grease Filter 6750
#15

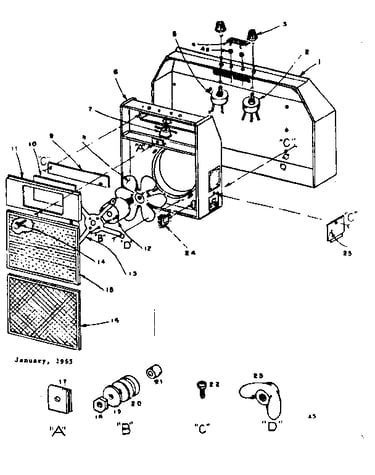

Range hood diagram

Grease filter

Part #6750

Replaced by #WP883058

?
Manufacturer substitution
This part replaces 6750. Substitute parts can look different from the original.
$39.94 |
13% OFF Phone Price : $45.94
In Stock
Canopy 6814
#1G

Range hood diagram

Canopy

Part #6814

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6810
#1B

Range hood diagram

Canopy

Part #6810

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 6747
#13

Range hood diagram

Motor mount

Part #6747

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6813
#1C

Range hood diagram

Canopy

Part #6813

The manufacturer no longer makes this part, and there's no substitute part

Plug 6751
#24

Range hood diagram

Plug

Part #6751

The manufacturer no longer makes this part, and there's no substitute part

Canopy 6811
#1F

Range hood diagram

Canopy

Part #6811

The manufacturer no longer makes this part, and there's no substitute part

Motor Switch 6752
#2

Range hood diagram

Motor switch

Part #6752

The manufacturer no longer makes this part, and there's no substitute part

Bushing 6855
#21

Range hood diagram

Bushing

Part #6855

The manufacturer no longer makes this part, and there's no substitute part
