Maytag
Bottom-Mount Refrigerator

Model # MBF1958FEZ05 Official Maytag refrigerator, bottom mount

Here are the diagrams and repair parts for Official Maytag MBF1958FEZ05 refrigerator, bottom mount, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

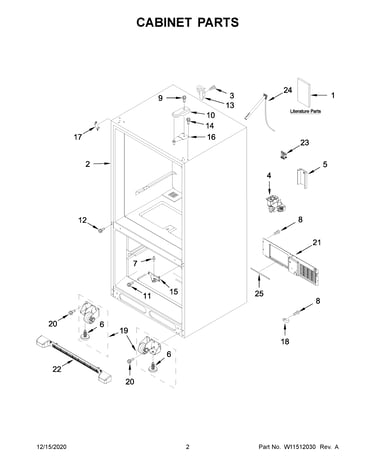

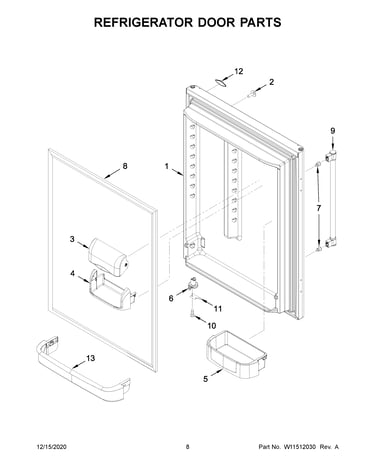

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Drier Tube W10177049
#27

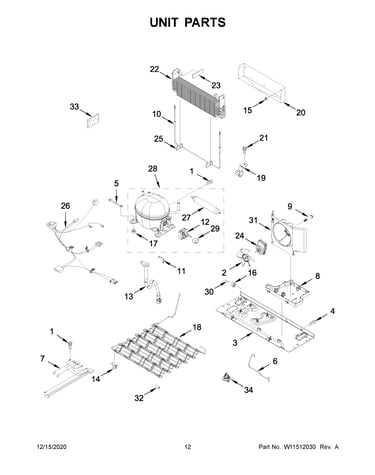

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker W10793298
#33

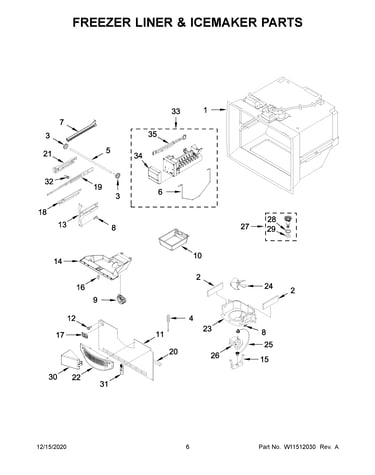

Freezer liner & icemaker parts diagram

Refrigerator ice maker

Part #W10793298

Replaced by #W10884390

?
Manufacturer substitution
This part replaces W10793298. Substitute parts can look different from the original.
BEST SELLER
$92.98 |
6% OFF Phone Price : $98.98
In Stock
Refrigerator Thermistor 12791409SP
#4

Freezer liner & icemaker parts diagram

Refrigerator thermistor

Part #12791409SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791409SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Refrigerator Electronic Control Board W10503278
#5

Refrigerator liner parts diagram

Refrigerator electronic control board

Part #W10503278

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces W10503278. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

Freezer liner & icemaker parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$37.11 |
14% OFF Phone Price : $43.11
In Stock
Refrigerator Led Light W11251749
Refrigerator led light

Part #W11251749

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11251749. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
Back Order
Compressor W10879296
#28

Unit parts diagram

Compressor

Part #W10879296

Replaced by #W10507884

?
Manufacturer substitution
This part replaces W10879296. Substitute parts can look different from the original.
BEST SELLER
$353.01 |
$12.00 OFF Phone Price : $365.01
In Stock
Refrigerator Crisper Drawer Support Rail, Center W10671238
#9

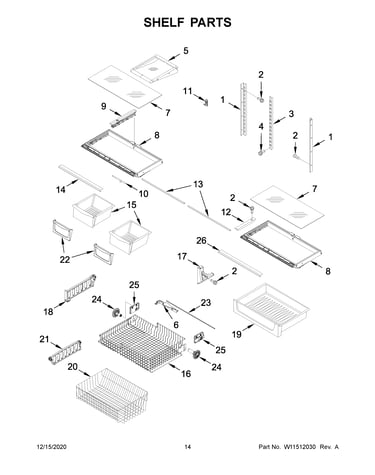

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #W10671238

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces W10671238. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Door Switch W10847849
#16

Freezer liner & icemaker parts diagram

Refrigerator door switch

Part #W10847849

Replaced by #W11396033

?
Manufacturer substitution
This part replaces W10847849. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Evaporator Motor 13062901
#26

Freezer liner & icemaker parts diagram

Refrigerator evaporator motor

Part #13062901

Replaced by #W11024089

?
Manufacturer substitution
This part replaces 13062901. Substitute parts can look different from the original.
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
