Maytag
Range Hood

Model # UXT5430ADB Official Maytag vent hood

Here are the diagrams and repair parts for Official Maytag UXT5430ADB vent hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Range Hood Filter Latch 49001085
#31

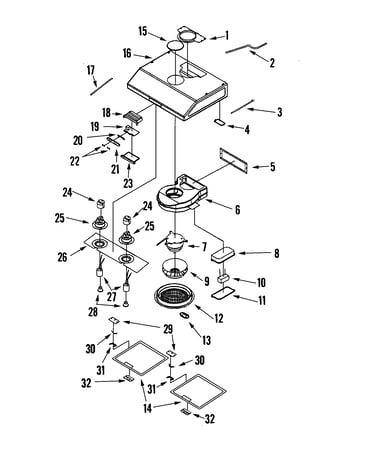

Hood components (complete) diagram

Range hood filter latch

Part #49001085

$41.99
In Stock
Lower Latch 49001086
#32

Hood components (complete) diagram

Lower latch

Part #49001086

Replaced by #W11033113

?
Manufacturer substitution
This part replaces 49001086. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Range Hood Electronic Control Board 49001074
#19

Hood components (complete) diagram

Range hood electronic control board

Part #49001074

The manufacturer no longer makes this part, and there's no substitute part

Filter Kit 49001194
#36A

Hood components (complete) diagram

Filter kit

Part #49001194

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire 49001059
#3

Hood components (complete) diagram

Ground wire

Part #49001059

The manufacturer no longer makes this part, and there's no substitute part

Diffuser Panel 49001117
#14B

Hood components (complete) diagram

Diffuser panel

Part #49001117

The manufacturer no longer makes this part, and there's no substitute part

Light Socket 49001082
#27

Hood components (complete) diagram

Light socket

Part #49001082

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 49001092
#22A

Hood components (complete) diagram

Switch button

Part #49001092

The manufacturer no longer makes this part, and there's no substitute part

Grease Pan 49001067
#12

Hood components (complete) diagram

Grease pan

Part #49001067

The manufacturer no longer makes this part, and there's no substitute part

Electrical Box 49001063
#8

Hood components (complete) diagram

Electrical box

Part #49001063

The manufacturer no longer makes this part, and there's no substitute part
