Amana
Countertop Microwave

Model # 1580.0 Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana 15800 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

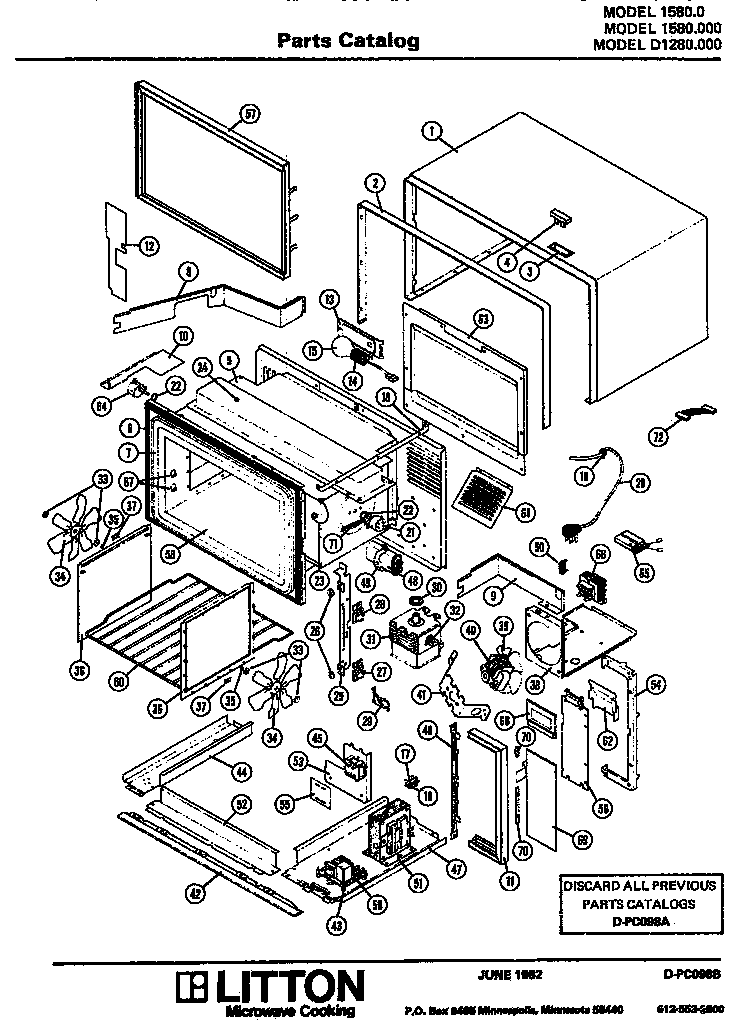

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Outer Case (includes Ref. No. 2) M80D85
#1A

(1580.0) (1580.000) (d1280.000) diagram

Outer case (includes ref. no. 2)

Part #M80D85

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover M45D18
#36

(1580.0) (1580.000) (d1280.000) diagram

Stirrer cover

Part #M45D18

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 6,7,8,9,24,58,63,67, M77D94
#5

(1580.0) (1580.000) (d1280.000) diagram

Cavity assembly (includes ref. nos. 6,7,8,9,24,58,63,67,

Part #M77D94

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness (includes Ref. No. 72) M27D252
#65A

(1580.0) (1580.000) (d1280.000) diagram

Wire harness (includes ref. no. 72)

Part #M27D252

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Light M1D360
Gasket, light

Part #M1D360

The manufacturer no longer makes this part, and there's no substitute part

Left Stirrer Motor M12D69
#64A

(1580.0) (1580.000) (d1280.000) diagram

Left stirrer motor

Part #M12D69

The manufacturer no longer makes this part, and there's no substitute part

Nut - Blower Mtg. M1D31
#40B

(1580.0) (1580.000) (d1280.000) diagram

Nut - blower mtg.

Part #M1D31

The manufacturer no longer makes this part, and there's no substitute part

Ground Lead M5D120
#23

(1580.0) (1580.000) (d1280.000) diagram

Ground lead

Part #M5D120

The manufacturer no longer makes this part, and there's no substitute part

Screw - Bracket Mtg. M1D6
Screw - bracket mtg.

Part #M1D6

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Controller M8D211
#62A

(1580.0) (1580.000) (d1280.000) diagram

Baffle, controller

Part #M8D211

The manufacturer no longer makes this part, and there's no substitute part
