Model # HES255U Official Bosch electric freestanding range

Here are the diagrams and repair parts for Official Bosch HES255U electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

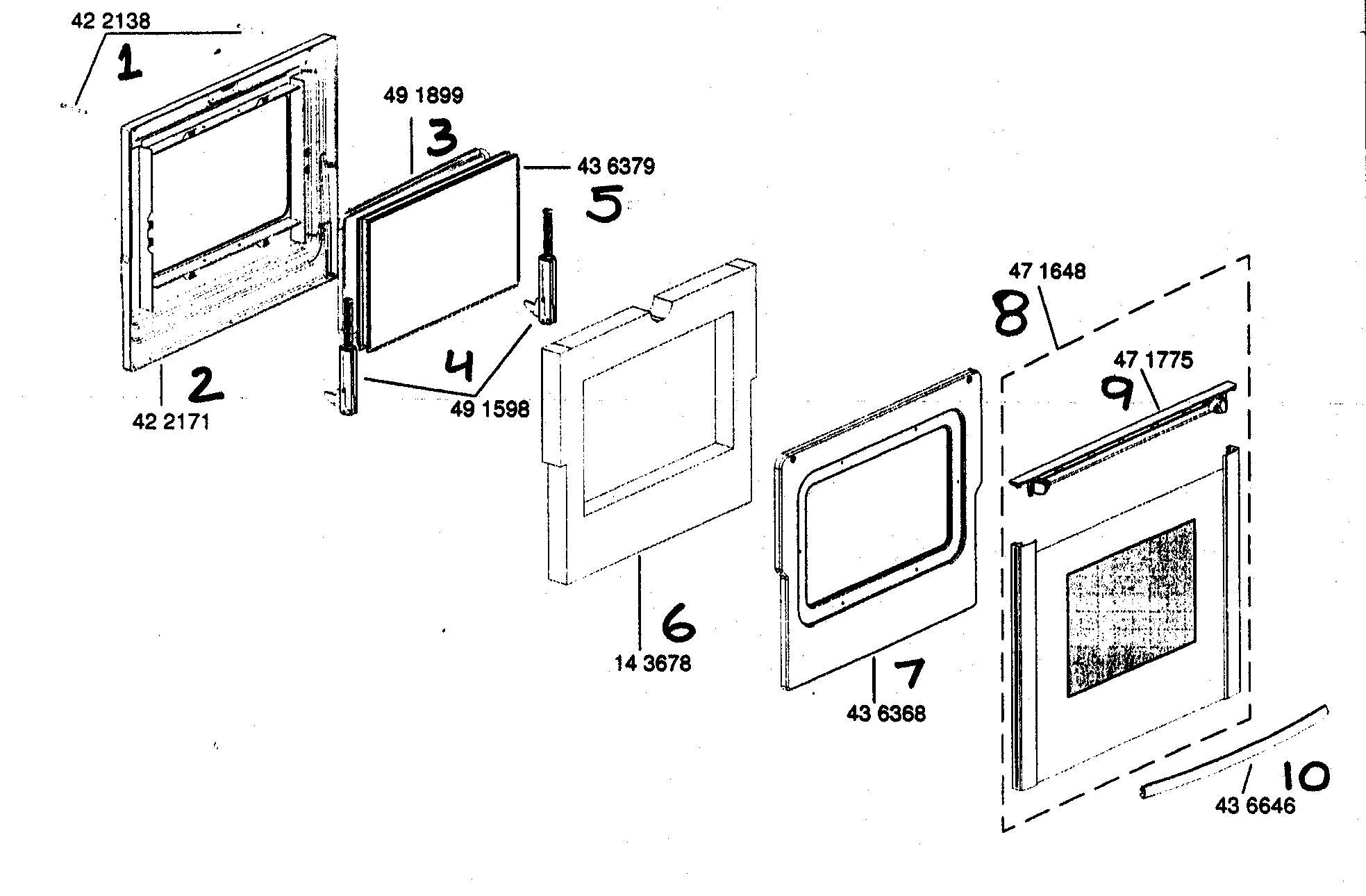

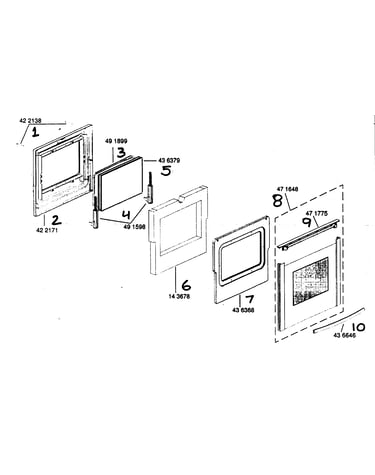

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |

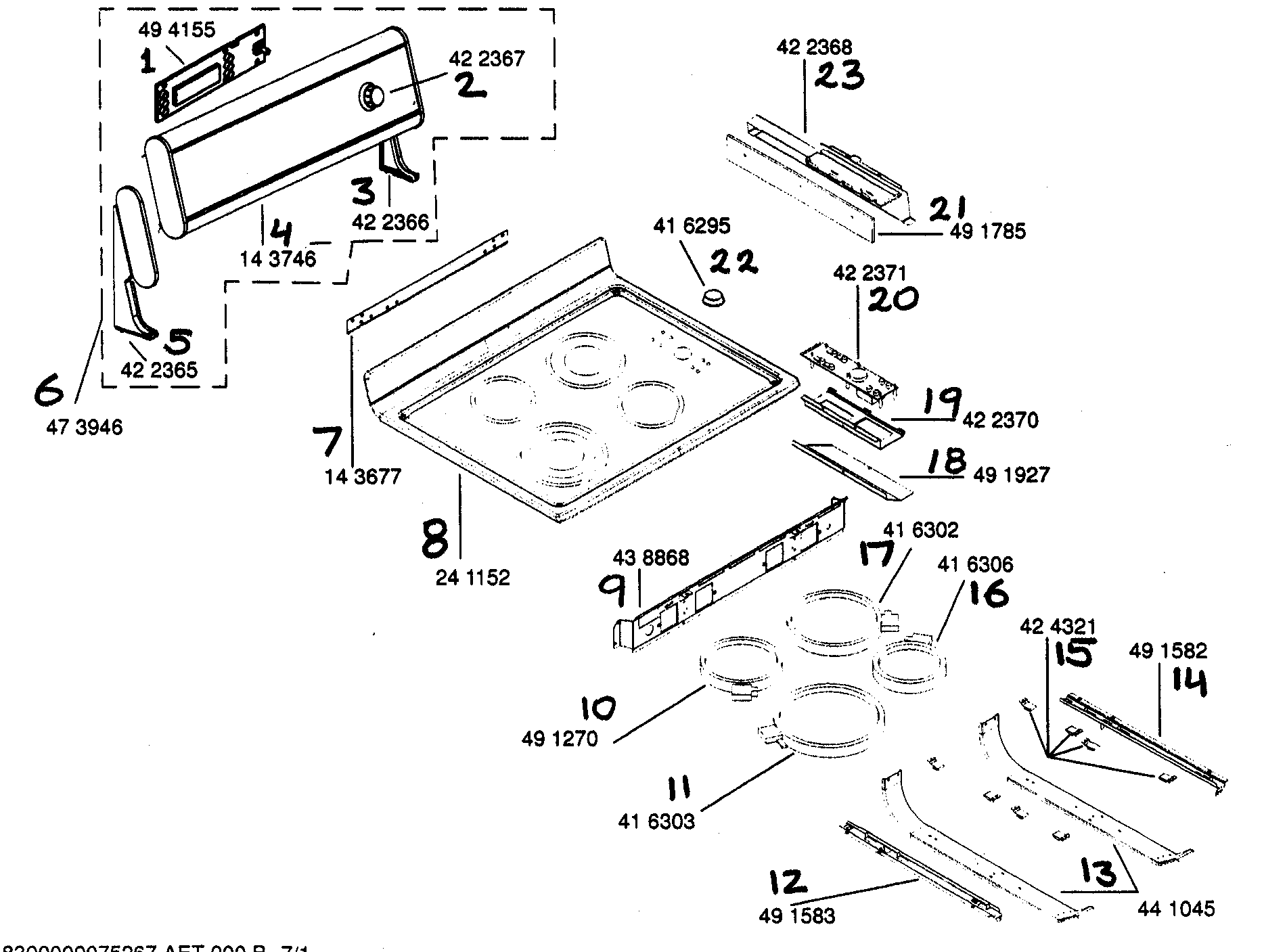

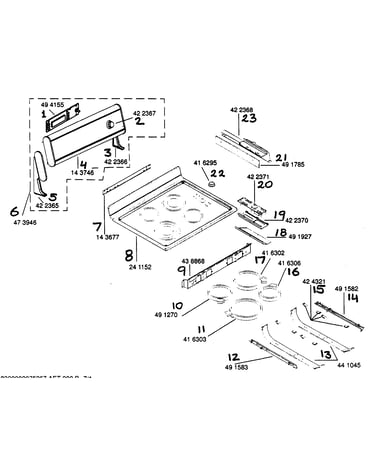

Range Knob 416295
Range knob

Part #416295

Replaced by #00416295

?
Manufacturer substitution
This part replaces 416295. Substitute parts can look different from the original.
$104.68
In Stock
Sensor 422089
#6

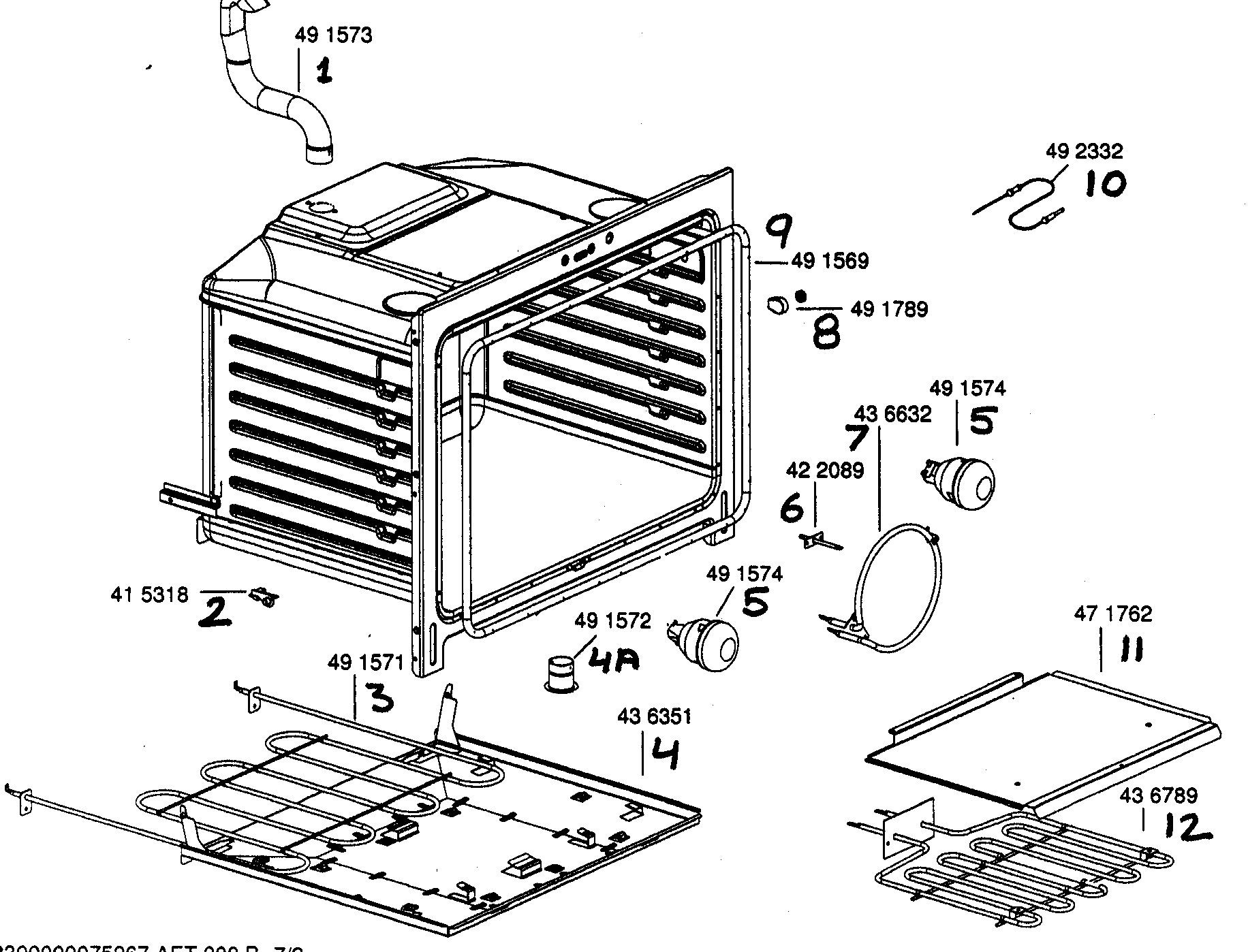

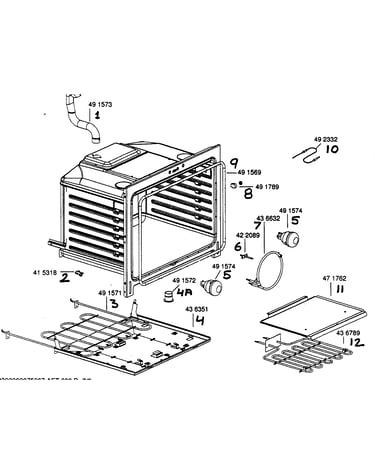

Oven cavity assy diagram

Sensor

Part #422089

Replaced by #00422089

?
Manufacturer substitution
This part replaces 422089. Substitute parts can look different from the original.
$67.19 |
8% OFF Phone Price : $73.19
In Stock
Door Gasket 491569
#9

Oven cavity assy diagram

Door gasket

Part #491569

Replaced by #00491569

?
Manufacturer substitution
This part replaces 491569. Substitute parts can look different from the original.
$84.95 |
7% OFF Phone Price : $90.95
In Stock
Range Oven Door Lock Assembly 493095
#13

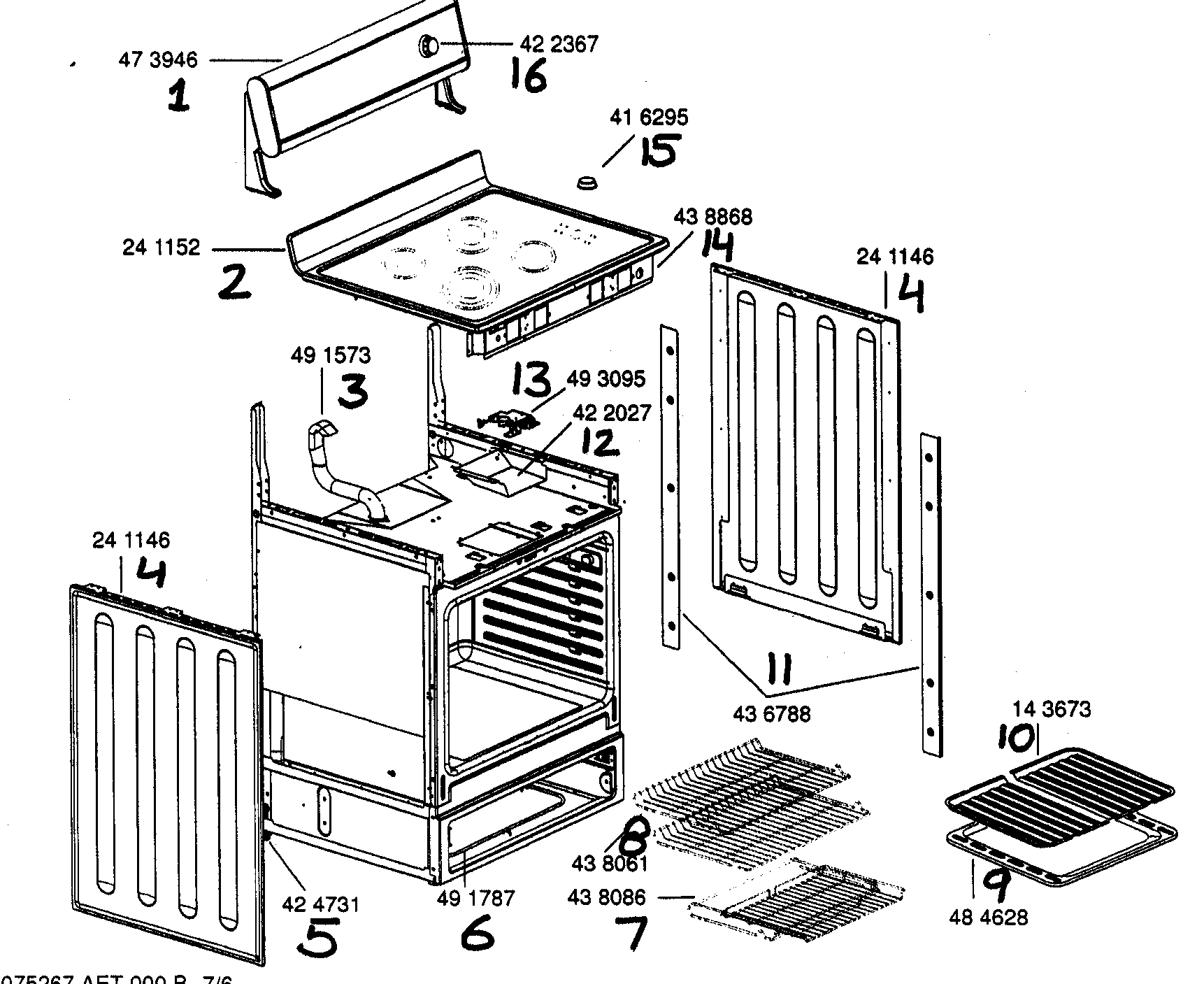

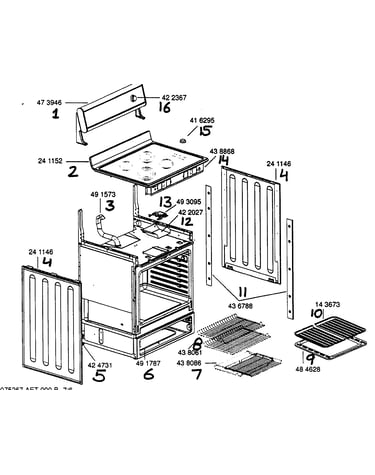

Range structure shelves diagram

Range oven door lock assembly

Part #493095

$189.58
In Stock
Gasket 436639
#4

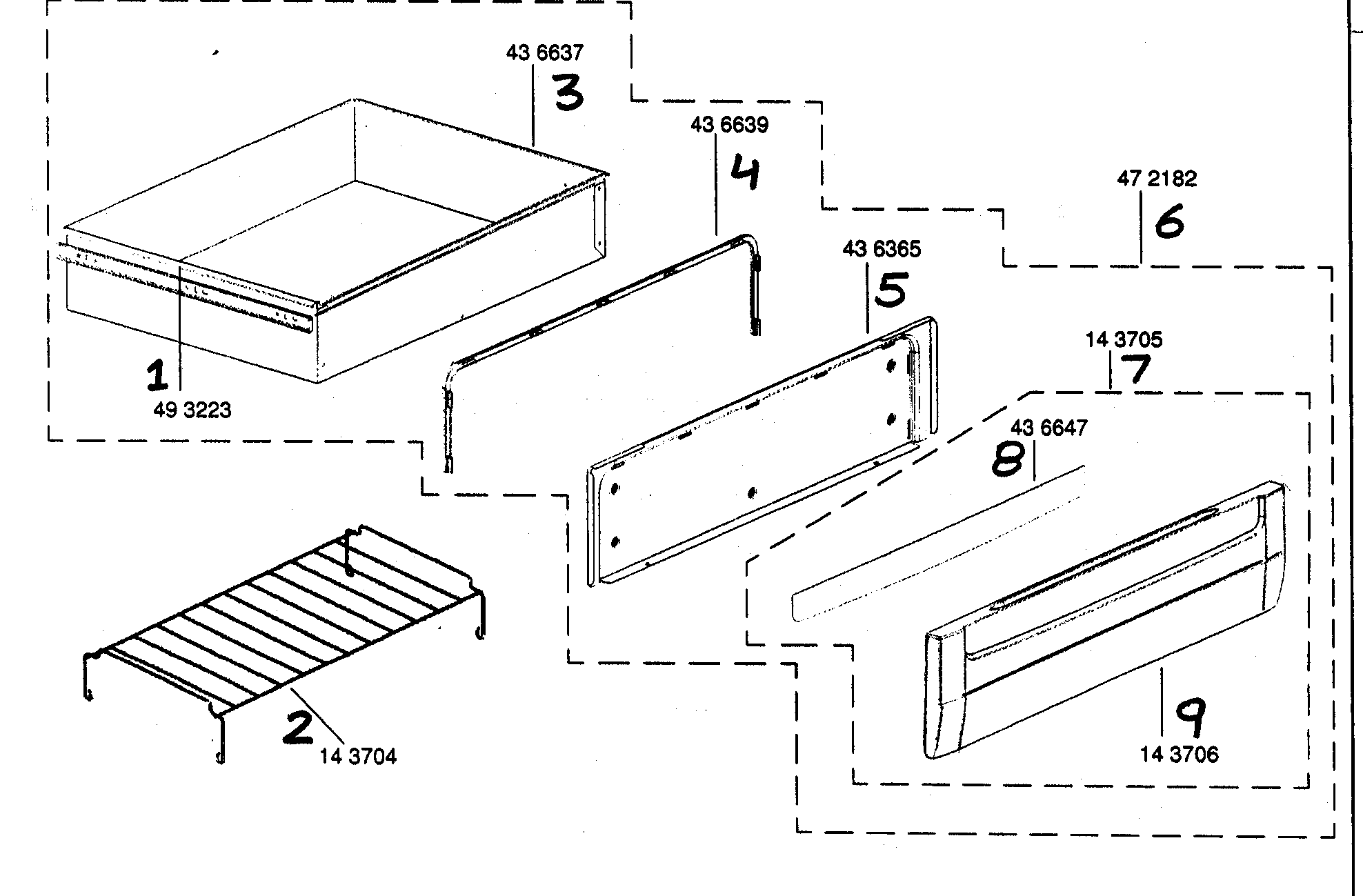

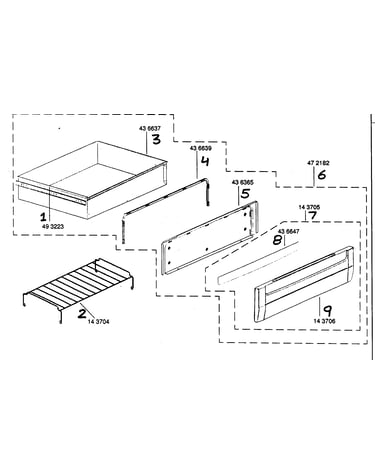

Warming drawer diagram

Gasket

Part #436639

Replaced by #00436639

?
Manufacturer substitution
This part replaces 436639. Substitute parts can look different from the original.
$68.89
In Stock
Terminal Box 436364
#8

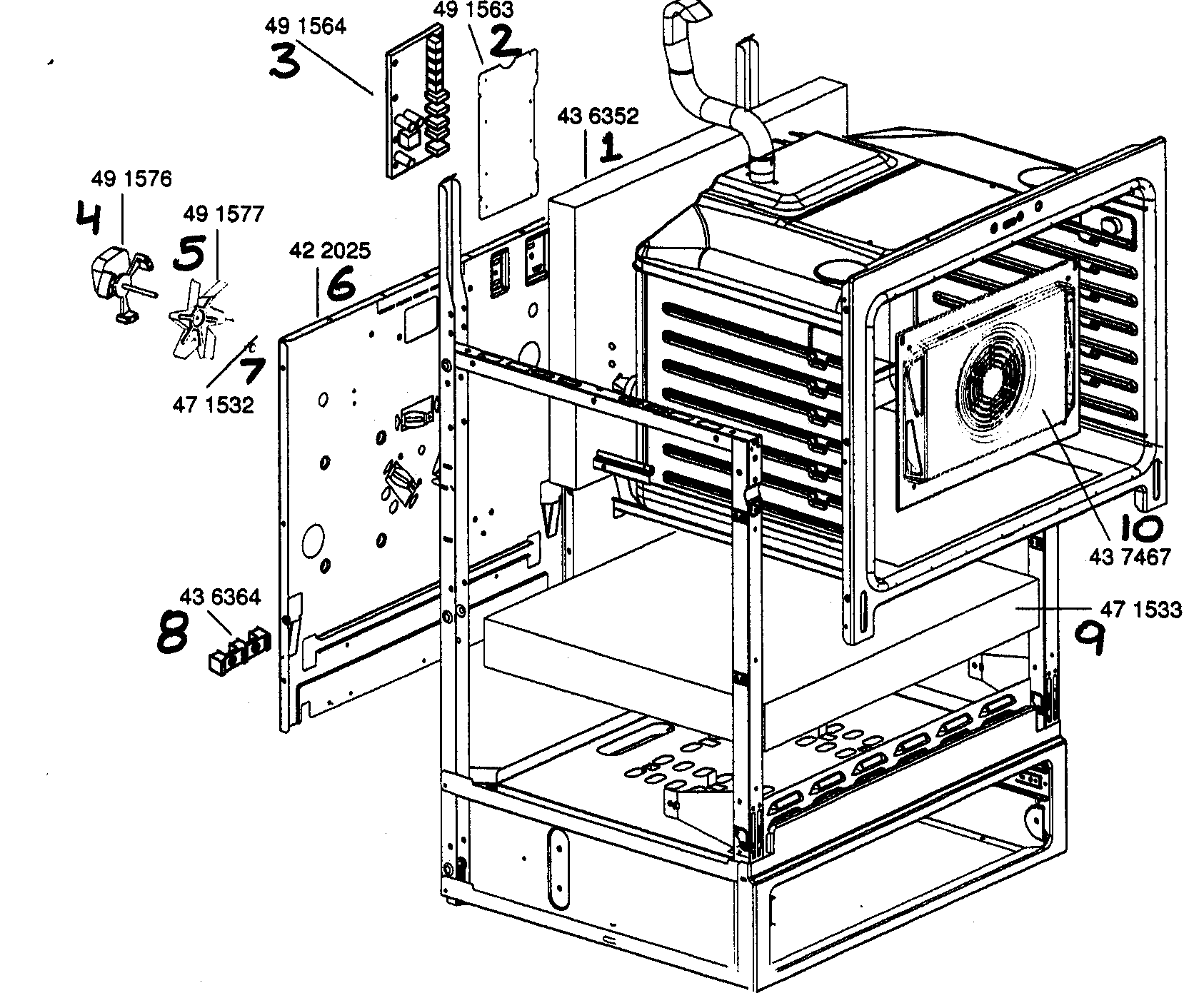

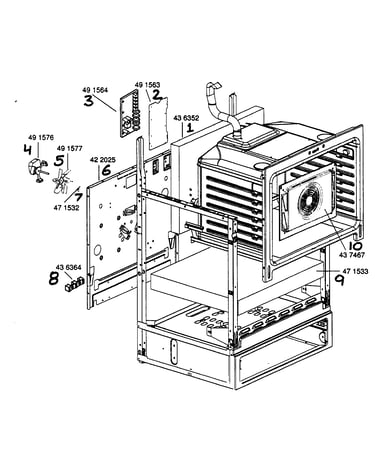

Oven cavity frame diagram

Terminal box

Part #436364

Replaced by #00436364

?
Manufacturer substitution
This part replaces 436364. Substitute parts can look different from the original.
$32.67
In Stock
Convection Motor 491576
#4

Oven cavity frame diagram

Convection motor

Part #491576

Replaced by #00491576

?
Manufacturer substitution
This part replaces 491576. Substitute parts can look different from the original.
$113.79 |
10% OFF Phone Price : $125.79
In Stock

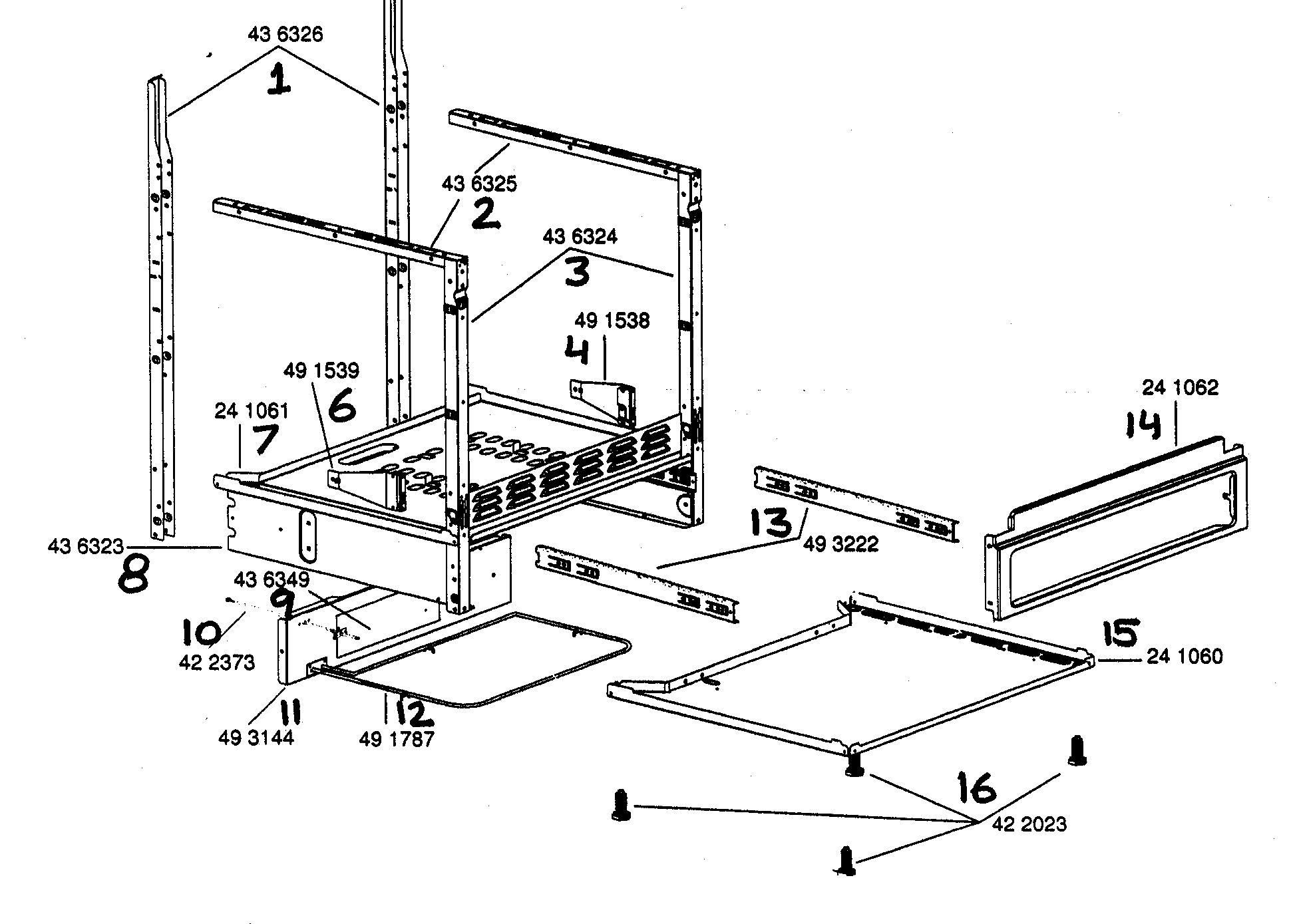

Oven Hinge 491538
#4

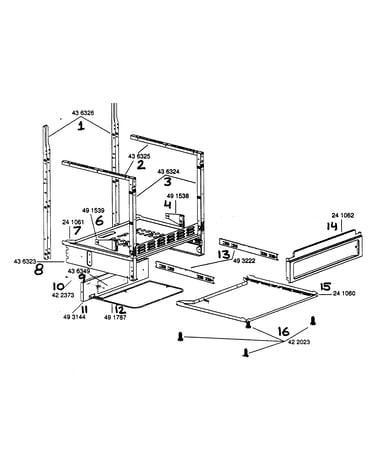

Support assy diagram

Oven hinge

Part #491538

Replaced by #00491538

?
Manufacturer substitution
This part replaces 491538. Substitute parts can look different from the original.
$43.62
In Stock
Receptacle 415318
#2

Oven cavity assy diagram

Receptacle

Part #415318

Replaced by #00612669

?
Manufacturer substitution
This part replaces 415318. Substitute parts can look different from the original.
$63.96
In Stock
Oven Burner 491270
Oven burner

Part #491270

Replaced by #00491270

?
Manufacturer substitution
This part replaces 491270. Substitute parts can look different from the original.
$109.64
In Stock
