Frigidaire
Electric Cooktop

Model # FPIC3077RFA Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FPIC3077RFA cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

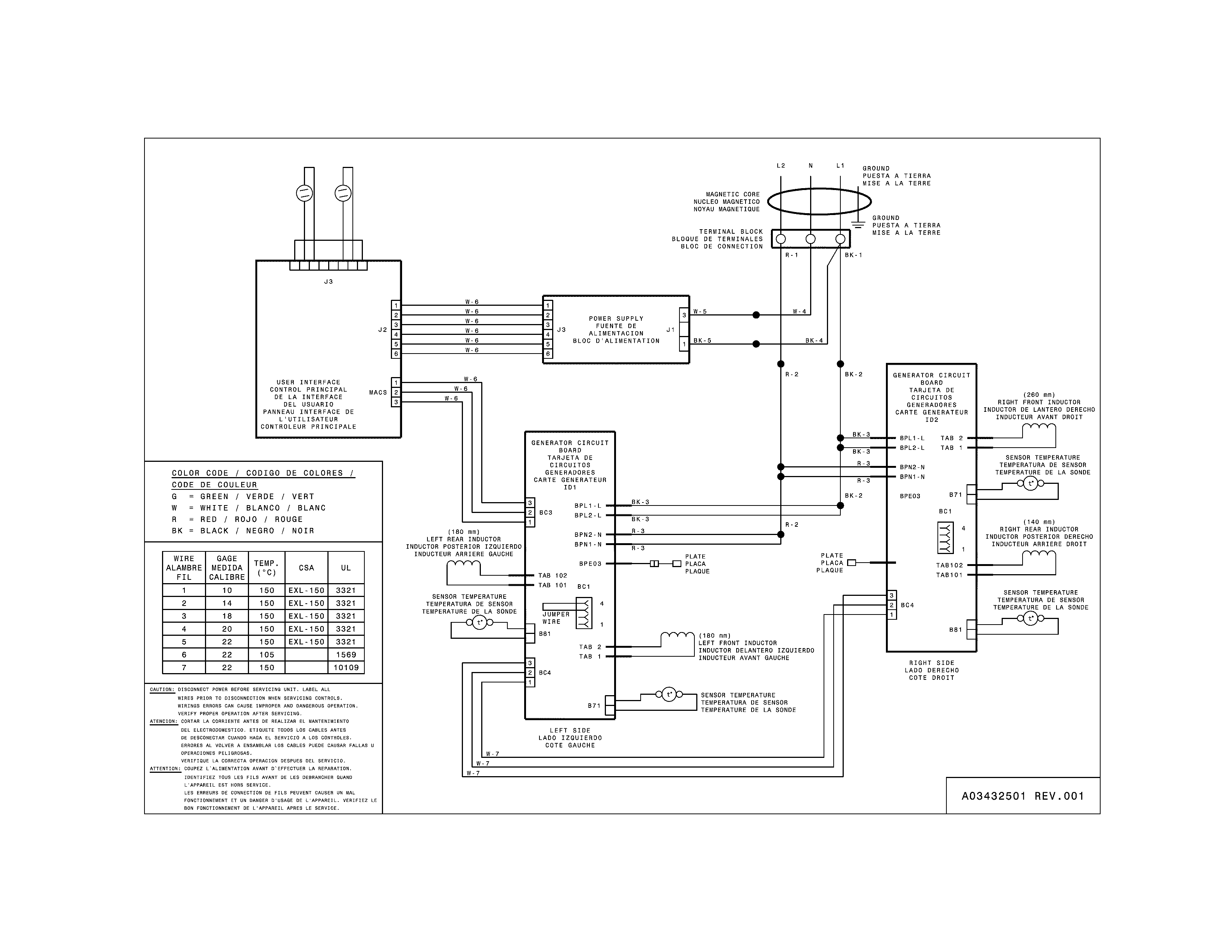

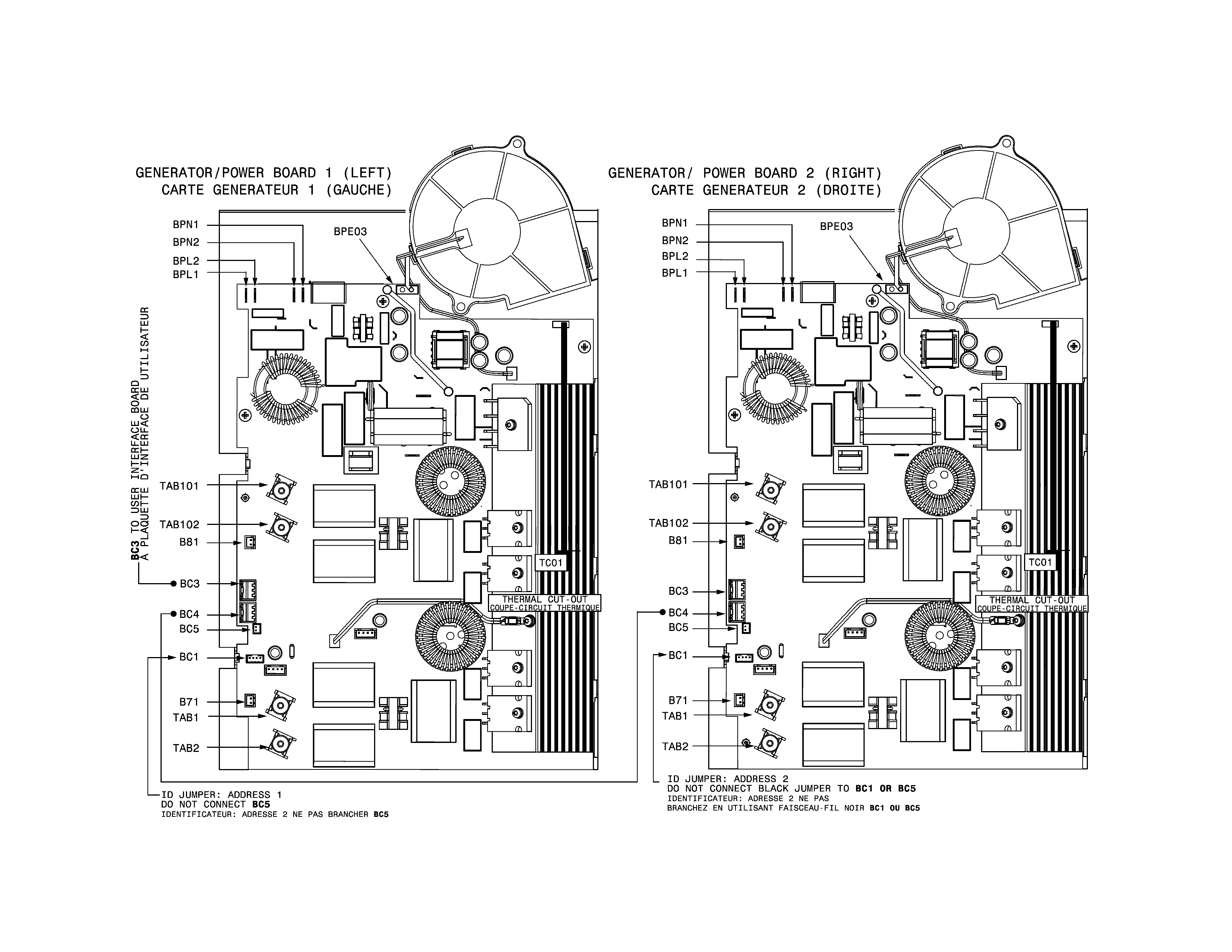

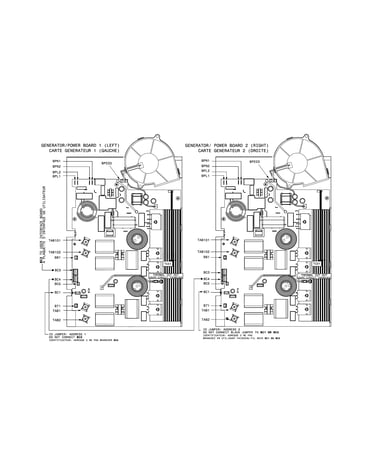

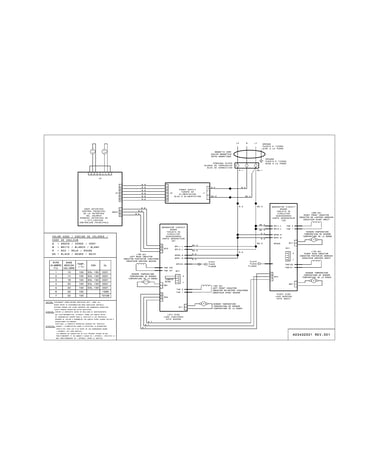

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Terminal Block 316056000
Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Generator,circuit Board ,induction ,2 Zone 357266097
#1

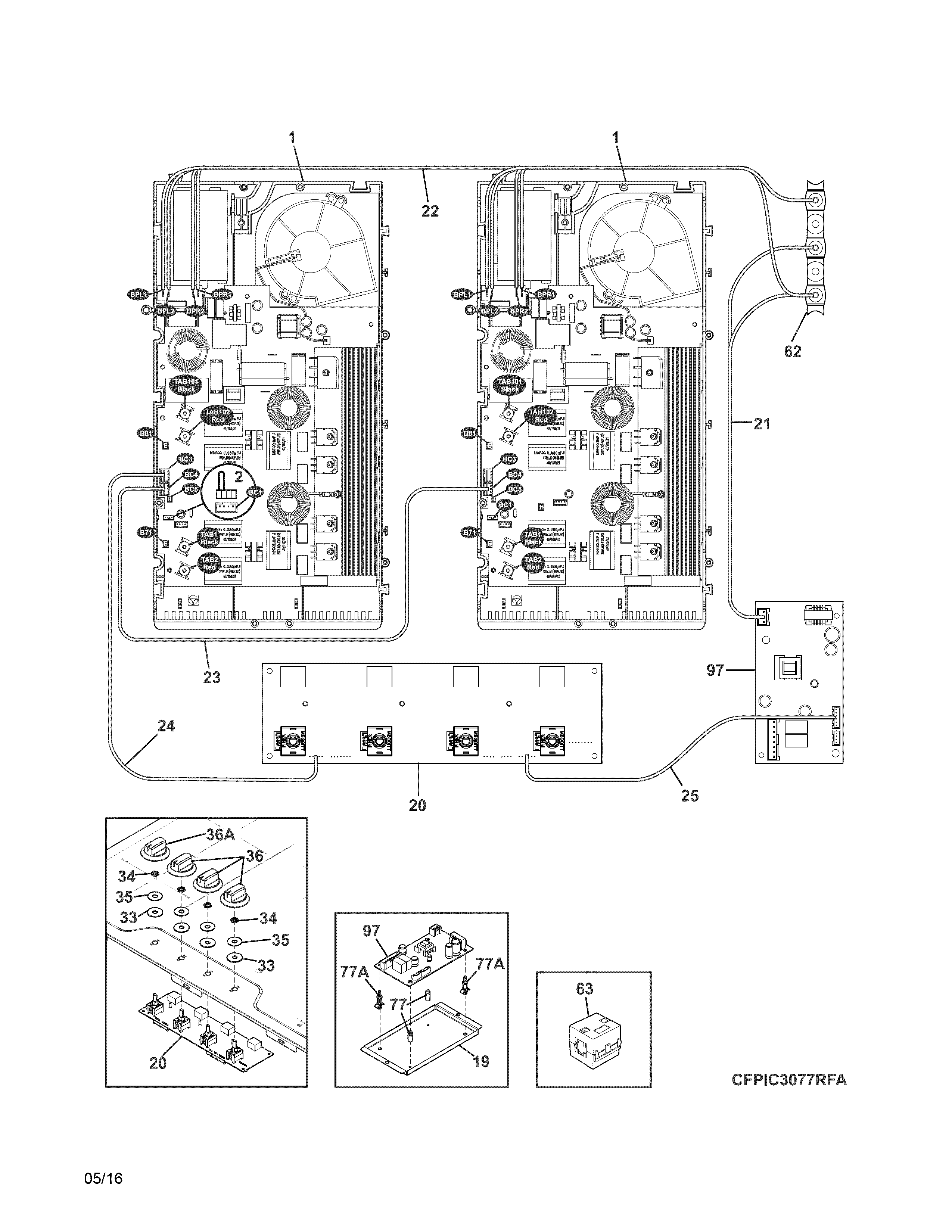

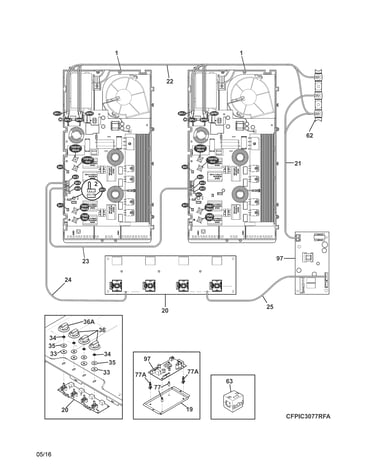

Controls/induction unit diagram

Generator,circuit board ,induction ,2 zone

Part #357266097

Replaced by #357266088

?
Manufacturer substitution
This part replaces 357266097. Substitute parts can look different from the original.
$371.60
In Stock
Element,induction Coil ,180 Mm 357226364
#15A

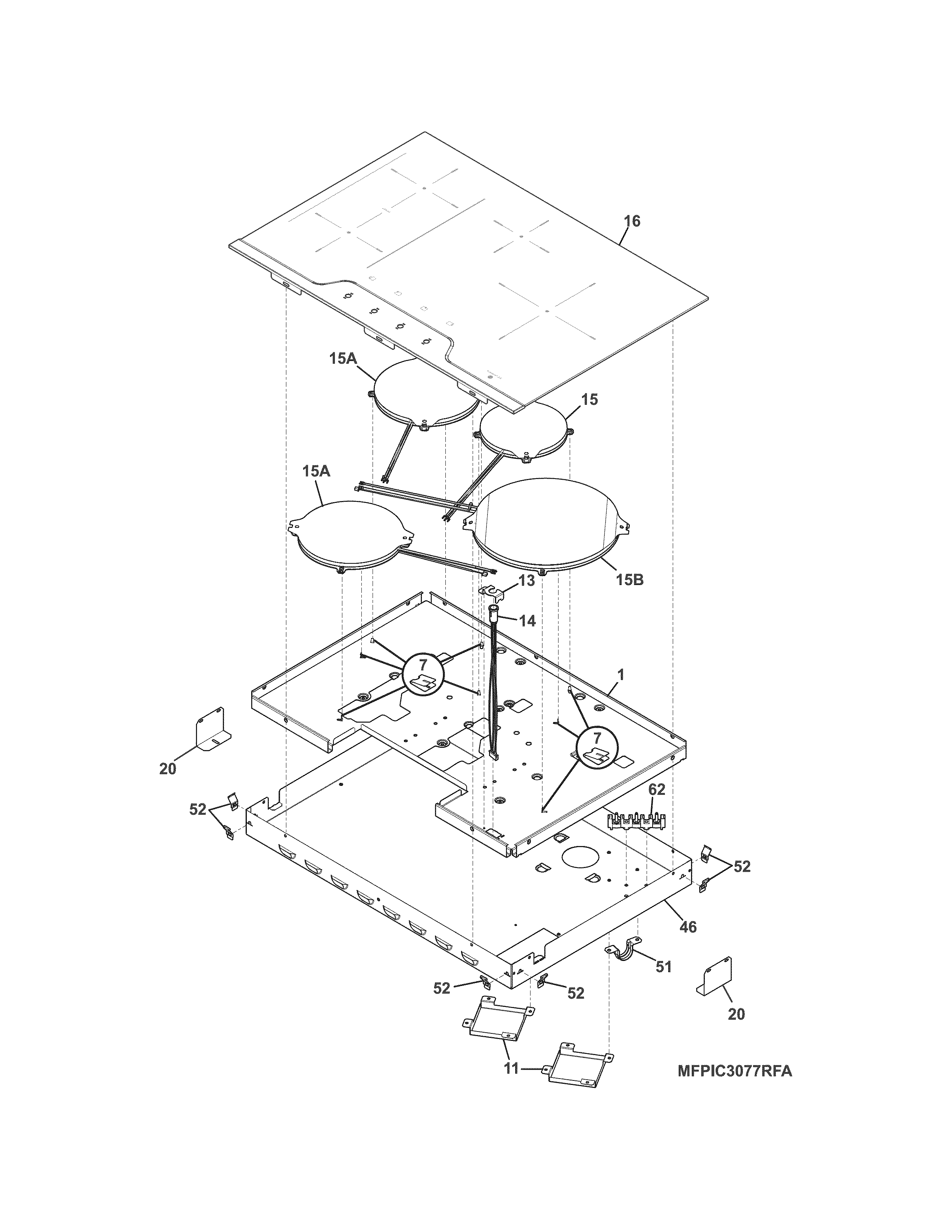

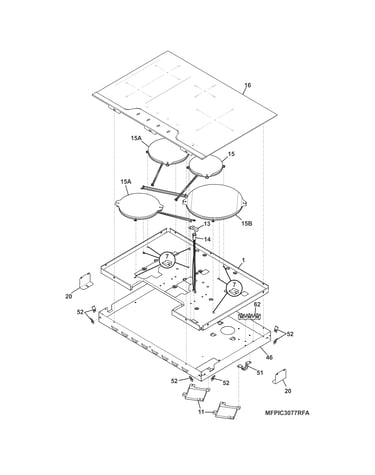

Maintop/surface units diagram

Element,induction coil ,180 mm

Part #357226364

$111.20
In Stock
Range Nut 316247700
#34

Controls/induction unit diagram

Range nut

Part #316247700

This item is not returnable
$16.77
In Stock
Cooktop Power Control Board 808844401
#97

Controls/induction unit diagram

Cooktop power control board

Part #808844401

This item is not returnable
$159.70 |
7% OFF Phone Price : $171.70
In Stock
Indicator Light 5304506081
#14

Maintop/surface units diagram

Indicator light

Part #5304506081

$28.31
In Stock
Screw 330447900
#NI

Controls/induction unit diagram

Screw

Part #330447900

This item is not returnable
$11.17
In Stock
Cooktop Wire Harness 318578332
#23

Controls/induction unit diagram

Cooktop wire harness

Part #318578332

$38.11
In Stock
Air Deflector 5304506079
#11

Maintop/surface units diagram

Air deflector

Part #5304506079

$9.09
In Stock
Cooktop Jumper Wire Harness 5304506068
#2

Controls/induction unit diagram

Cooktop jumper wire harness

Part #5304506068

$10.03
In Stock
