Model # AZ75W18DACM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ75W18DACM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

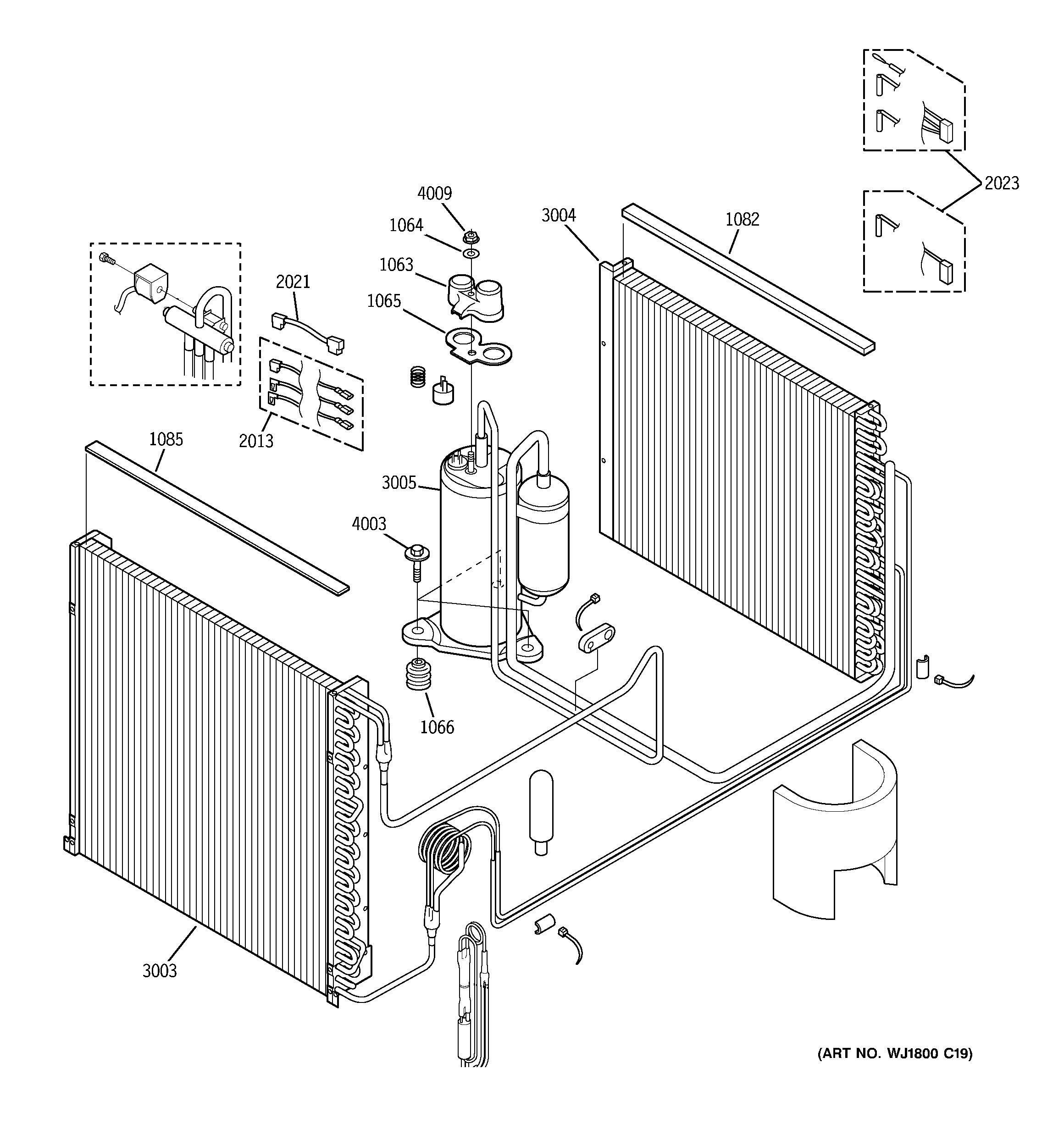

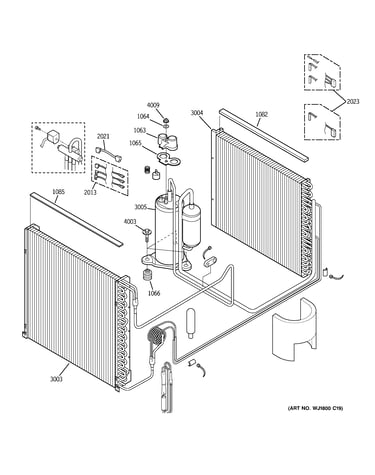

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Room Air Conditioner Blower Wheel WJ73X10059
#1051

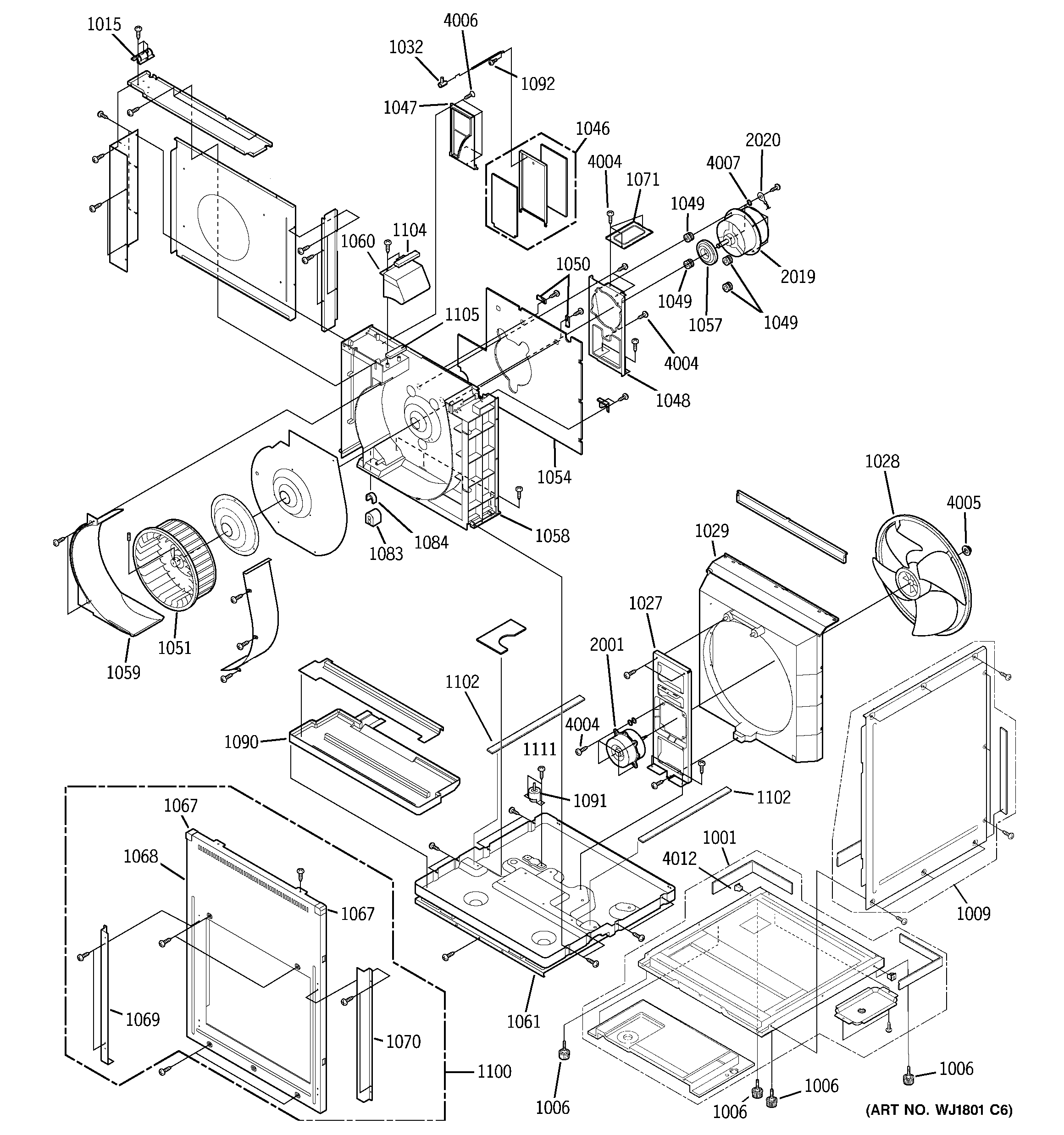

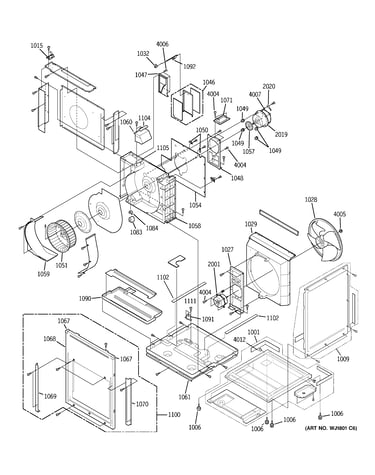

Motor, heater & base pan parts diagram

Room air conditioner blower wheel

Part #WJ73X10059

$106.79 |
10% OFF Phone Price : $118.79
In Stock
Divider R As WJ01X10169
#1045

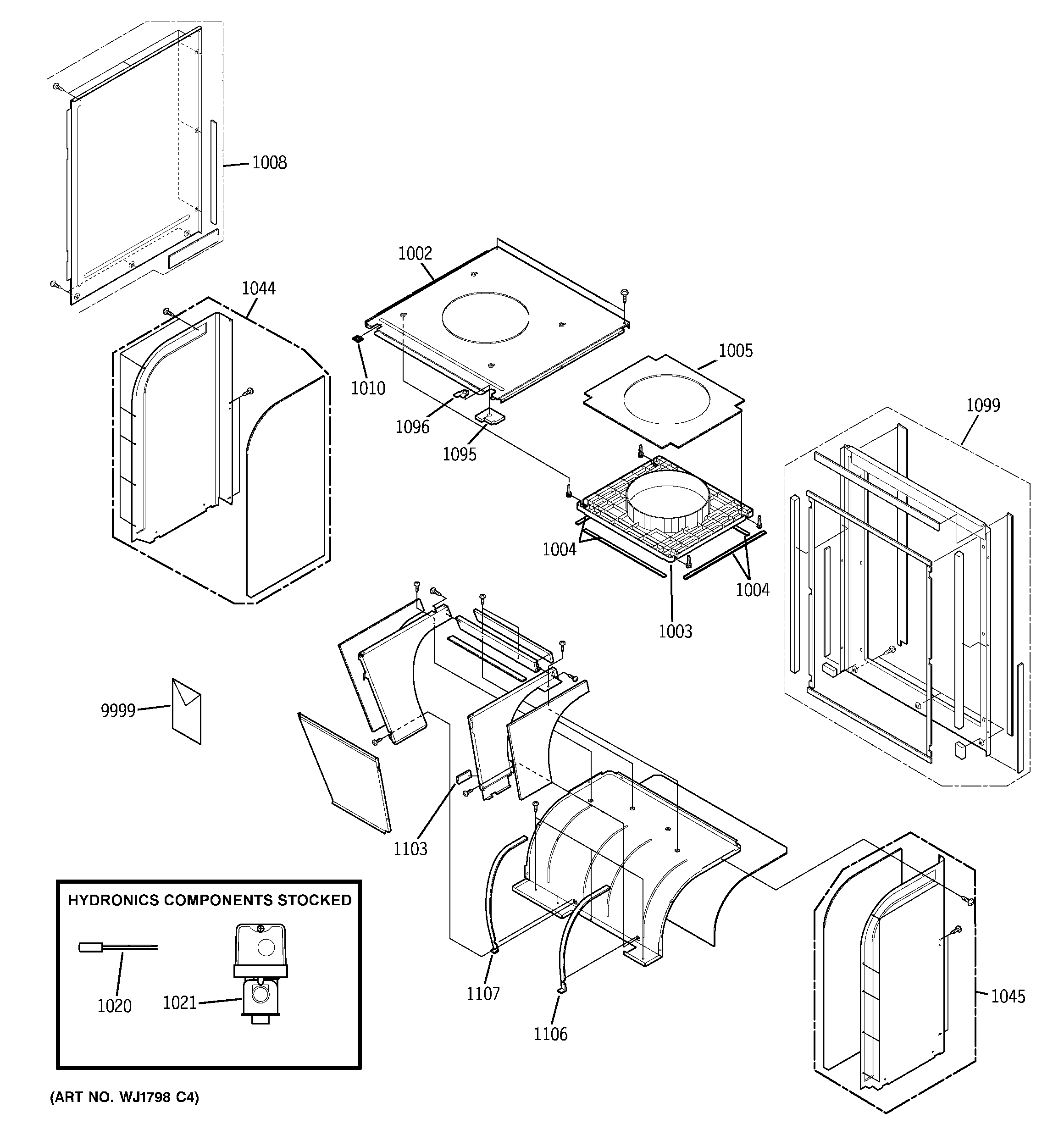

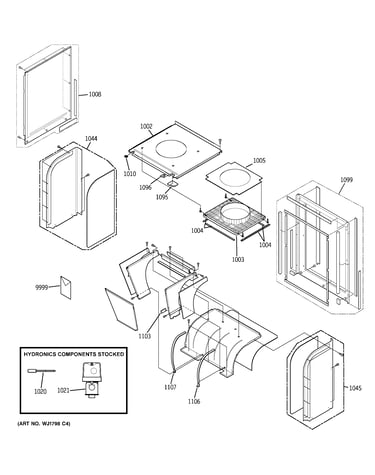

Chassis parts diagram

Divider r as

Part #WJ01X10169

$88.94
In Stock
Divider L As WJ01X10168
#1044

Chassis parts diagram

Divider l as

Part #WJ01X10168

$88.94
In Stock
Room Air Conditioner Transformer WP27X10023
#2018

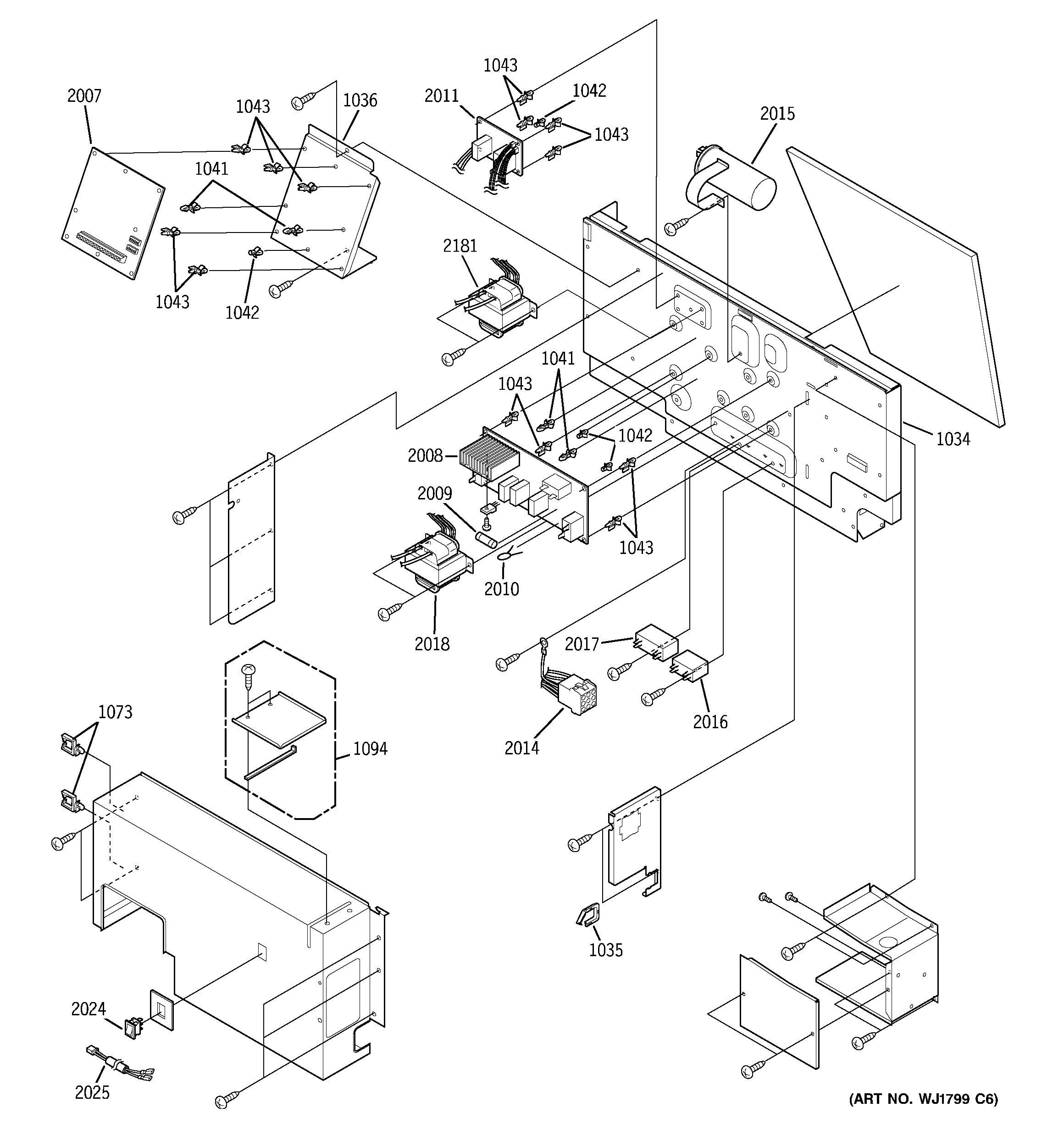

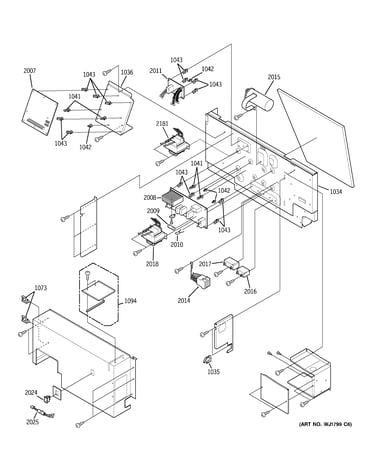

Control parts diagram

Room air conditioner transformer

Part #WP27X10023

$66.04 |
8% OFF Phone Price : $72.04
In Stock
Plate Assembly WJ11X10008
#1094

Control parts diagram

Plate assembly

Part #WJ11X10008

$28.88
In Stock
Fan Housing WJ60X10007
#1104

Motor, heater & base pan parts diagram

Fan housing

Part #WJ60X10007

This item is not returnable
$4.99
In Stock
Room Air Conditioner Fan Blade Nut WJ01X10041
#4005

Motor, heater & base pan parts diagram

Room air conditioner fan blade nut

Part #WJ01X10041

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Cord Holder WP01X10009
#1073

Control parts diagram

Cord holder

Part #WP01X10009

This item is not returnable
$4.35
In Stock
Spacer WP01X10010
#1042

Control parts diagram

Spacer

Part #WP01X10010

This item is not returnable
$4.35
In Stock
Running Capacitor WP20X10030
#2015

Control parts diagram

Running capacitor

Part #WP20X10030

$52.16 |
10% OFF Phone Price : $58.16
In Stock
