Craftsman
Drill Press

Model # 11324511 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 11324511 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Drill Press Feed Return Spring (replaces 38939) 38989
#55

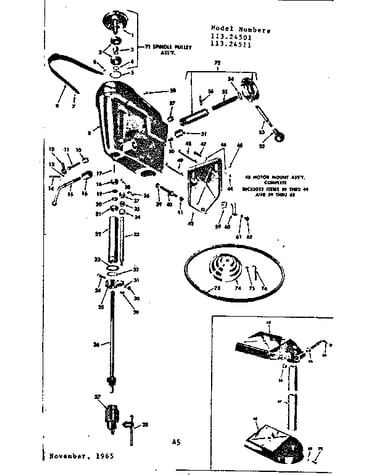

Unit diagram

Drill press feed return spring (replaces 38939)

Part #38989

The manufacturer no longer makes this part, and there's no substitute part

Quill Brng 18211
#21

Unit diagram

Quill brng

Part #18211

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 18129
#28

Unit diagram

Chuck key

Part #18129

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 18916
#52

Unit diagram

Handle knob

Part #18916

The manufacturer no longer makes this part, and there's no substitute part

Lock Handle 27623
#15

Unit diagram

Lock handle

Part #27623

The manufacturer no longer makes this part, and there's no substitute part

Spindle Assembly 27130
#26

Unit diagram

Spindle assembly

Part #27130

The manufacturer no longer makes this part, and there's no substitute part

Lock Screw 18512
#11

Unit diagram

Lock screw

Part #18512

The manufacturer no longer makes this part, and there's no substitute part

Nut 27733
#39

Unit diagram

Nut

Part #27733

The manufacturer no longer makes this part, and there's no substitute part

Spindle Pulley 27415
#1

Unit diagram

Spindle pulley

Part #27415

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 38876
#45

Unit diagram

Roll pin

Part #38876

The manufacturer no longer makes this part, and there's no substitute part
