Model # 502475880 Official Sears 20" spyder bicycle

Here are the diagrams and repair parts for Official Sears 502475880 20" spyder bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 37 parts |

Spoke Set 303173

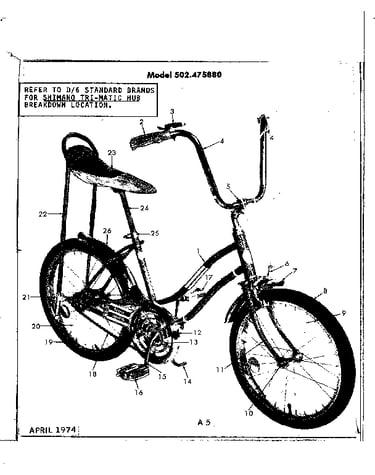

Unit parts diagram

Spoke set

Part #303173

The manufacturer no longer makes this part, and there's no substitute part

Spk 7-9/16 303155

Unit parts diagram

Spk 7-9/16

Part #303155

The manufacturer no longer makes this part, and there's no substitute part

F Wheel 303005C

Unit parts diagram

F wheel

Part #303005C

The manufacturer no longer makes this part, and there's no substitute part

Cable/casing 300392

Unit parts diagram

Cable/casing

Part #300392

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518

#NI

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697

Unit parts diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Support Bar 28691C

Support bar

Part #28691C

The manufacturer no longer makes this part, and there's no substitute part

Slf-tpng Scw 26X49

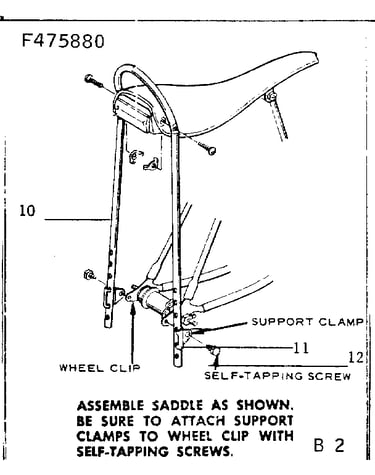

Saddle assembly diagram

Slf-tpng scw

Part #26X49

The manufacturer no longer makes this part, and there's no substitute part

Bar Stem 27160

Unit parts diagram

Bar stem

Part #27160

The manufacturer no longer makes this part, and there's no substitute part

Grip 28291

Unit parts diagram

Grip

Part #28291

The manufacturer no longer makes this part, and there's no substitute part
