Model # MLG2000AWW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag MLG2000AWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

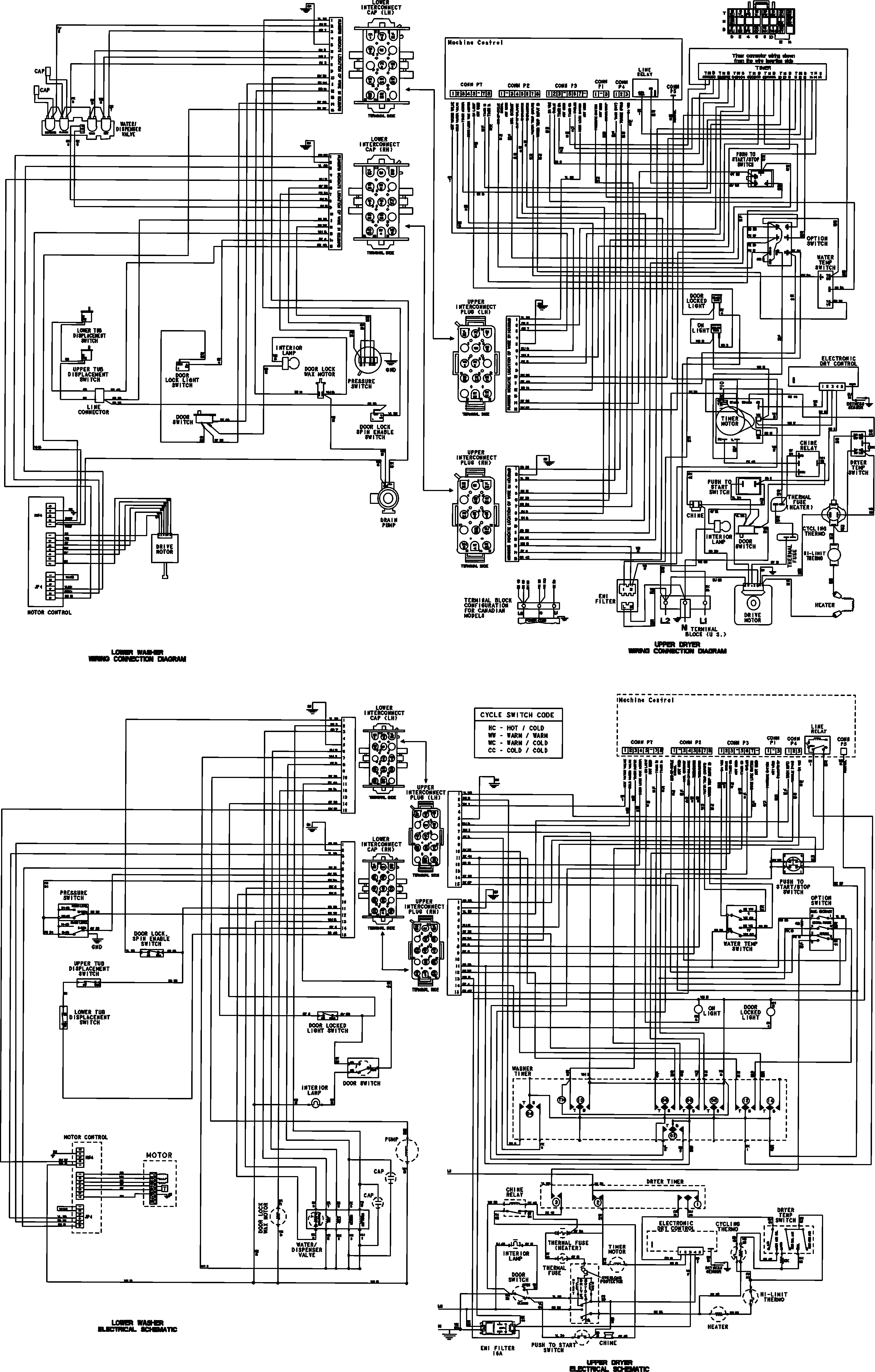

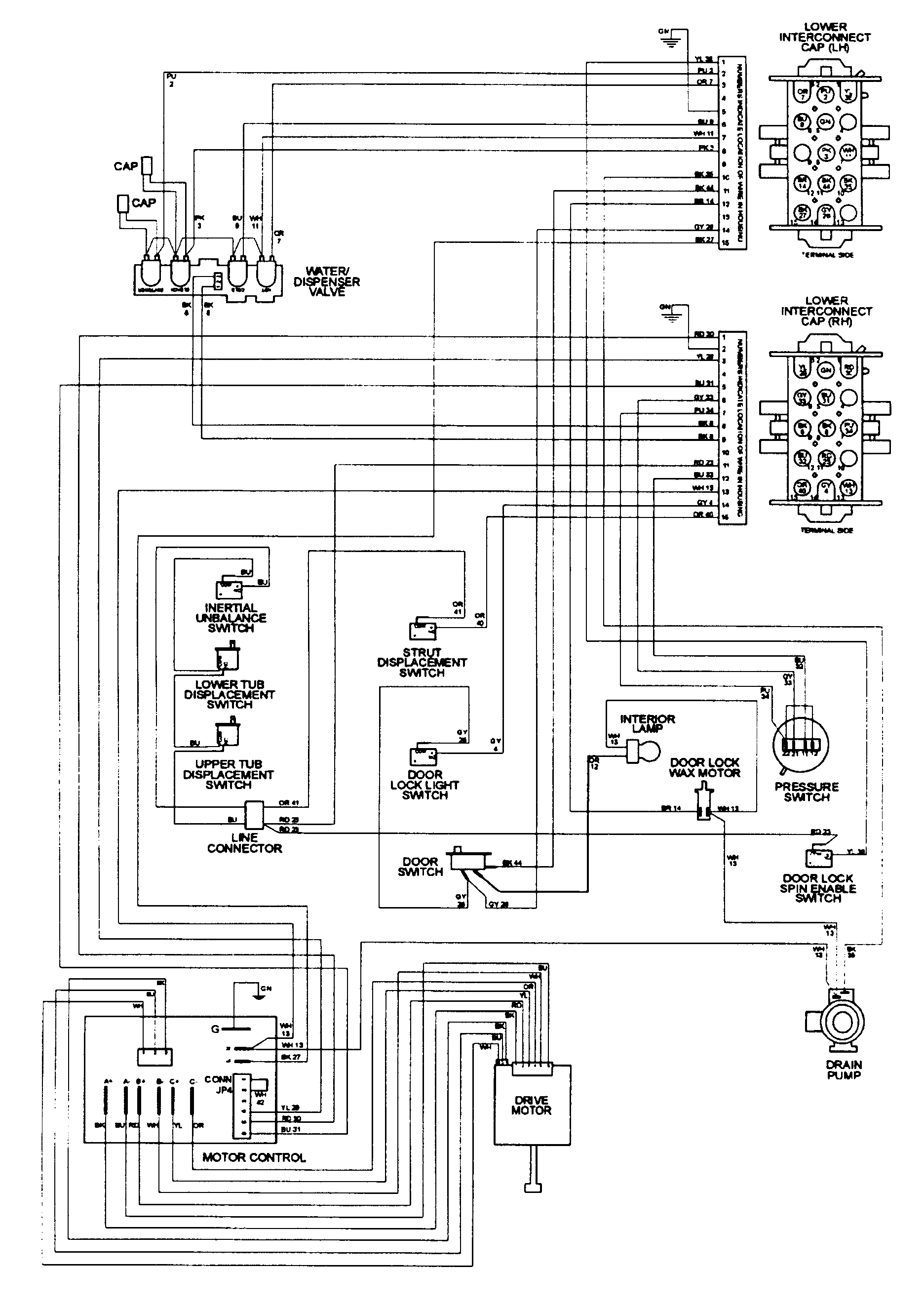

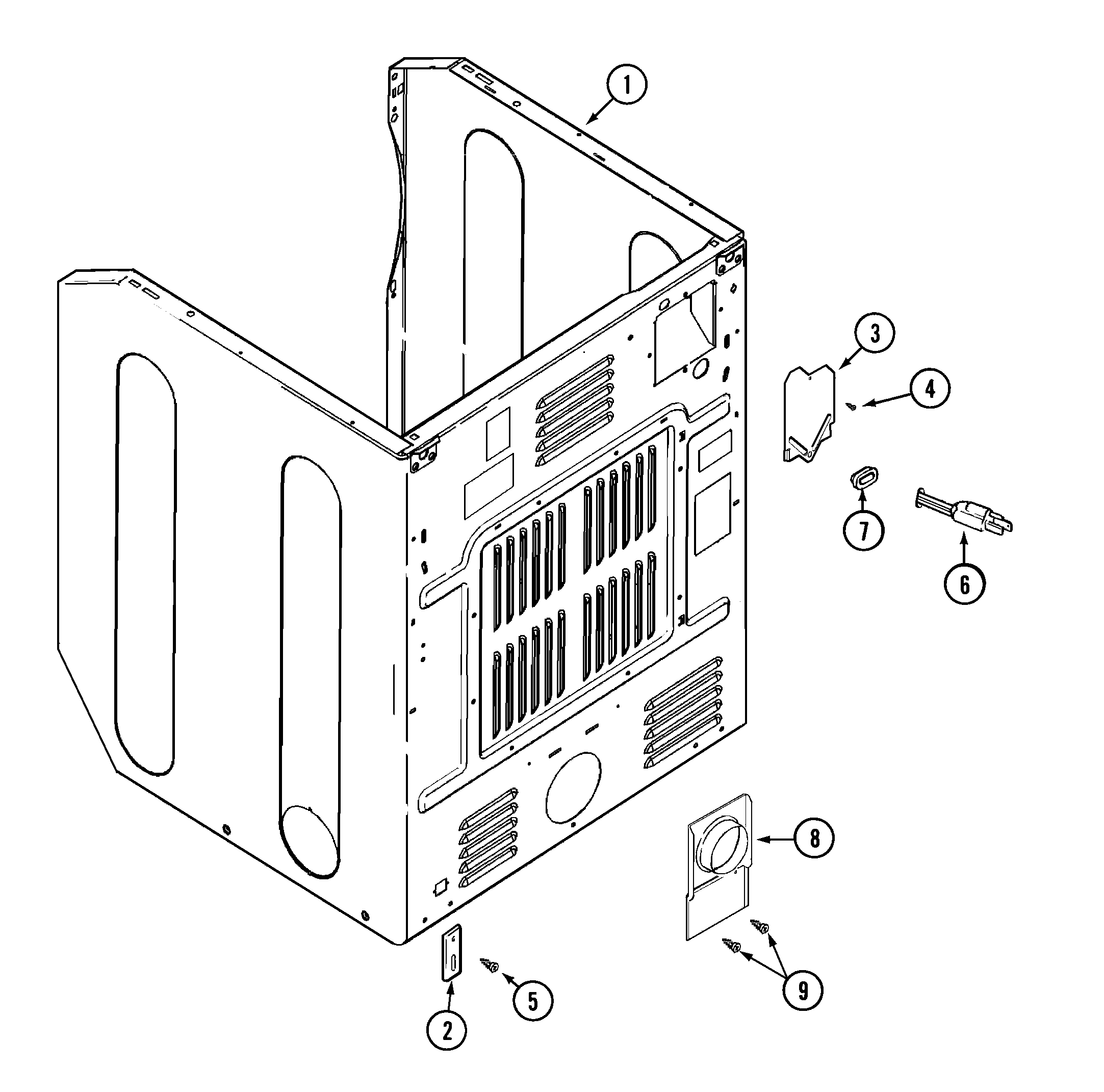

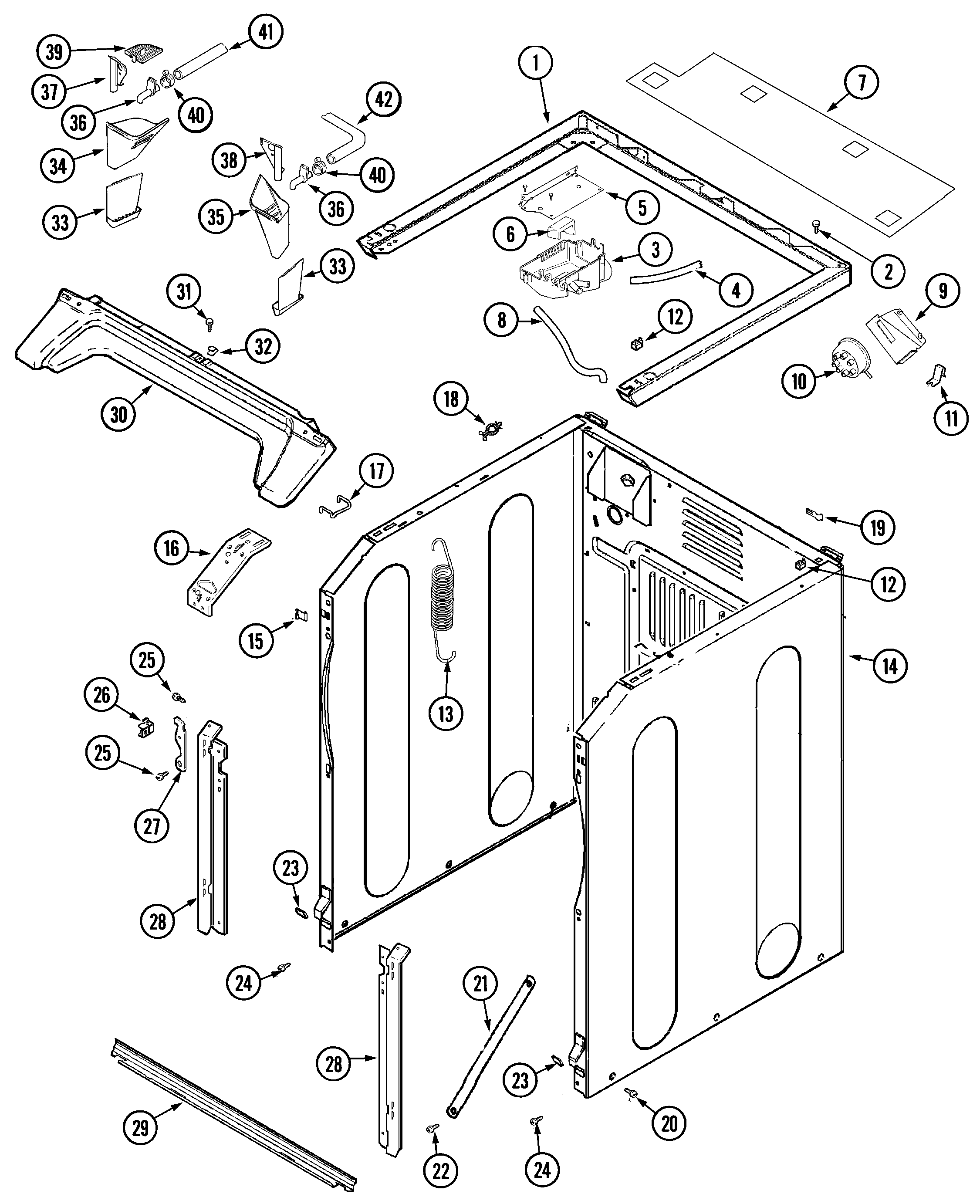

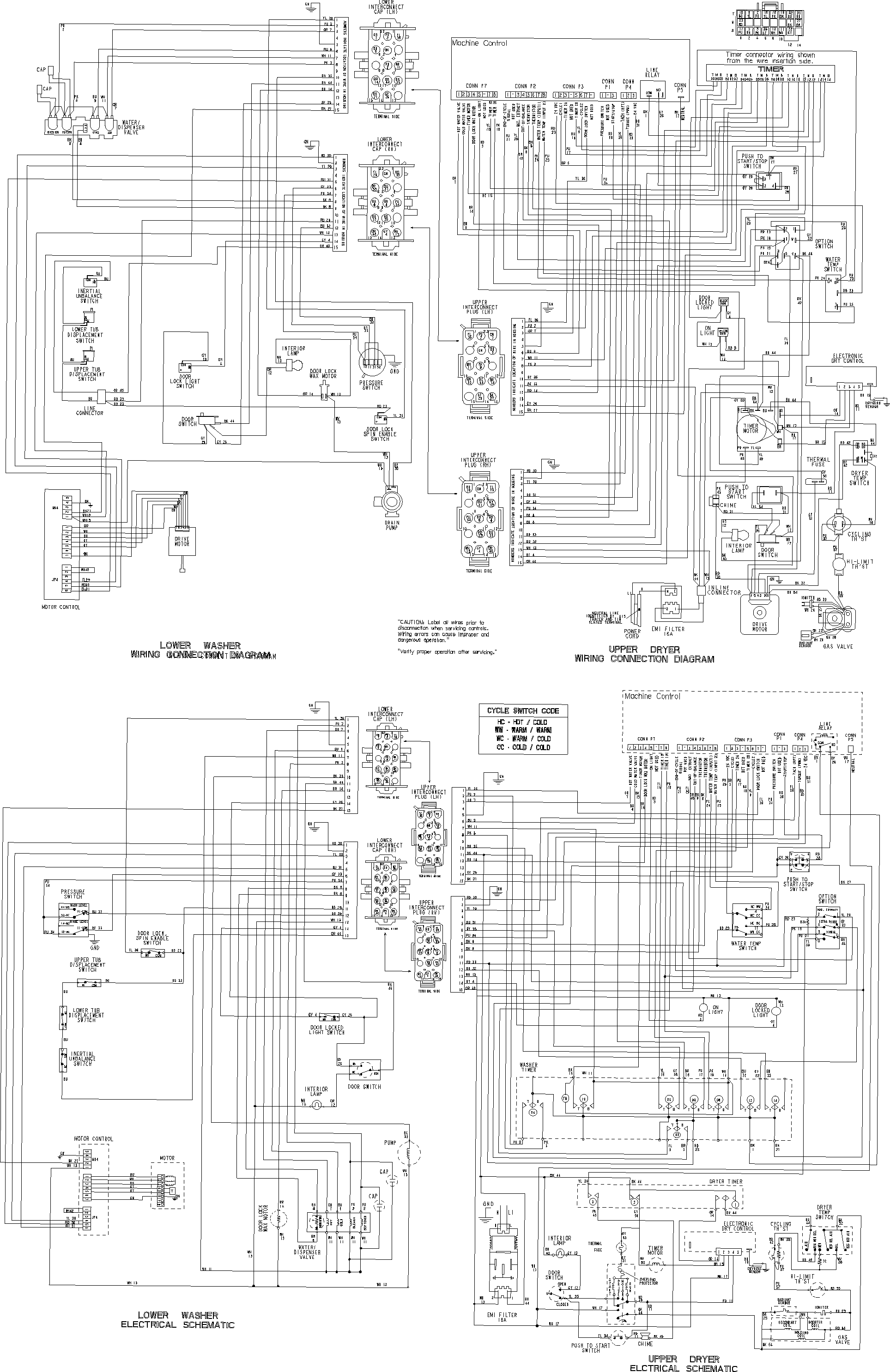

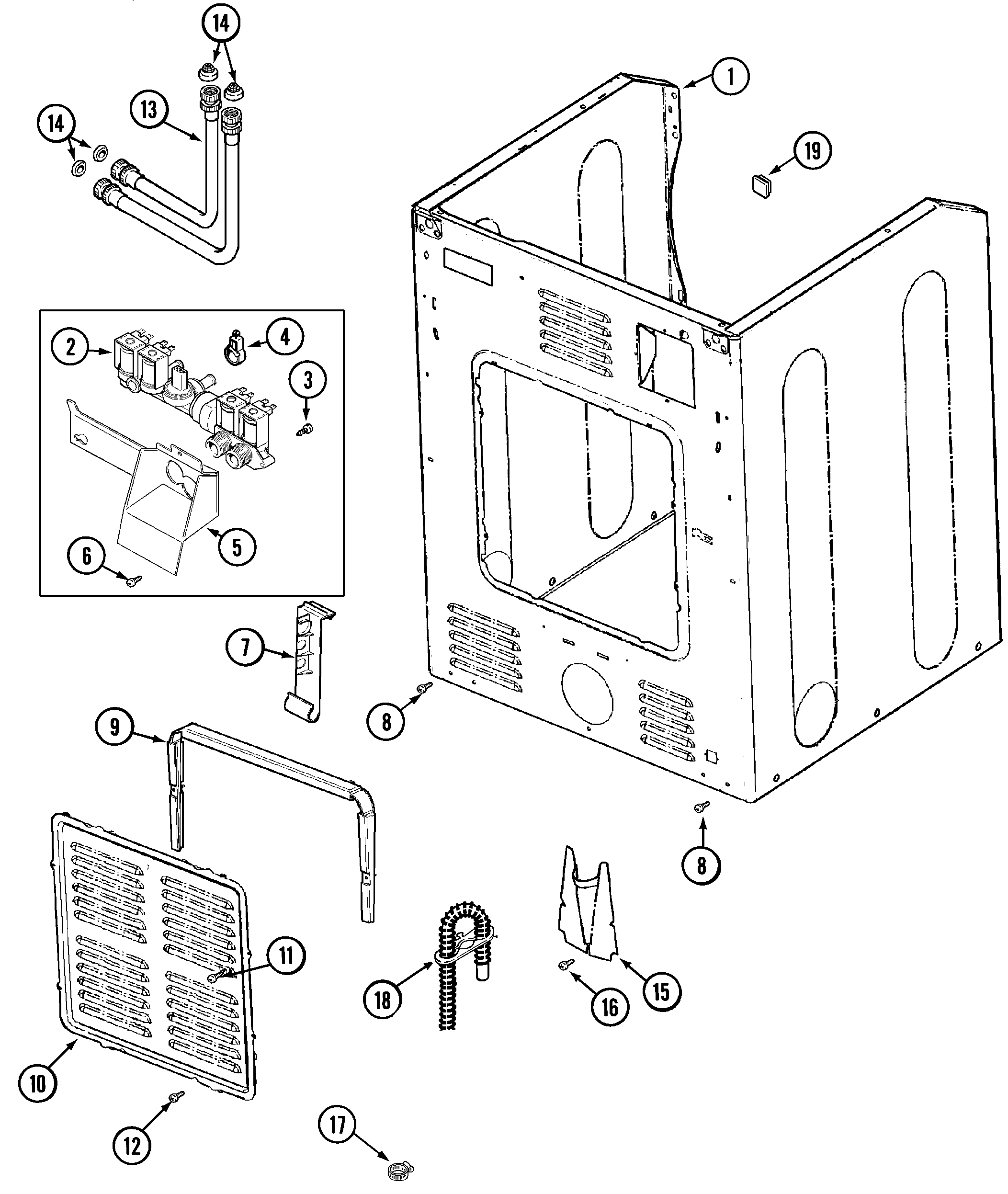

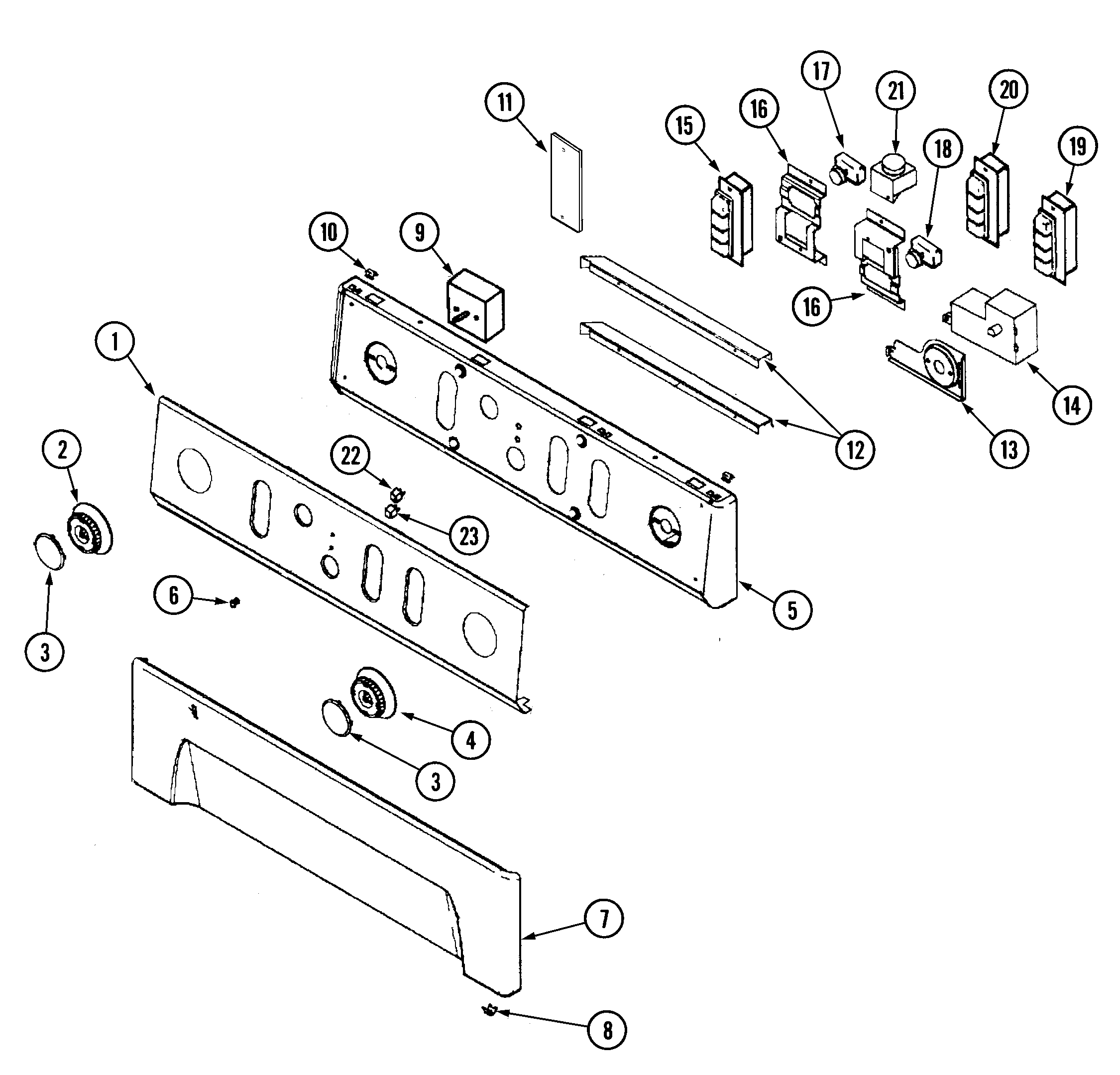

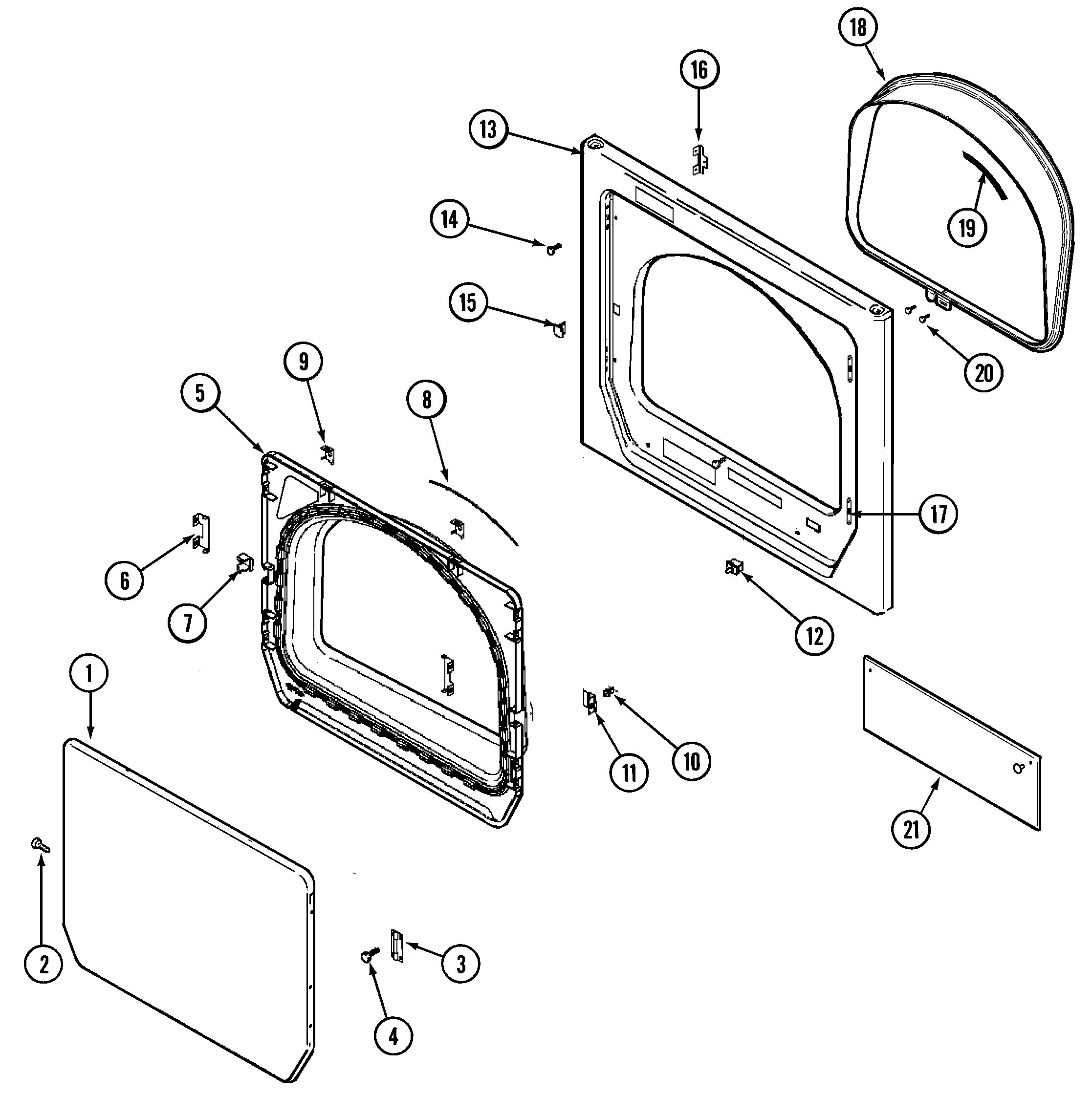

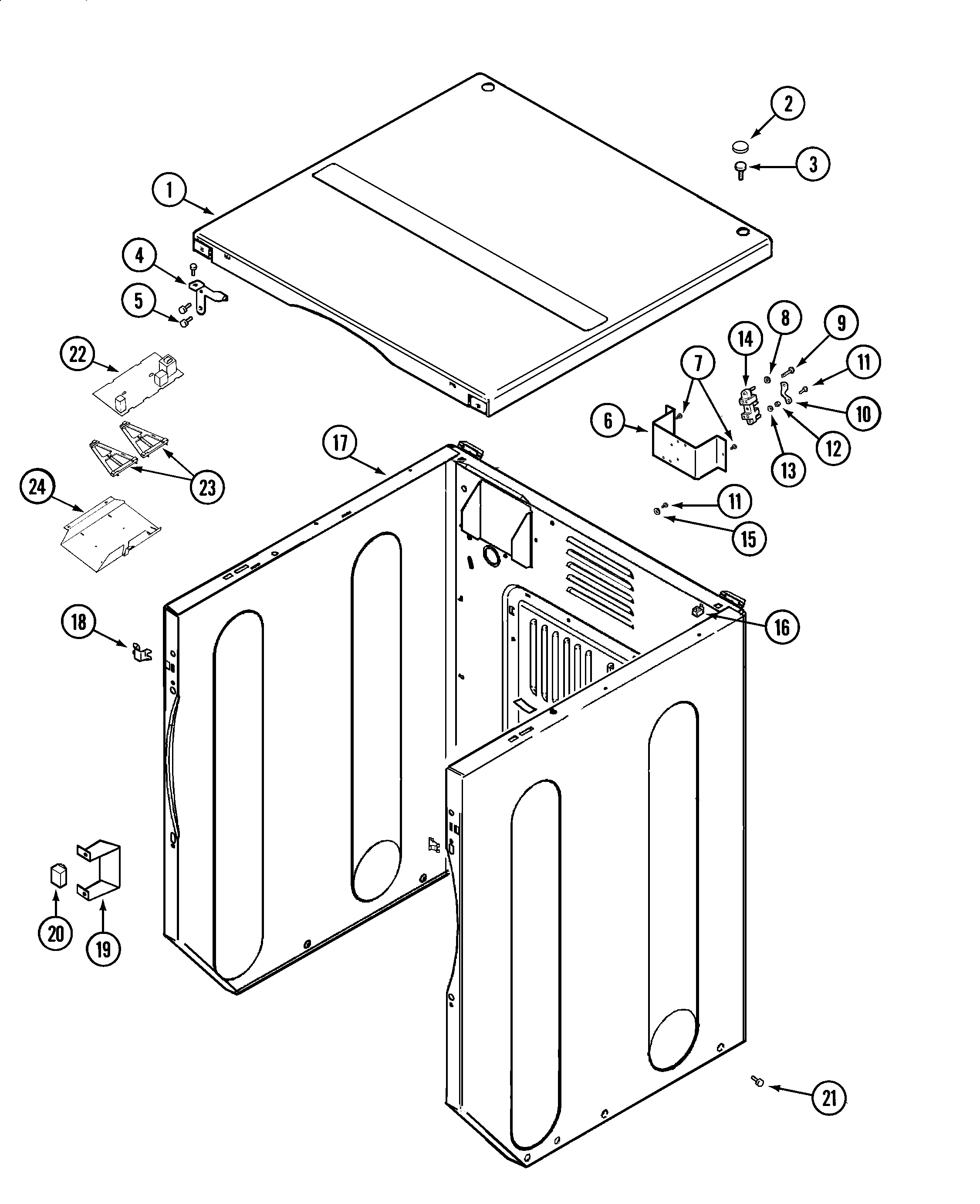

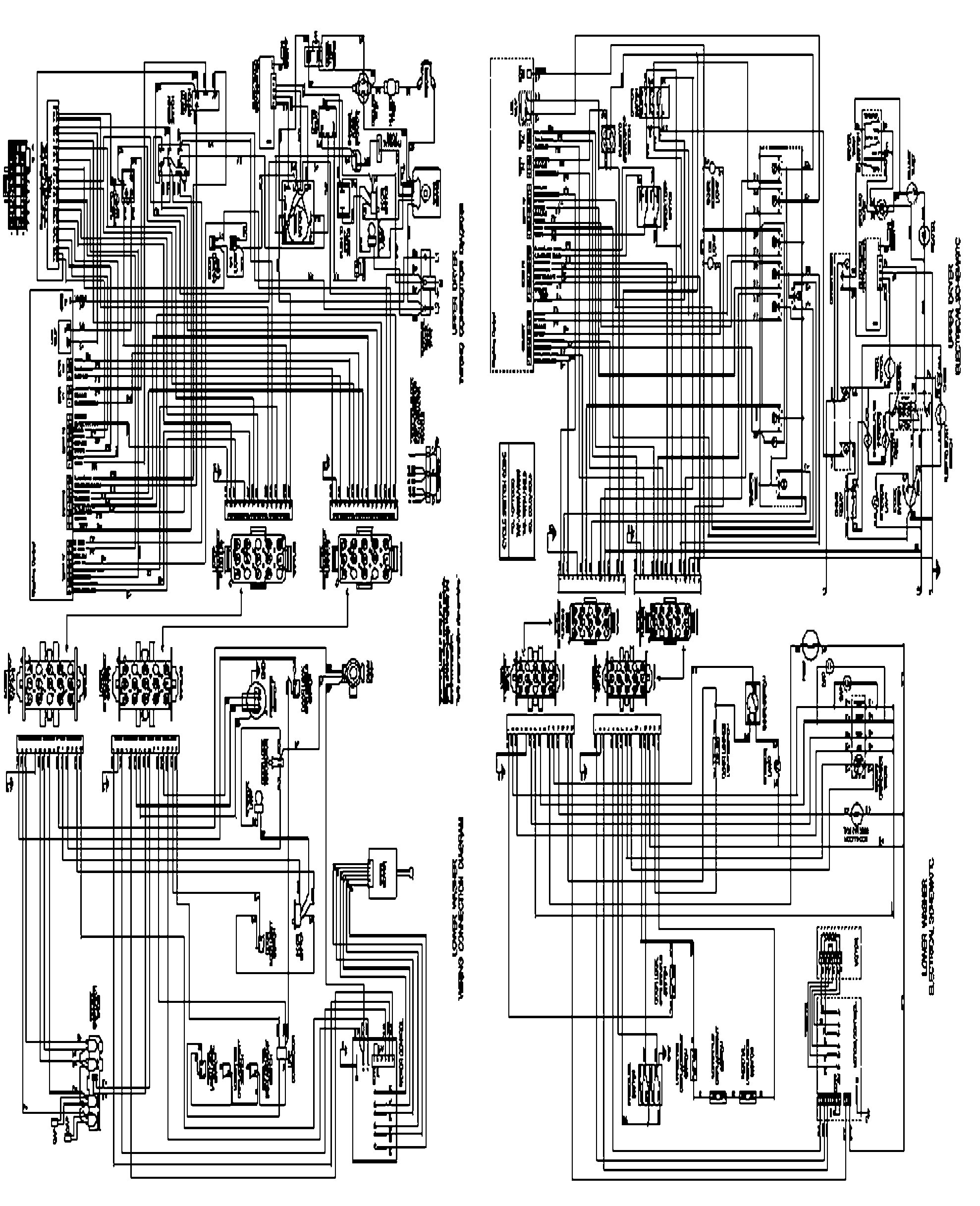

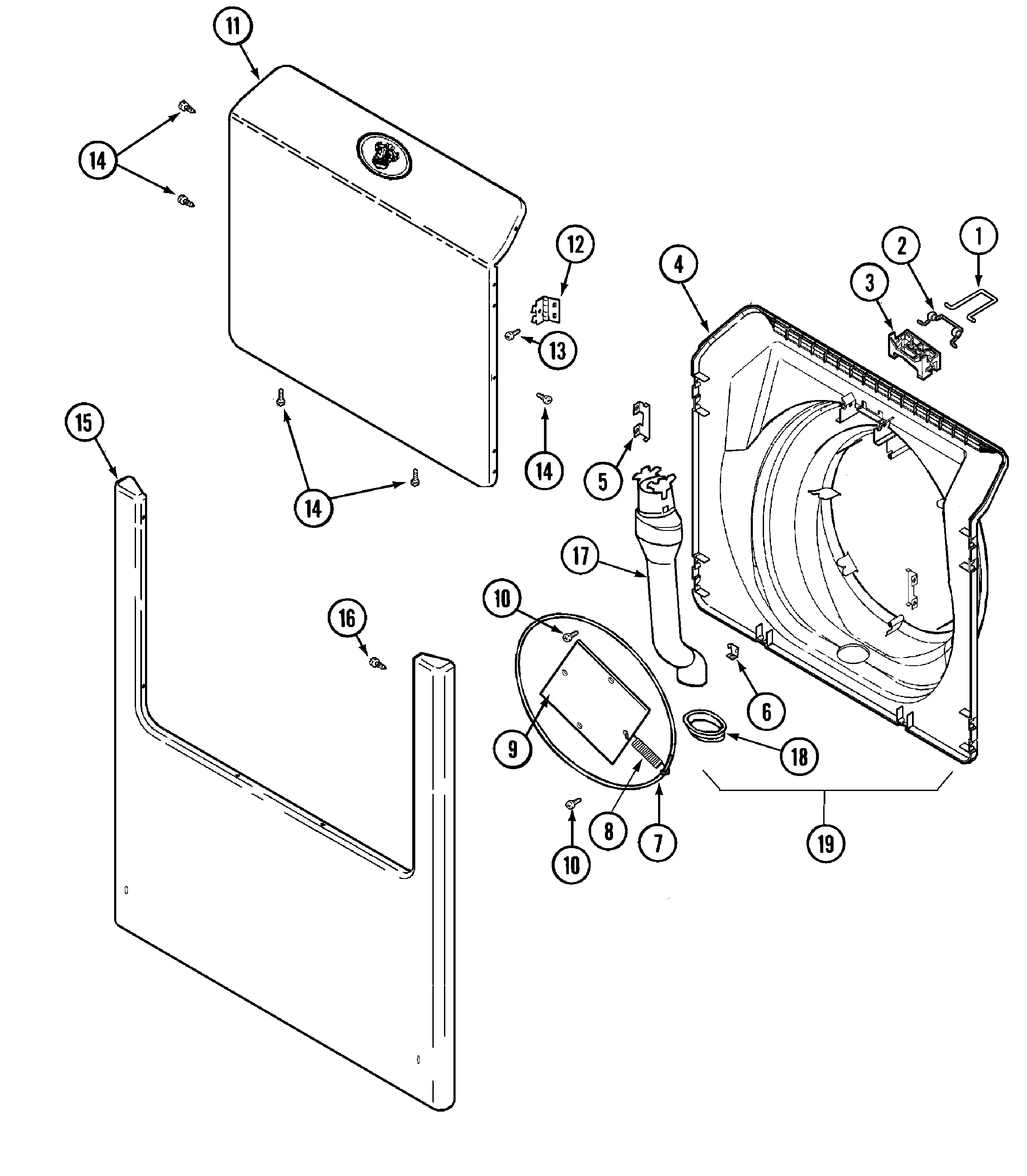

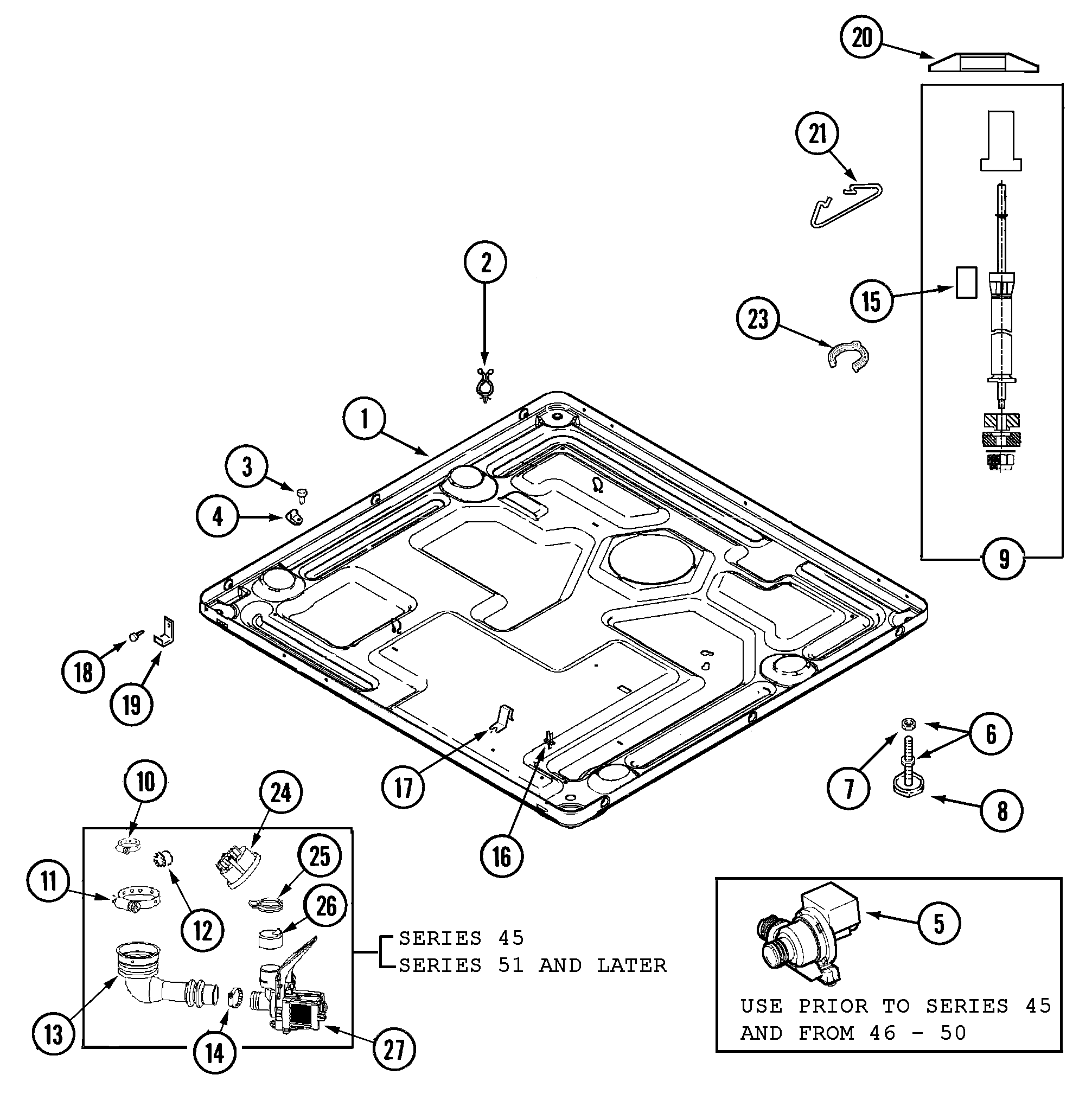

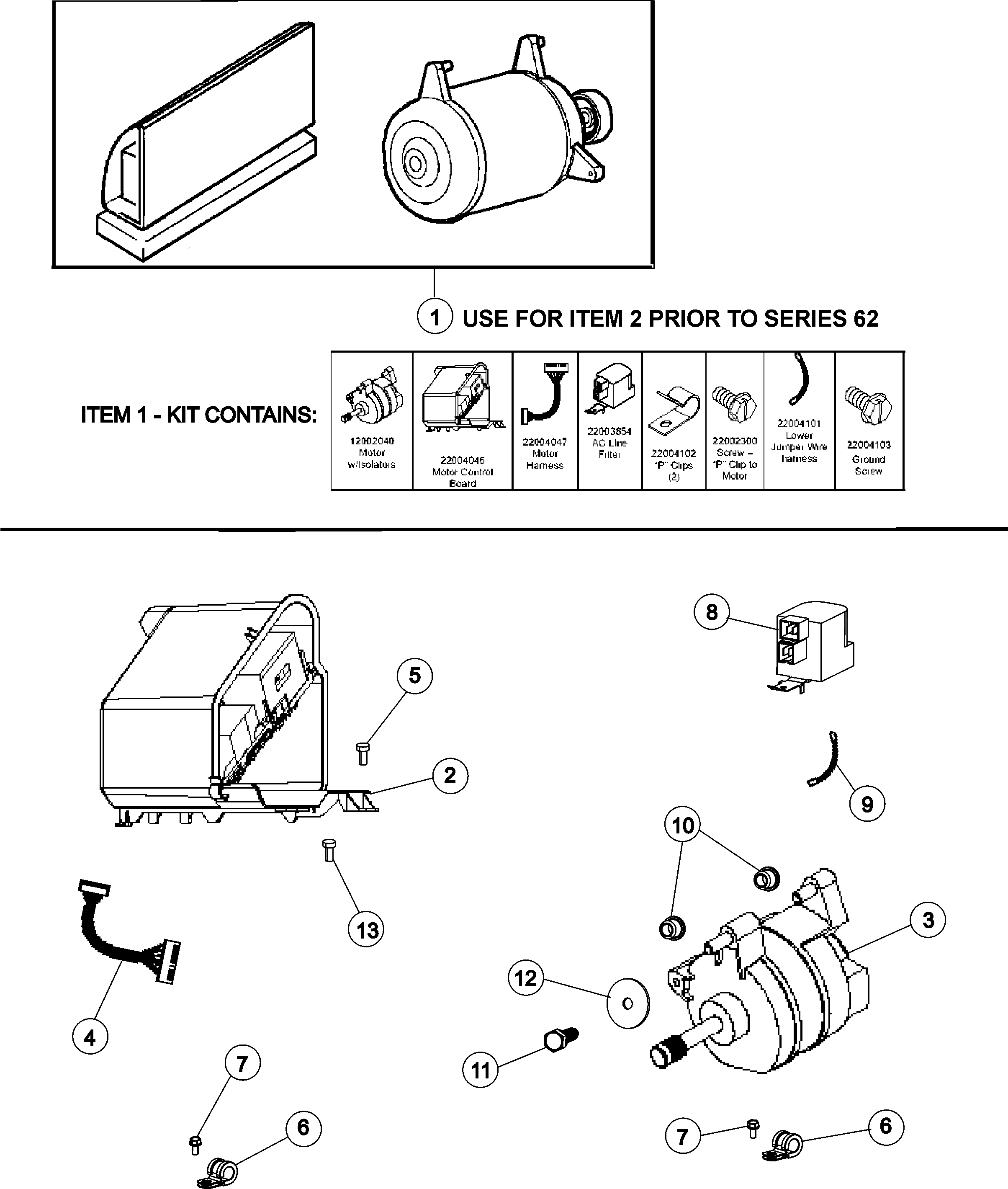

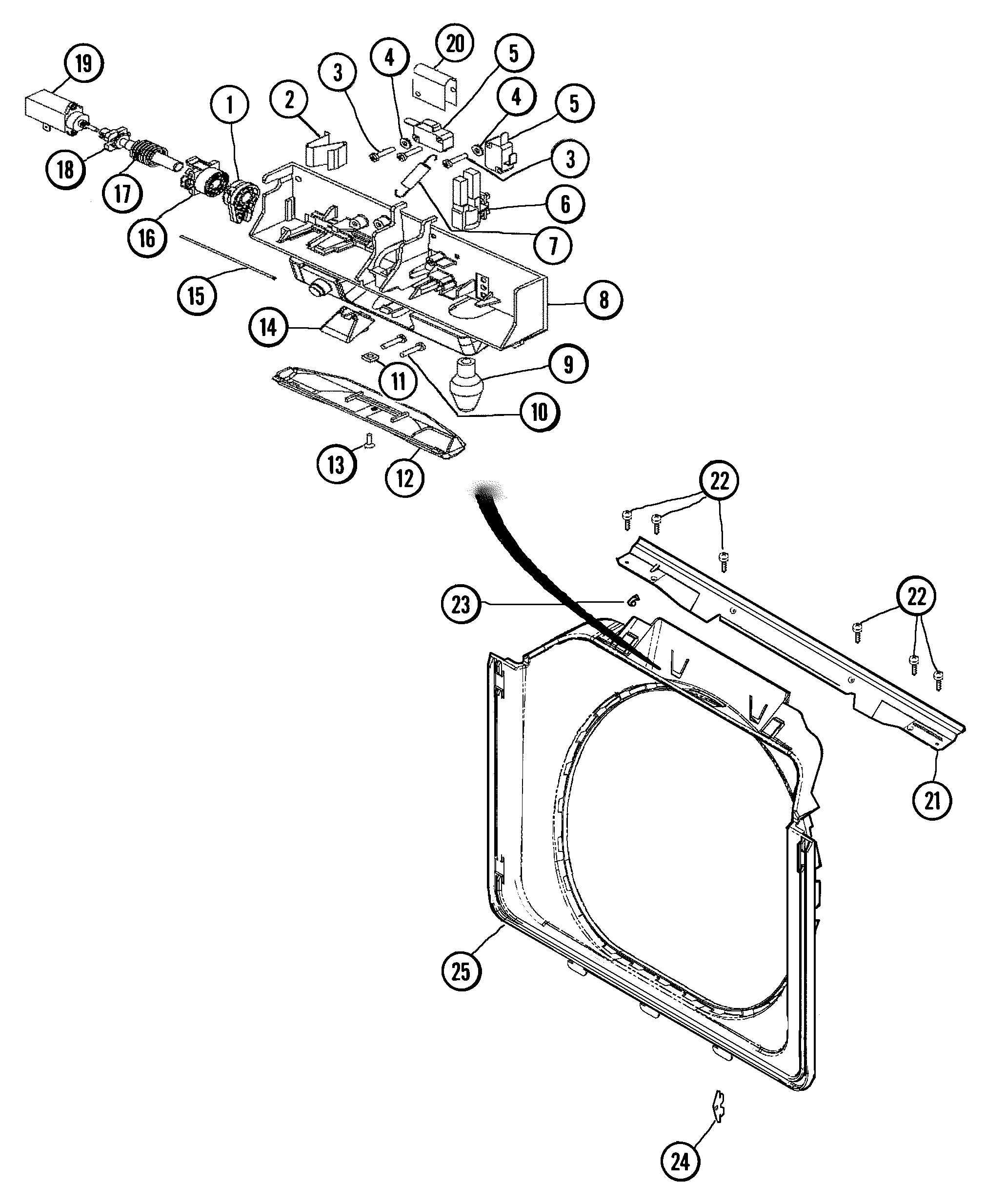

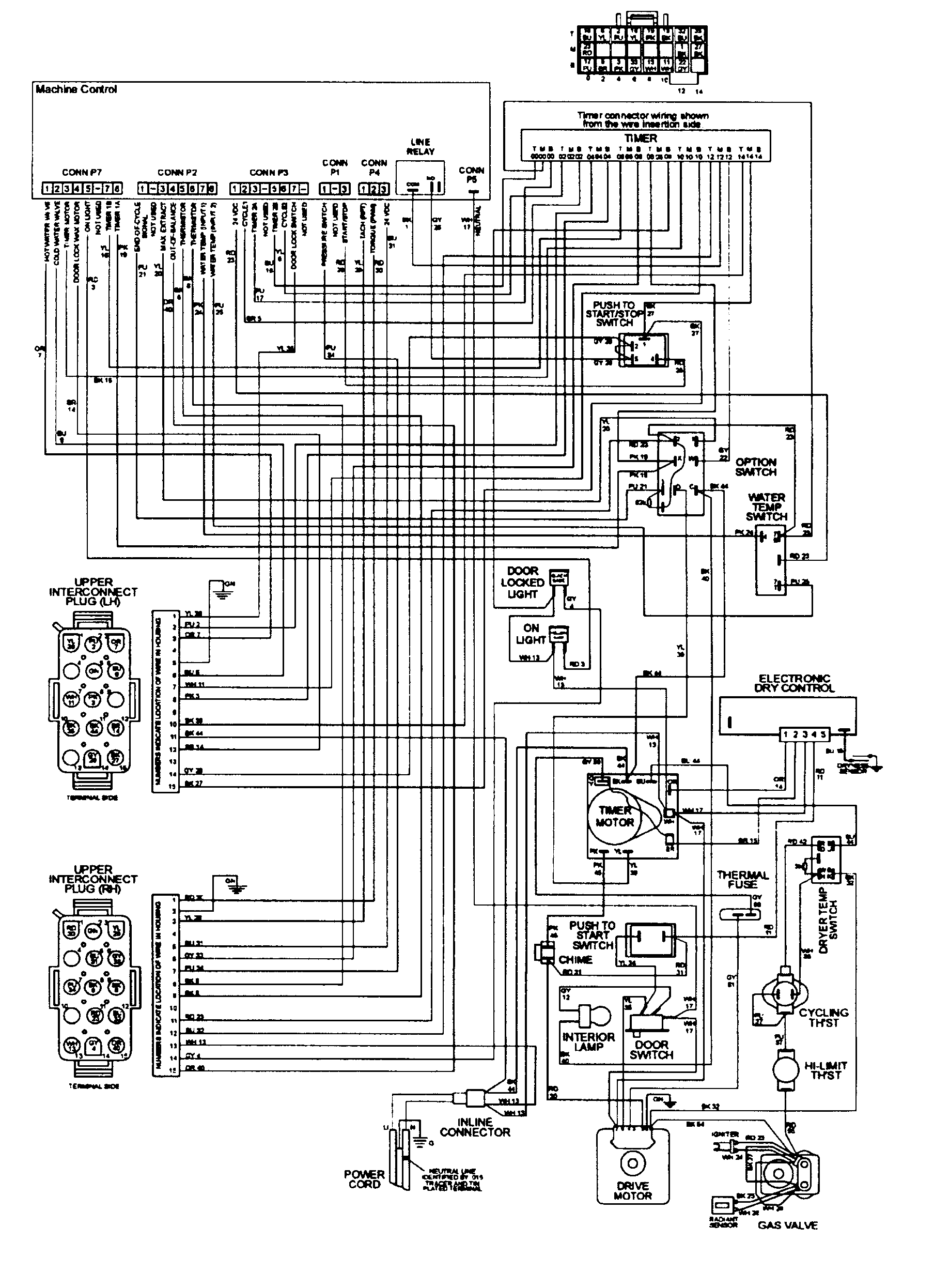

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 424 parts  |
Second Coil 306105
#8

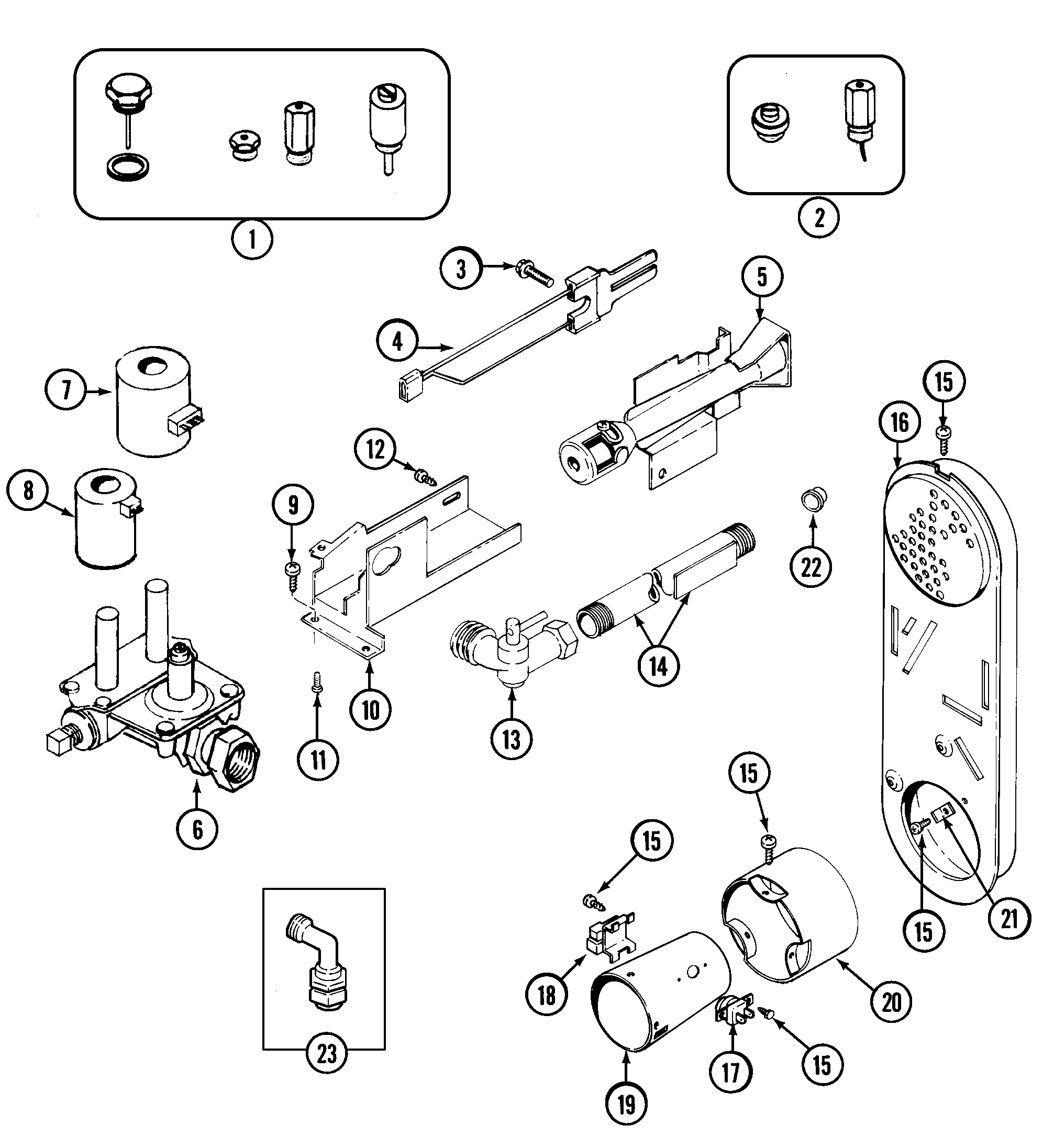

Gas valve (dryer) diagram

Second coil

Part #306105

Replaced by #279834

?
Manufacturer substitution
This part replaces 306105. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Holding Coil 306106
#7

Gas valve (dryer) diagram

Holding coil

Part #306106

Replaced by #279834

?
Manufacturer substitution
This part replaces 306106. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Thermostat 306910
#8

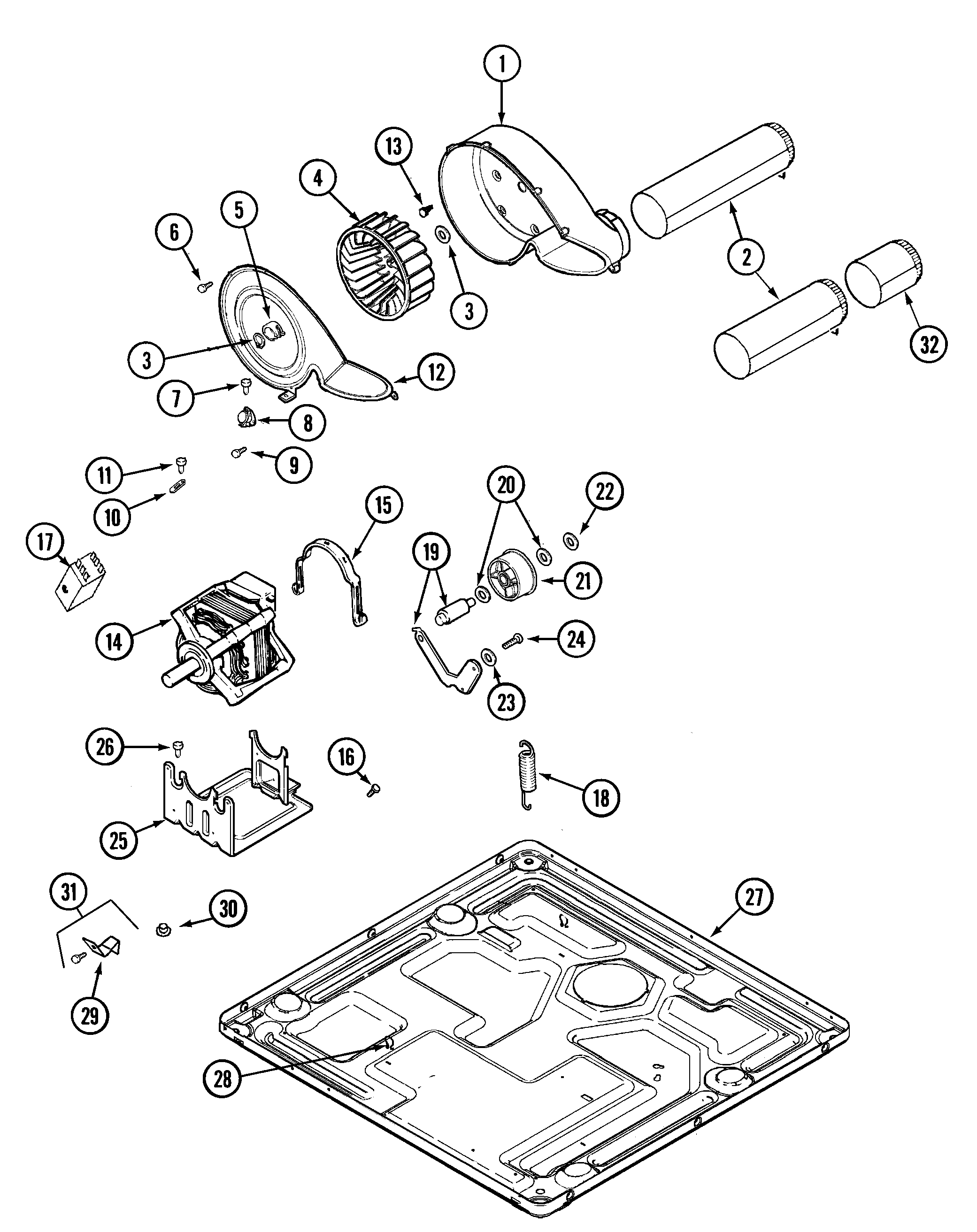

Motor drive (dryer) diagram

Thermostat

Part #306910

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 306910. Substitute parts can look different from the original.
BEST SELLER
$20.83 |
22% OFF Phone Price : $26.83
In Stock

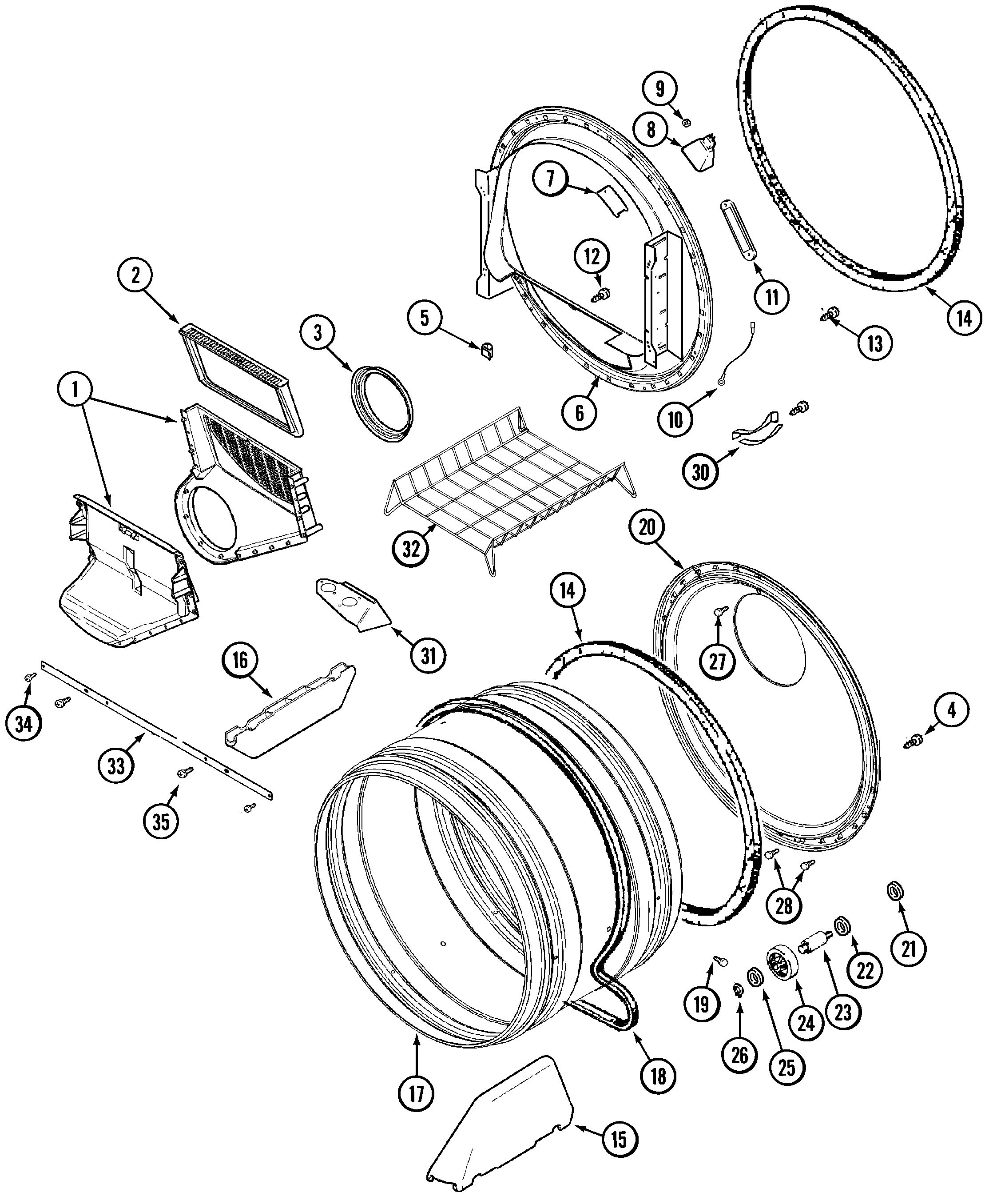

Roller W/bea 303373
#24

Tumbler diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$26.88 |
18% OFF Phone Price : $32.88
In Stock
Belt, Tumble 33001777
#18

Tumbler diagram

Belt, tumble

Part #33001777

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33001777. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Gas Sensor 303377
#18

Gas valve (dryer) diagram

Gas sensor

Part #303377

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 303377. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Idler Pulley 33001783
#21

Motor drive (dryer) diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Hose Clamp 22003073
#24

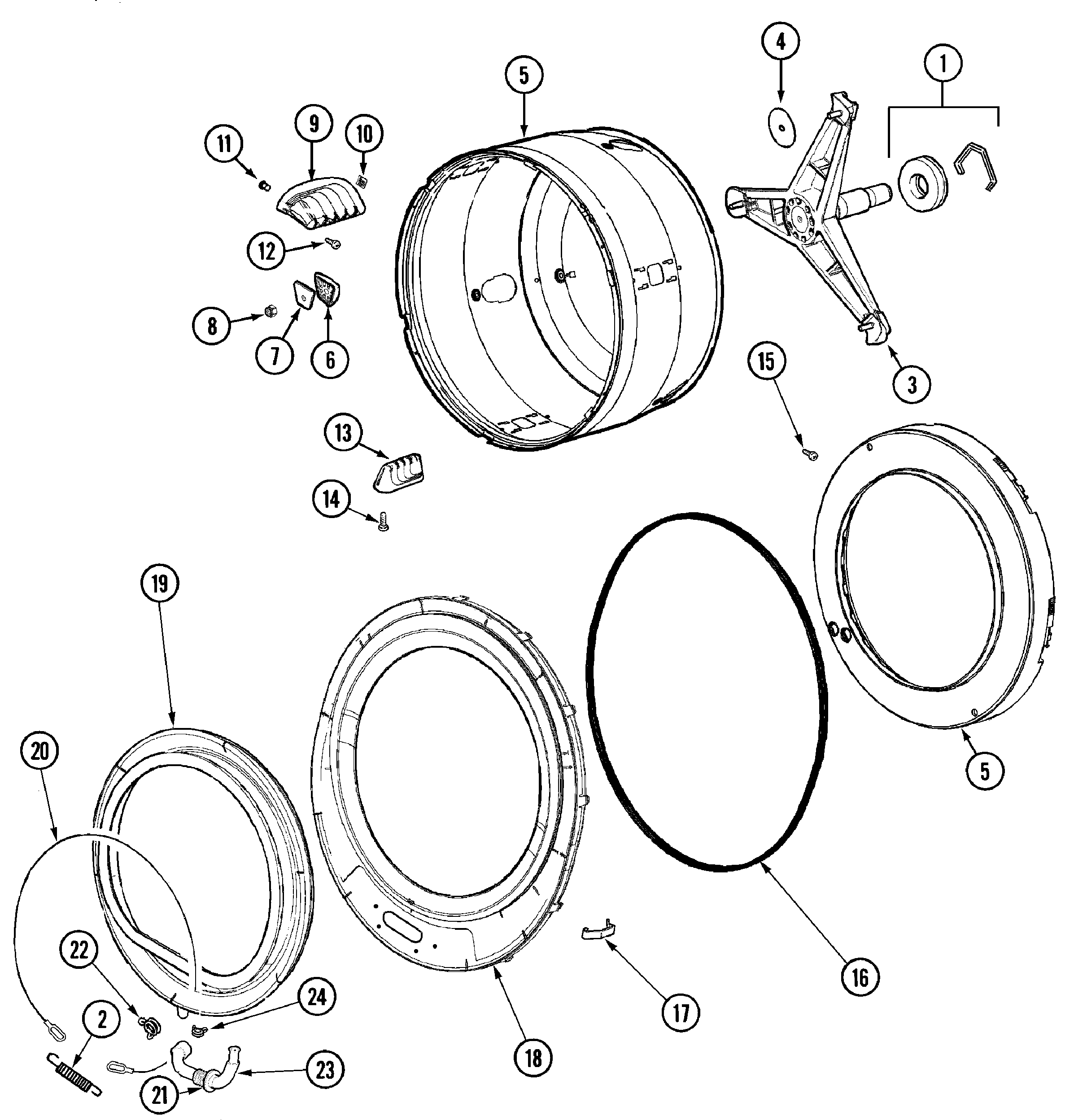

Spinner assembly & outer tub cover(wash) diagram

Hose clamp

Part #22003073

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22003073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 202515
#18

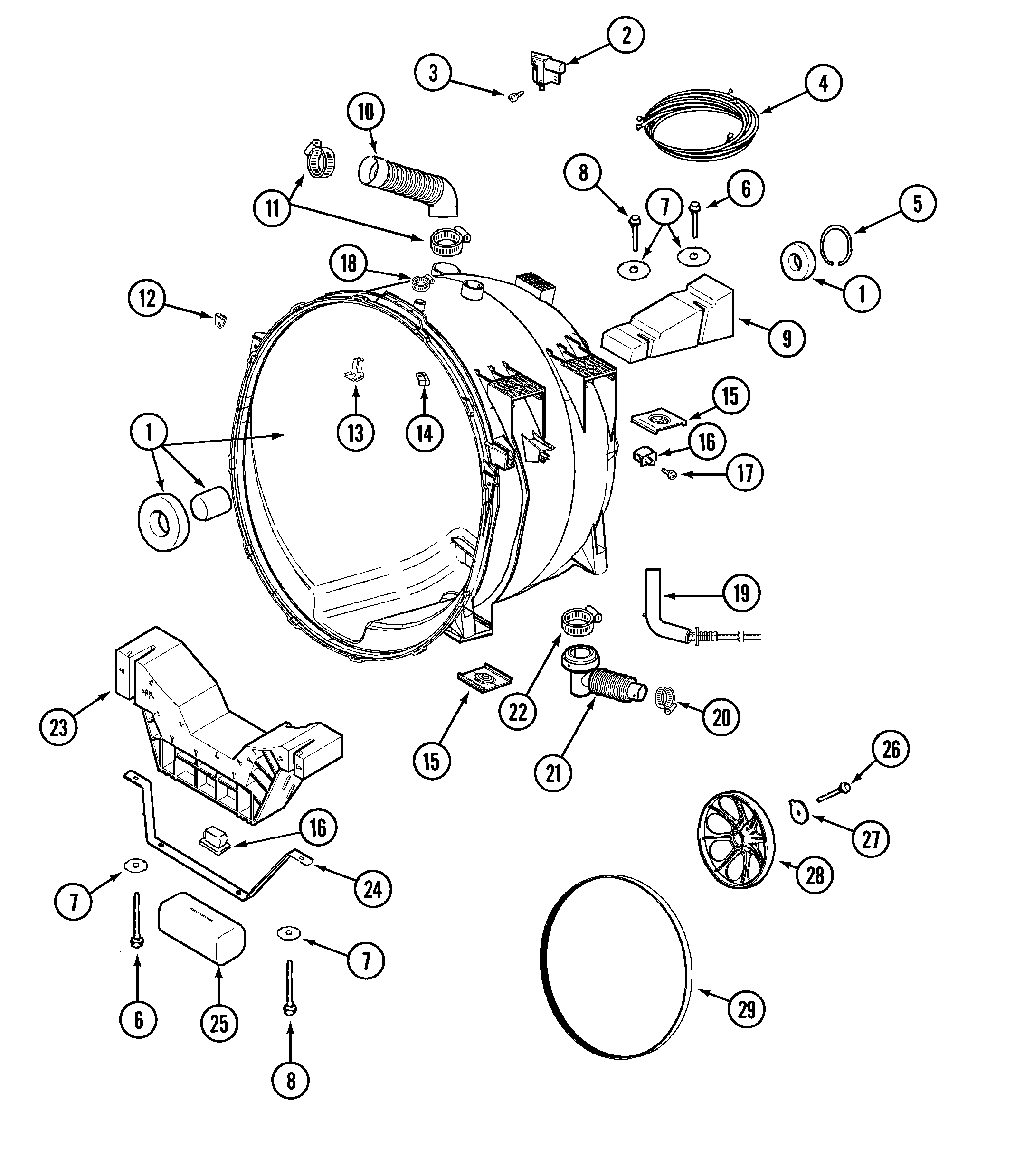

Outer tub (washer) diagram

Hose clamp

Part #202515

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 202515. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Drain Hose Clamp 22003072
#22

Spinner assembly & outer tub cover(wash) diagram

Dishwasher drain hose clamp

Part #22003072

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22003072. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
