Model # KCMC155JWH0 Official KitchenAid countertop microwave

Here are the diagrams and repair parts for Official KitchenAid KCMC155JWH0 countertop microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

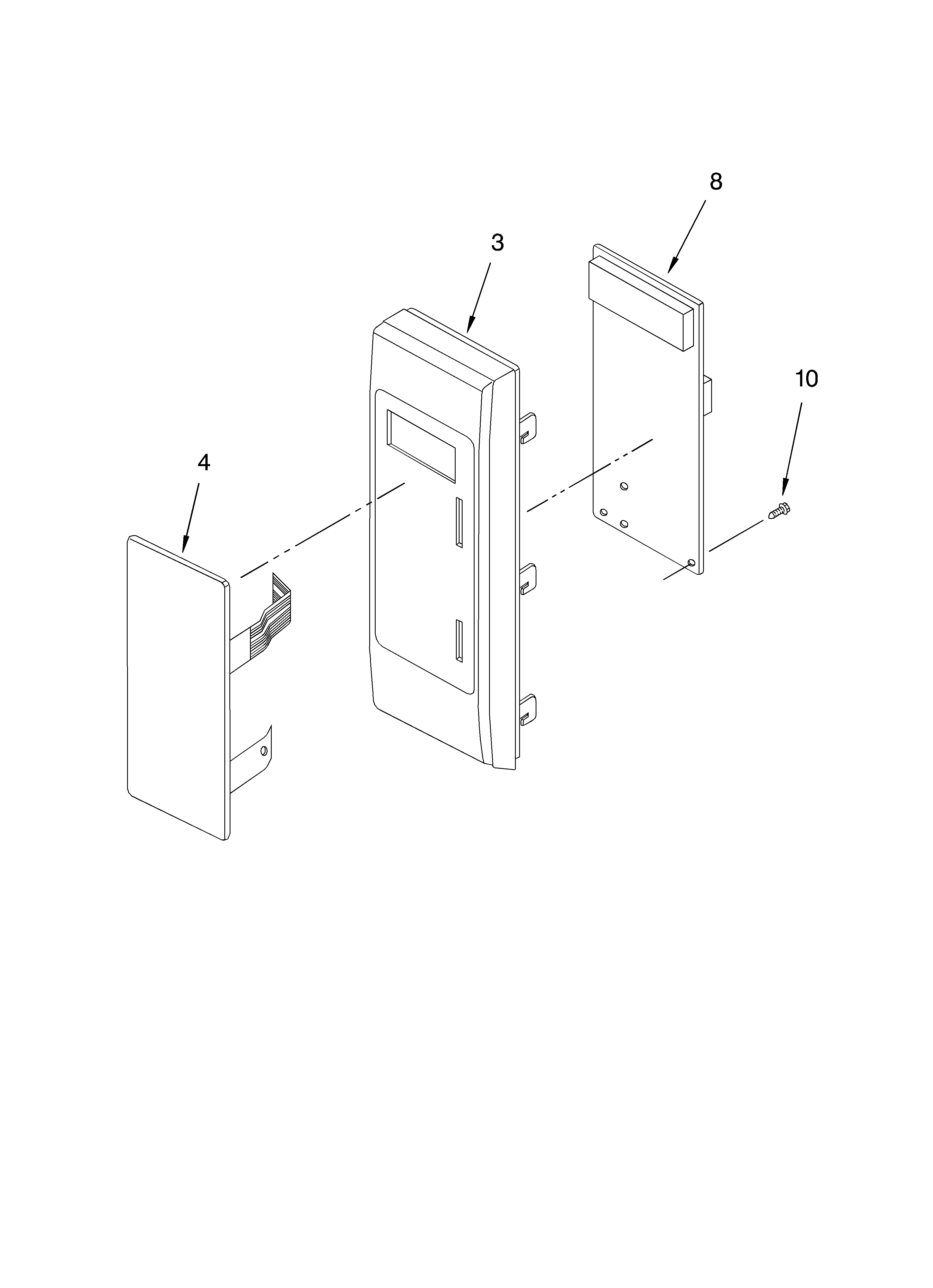

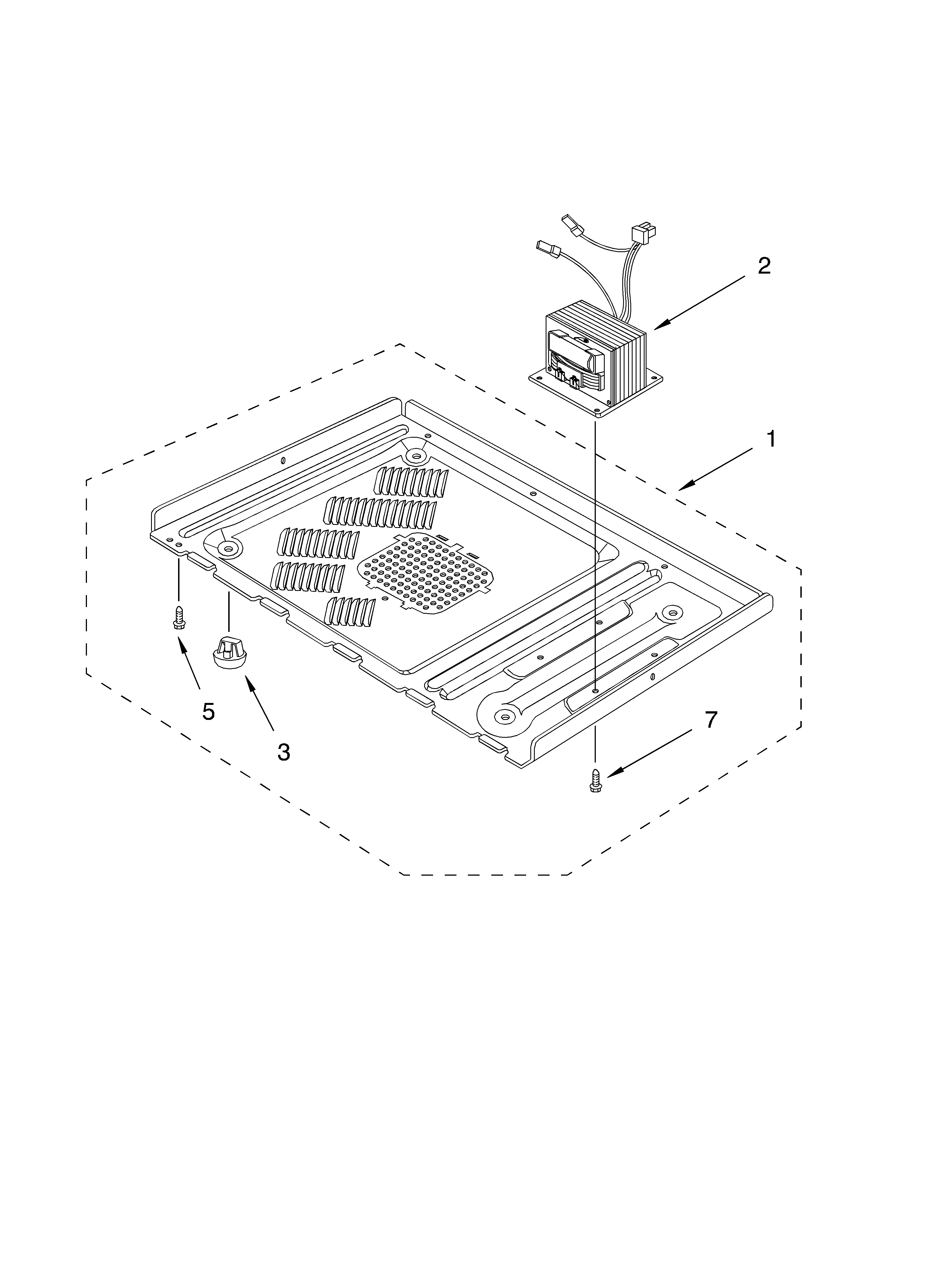

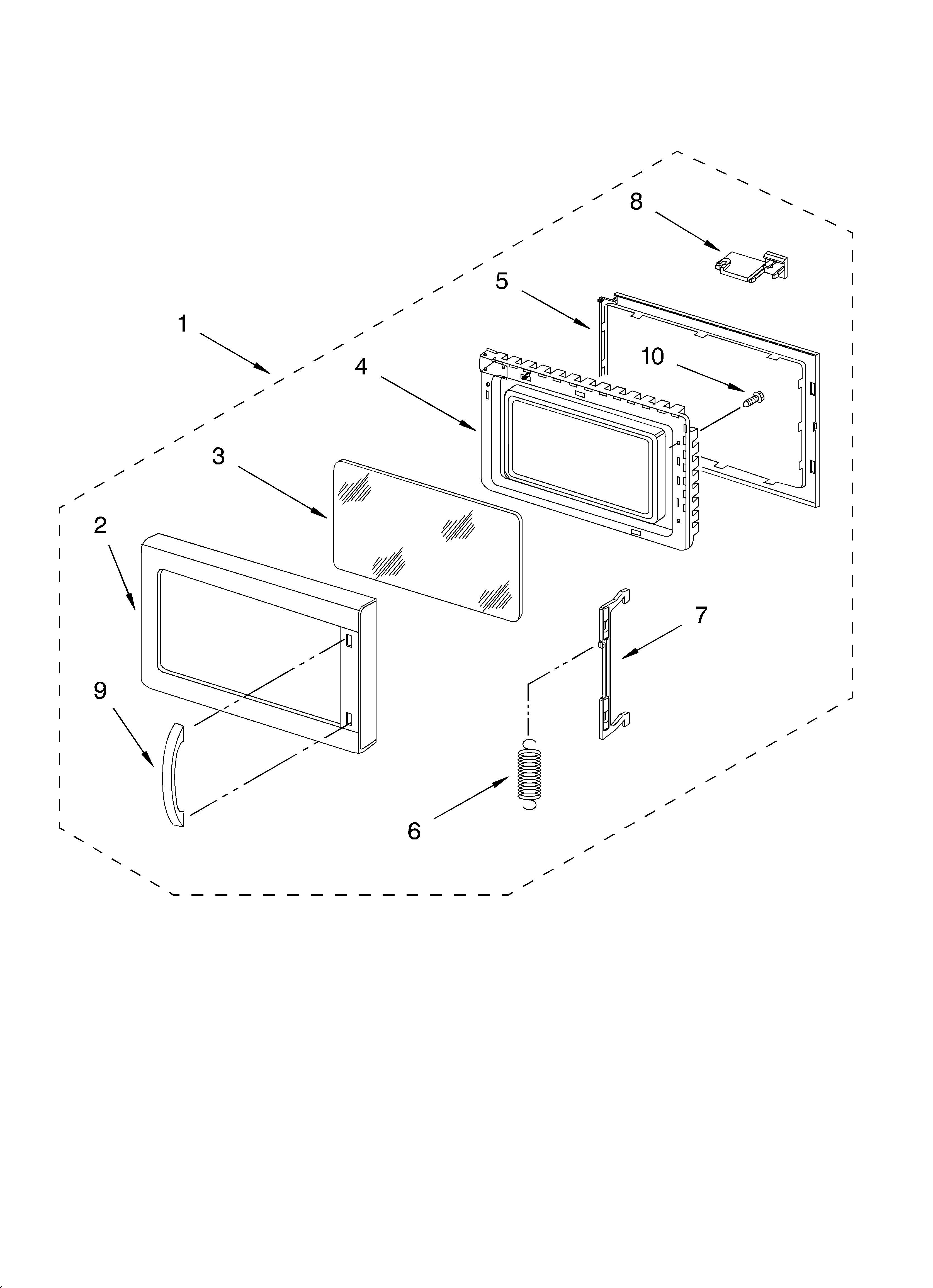

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKCMC155JWH0 Microwaves

  • Switch 8183561
    Switch

    Part #8183561

    Replaced by #4392027

    ?
    Manufacturer substitution
    This part replaces 8183561. Substitute parts can look different from the original.
    $74.51
    7% OFF Phone Price : $80.51
    In Stock
  • Switch 8183562
    #4

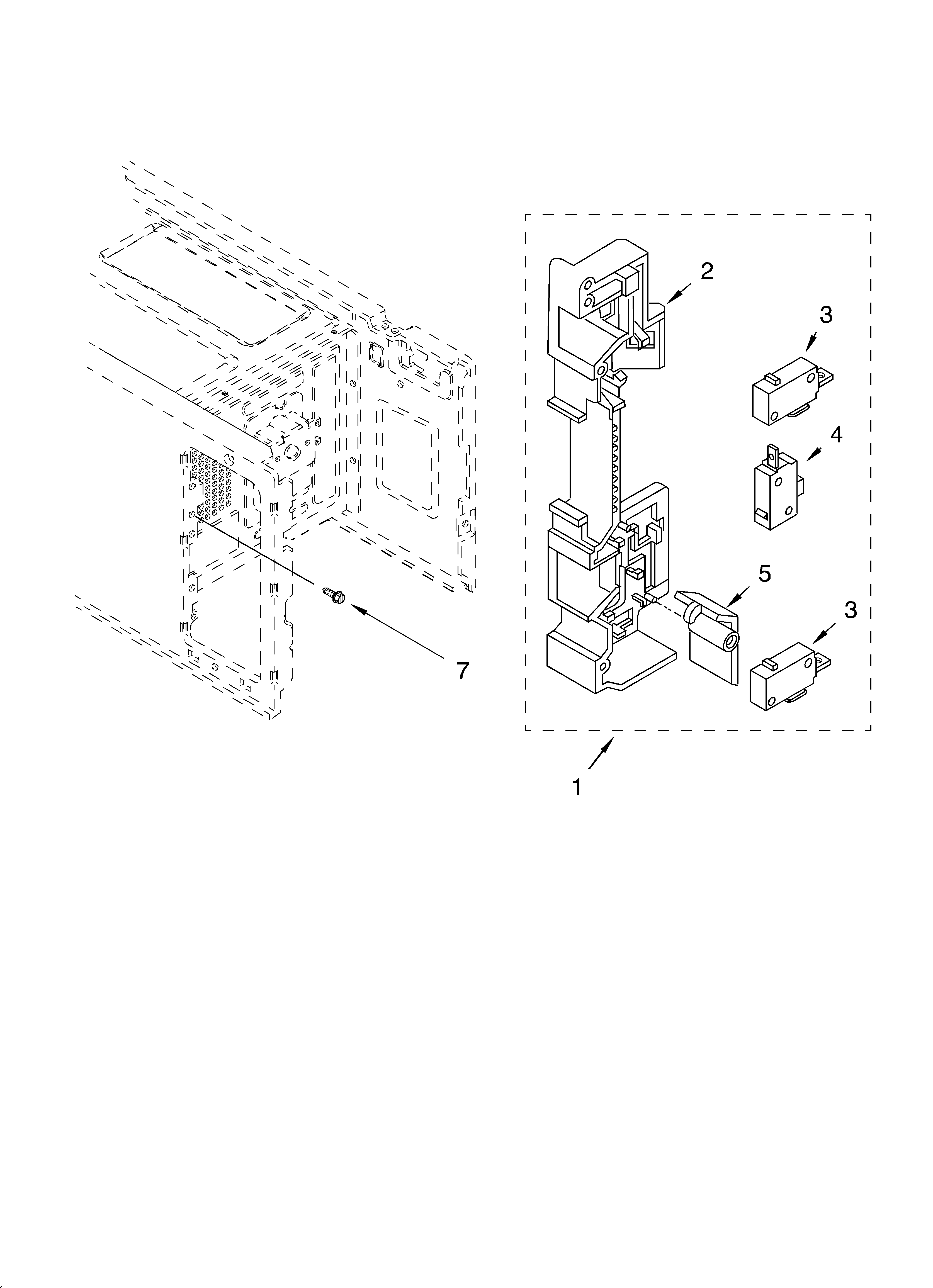

    Latch board diagram

    Switch

    Part #8183562

    Replaced by #4392027

    ?
    Manufacturer substitution
    This part replaces 8183562. Substitute parts can look different from the original.
    $74.51
    7% OFF Phone Price : $80.51
    In Stock
  • Voltage Wire 8171879
    #23

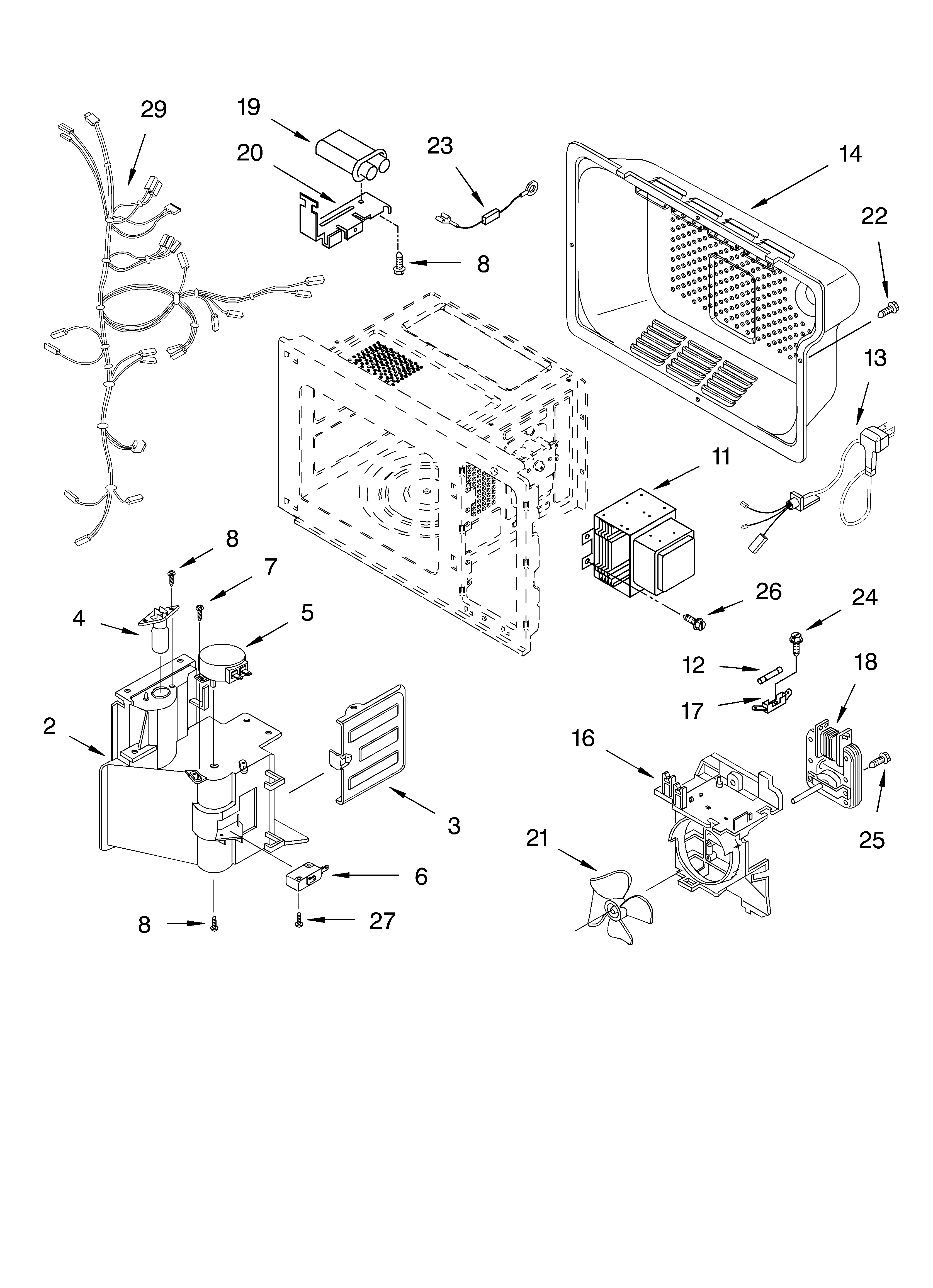

    Oven interior diagram

    Voltage wire

    Part #8171879

    Replaced by #WP8205489

    ?
    Manufacturer substitution
    This part replaces 8171879. Substitute parts can look different from the original.
    $38.29
    14% OFF Phone Price : $44.29
    In Stock
  • Microwave Fuse 8183507
    #12

    Oven interior diagram

    Microwave fuse

    Part #8183507

    Replaced by #WP8183507

    ?
    Manufacturer substitution
    This part replaces 8183507. Substitute parts can look different from the original.
    This item is not returnable
    $14.08
    12% OFF Phone Price : $16.08
    In Stock
  • Microwave Baseless Lamp 8183592
    #4

    Oven interior diagram

    Microwave baseless lamp

    Part #8183592

    Replaced by #WP8183592

    ?
    Manufacturer substitution
    This part replaces 8183592. Substitute parts can look different from the original.
    $22.90
    21% OFF Phone Price : $28.90
    In Stock

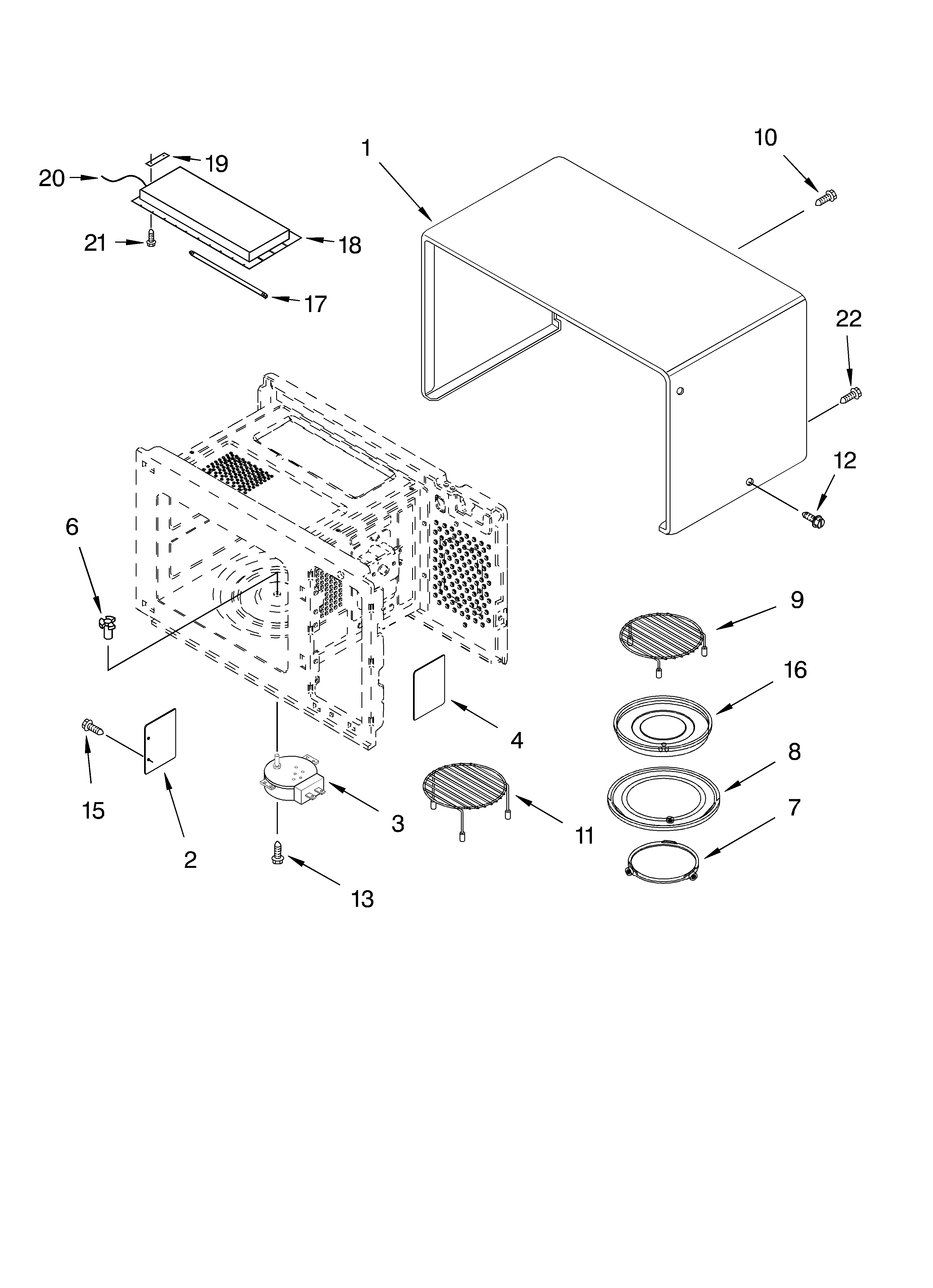

  • Microwave Glass Tray 8172138
    #8

    Oven cavity diagram

    Microwave glass tray

    Part #8172138

    Replaced by #WP8172138

    ?
    Manufacturer substitution
    This part replaces 8172138. Substitute parts can look different from the original.
    $55.28
    10% OFF Phone Price : $61.28
    In Stock
  • Washer 4358477
    #23

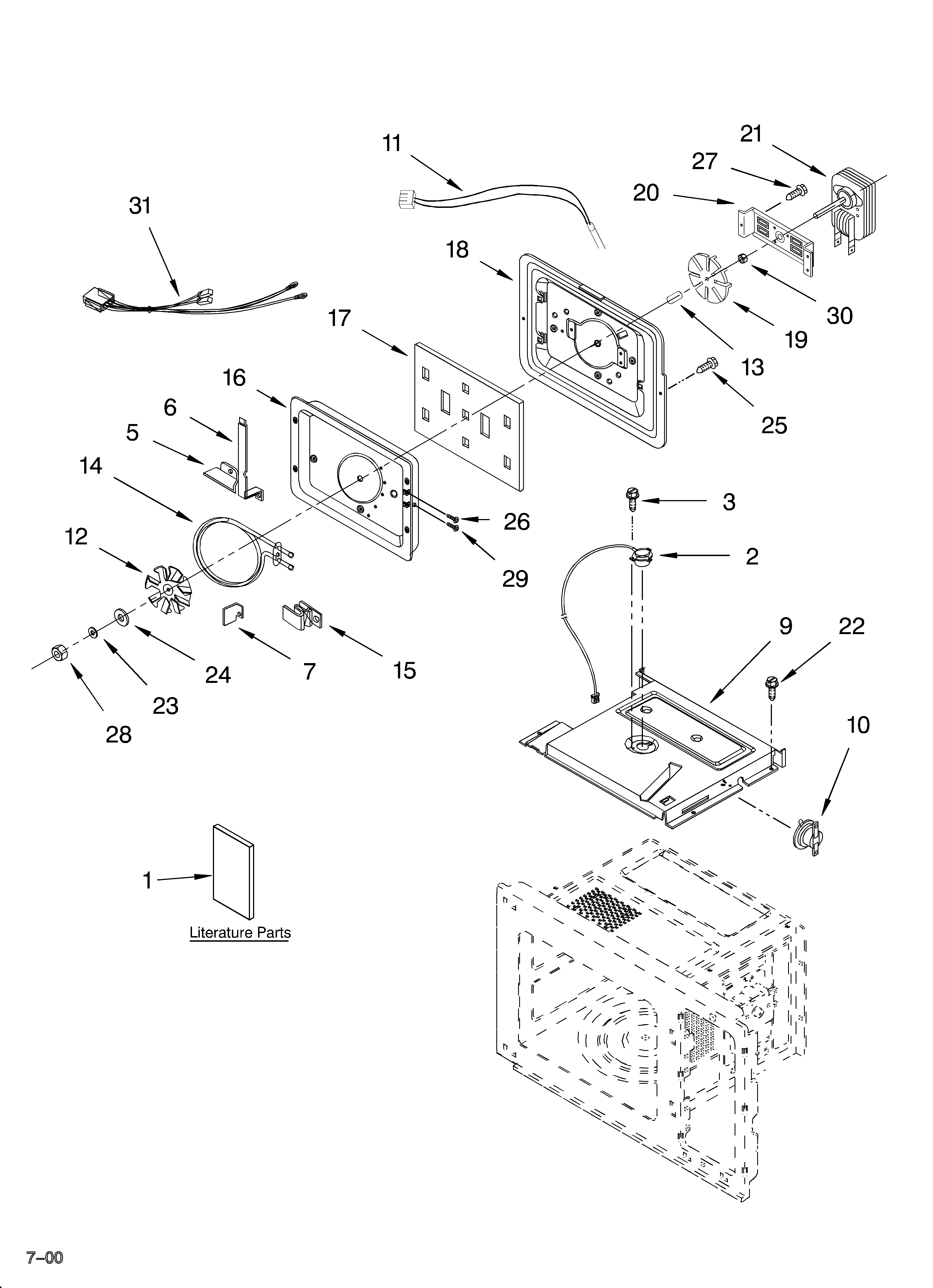

    Convection oven/literature diagram

    Washer

    Part #4358477

    Replaced by #WP8533914

    ?
    Manufacturer substitution
    This part replaces 4358477. Substitute parts can look different from the original.
    This item is not returnable
    $5.19
    16% OFF Phone Price : $6.19
    In Stock
  • Magnetron 8172000
    #11

    Oven interior diagram

    Magnetron

    Part #8172000

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 4358362
    #25

    Convection oven/literature diagram

    Screw

    Part #4358362

    Replaced by #W11245710

    ?
    Manufacturer substitution
    This part replaces 4358362. Substitute parts can look different from the original.
    This item is not returnable
    $16.43
    11% OFF Phone Price : $18.43
    In Stock
  • Screw 4358474
    #21

    Oven cavity diagram

    Screw

    Part #4358474

    Replaced by #4344826

    ?
    Manufacturer substitution
    This part replaces 4358474. Substitute parts can look different from the original.
    In Stock
