KitchenAid
Range

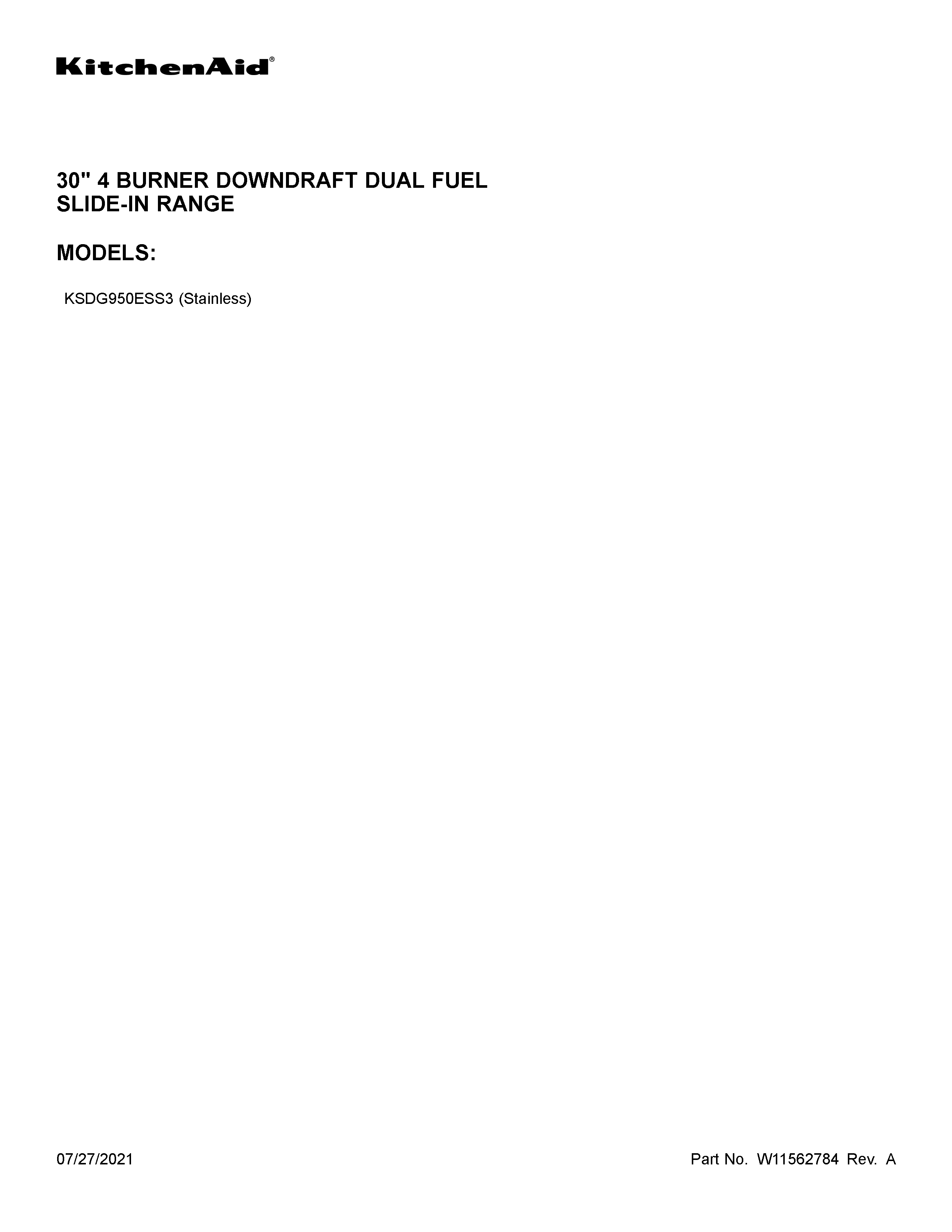

Model # KSDG950ESS3 Official KitchenAid dual fuel slide-in range

Here are the diagrams and repair parts for Official KitchenAid KSDG950ESS3 dual fuel slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

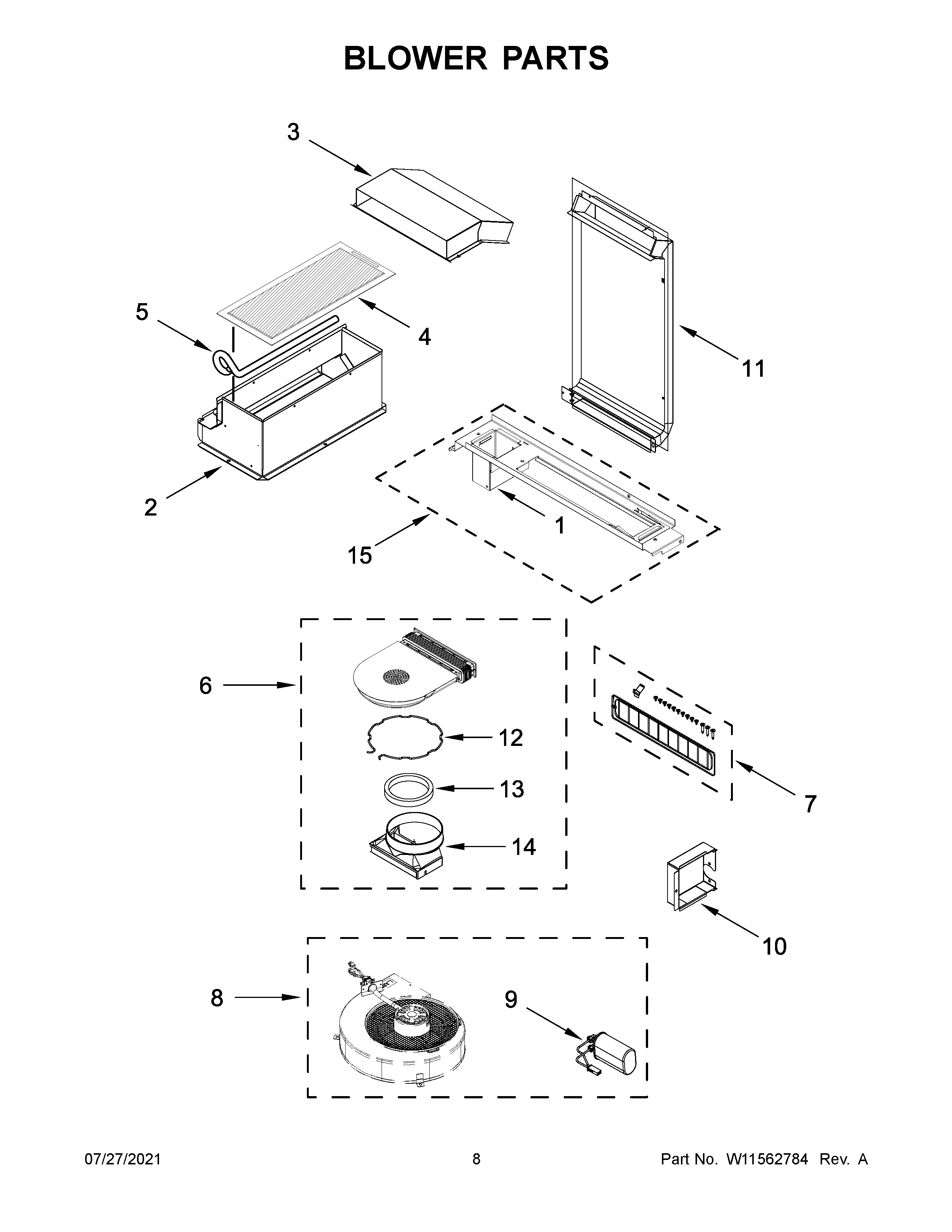

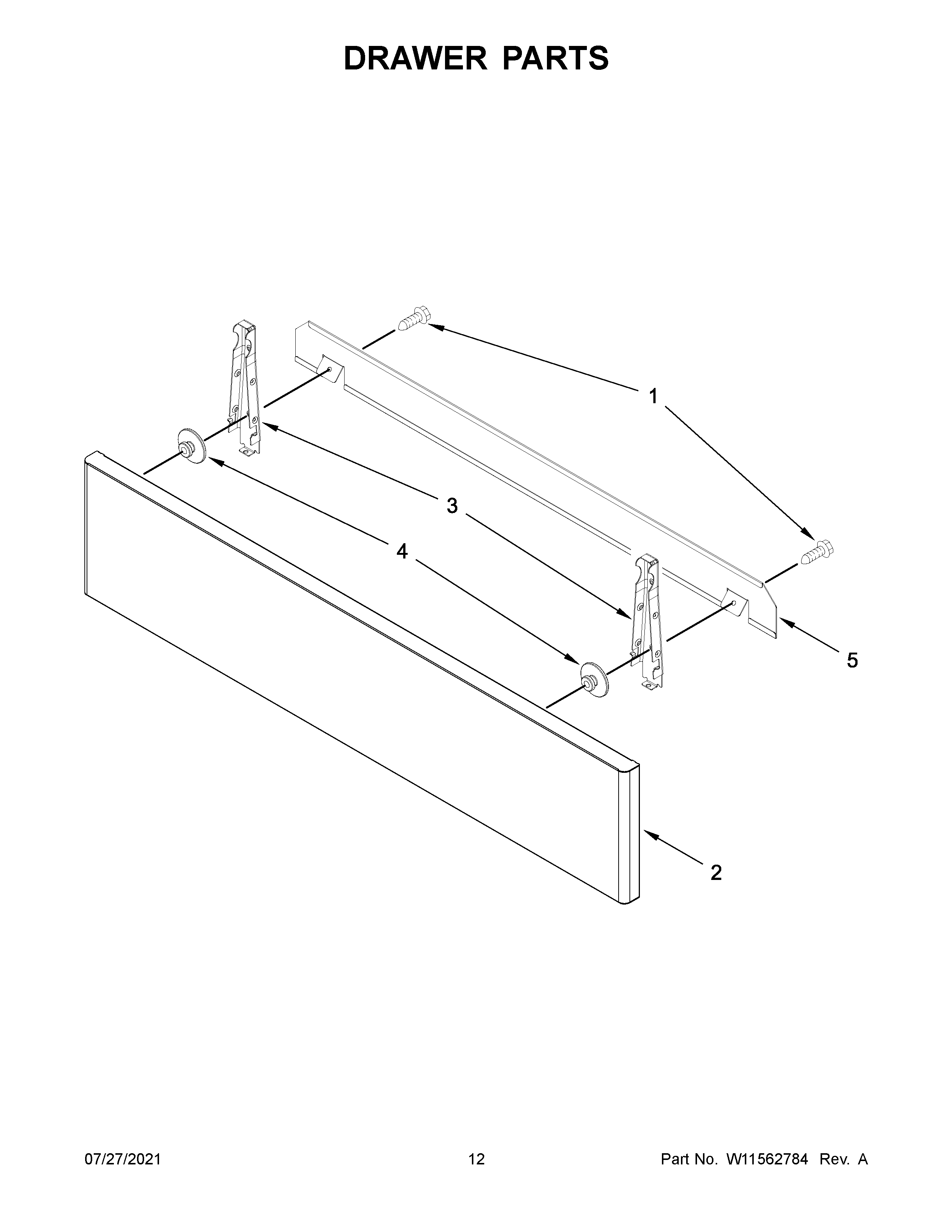

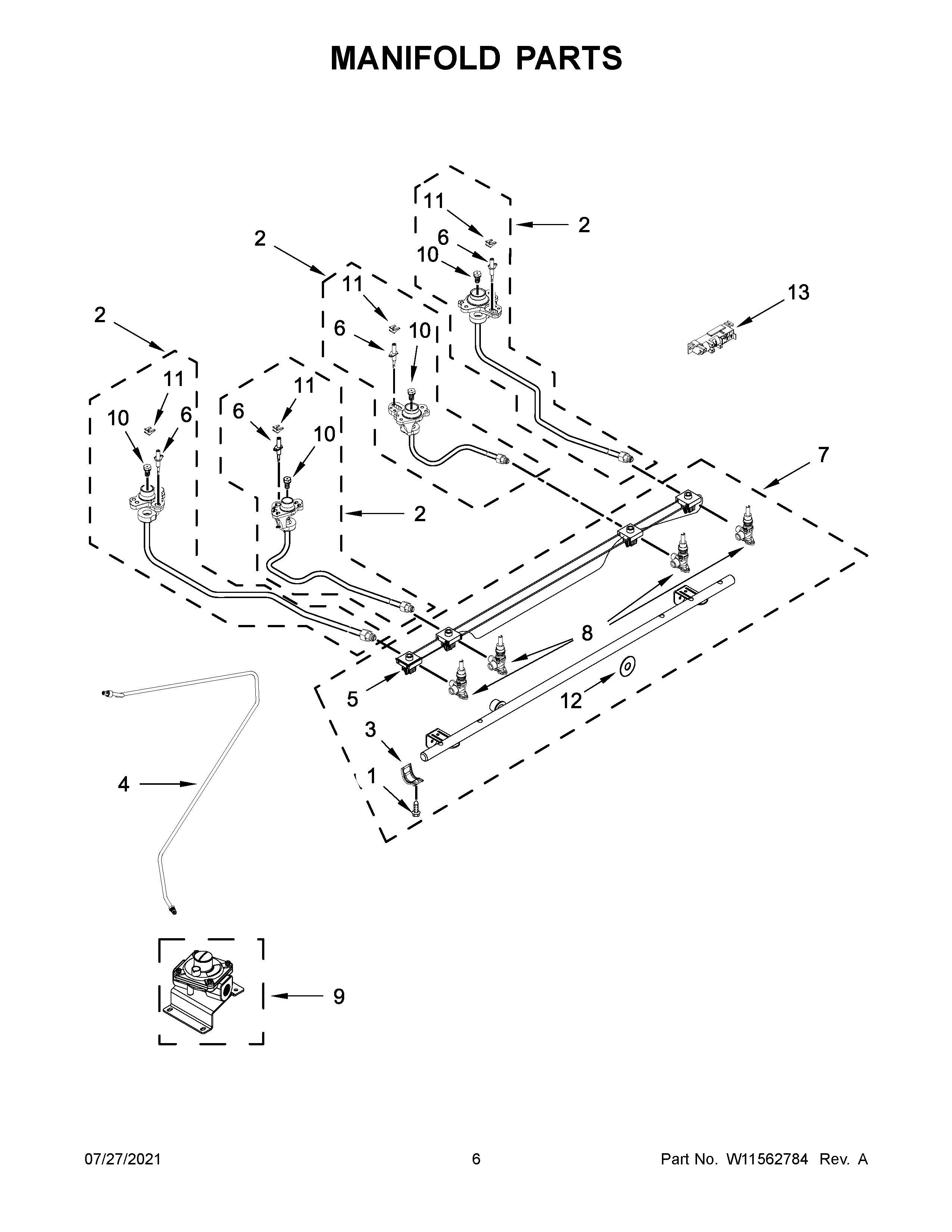

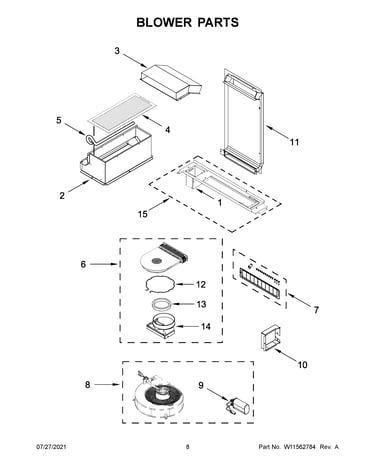

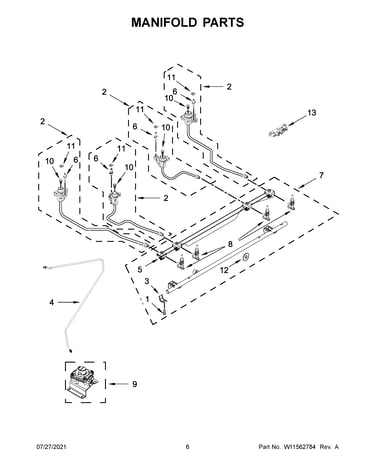

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Bake Element W10774342
#7

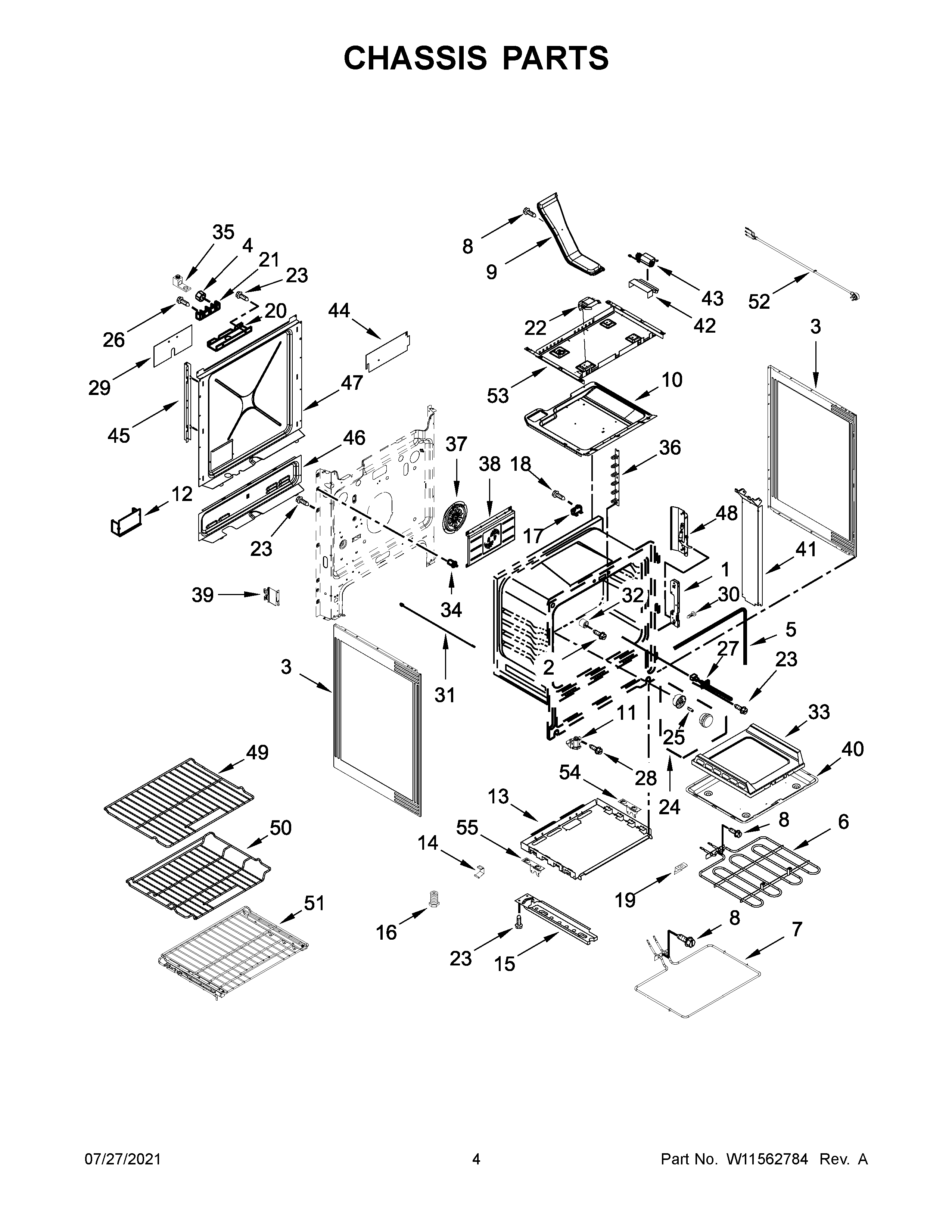

Chassis parts diagram

Bake element

Part #W10774342

Replaced by #W10779716

?
Manufacturer substitution
This part replaces W10774342. Substitute parts can look different from the original.
BEST SELLER
$49.83 |
11% OFF Phone Price : $55.83
In Stock
Oven Sensor W10586204
#27

Chassis parts diagram

Oven sensor

Part #W10586204

Replaced by #W10833885

?
Manufacturer substitution
This part replaces W10586204. Substitute parts can look different from the original.
BEST SELLER
$90.42 |
6% OFF Phone Price : $96.42
In Stock
Cooling Fan Assembly W11190724
#43

Chassis parts diagram

Cooling fan assembly

Part #W11190724

Replaced by #W11107275

?
Manufacturer substitution
This part replaces W11190724. Substitute parts can look different from the original.
BEST SELLER
$126.06 |
9% OFF Phone Price : $138.06
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Control Mrc2 W10759299
#14

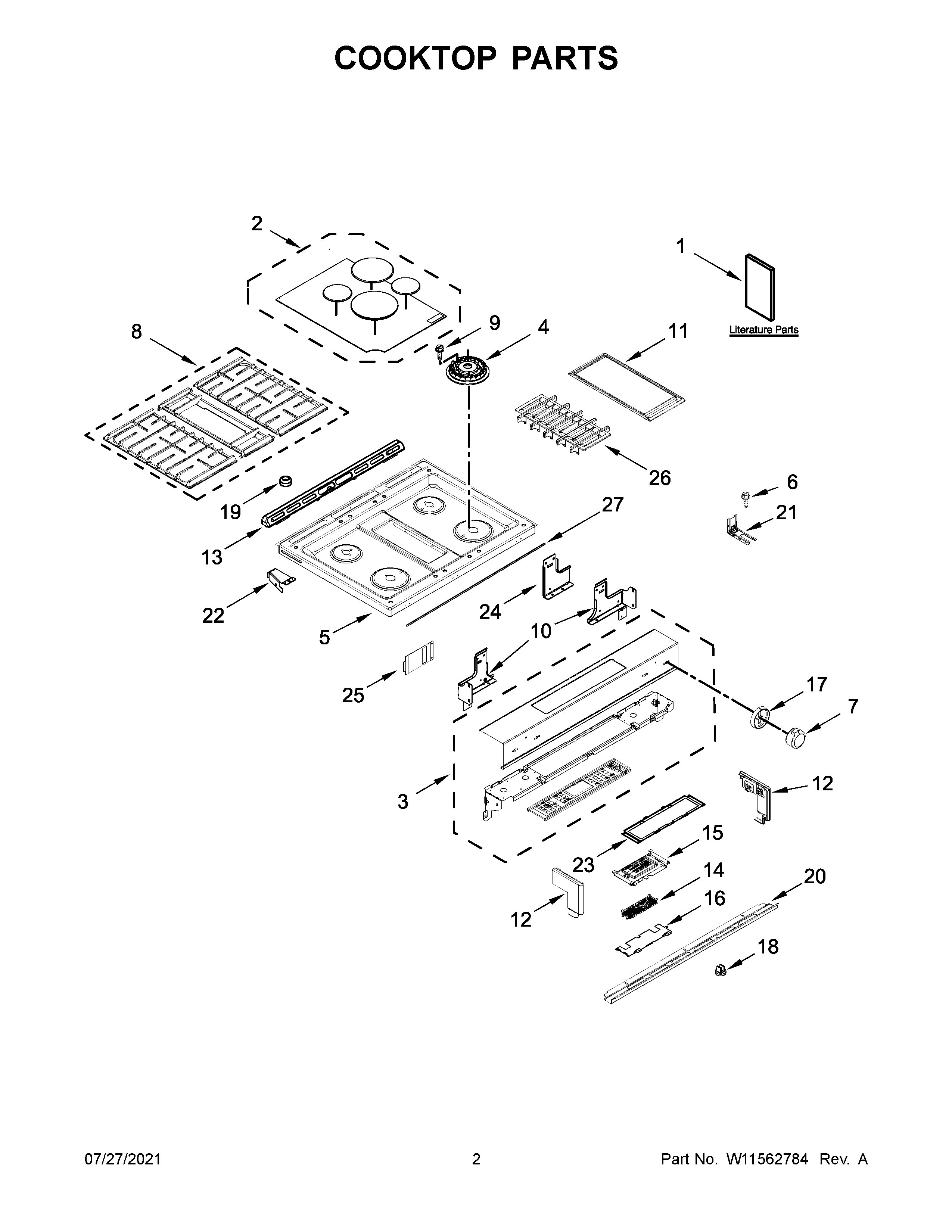

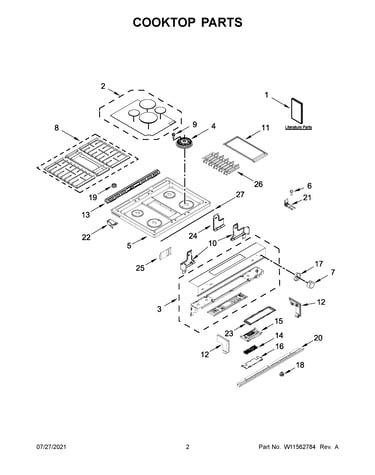

Cooktop parts diagram

Control mrc2

Part #W10759299

Replaced by #W11100513

?
Manufacturer substitution
This part replaces W10759299. Substitute parts can look different from the original.
BEST SELLER
$242.69 |
5% OFF Phone Price : $254.69
Back Order
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Assembly, Display (stainless Models) W10759325
#15

Cooktop parts diagram

Assembly, display (stainless models)

Part #W10759325

Replaced by #W11105615

?
Manufacturer substitution
This part replaces W10759325. Substitute parts can look different from the original.
$235.24 |
5% OFF Phone Price : $247.24
In Stock
Range Oven Door Outer Panel (stainless) W10634271
#8

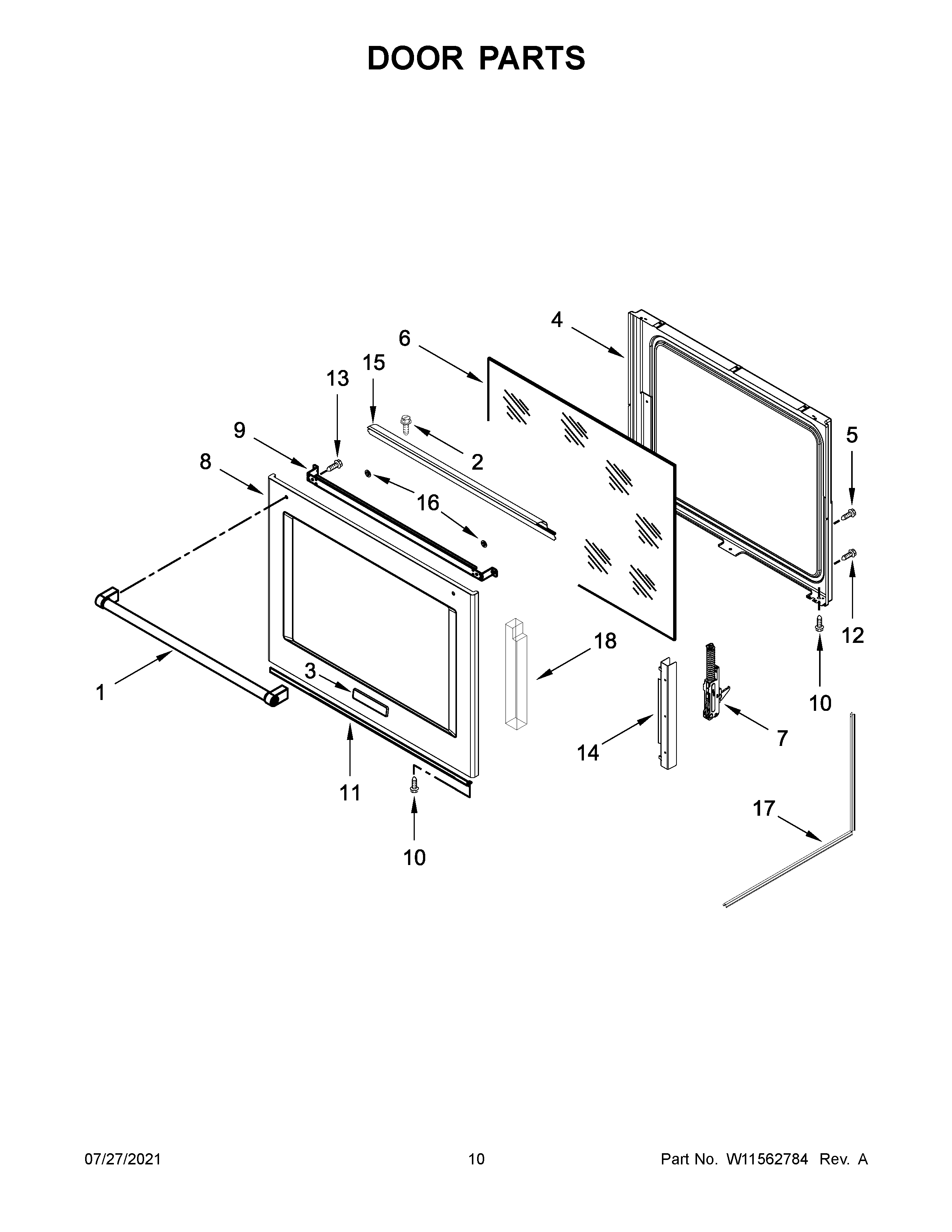

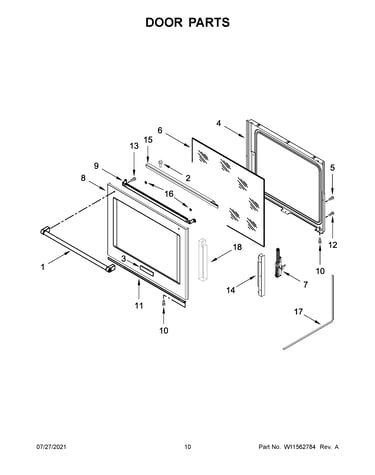

Door parts diagram

Range oven door outer panel (stainless)

Part #W10634271

Replaced by #WPW10634271

?
Manufacturer substitution
This part replaces W10634271. Substitute parts can look different from the original.
$248.86 |
5% OFF Phone Price : $260.86
Back Order
Convection A W11353932
#37

Chassis parts diagram

Convection a

Part #W11353932

Replaced by #W11414552

?
Manufacturer substitution
This part replaces W11353932. Substitute parts can look different from the original.
$119.57 |
9% OFF Phone Price : $131.57
In Stock
Gasket, Door W11491752
#5

Chassis parts diagram

Gasket, door

Part #W11491752

Replaced by #W11562931

?
Manufacturer substitution
This part replaces W11491752. Substitute parts can look different from the original.
$45.67
In Stock
