Model # 315228110 Official Craftsman table saw

Here are the diagrams and repair parts for Official Craftsman 315228110 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

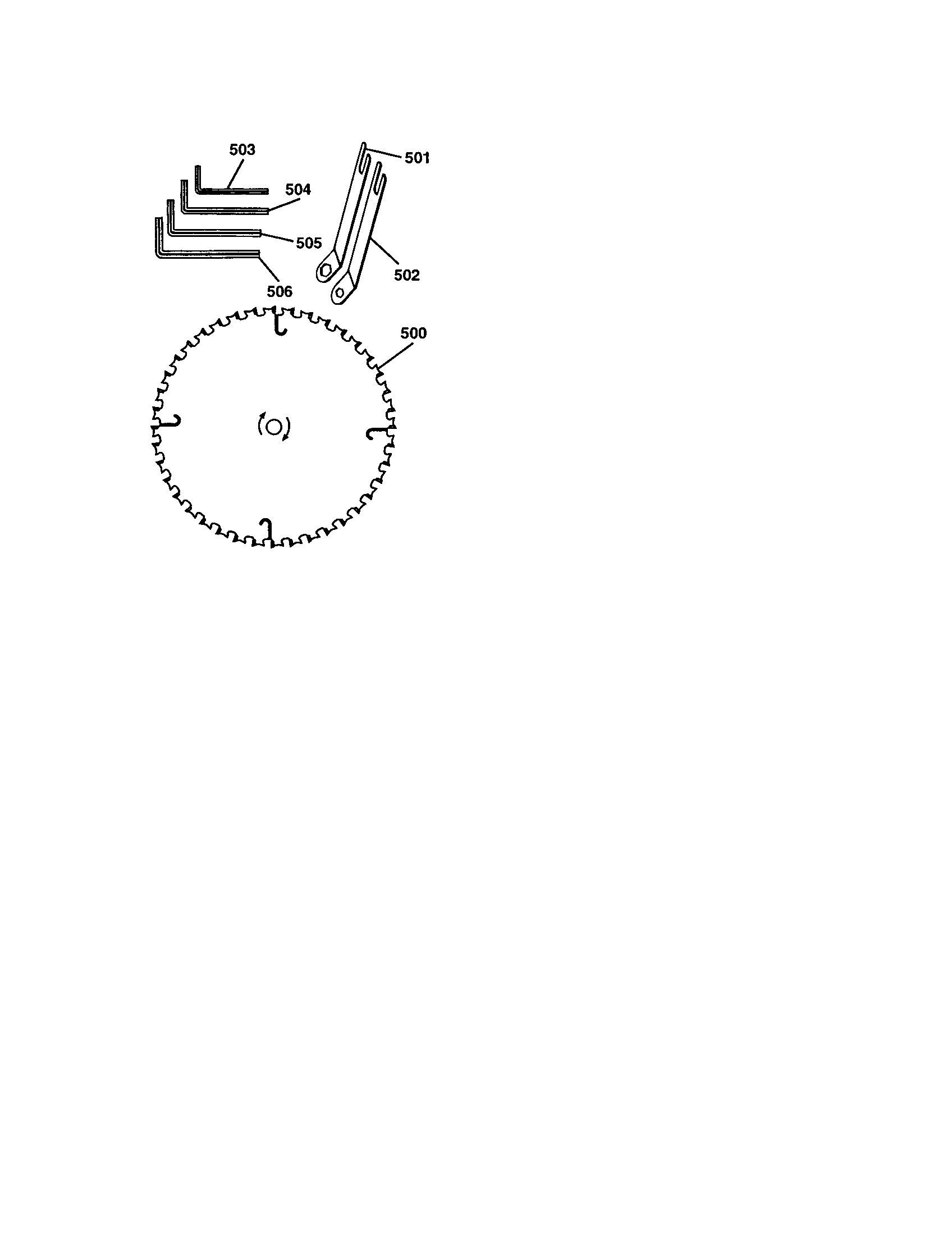

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS

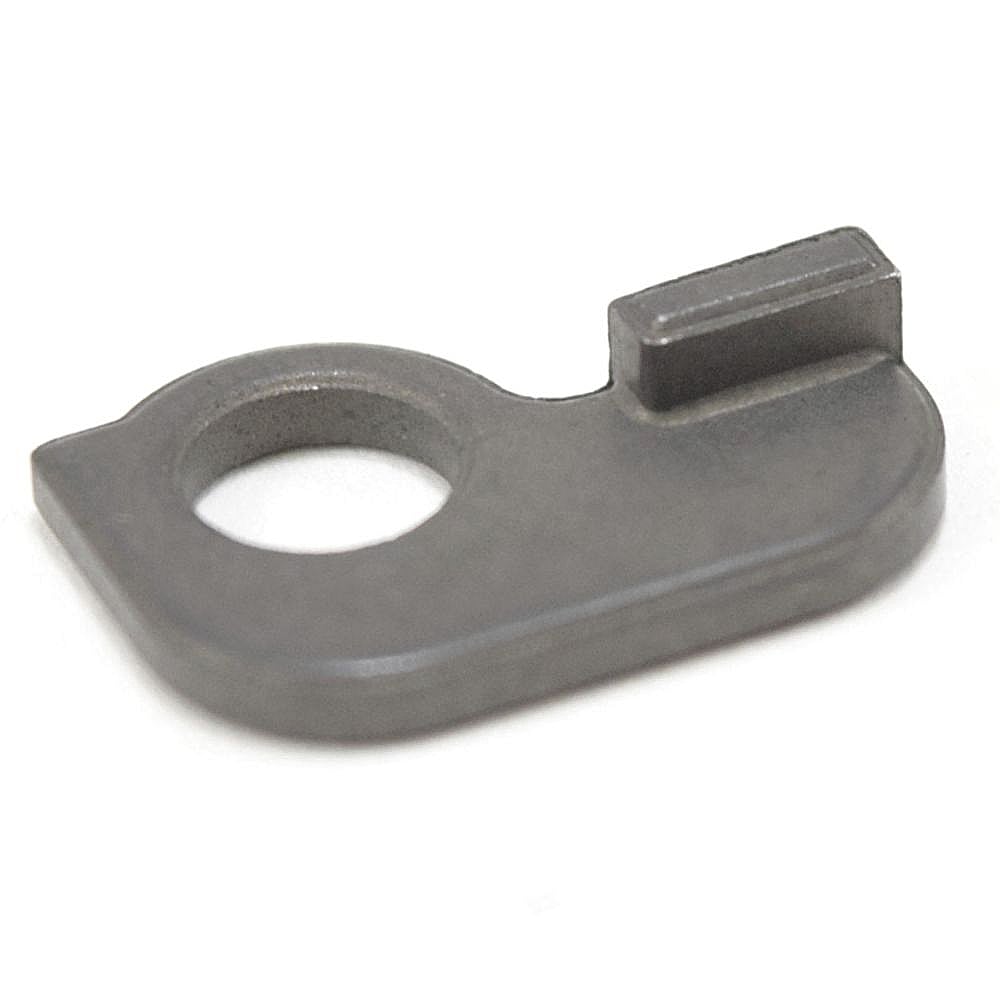

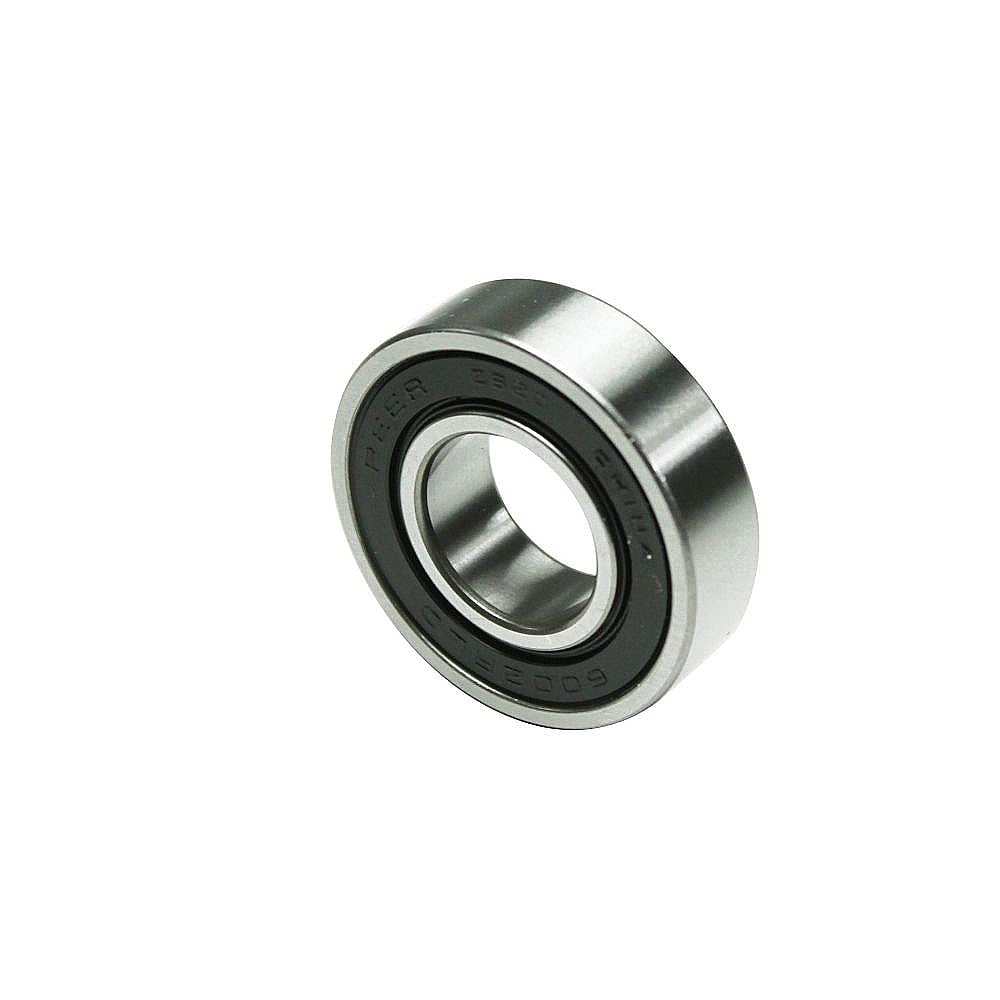

Showing 10 of 217 parts  |

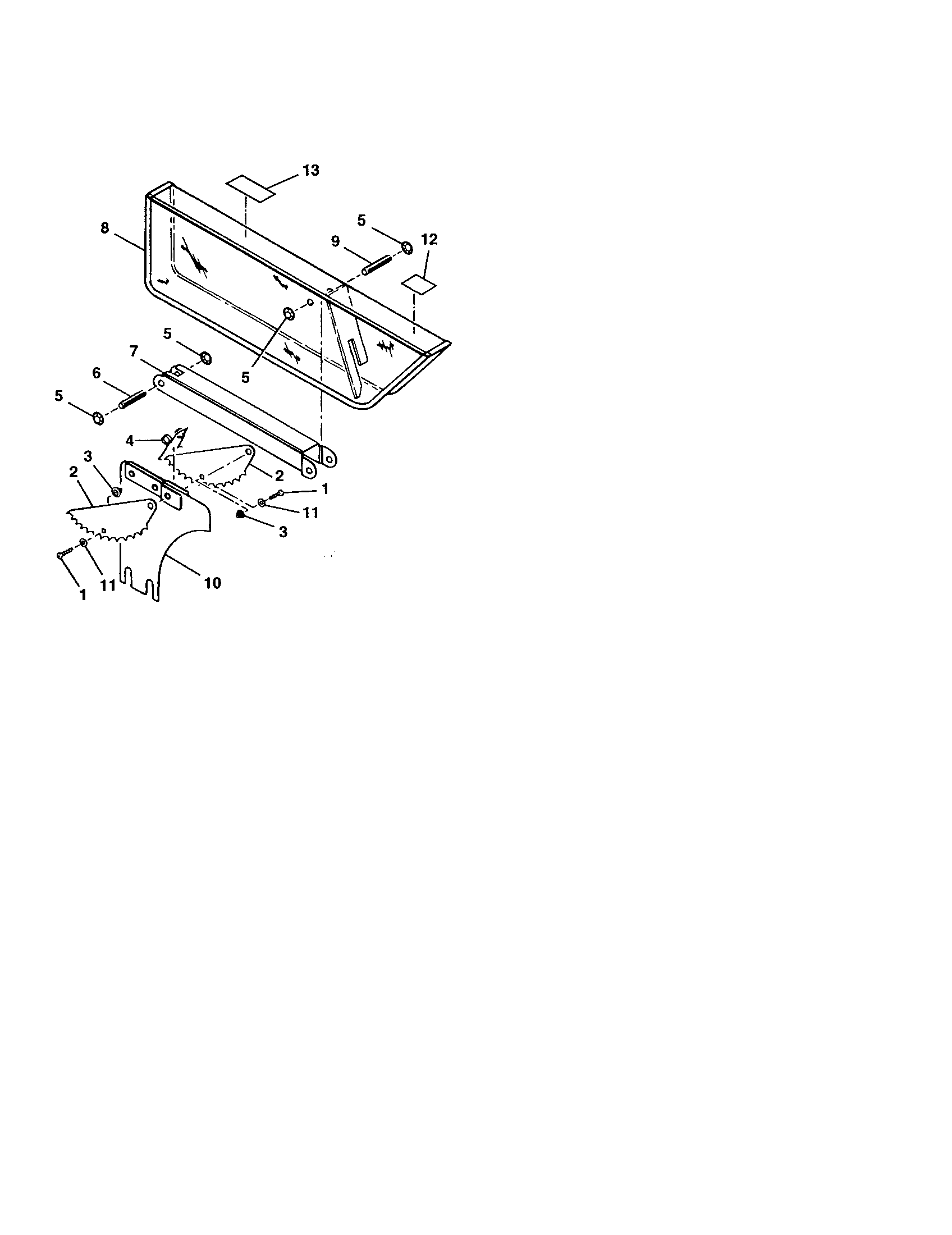

Blde Grd A 969165-001
#95

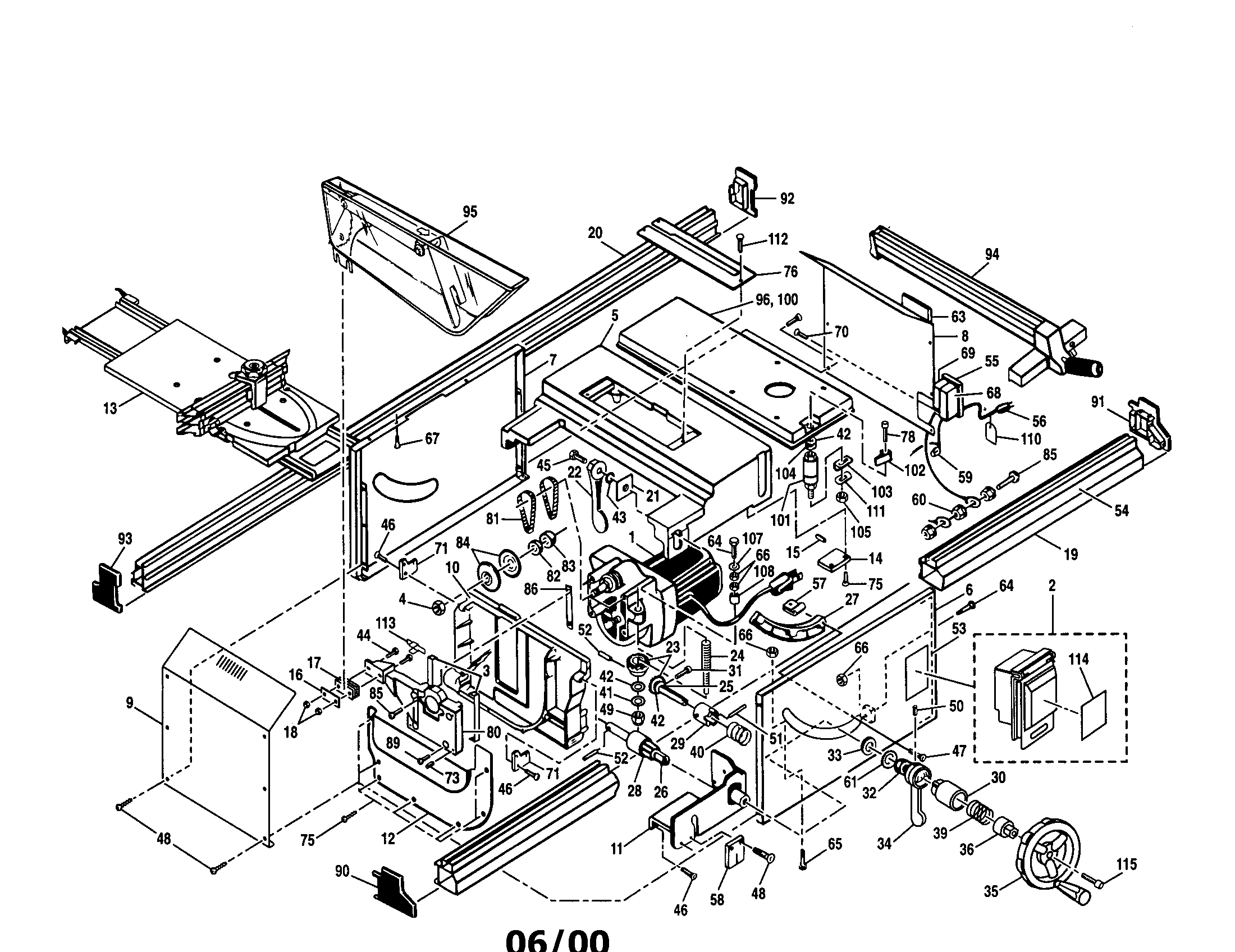

10 in. table saw diagram

Blde grd a

Part #969165-001

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 663283-001
#2A

10 in. table saw diagram

Switch assembly

Part #663283-001

The manufacturer no longer makes this part, and there's no substitute part

Clamper 969252-001
#23

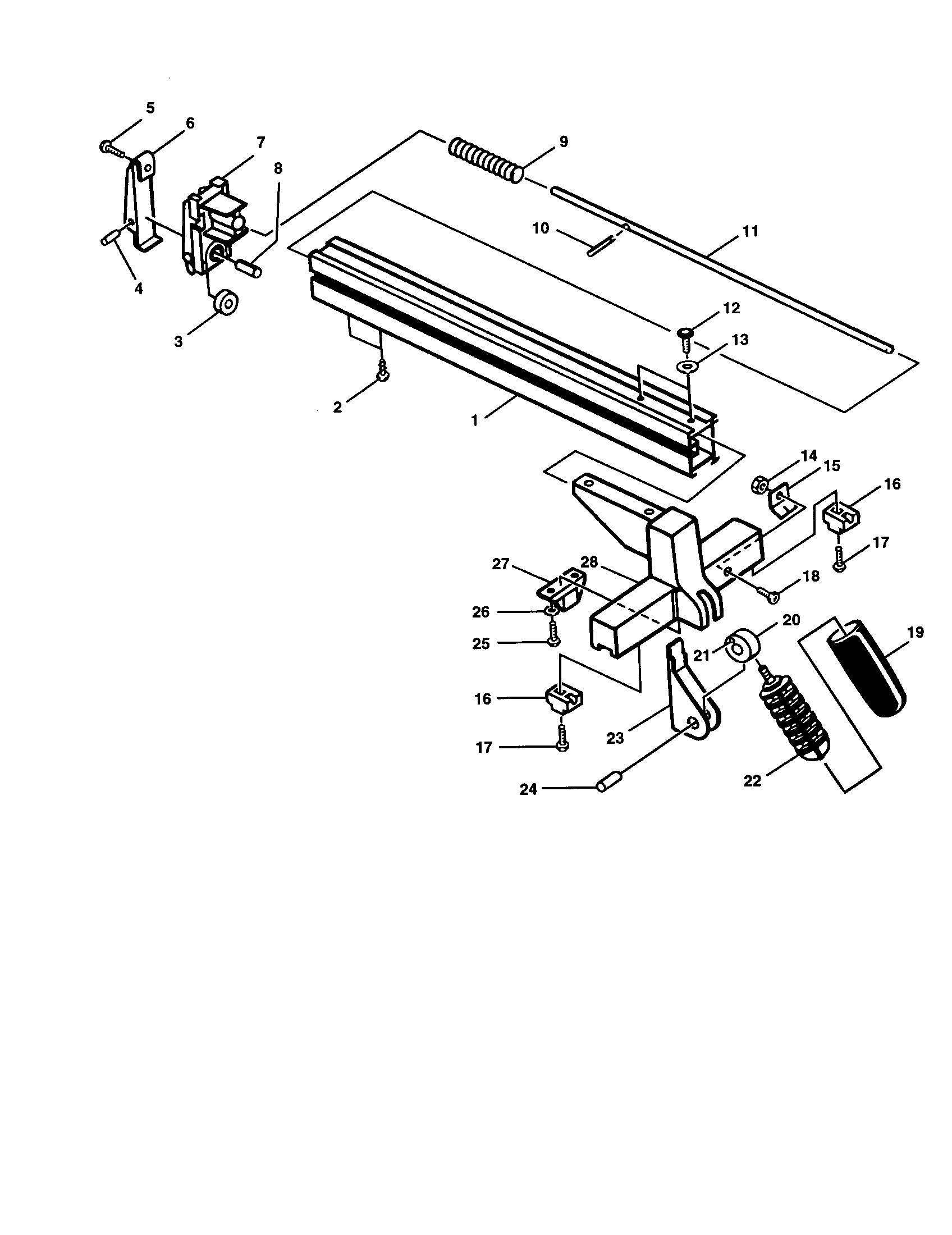

Rip fence assembly diagram

Clamper

Part #969252-001

The manufacturer no longer makes this part, and there's no substitute part

Shim 969600-001
Shim

Part #969600-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 4460008
#11

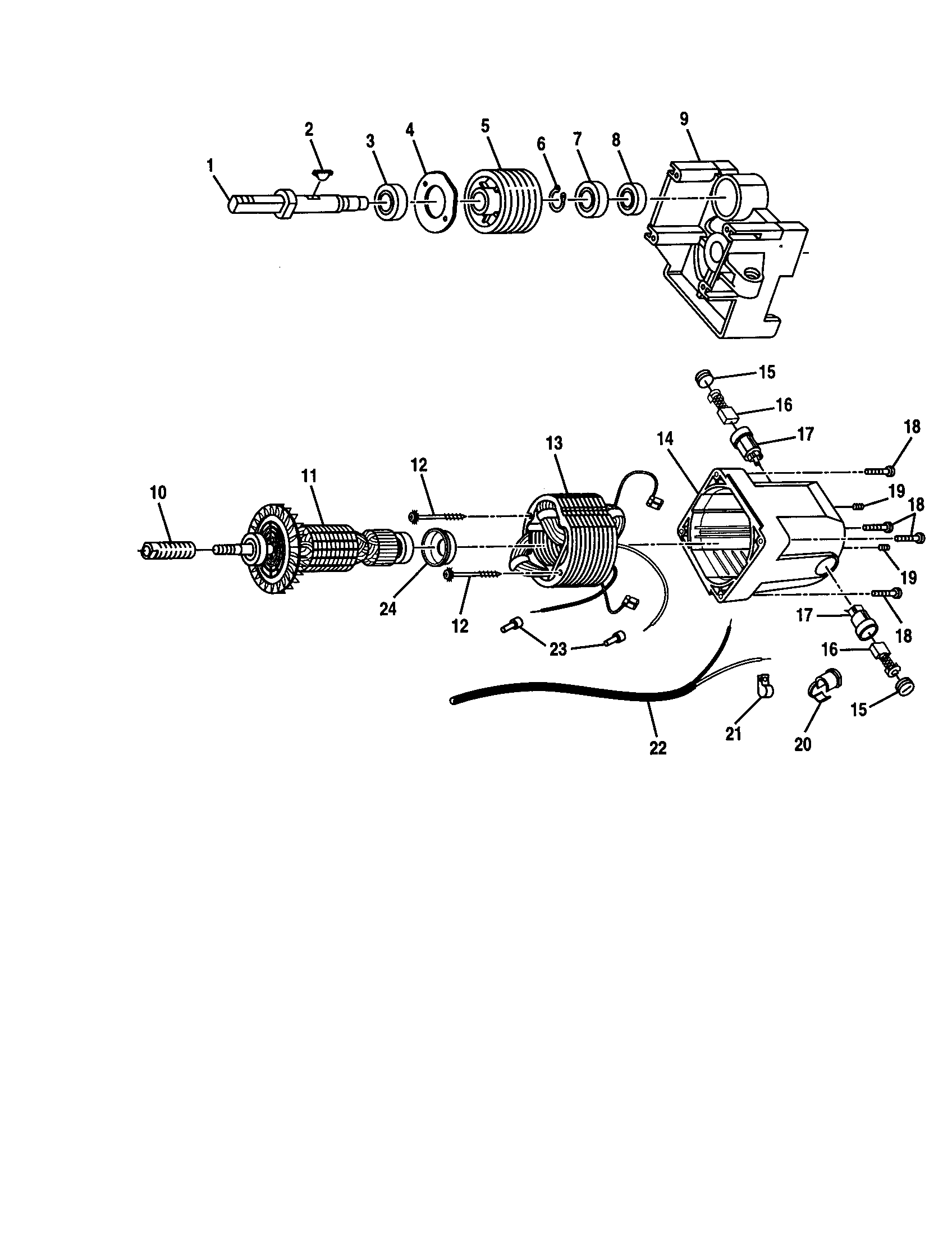

Motor diagram

Armature

Part #4460008

The manufacturer no longer makes this part, and there's no substitute part

Screw (1/4-20 X 1/2 In. (2) (standard Hardware Item-may Be Purchased Locally) (available From Div. 98-source 980.00) STD512505
#7

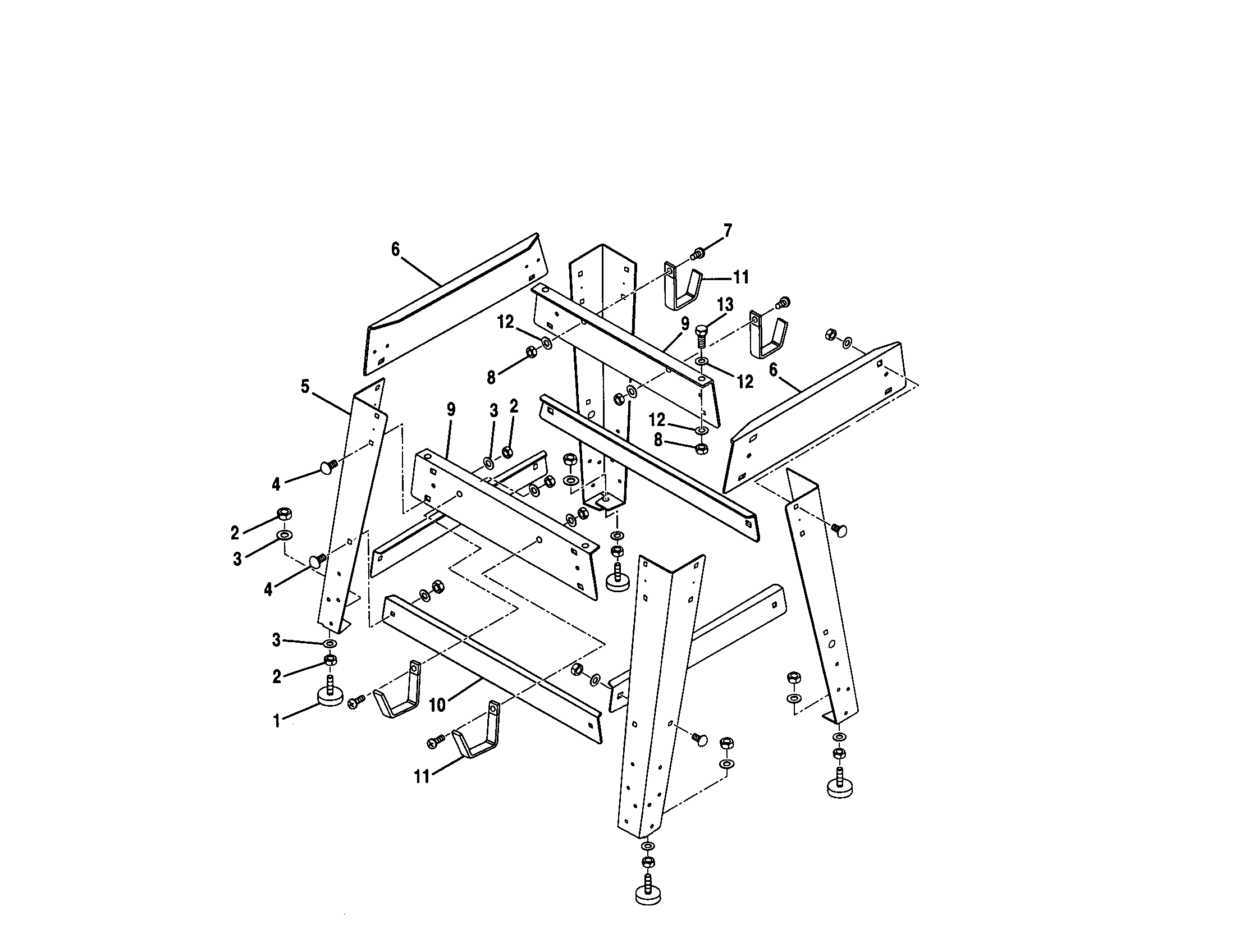

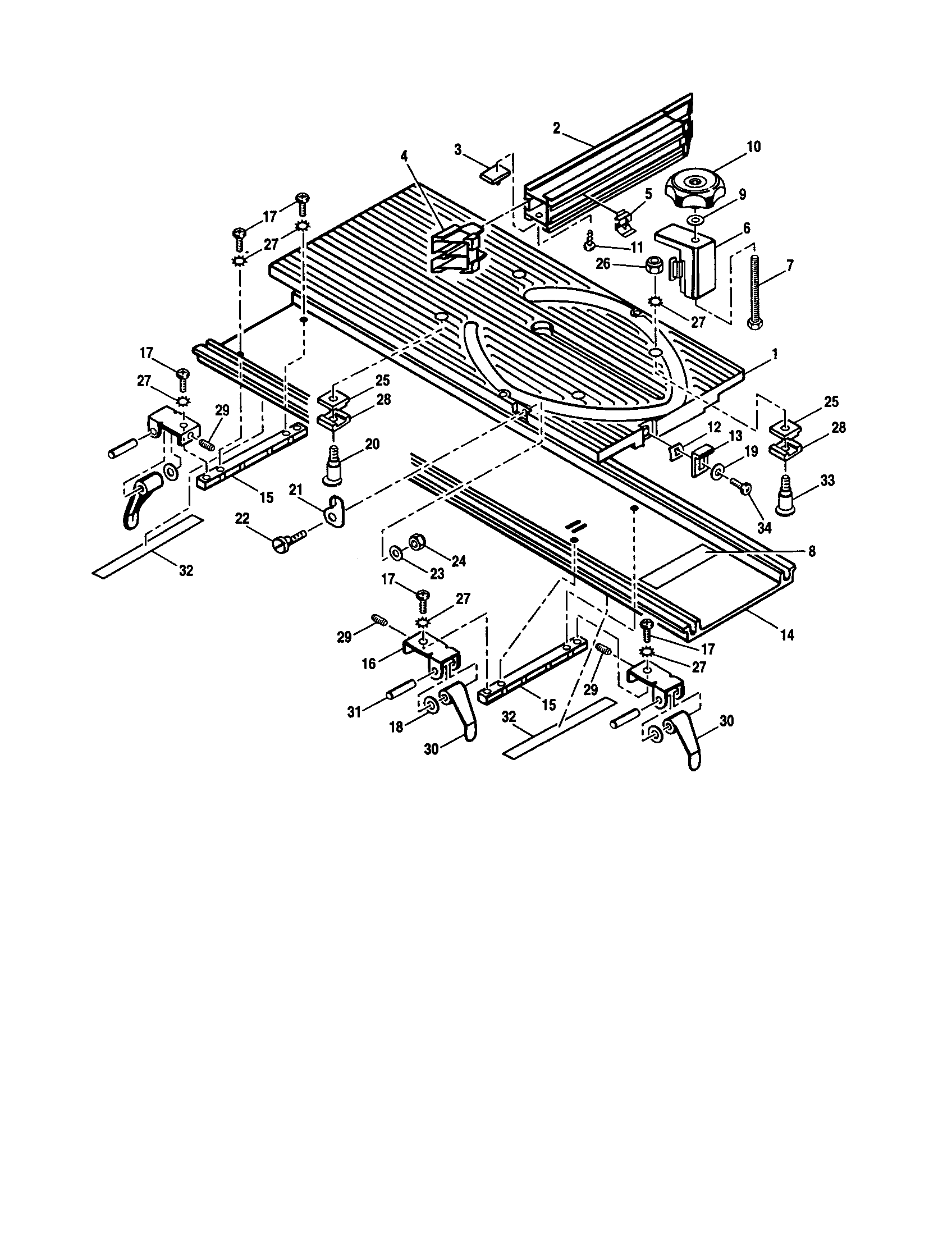

Table diagram

Screw (1/4-20 x 1/2 in. (2) (standard hardware item-may be purchased locally) (available from div. 98-source 980.00)

Part #STD512505

The manufacturer no longer makes this part, and there's no substitute part

Gear Rack 969126-001
#27

10 in. table saw diagram

Gear rack

Part #969126-001

The manufacturer no longer makes this part, and there's no substitute part

Hardware 977227-002
#35

10 in. table saw diagram

Hardware

Part #977227-002

The manufacturer no longer makes this part, and there's no substitute part

Pin 969147-002
#24

Rip fence assembly diagram

Pin

Part #969147-002

The manufacturer no longer makes this part, and there's no substitute part

Dowel Pin 969114-001
#8

Rip fence assembly diagram

Dowel pin

Part #969114-001

The manufacturer no longer makes this part, and there's no substitute part
