Model # KSMPEXTA0 Official KitchenAid pasta stand mixer

Here are the diagrams and repair parts for Official KitchenAid KSMPEXTA0 pasta stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 15 parts |

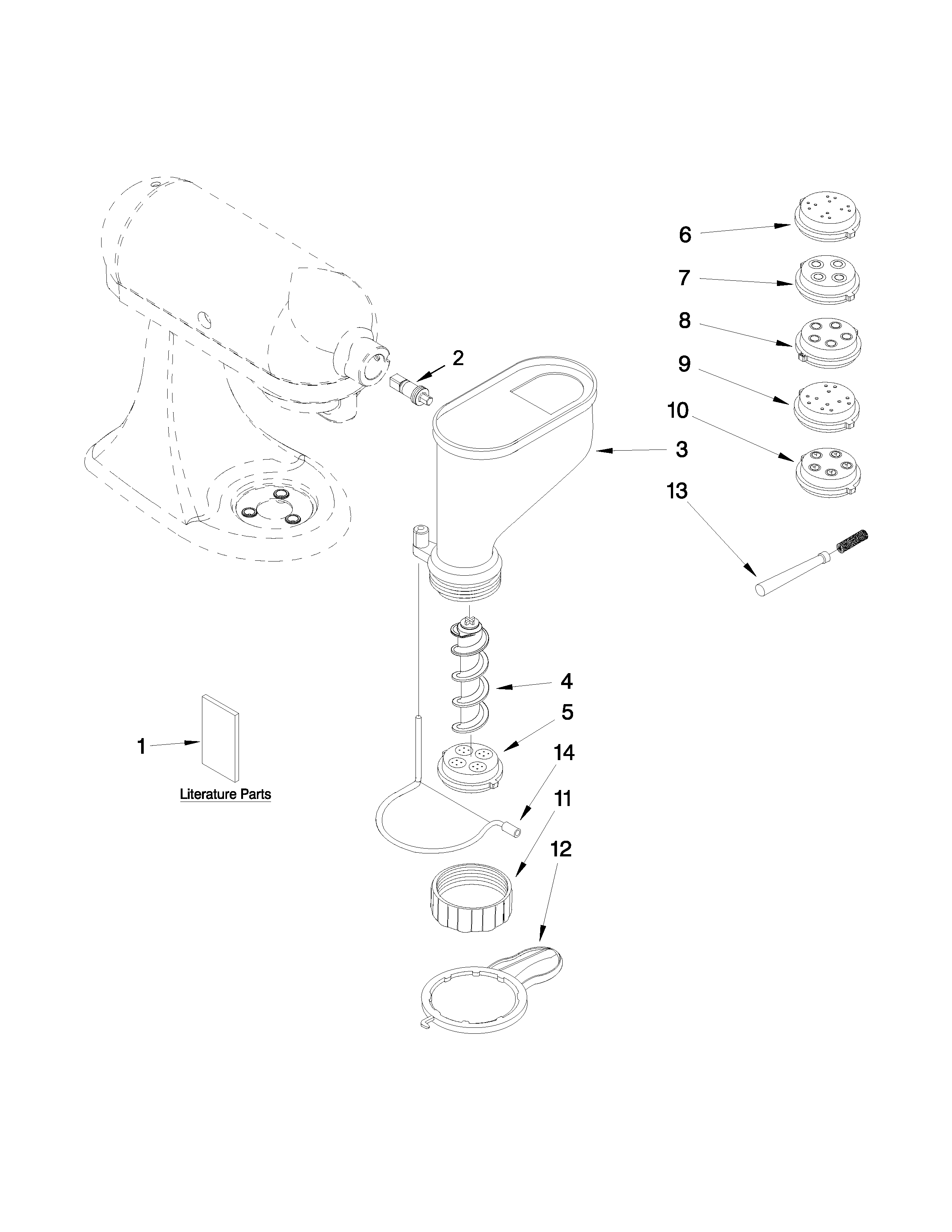

Attachment parts diagram

Spaghetti di

Part #W10895380

$51.49

In Stock

Qty

#10

Attachment parts diagram

Fusilli die

Part #W10895383

$51.49

In Stock

Qty

Stand Mixer Pasta Attachment Retaining Ring W10895381

#11

Attachment parts diagram

Stand mixer pasta attachment retaining ring

Part #W10895381

$54.59 |

10% OFF Phone Price : $60.59

In Stock

Qty

#14

Attachment parts diagram

Cutter assem

Part #W10895389

$60.16

In Stock

Qty

#13

Attachment parts diagram

Cleaning too

Part #W10895391

$50.13

In Stock

Qty

Attachment parts diagram

Small macaro

Part #W10895387

$51.49

In Stock

Qty

Attachment parts diagram

Bucatini die

Part #W10895384

$51.49

In Stock

Qty

Attachment parts diagram

Housing assembly

Part #W10895390

$189.33

In Stock

Qty

Attachment parts diagram

Large macaro

Part #W10895385

$51.49

In Stock

Qty

Attachment parts diagram

Drive shaft

Part #W10895378

$49.44

In Stock

Qty
