Gibson
Electric Range

Model # CGEF309ES1 Official Gibson electric range

Here are the diagrams and repair parts for Official Gibson CGEF309ES1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

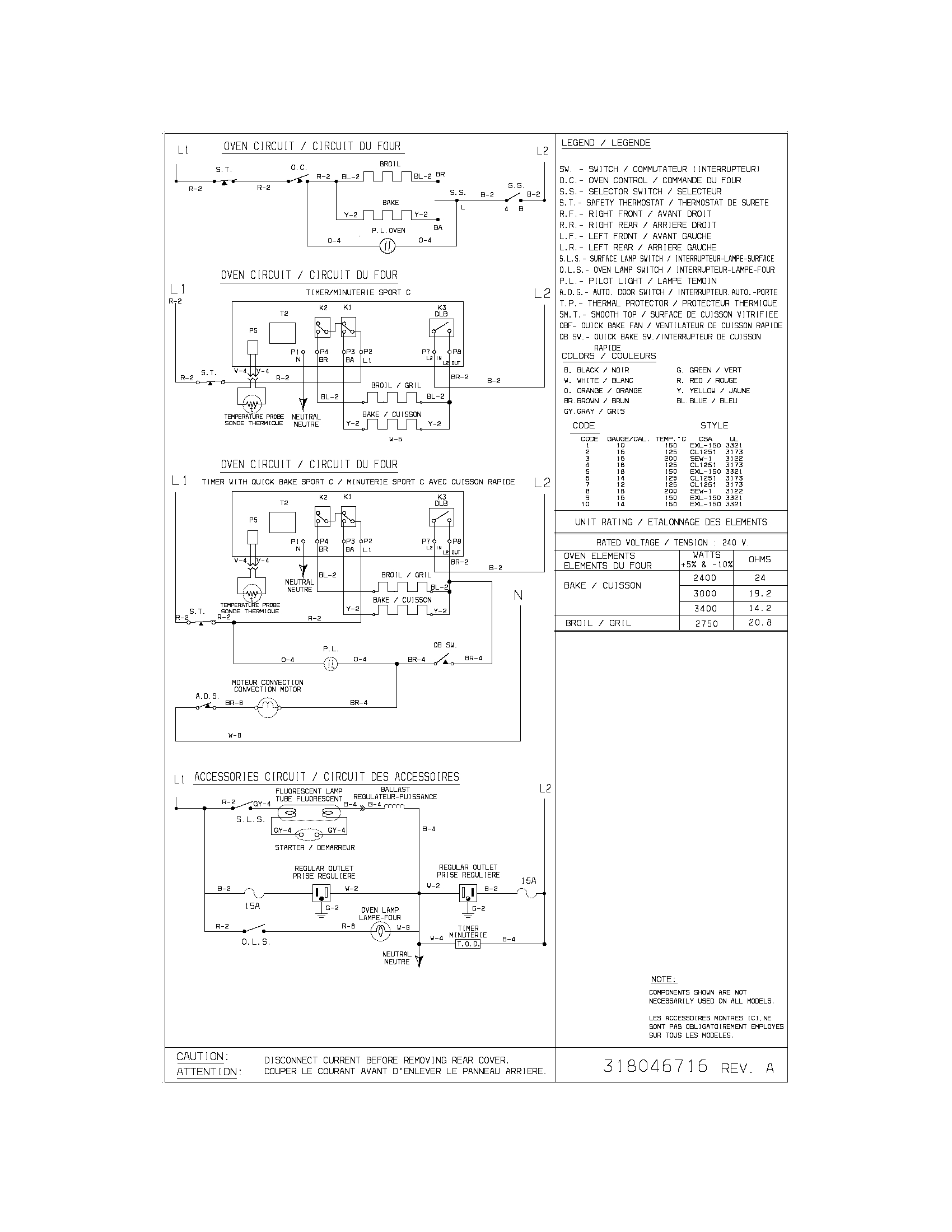

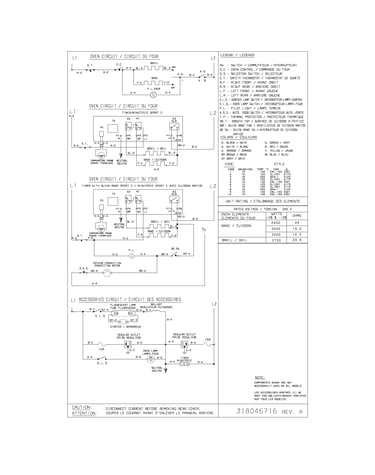

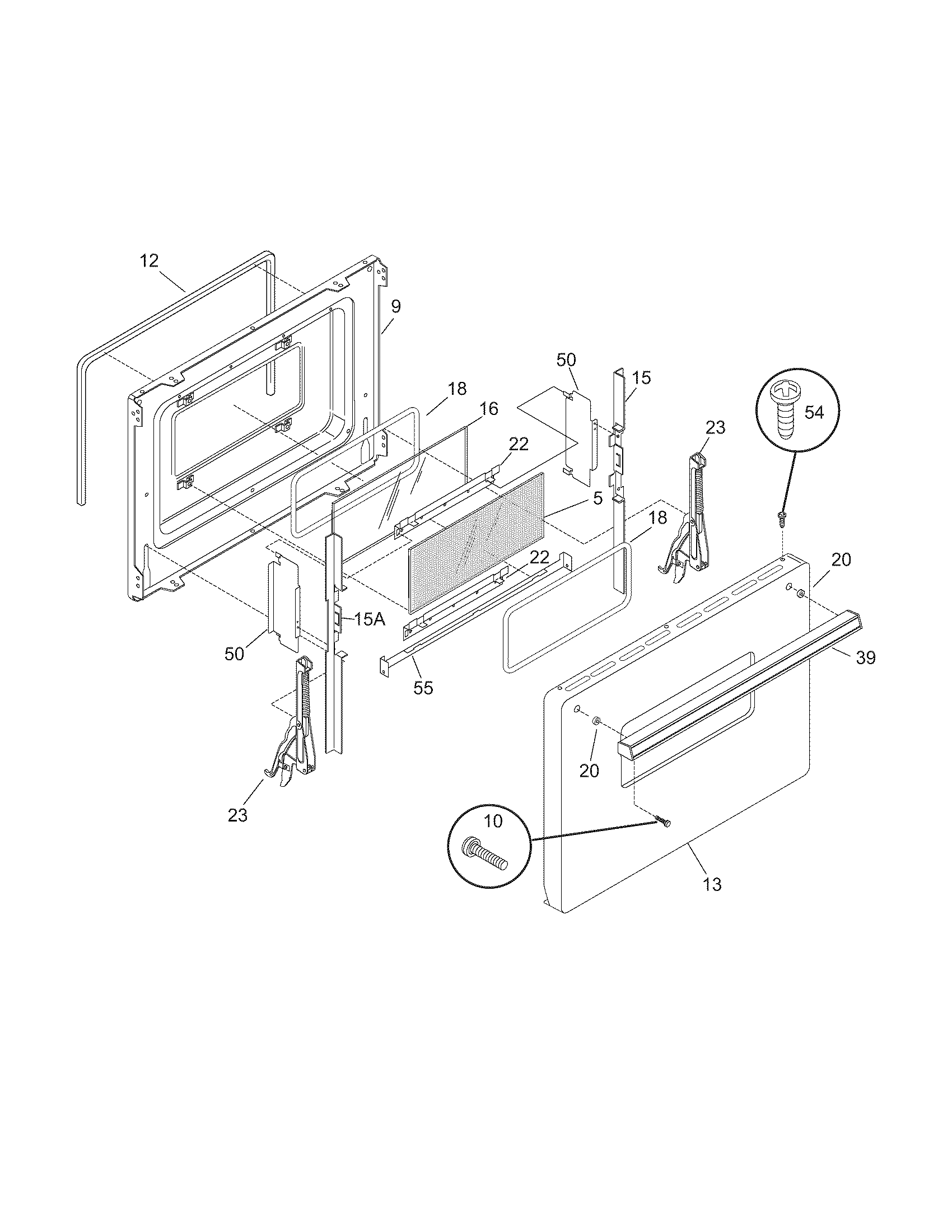

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Pan Element 318067056
#19

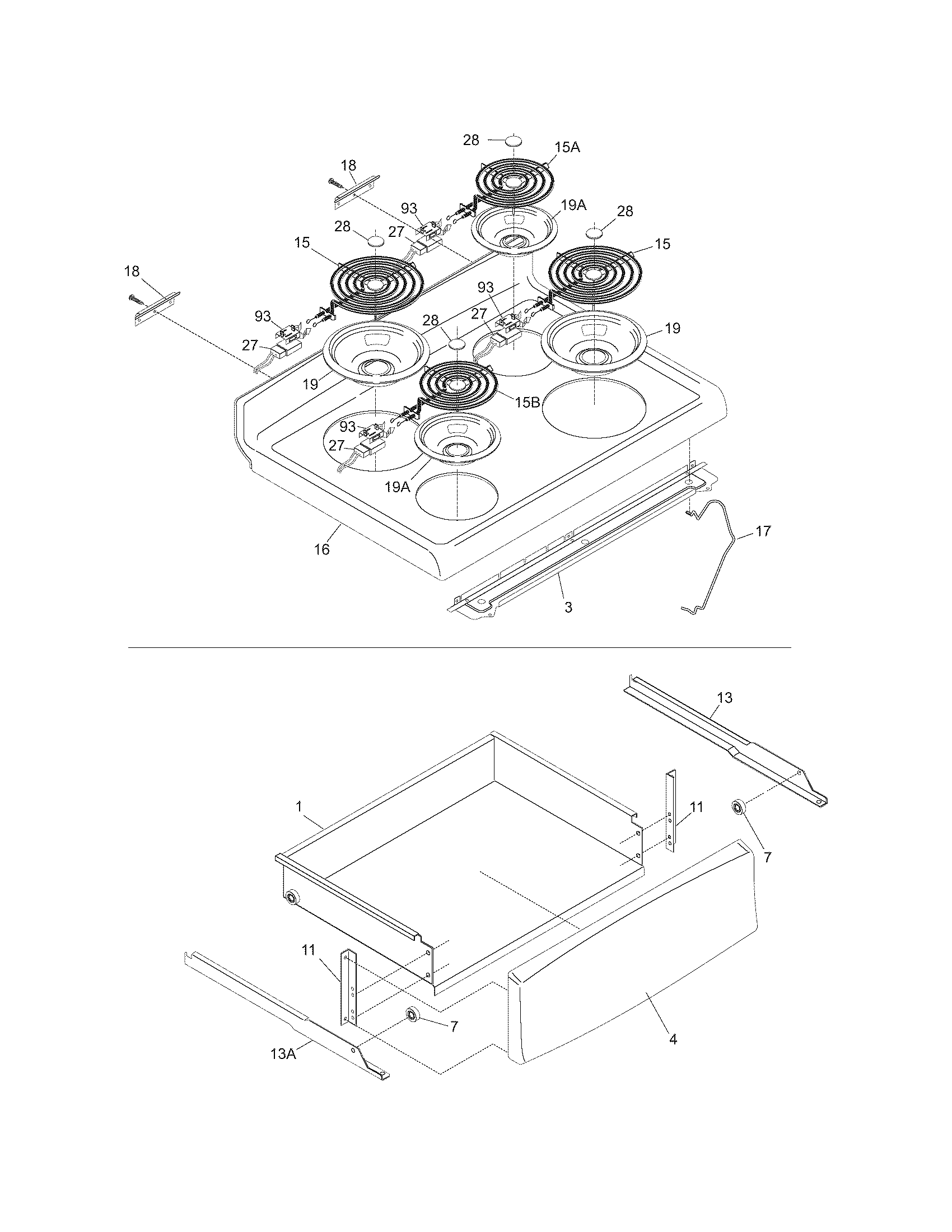

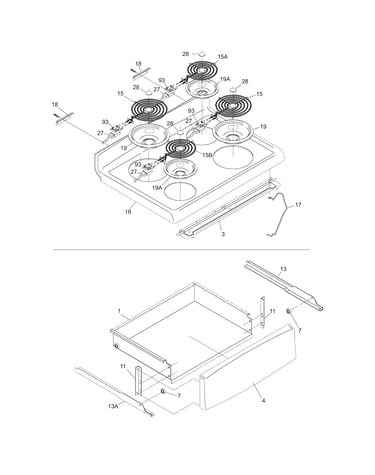

Top/drawer diagram

Pan element

Part #318067056

Replaced by #316048413

?
Manufacturer substitution
This part replaces 318067056. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Pan Element 318067046
#19A

Top/drawer diagram

Pan element

Part #318067046

Replaced by #316048414

?
Manufacturer substitution
This part replaces 318067046. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.97 |
14% OFF Phone Price : $6.97
In Stock
Element 318255000
#67

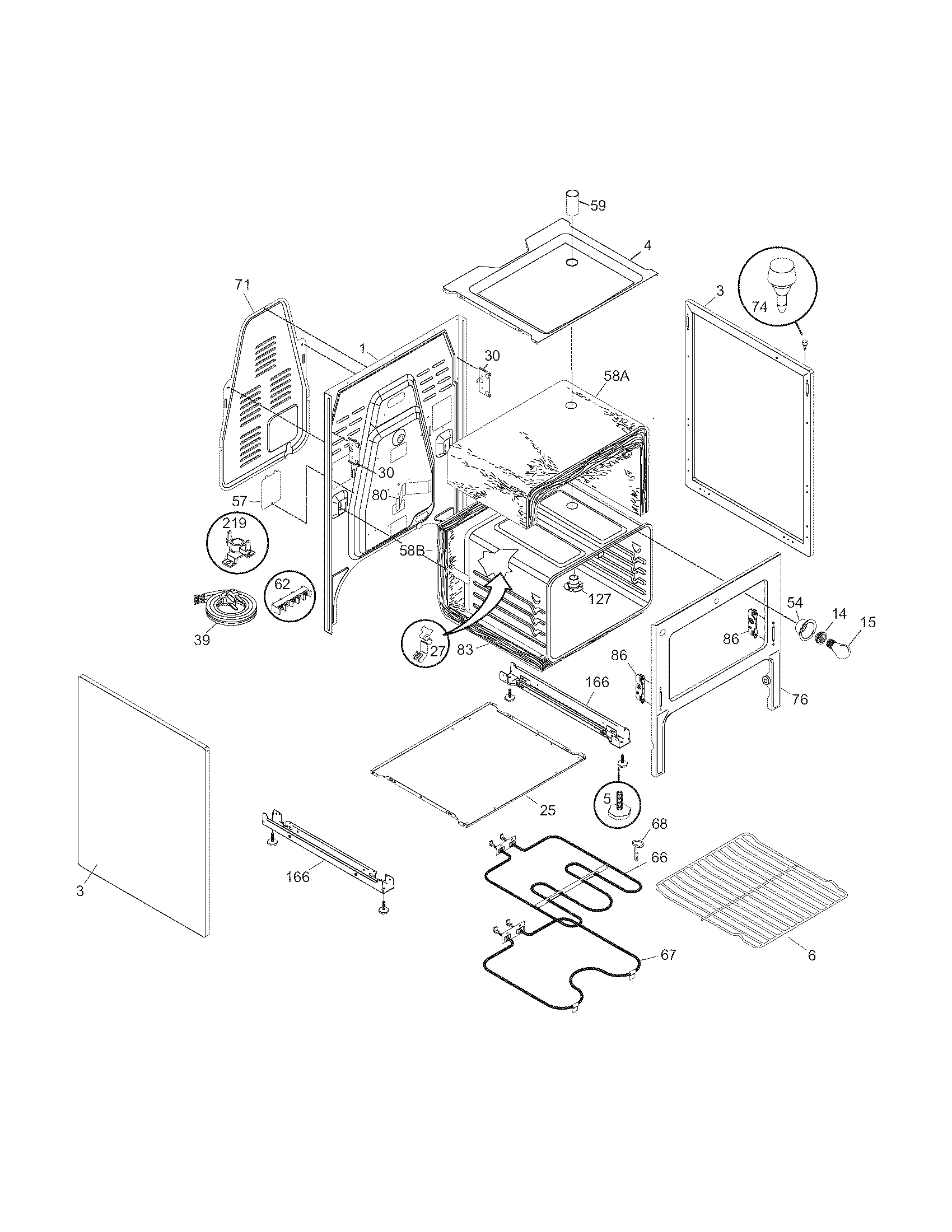

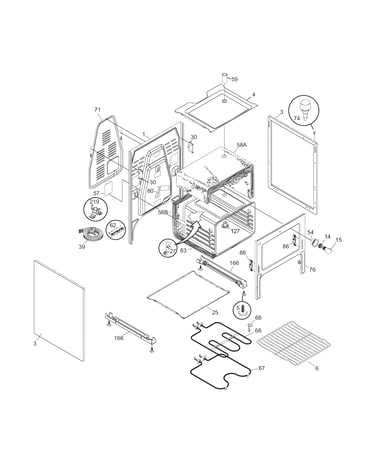

Body diagram

Element

Part #318255000

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255000. Substitute parts can look different from the original.
BEST SELLER
$150.14 |
7% OFF Phone Price : $162.14
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Range Screw 5303323134
#69

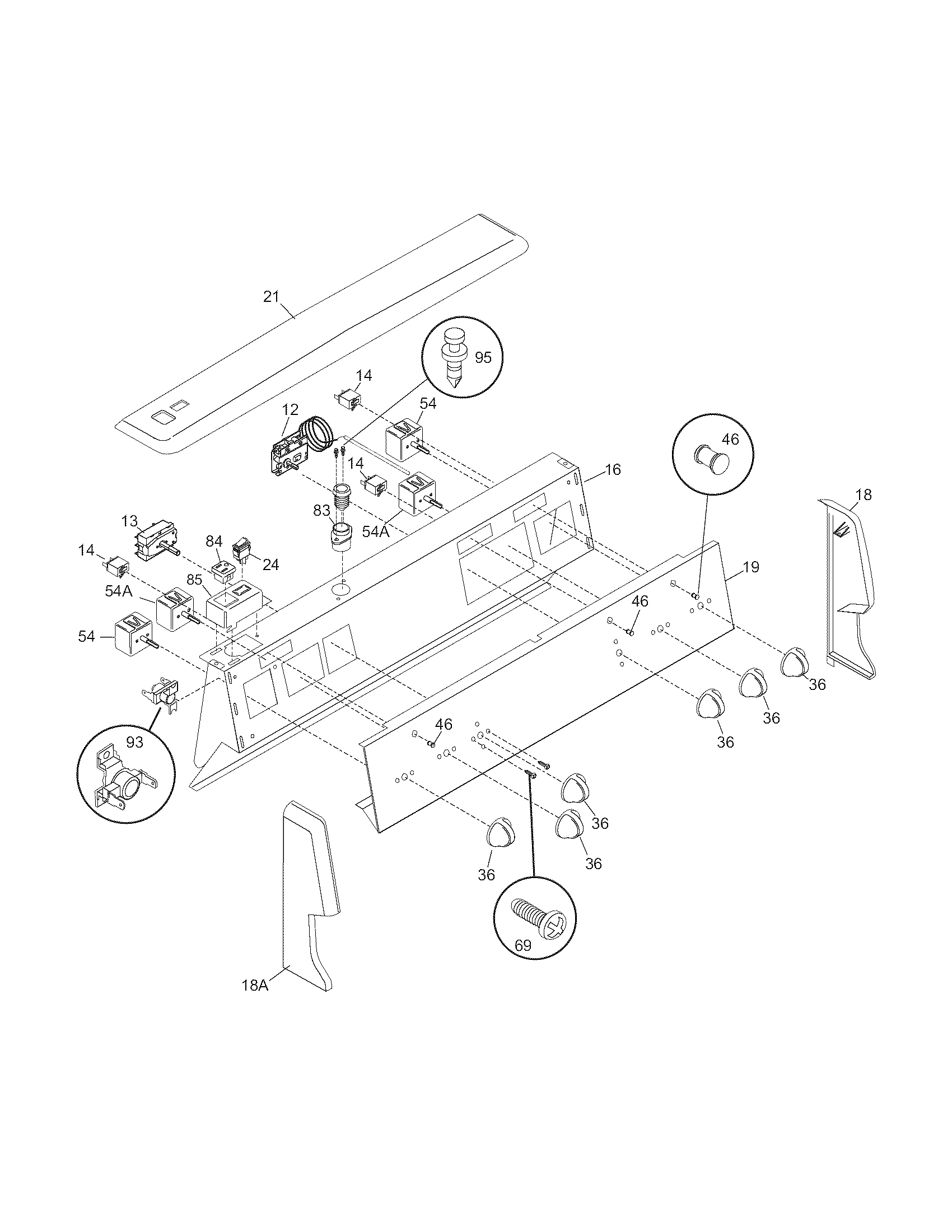

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$59.18 |
9% OFF Phone Price : $65.18
In Stock
Range Screw 5303300265
Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
Element 5304437241
#15A

Top/drawer diagram

Element

Part #5304437241

Replaced by #316439802

?
Manufacturer substitution
This part replaces 5304437241. Substitute parts can look different from the original.
$141.55 |
8% OFF Phone Price : $153.55
In Stock
Switch 318220060
#54

Backguard diagram

Switch

Part #318220060

Replaced by #318293810

?
Manufacturer substitution
This part replaces 318220060. Substitute parts can look different from the original.
$70.39 |
8% OFF Phone Price : $76.39
In Stock
