GE
Wine & Beverage Cooler

Model # ZDBI240WBII Official GE beverage center

Here are the diagrams and repair parts for Official GE ZDBI240WBII beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

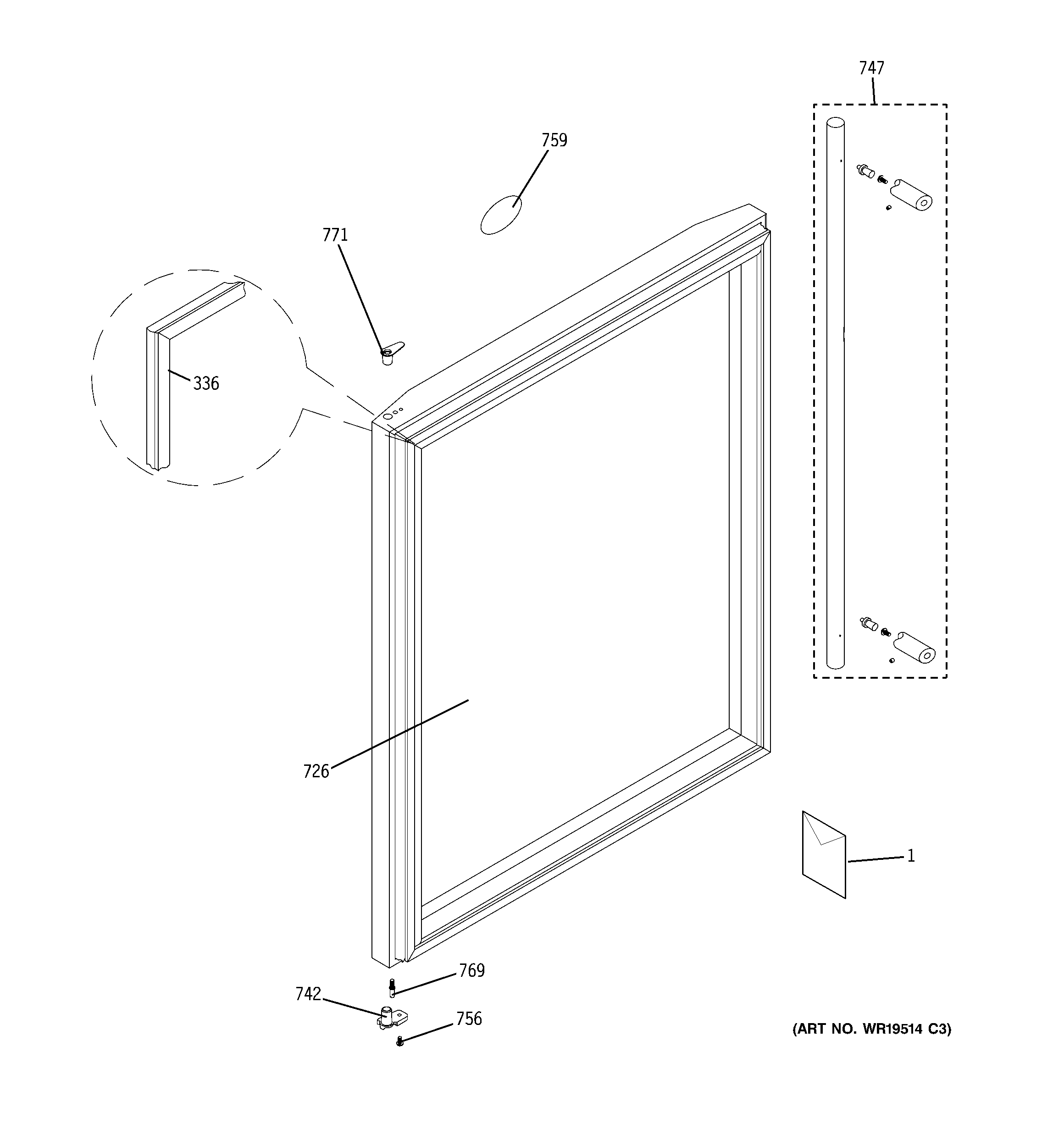

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Dryer Filter WR86X0096
#35

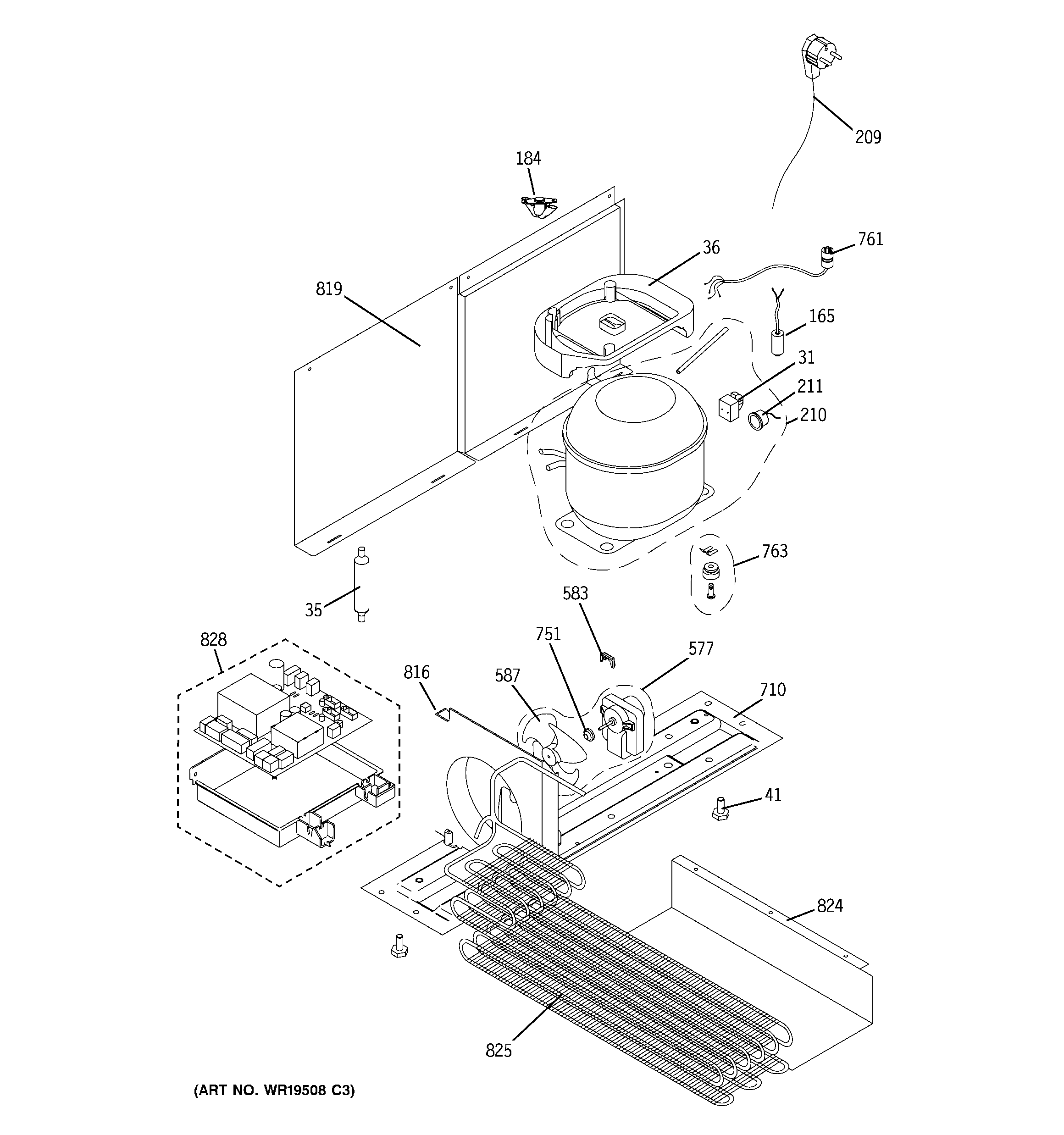

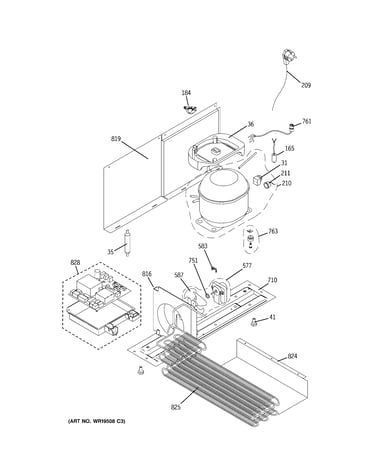

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Wine Cooler Electronic Control Board WR55X10408
#829

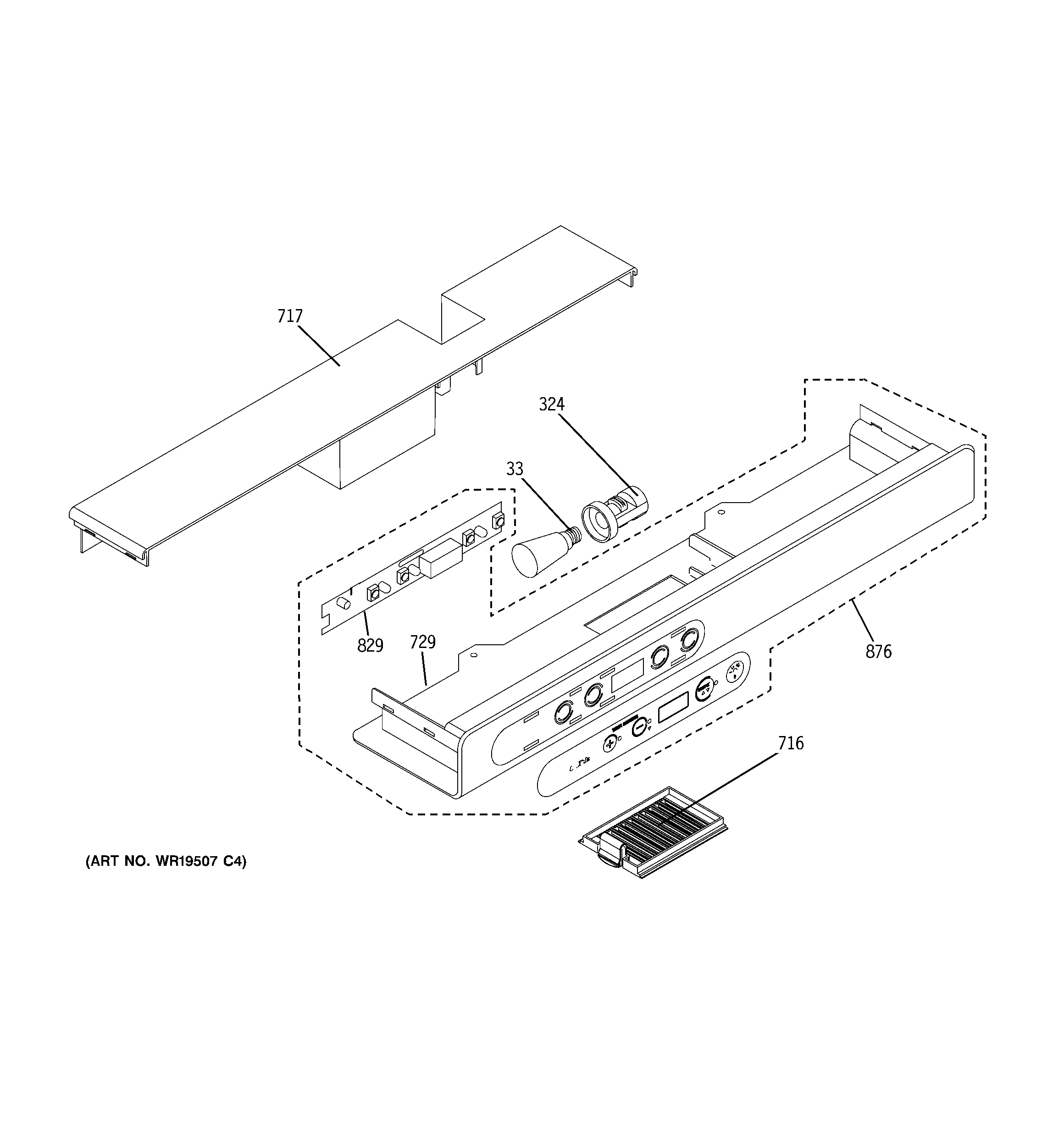

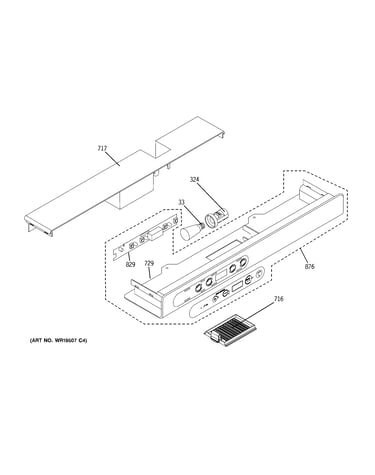

Climate controls diagram

Wine cooler electronic control board

Part #WR55X10408

$213.82
In Stock
Beverage Cooler Glass Shelf WR71X10470
#713

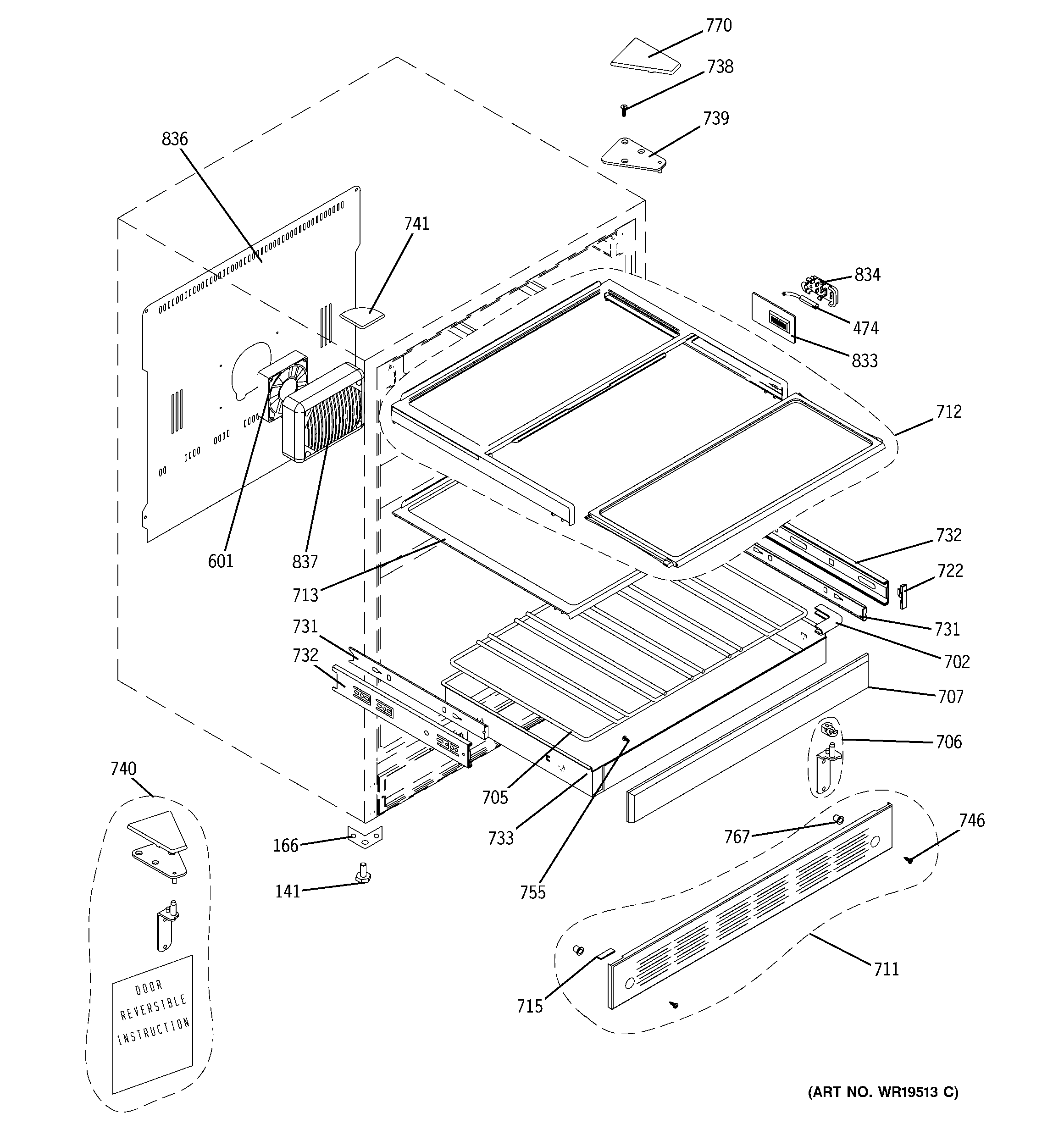

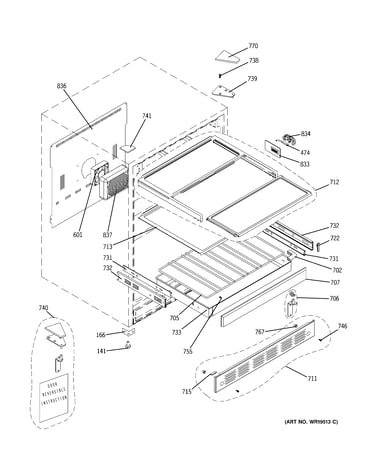

Cabinet & shelves diagram

Beverage cooler glass shelf

Part #WR71X10470

$101.16 |
11% OFF Phone Price : $113.16
In Stock
Refrigerator Condenser Fan Motor Assembly WR60X10163
#577

Unit parts diagram

Refrigerator condenser fan motor assembly

Part #WR60X10163

$198.84 |
6% OFF Phone Price : $210.84
In Stock
Wine Cooler Run Capacitor WR62X10033
#165

Unit parts diagram

Wine cooler run capacitor

Part #WR62X10033

$79.02 |
7% OFF Phone Price : $85.02
In Stock
Drip Tray WR17X11673
#36

Unit parts diagram

Drip tray

Part #WR17X11673

Replaced by #WR17X10374

?
Manufacturer substitution
This part replaces WR17X11673. Substitute parts can look different from the original.
$56.71
In Stock
Temperature Sensor WR55X10457
#474

Cabinet & shelves diagram

Temperature sensor

Part #WR55X10457

Replaced by #WR55X10409

?
Manufacturer substitution
This part replaces WR55X10457. Substitute parts can look different from the original.
$54.14 |
10% OFF Phone Price : $60.14
In Stock
Bottle Rack WR71X10592
#705

Cabinet & shelves diagram

Bottle rack

Part #WR71X10592

$72.03
In Stock
Compressor Support WR02X11808
#710

Unit parts diagram

Compressor support

Part #WR02X11808

$71.85
In Stock
Screw Frame WR01X10526
#755

Cabinet & shelves diagram

Screw frame

Part #WR01X10526

This item is not returnable
$5.00
In Stock
