Frigidaire
Electric Cooktop

Model # FFEC3024LB1 Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FFEC3024LB1 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

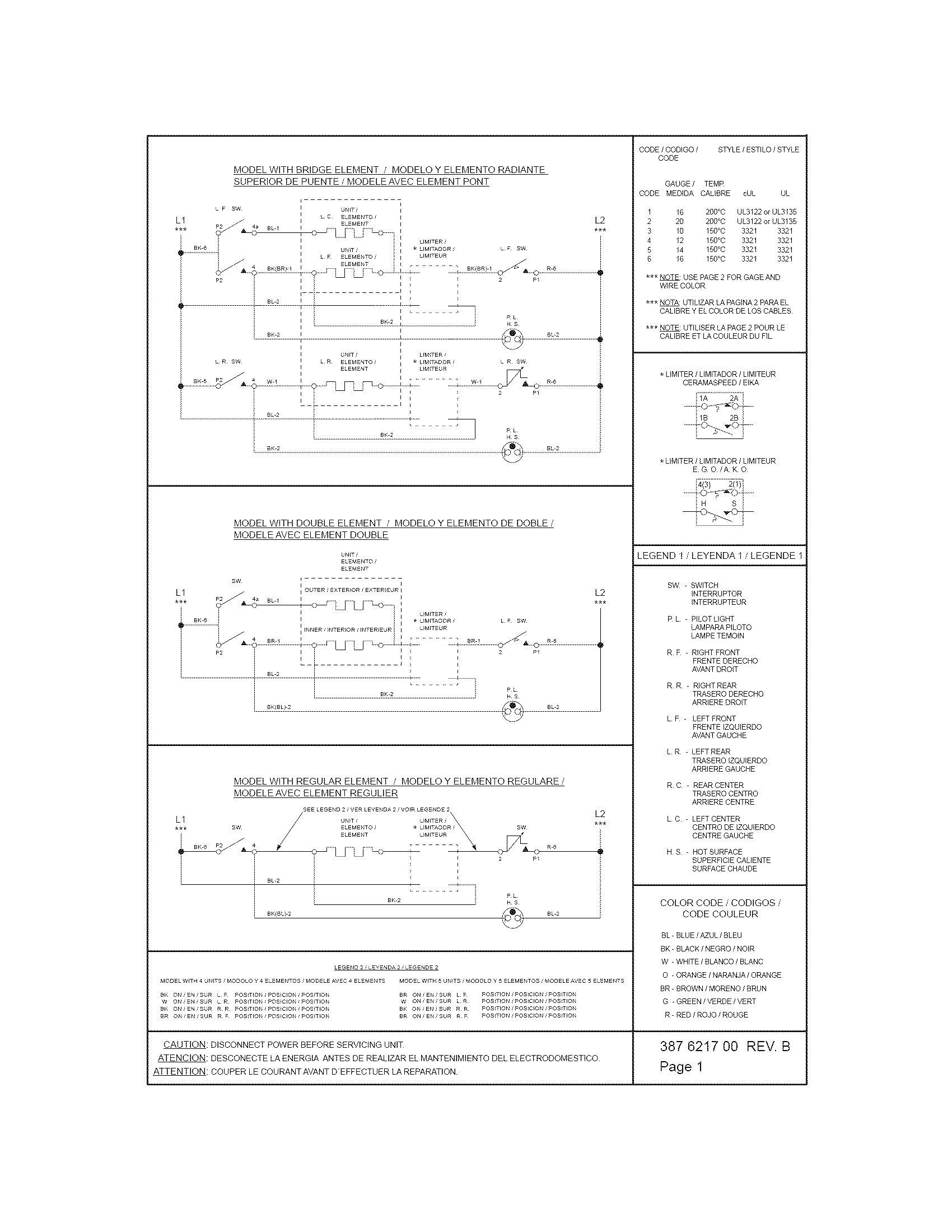

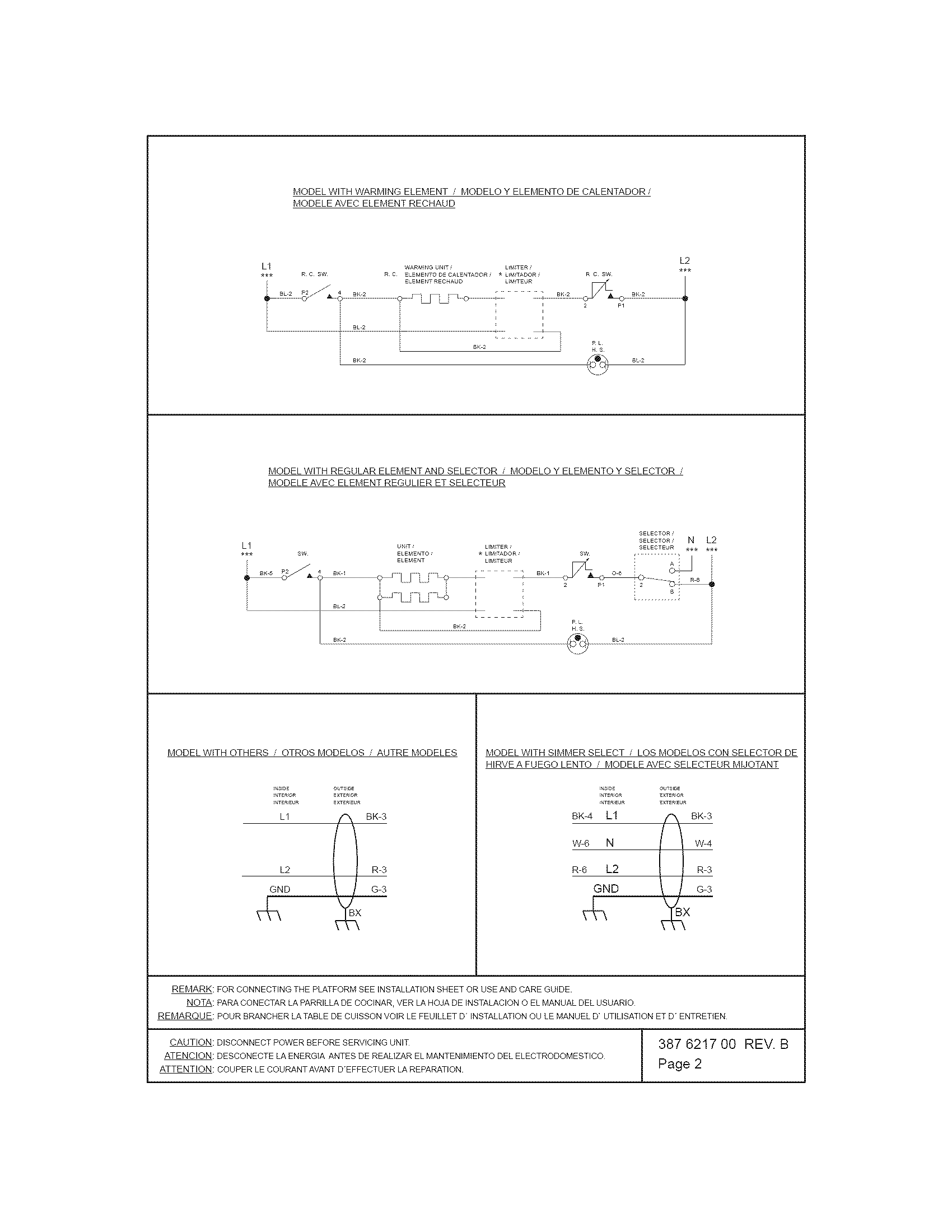

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Cooktop Radiant Element, 6-in 374063522
#8

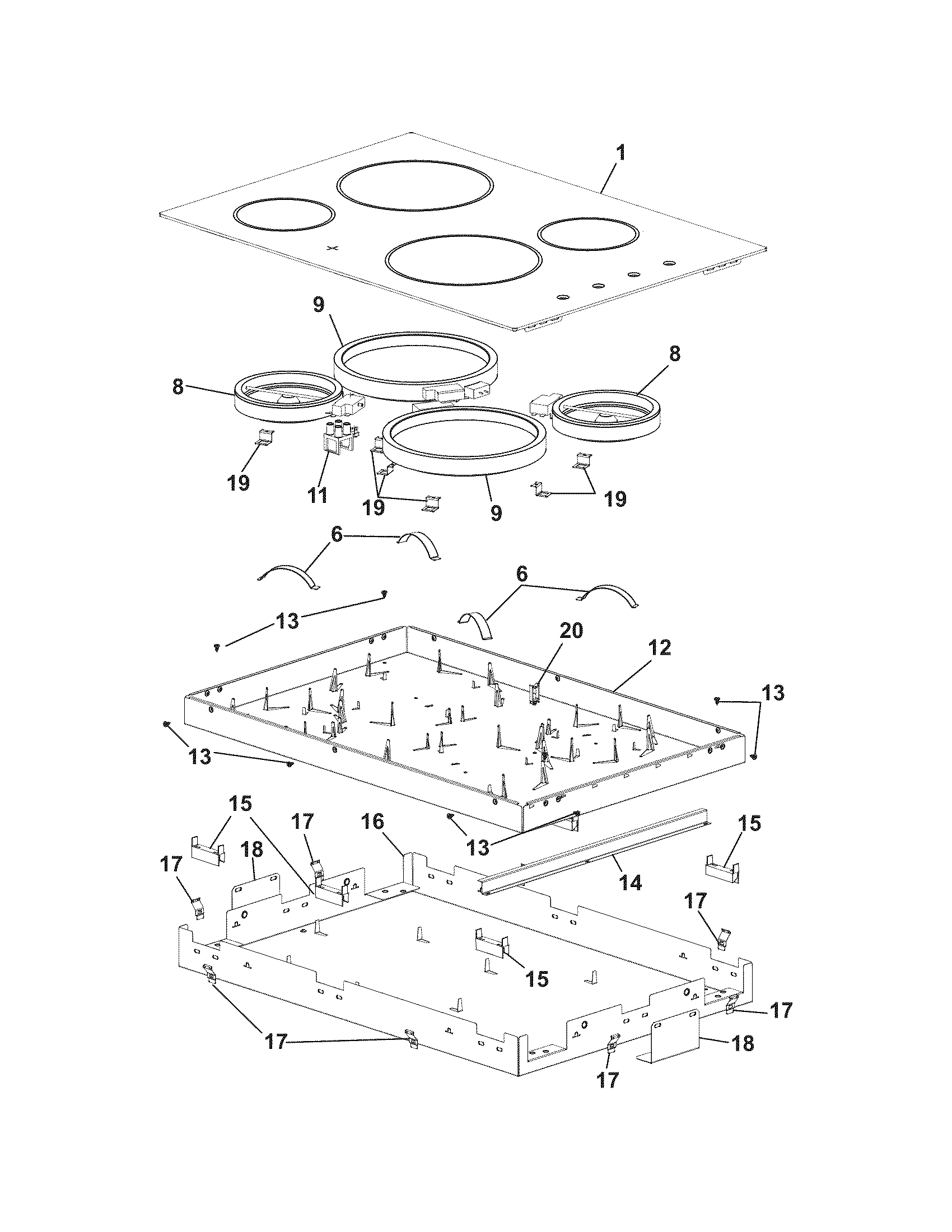

Main top diagram

Cooktop radiant element, 6-in

Part #374063522

Replaced by #A02843501

?
Manufacturer substitution
This part replaces 374063522. Substitute parts can look different from the original.
$117.03 |
9% OFF Phone Price : $129.03
In Stock
Cooktop Element Control Knob Bushing 387316100
#3

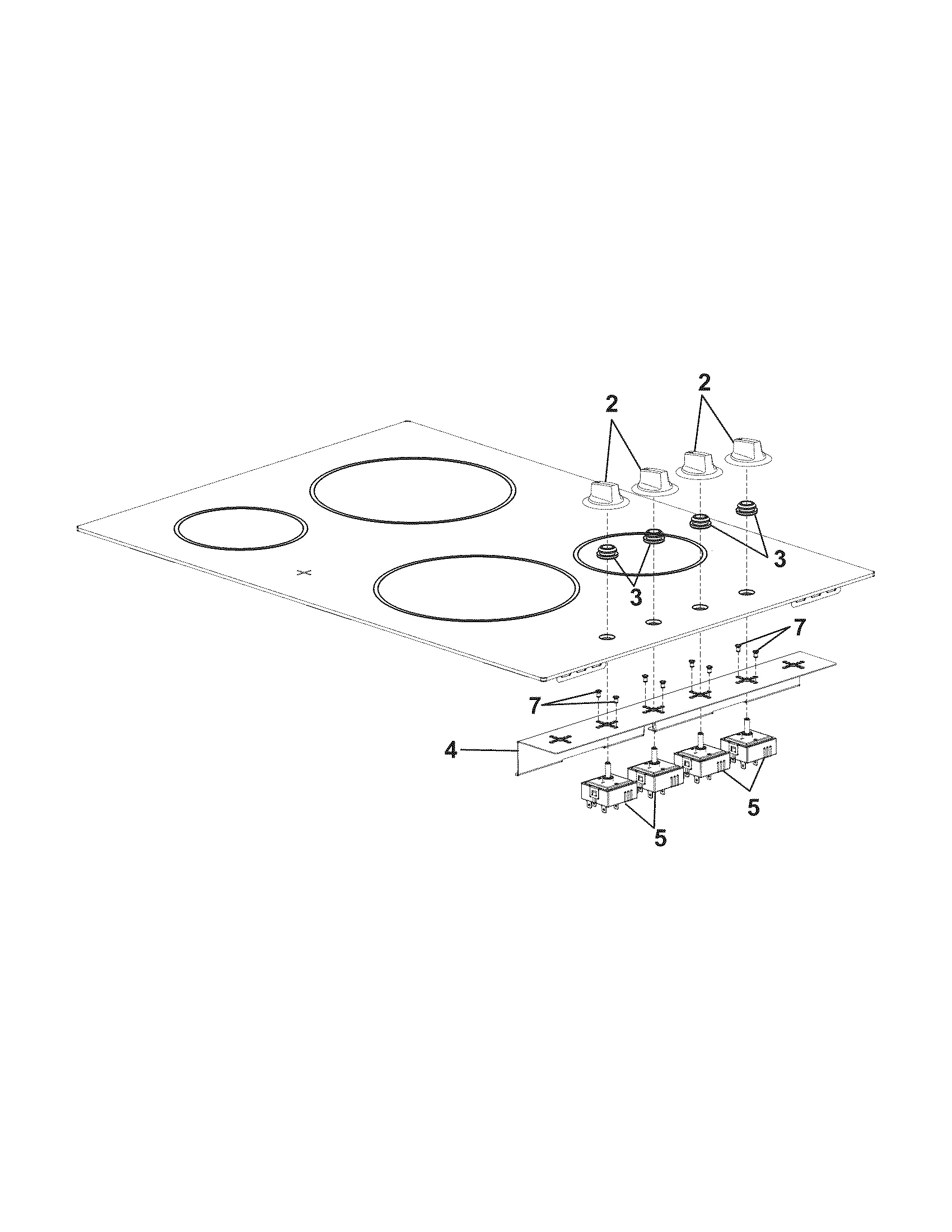

Controls diagram

Cooktop element control knob bushing

Part #387316100

$13.26
In Stock
Screw 330447900
#13

Main top diagram

Screw

Part #330447900

This item is not returnable
$11.17
In Stock
Cooktop Installation Bracket 387627700
#18

Main top diagram

Cooktop installation bracket

Part #387627700

$26.63 |
18% OFF Phone Price : $32.63
In Stock
Spacer 387627600
#15

Main top diagram

Spacer

Part #387627600

$12.57
In Stock
Cooktop Element Control Knob 316544007
#2

Controls diagram

Cooktop element control knob

Part #316544007

$41.59 |
13% OFF Phone Price : $47.59
In Stock
Retainer 387727700
#20

Main top diagram

Retainer

Part #387727700

$13.29
In Stock
Box Wires 318078564
#NI

Main top diagram

Box wires

Part #318078564

$169.39 |
7% OFF Phone Price : $181.39
In Stock
Screw 319224001
#7

Controls diagram

Screw

Part #319224001

$12.60
In Stock
Spring 387372900
#6

Main top diagram

Spring

Part #387372900

$13.97
In Stock
