Here are the diagrams and repair parts for Official Craftsman 247287751 log splitter, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for247287751 Log Splitter

#36C

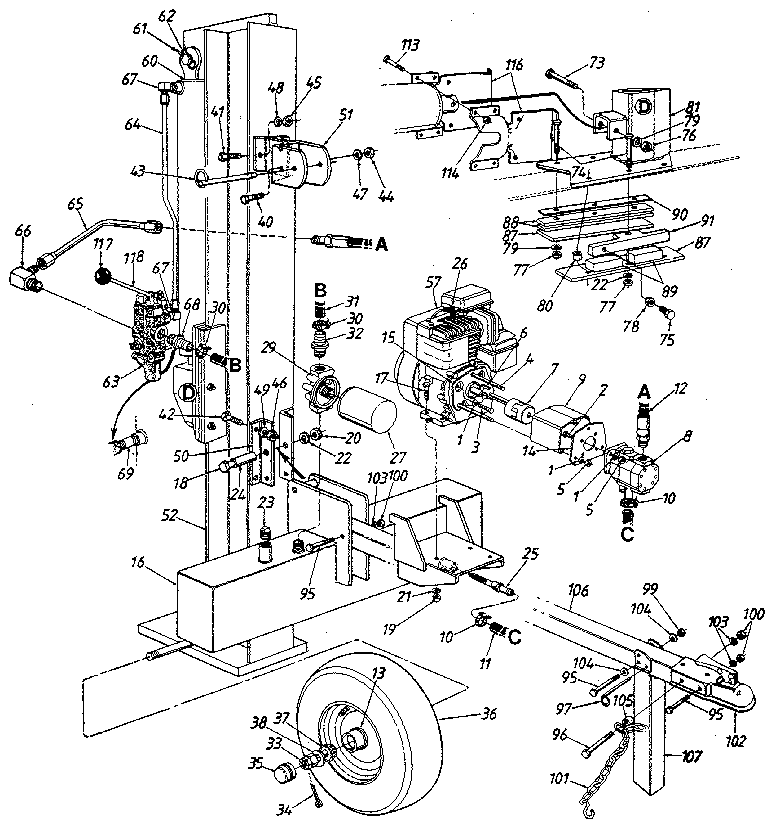

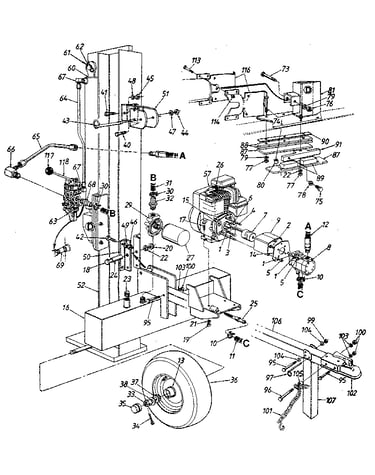

Replacement parts diagram
Air valve
Part #734-0255
Replaced by #934-0255
?
Manufacturer substitution
This part replaces 734-0255. Substitute parts can look different from the original.
This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
Qty
#27
Replacement parts diagram
Log splitter hydraulic filter
Part #723-0405
Replaced by #723P0405
?
Manufacturer substitution
This part replaces 723-0405. Substitute parts can look different from the original.
1 (1)
$47.10 |
11% OFF Phone Price : $53.10
In Stock
Qty
#35
Replacement parts diagram
Unknown brand name #689 log splitter hub cap
Part #734-0873
1 (1)
This item is not returnable
$21.77
In Stock
Qty
#38
Replacement parts diagram
Flat washer
Part #736-0351
This item is not returnable
$6.60
In Stock
Qty
#23
Replacement parts diagram
Pipe plug
Part #737-0236
Replaced by #737-0348A
?
Manufacturer substitution
This part replaces 737-0236. Substitute parts can look different from the original.
This item is not returnable
$32.99 |
15% OFF Phone Price : $38.99
In Stock
Qty
#76
Replacement parts diagram
Hex nut
Part #712-0239
$10.51
In Stock
Qty
#42
Replacement parts diagram
Lawn & garden equipment hex bolt
Part #710-3029
This item is not returnable
$8.00
In Stock
Qty
#10
Replacement parts diagram
Unknown brand name #689 log splitter hose clamp
Part #726-0132
$28.31
In Stock
Qty
#3
Replacement parts diagram
Ryobi hex screw
Part #710-0237
$8.23
In Stock
Qty
#95
Replacement parts diagram
Yard machines lawn tractor hex bolt
Part #710-0521
This item is not returnable
$36.92
In Stock
Qty
