Wine & Beverage Cooler

Model # JUGFL242HM00 Official Jenn-Air under counter beverage center

Here are the diagrams and repair parts for Official Jenn-Air JUGFL242HM00 under counter beverage center, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JUGFL242HM00 UNDER COUNTER BEVERAGE CENTER
Side Cover W11360590
#14

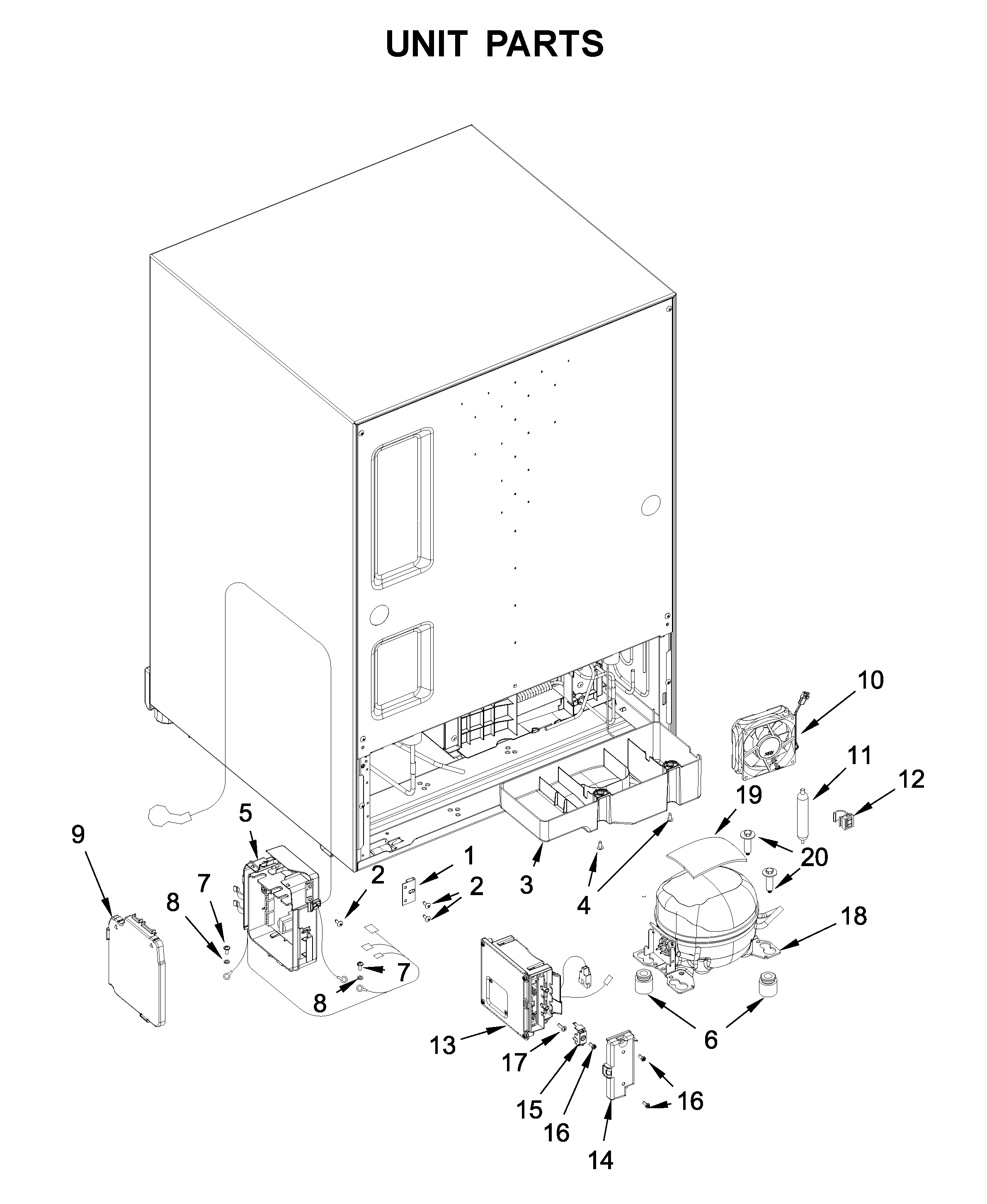

Unit parts diagram

Side cover

Part #W11360590

In Stock
Assembly, Glass Tray W11407979
#12

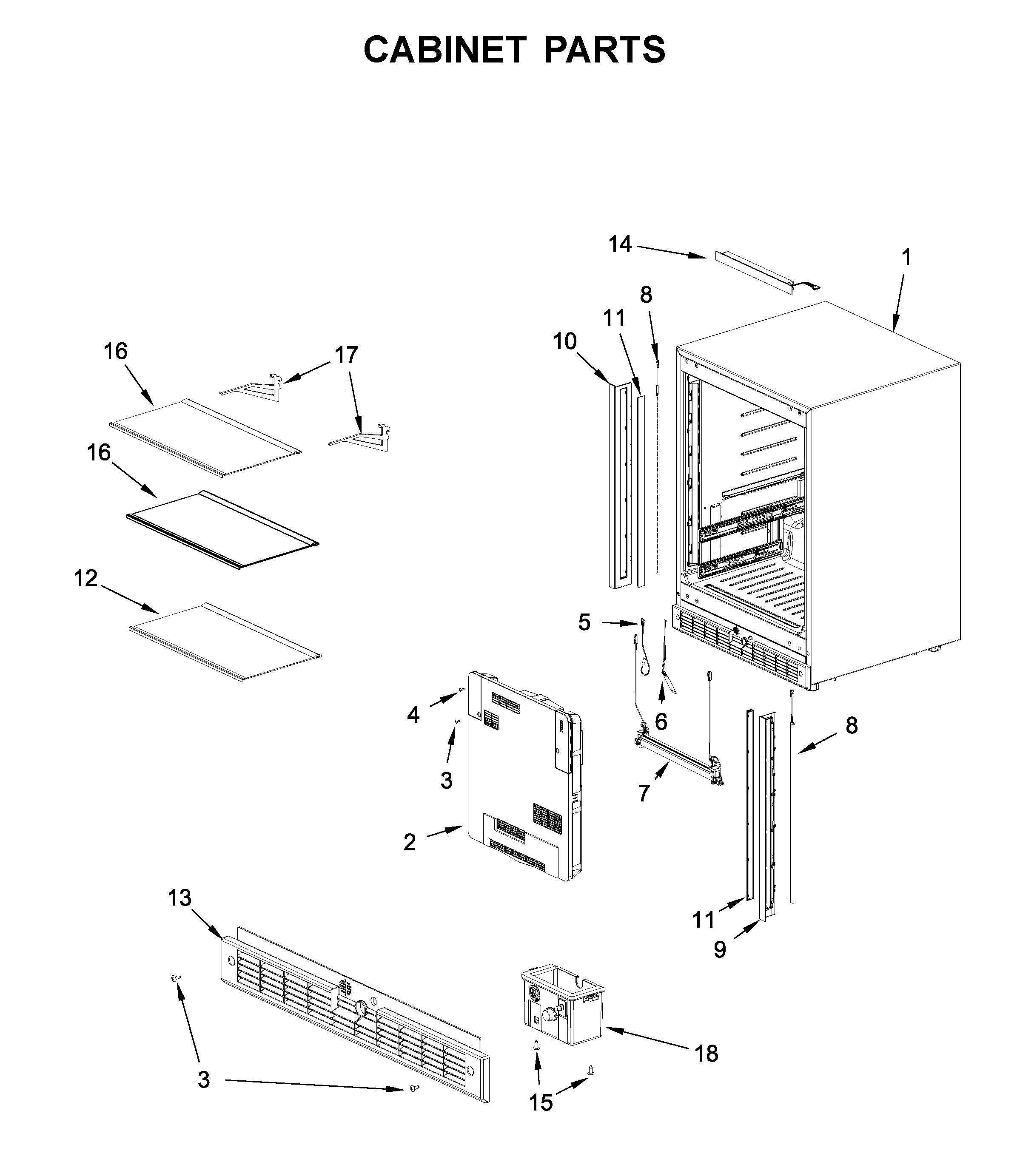

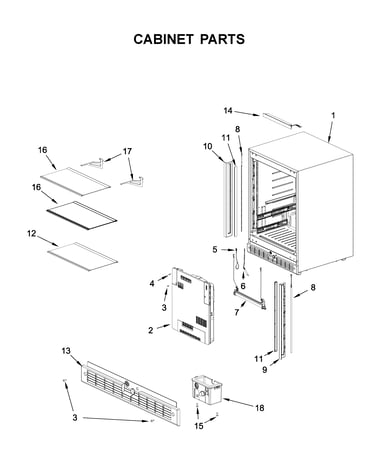

Cabinet parts diagram

Assembly, glass tray

Part #W11407979

In Stock
Sash Gasket W11360666
#7

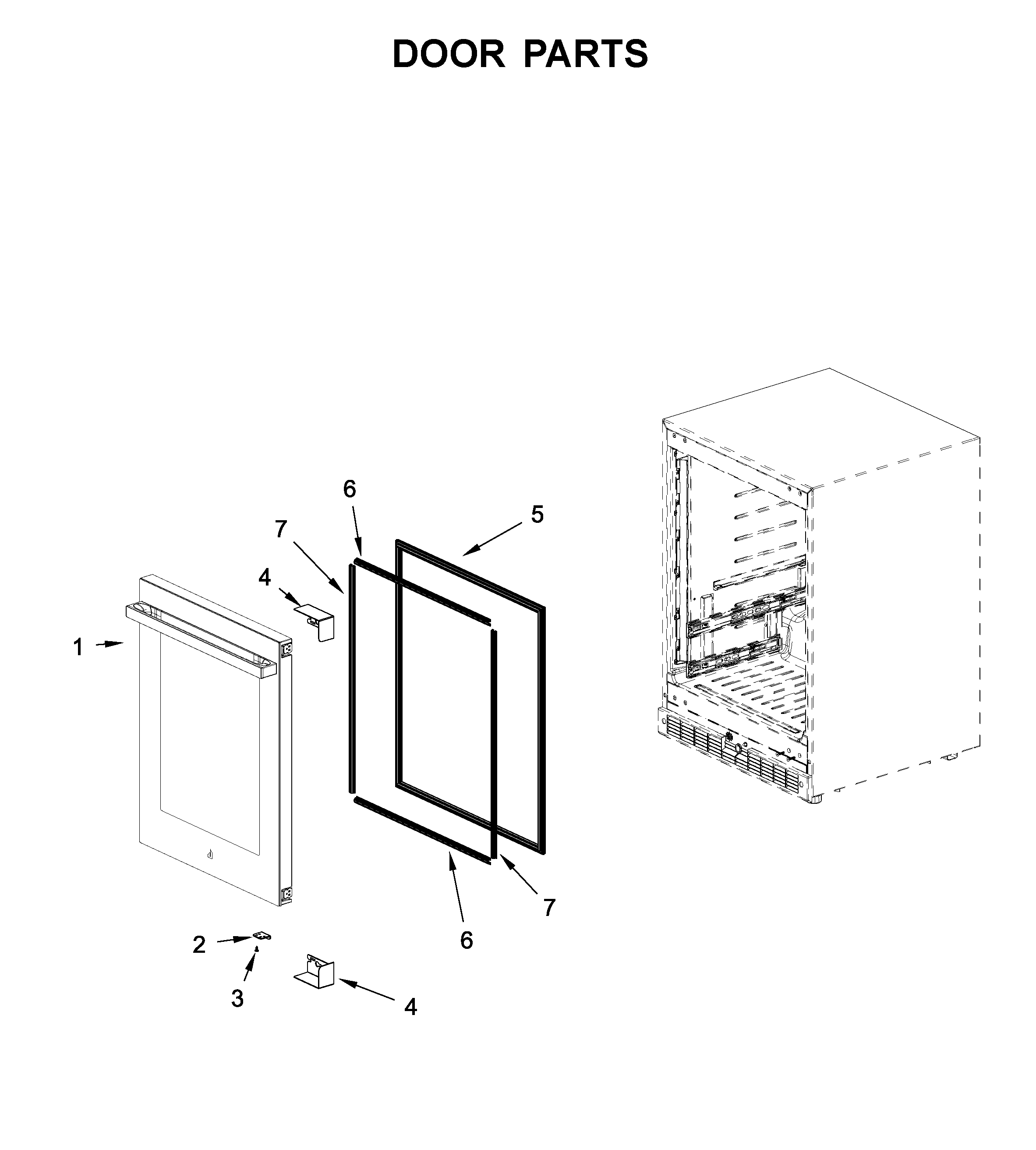

Door parts diagram

Sash gasket

Part #W11360666

In Stock
Assembly, Control W11424751
#14

Cabinet parts diagram

Assembly, control

Part #W11424751

In Stock
Box Sw As W11359433
#18

Cabinet parts diagram

Box sw as

Part #W11359433

In Stock
Sash Gasket W11360665
#6

Door parts diagram

Sash gasket

Part #W11360665

In Stock
Fan Motor As W11360536
#10

Unit parts diagram

Fan motor as

Part #W11360536

In Stock
Push Plate S W11360703
#2

Door parts diagram

Push plate s

Part #W11360703

In Stock
Screw, Custom Overlay Door (m4 X 30) W11415674
#NI

Door parts diagram

Screw, custom overlay door (m4 x 30)

Part #W11415674

In Stock
Whirlpool Defrost Hold W11359416
#7

Cabinet parts diagram

Whirlpool defrost hold

Part #W11359416

In Stock
