Amana
Bottom-Mount Refrigerator

Model # ARB2109AWR-PARB2109AW1 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana ARB2109AWR-PARB2109AW1 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

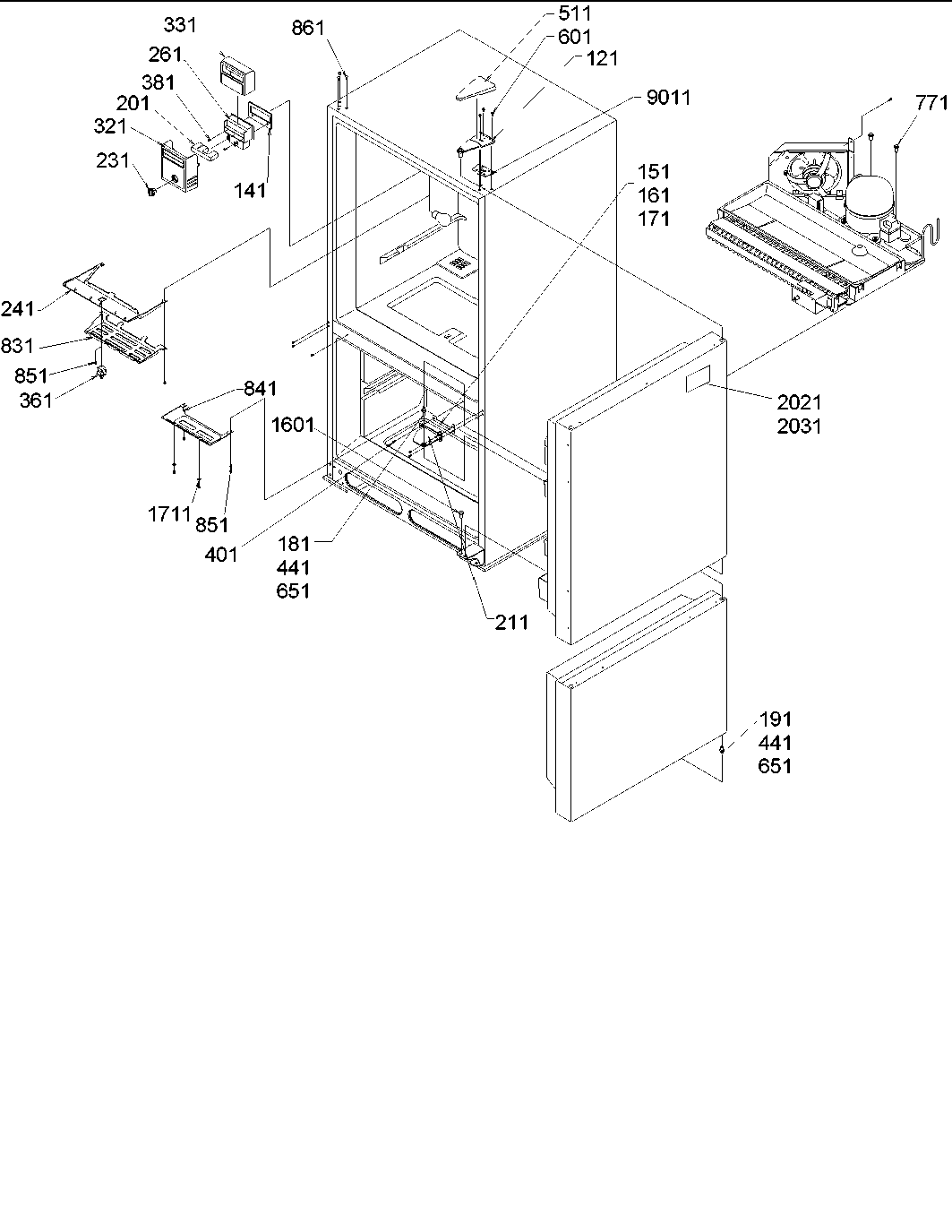

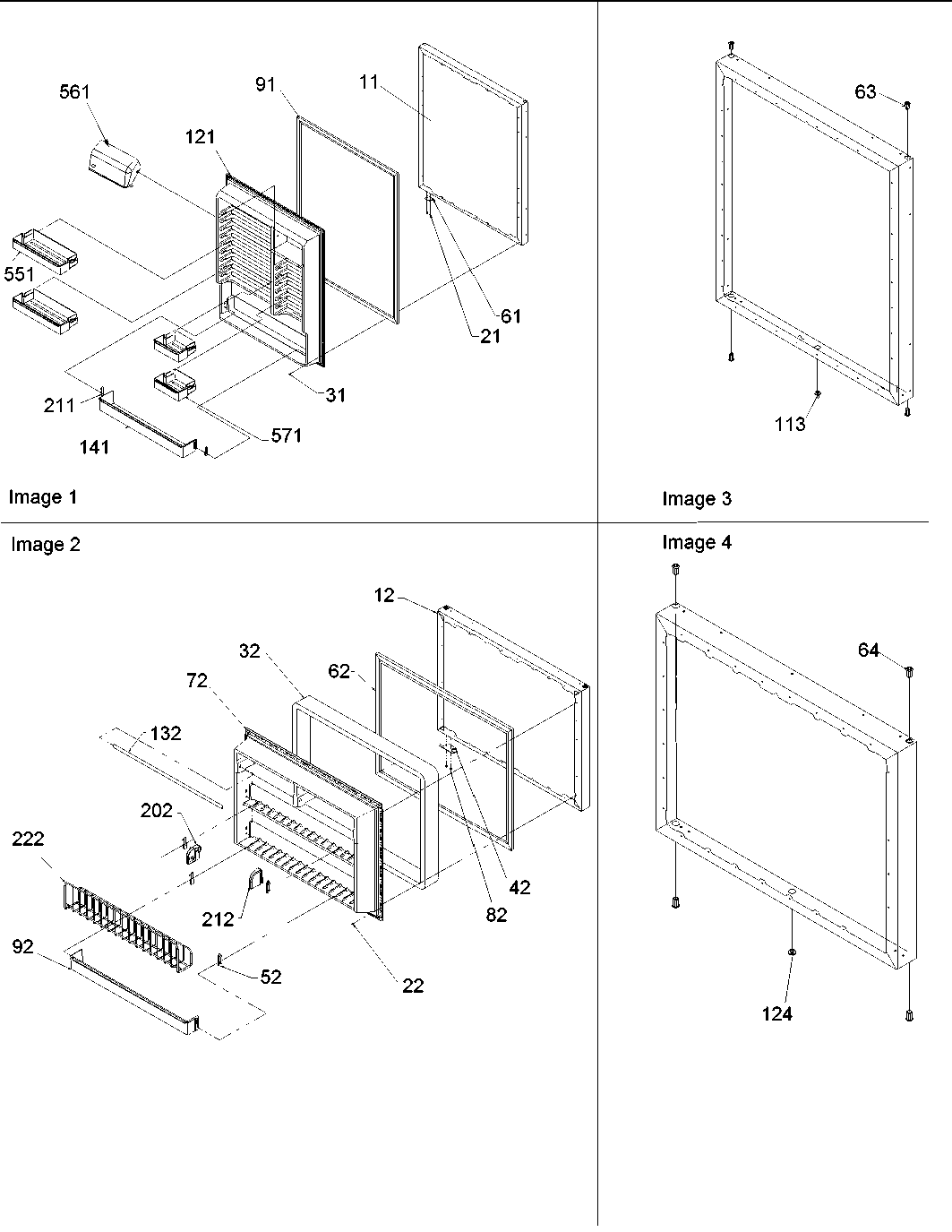

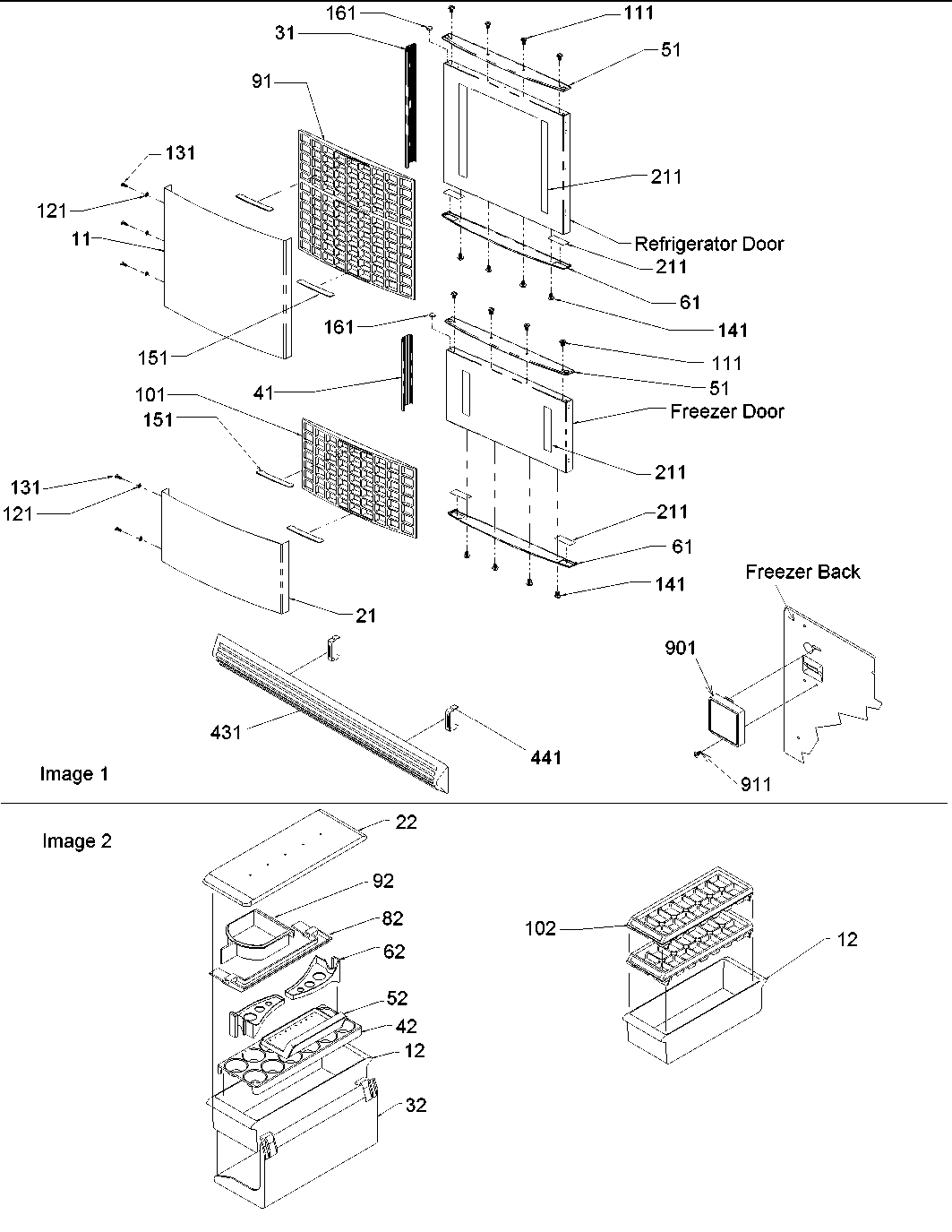

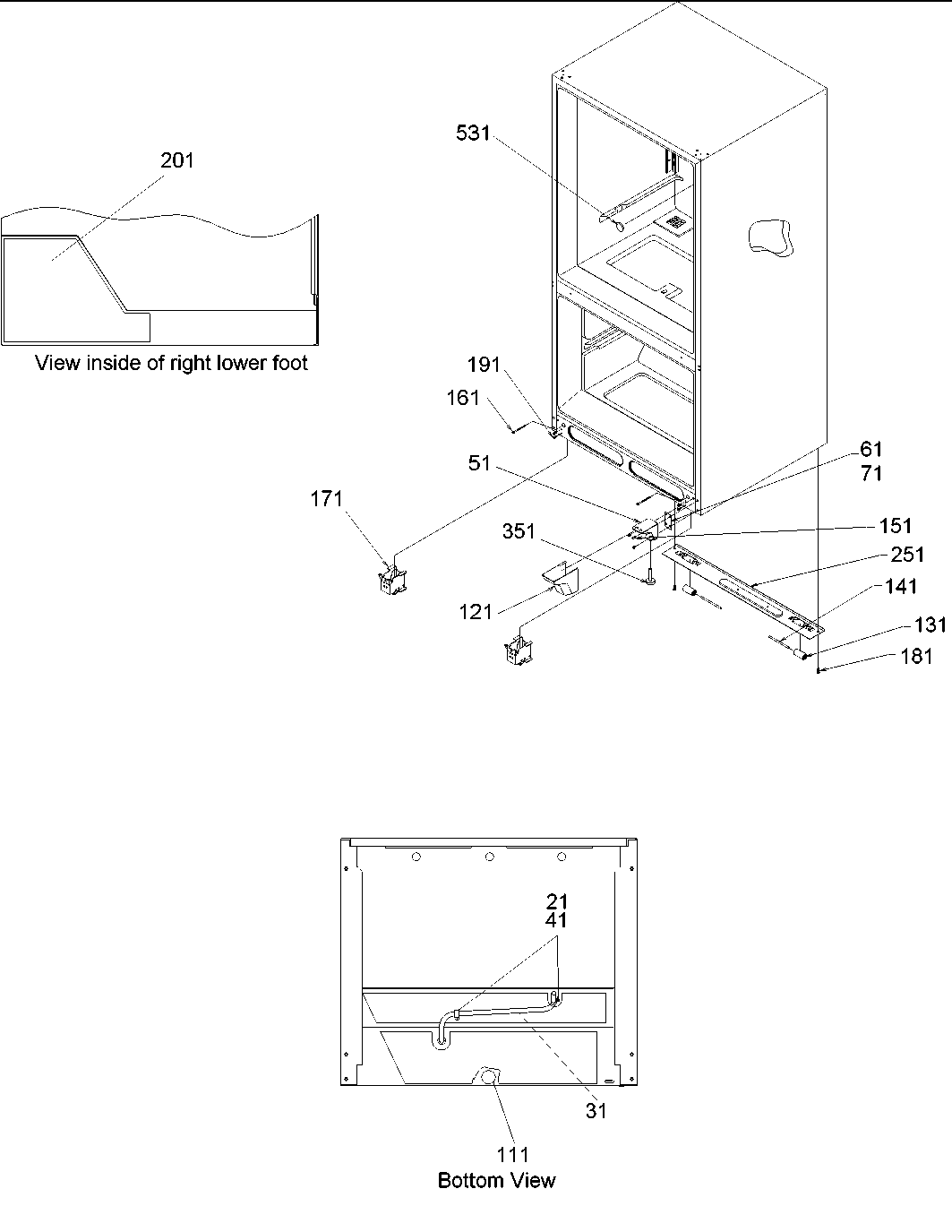

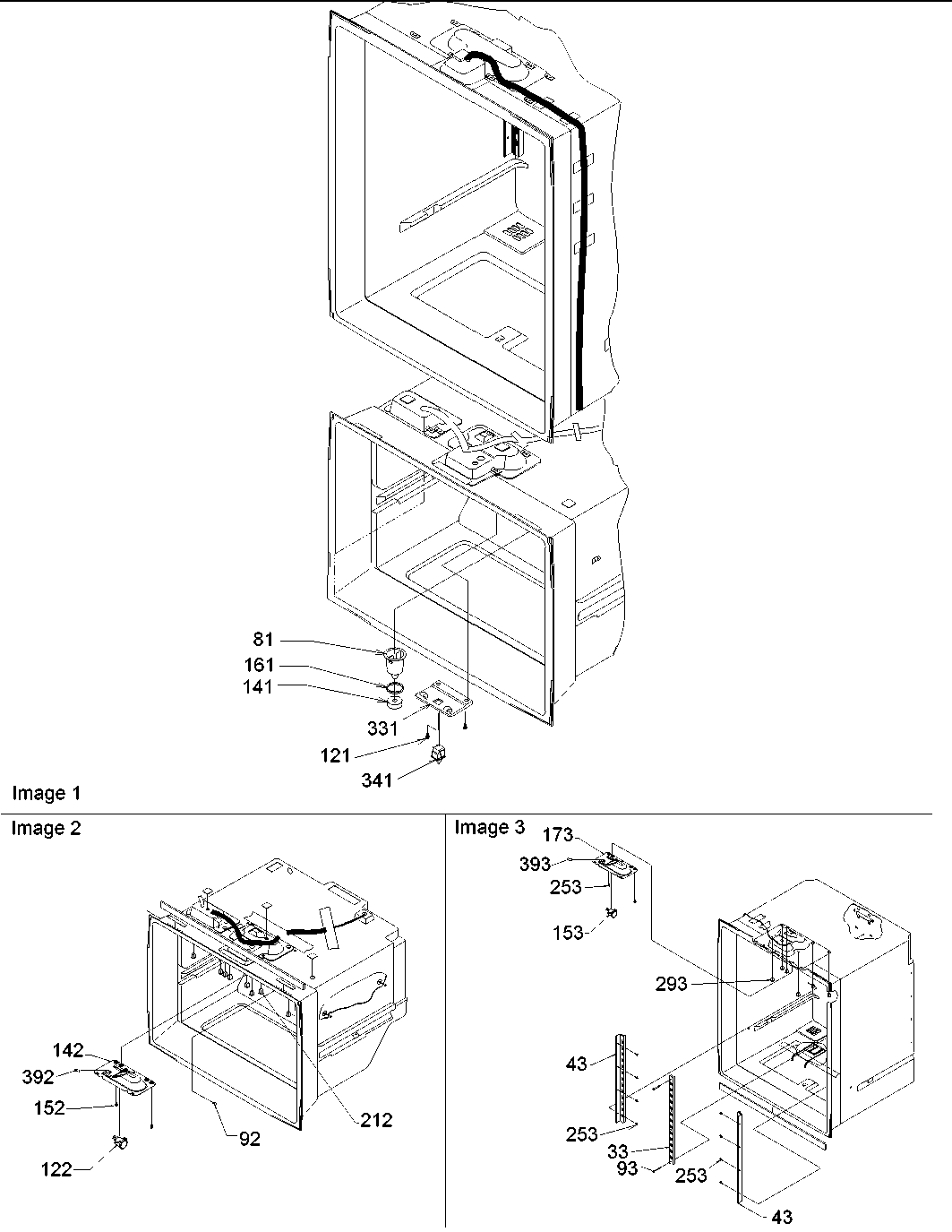

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Refrigerator Ice Maker D7824705
#122

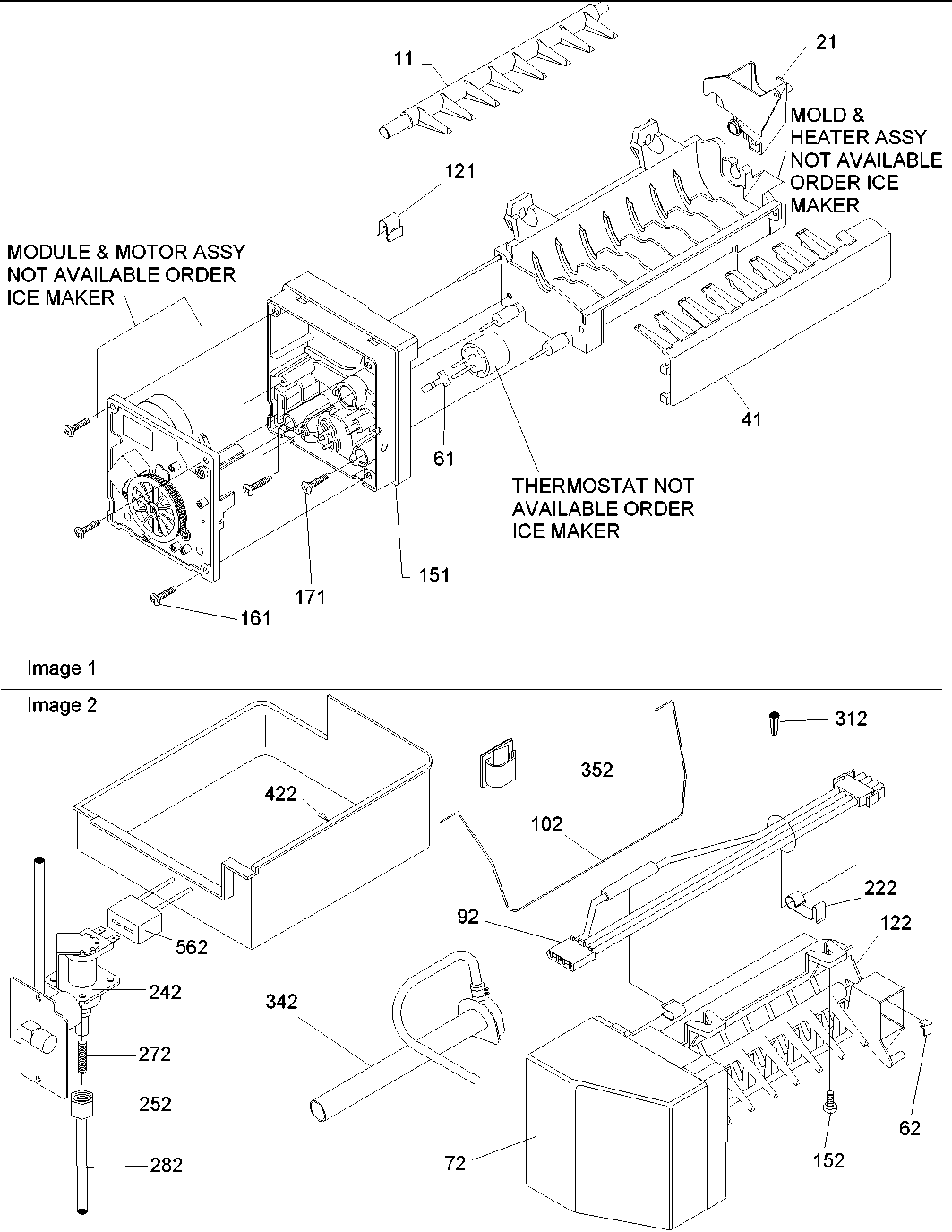

Ice maker assy & parts diagram

Refrigerator ice maker

Part #D7824705

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824705. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Blade 12217201
#22

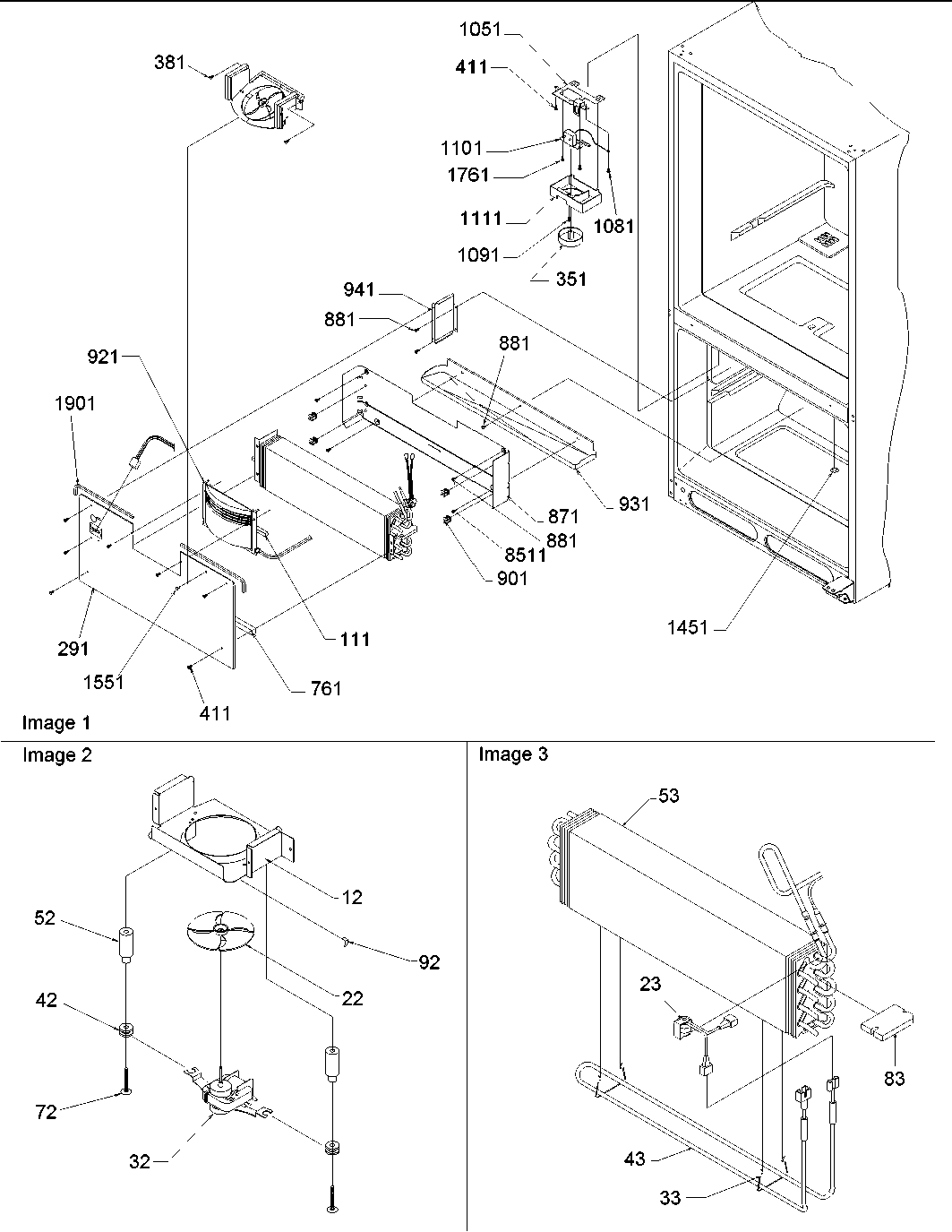

Evaporator & freezer control assy diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 10927206
#12

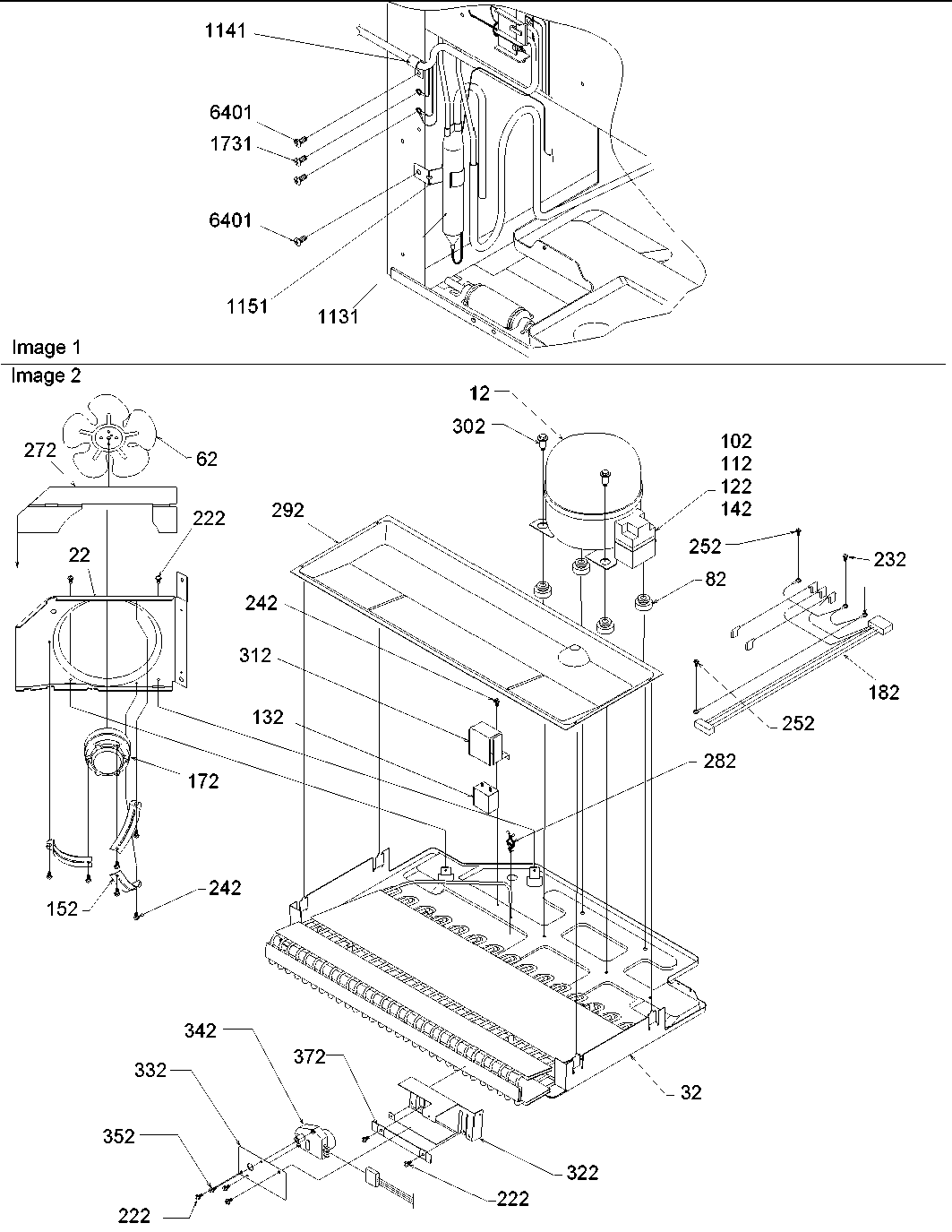

Machine compartment diagram

Refrigerator compressor

Part #10927206

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 10927206. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Screw M0211533
Refrigerator screw

Part #M0211533

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0211533. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Defrost Timer 10530703
#342

Machine compartment diagram

Refrigerator defrost timer

Part #10530703

Replaced by #R0131577

?
Manufacturer substitution
This part replaces 10530703. Substitute parts can look different from the original.
BEST SELLER
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Refrigerator Temperature Control C8946703
#110

Evaporator & freezer control assy diagram

Refrigerator temperature control

Part #C8946703

Replaced by #W10752646

?
Manufacturer substitution
This part replaces C8946703. Substitute parts can look different from the original.
BEST SELLER
$108.92 |
10% OFF Phone Price : $120.92
In Stock
Refrigerator Harness D7813004
#92

Ice maker assy & parts diagram

Refrigerator harness

Part #D7813004

Replaced by #WPD7813010

?
Manufacturer substitution
This part replaces D7813004. Substitute parts can look different from the original.
$40.39 |
13% OFF Phone Price : $46.39
In Stock
Refrigerator Screw M0220617
#640

Machine compartment diagram

Refrigerator screw

Part #M0220617

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0220617. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Dispenser Water Tube B5705308
#282

Ice maker assy & parts diagram

Refrigerator dispenser water tube

Part #B5705308

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705308. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Screw M0214931
#55

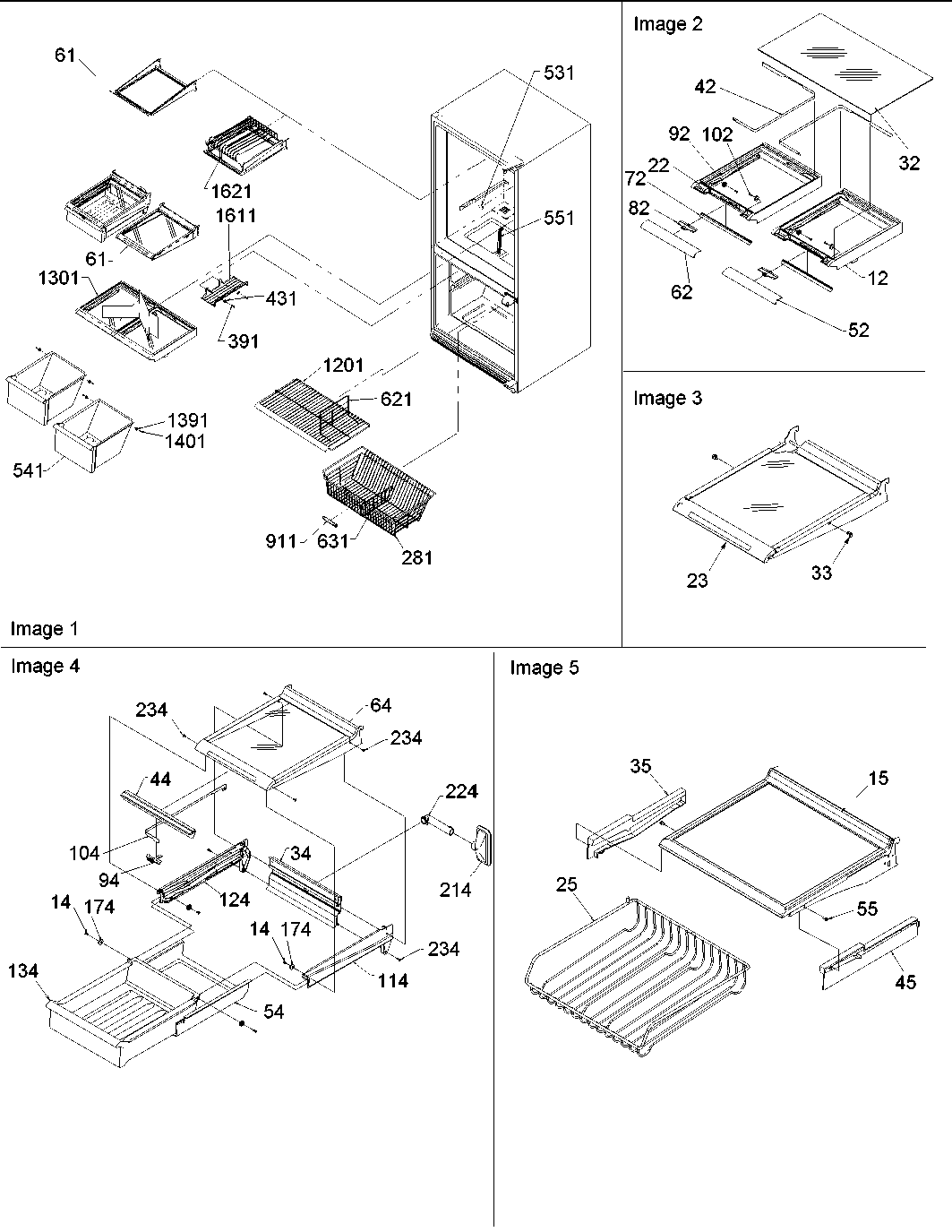

Shelving assy diagram

Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
