Jenn-Air
Gas Cooktop

Model # JGD8130ADB Official Jenn-Air gas counter unit

Here are the diagrams and repair parts for Official Jenn-Air JGD8130ADB gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

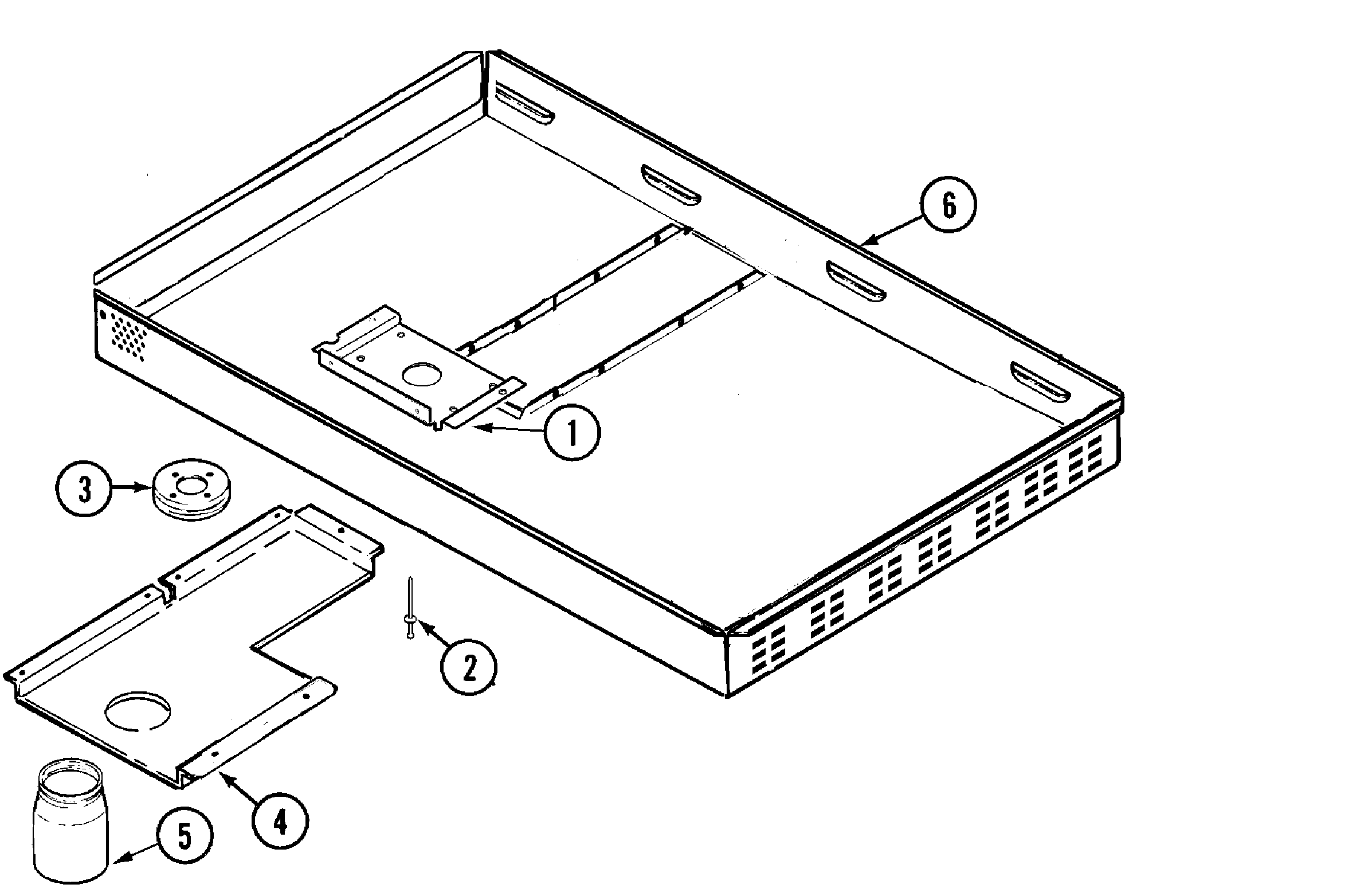

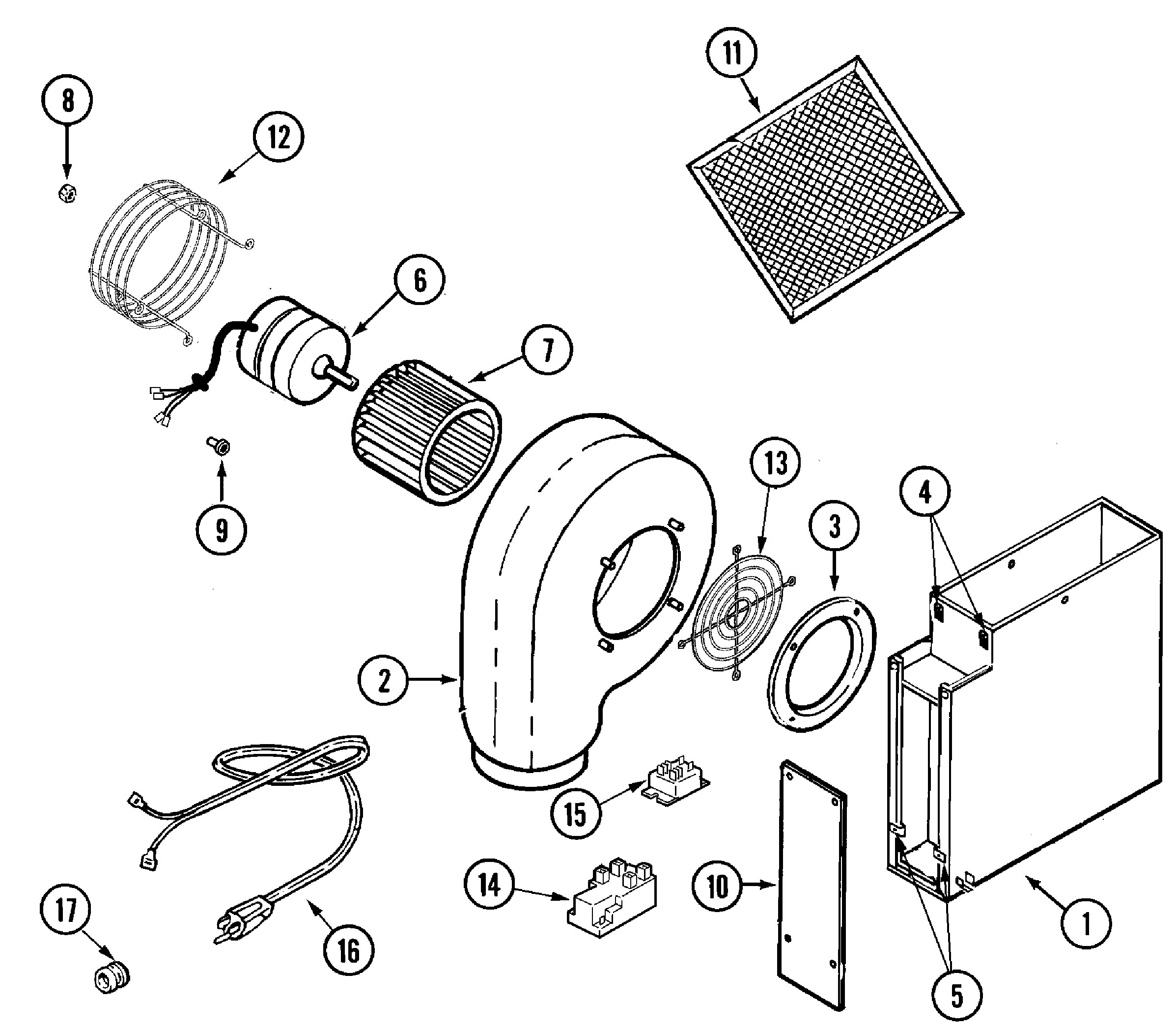

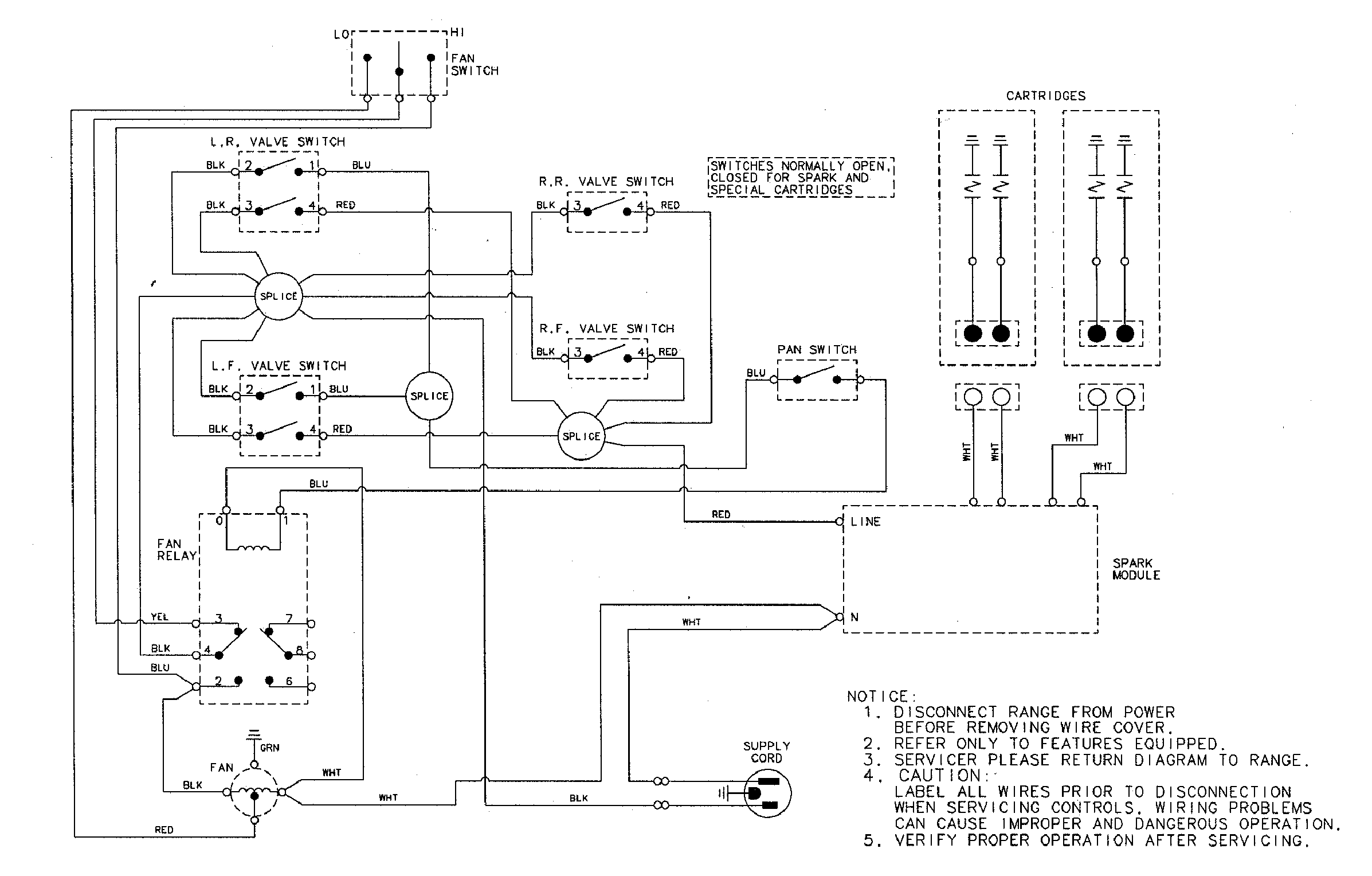

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Foot Grate 74007573
#13B

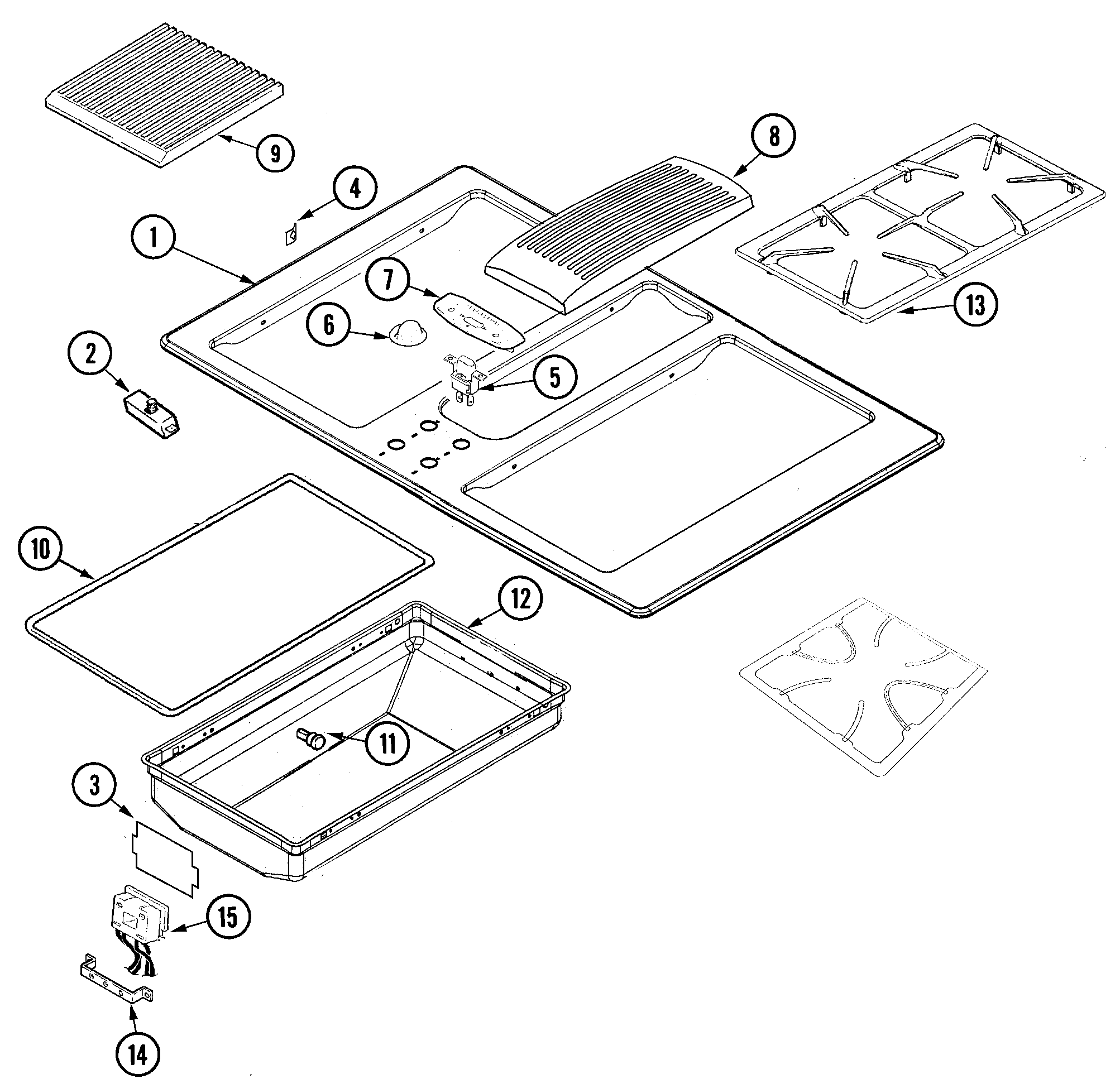

Top assembly diagram

Foot grate

Part #74007573

Replaced by #814323

?
Manufacturer substitution
This part replaces 74007573. Substitute parts can look different from the original.
BEST SELLER
$9.13 |
10% OFF Phone Price : $10.13
In Stock
Burner Assembly 74005892
#13A

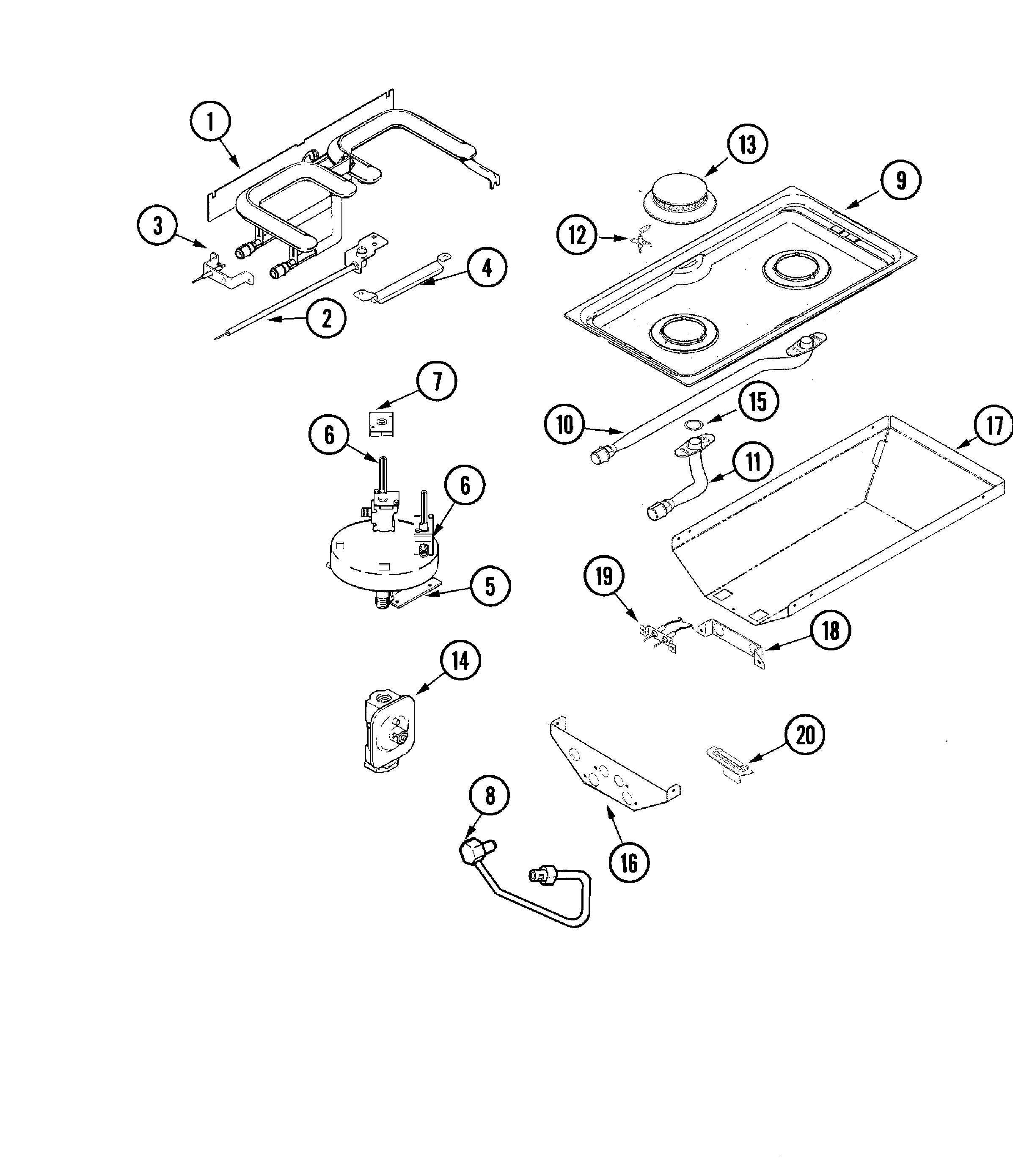

Gas controls diagram

Burner assembly

Part #74005892

Replaced by #WP3403M075-10

?
Manufacturer substitution
This part replaces 74005892. Substitute parts can look different from the original.
$125.53 |
9% OFF Phone Price : $137.53
In Stock
Cooktop Burner Valve 74006156
#6

Gas controls diagram

Cooktop burner valve

Part #74006156

Replaced by #WP74006156

?
Manufacturer substitution
This part replaces 74006156. Substitute parts can look different from the original.
$115.99 |
9% OFF Phone Price : $127.99
In Stock
Cooktop Burner Igniter Electrode 74006072
#2

Gas controls diagram

Cooktop burner igniter electrode

Part #74006072

Replaced by #WP74006072

?
Manufacturer substitution
This part replaces 74006072. Substitute parts can look different from the original.
$75.89 |
7% OFF Phone Price : $81.89
In Stock
Screw 74004288
Screw

Part #74004288

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 74004288. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Top (blk) 74005897
#9A

Gas controls diagram

Top (blk)

Part #74005897

Replaced by #WP2001F175-09

?
Manufacturer substitution
This part replaces 74005897. Substitute parts can look different from the original.
$141.79 |
8% OFF Phone Price : $153.79
In Stock
Burner Assembly 74005891
#13

Gas controls diagram

Burner assembly

Part #74005891

Replaced by #WP3403M075-29

?
Manufacturer substitution
This part replaces 74005891. Substitute parts can look different from the original.
$97.23 |
11% OFF Phone Price : $109.23
In Stock
Grommet Ignitor 74006073
#3

Gas controls diagram

Grommet ignitor

Part #74006073

Replaced by #WP74006073

?
Manufacturer substitution
This part replaces 74006073. Substitute parts can look different from the original.
$78.36 |
7% OFF Phone Price : $84.36
In Stock
Valve Switch 74006157
#7

Gas controls diagram

Valve switch

Part #74006157

Replaced by #WP74006955

?
Manufacturer substitution
This part replaces 74006157. Substitute parts can look different from the original.
$55.09 |
10% OFF Phone Price : $61.09
In Stock
Cooktop Igniter Switch 74006955
#7B

Gas controls diagram

Cooktop igniter switch

Part #74006955

Replaced by #WP74006955

?
Manufacturer substitution
This part replaces 74006955. Substitute parts can look different from the original.
$55.09 |
10% OFF Phone Price : $61.09
In Stock
