Model # KBRA22KRWH01 Official KitchenAid bottom-mount refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBRA22KRWH01 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

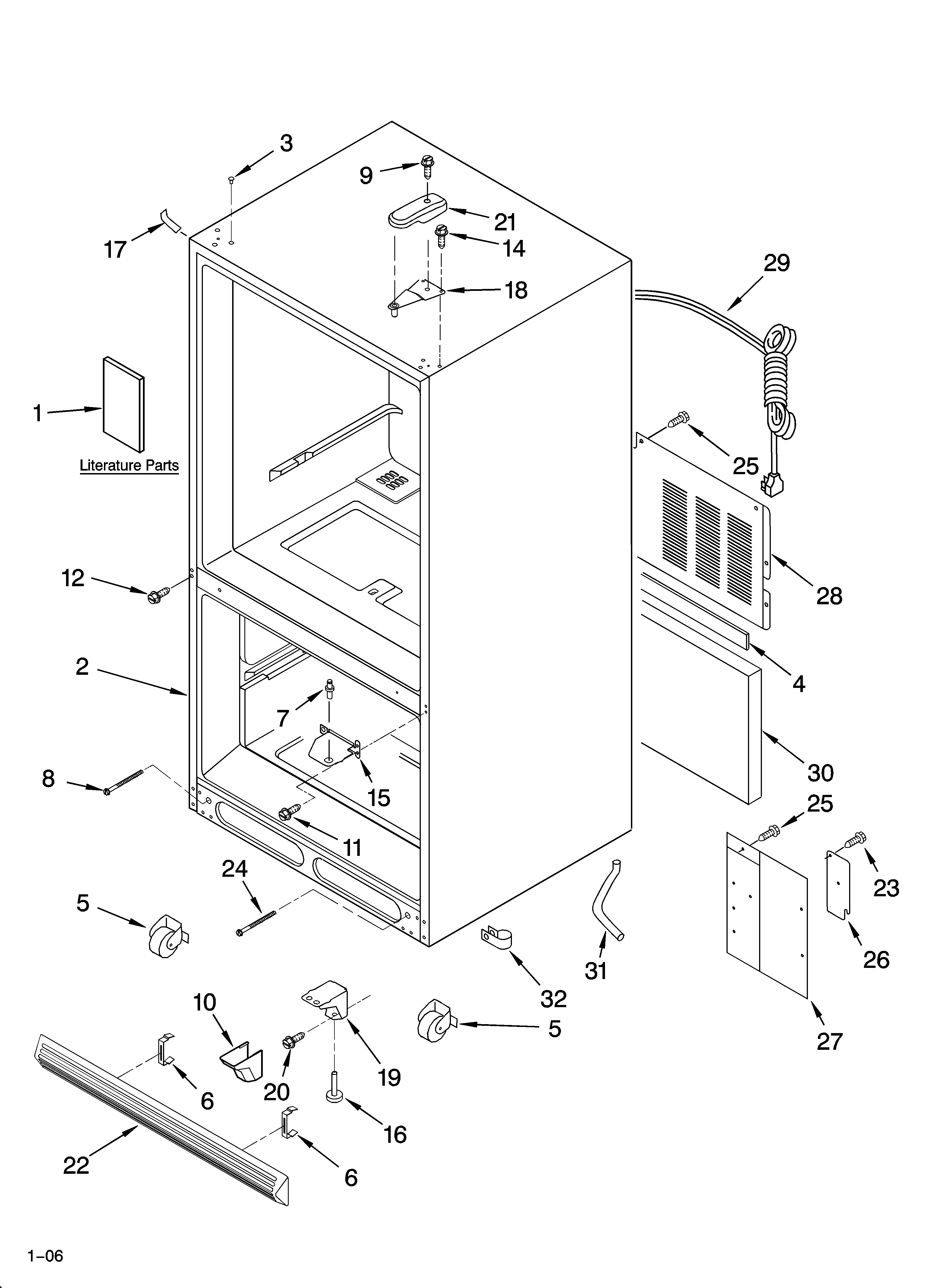

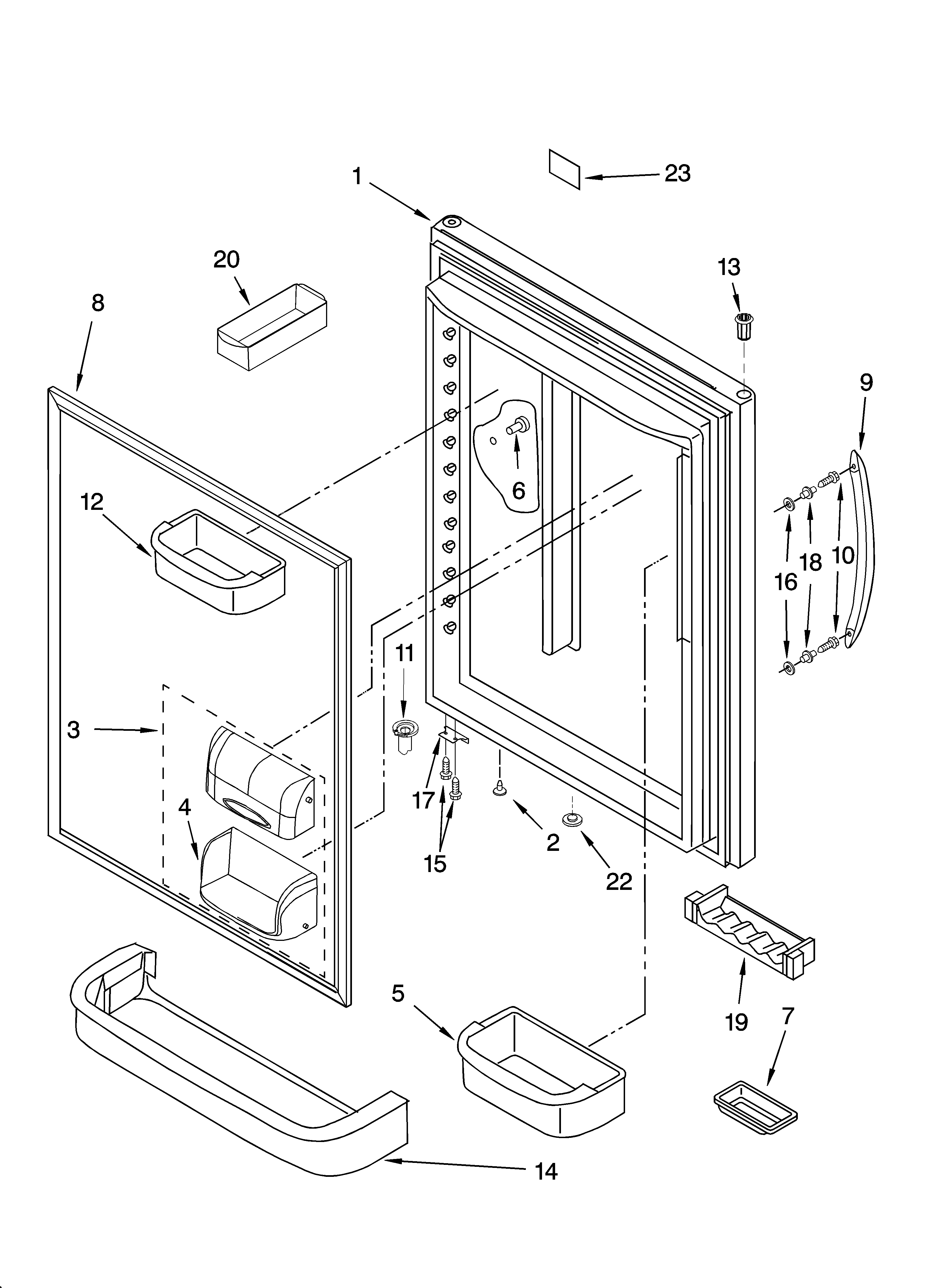

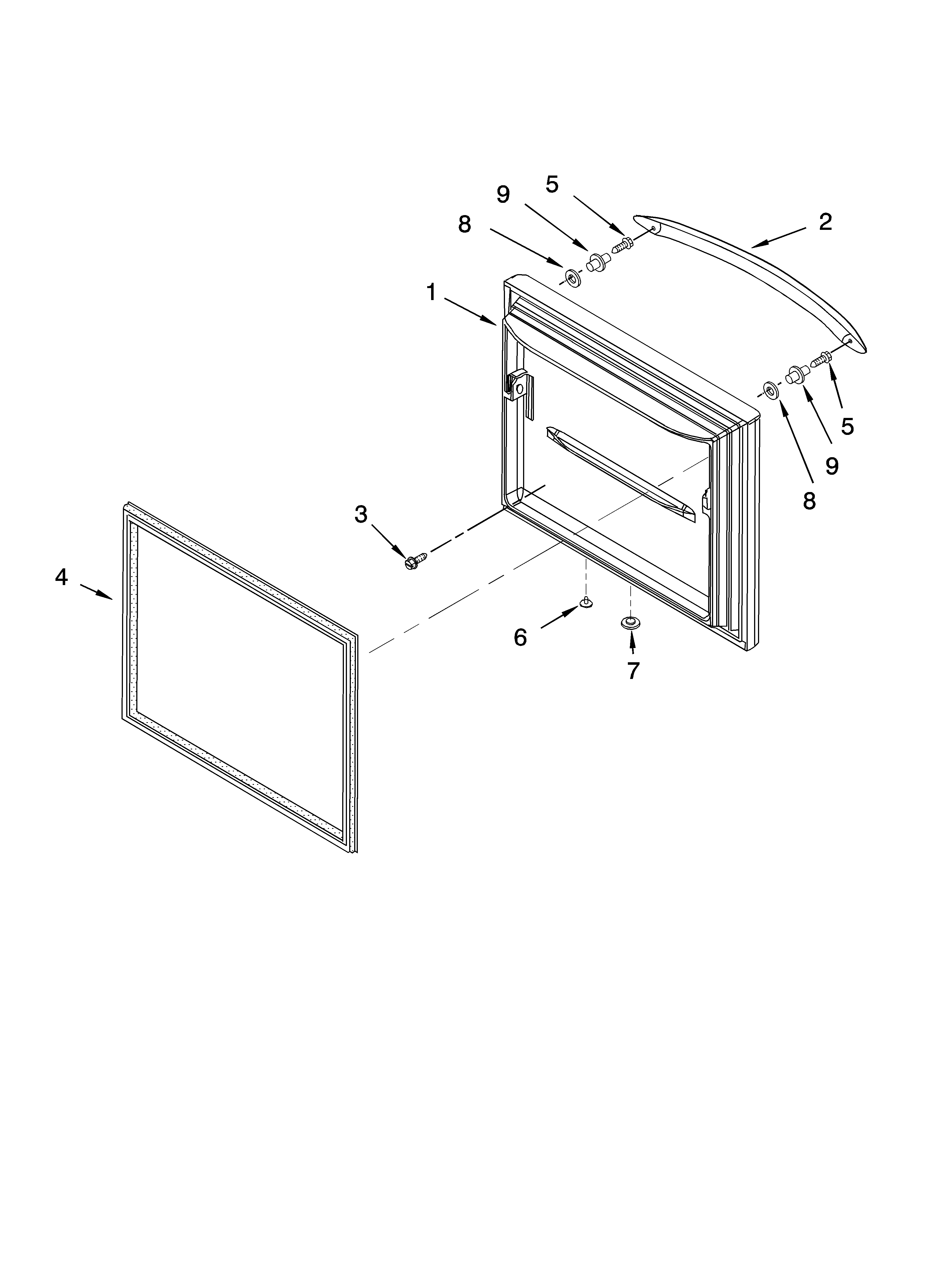

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Refrigerator Light Bulb 8208190
Refrigerator light bulb

Part #8208190

Replaced by #40A15

?
Manufacturer substitution
This part replaces 8208190. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 4344571
#6

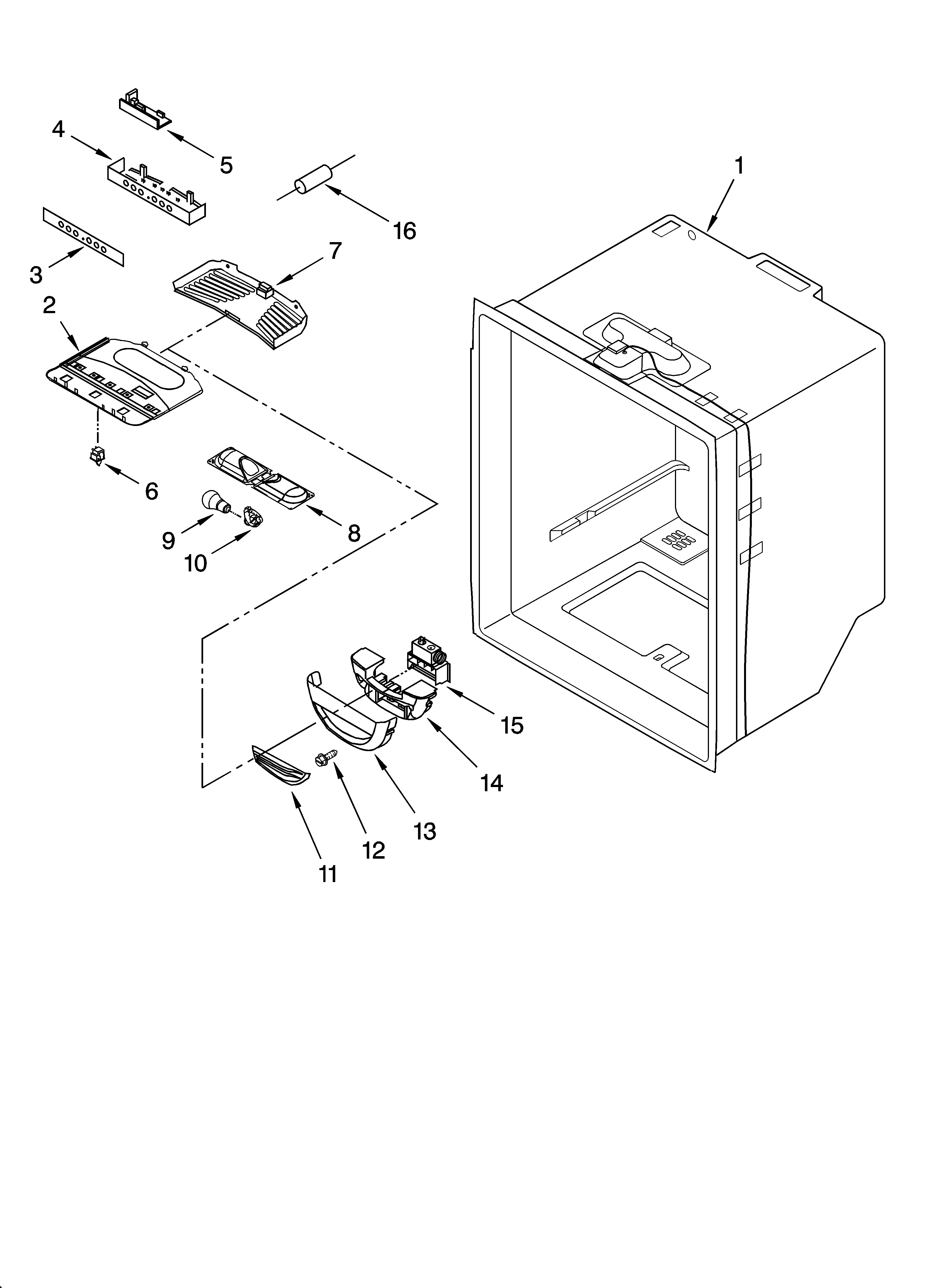

Refrigerator liner parts diagram

Refrigerator light switch

Part #4344571

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 4344571. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 4344268
#27

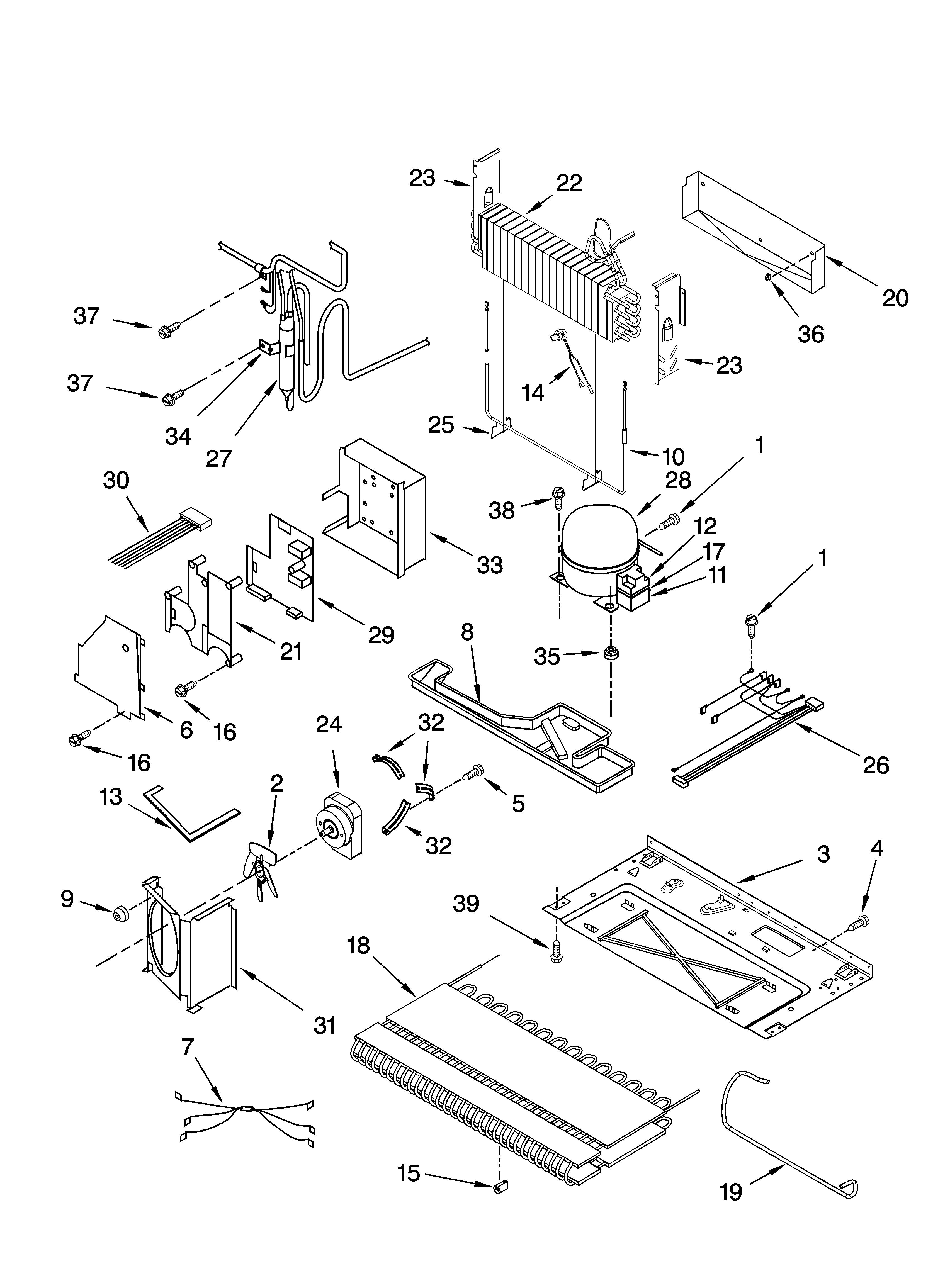

Unit parts diagram

Drier tube

Part #4344268

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4344268. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 8208289
#28

Unit parts diagram

Refrigerator compressor

Part #8208289

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 8208289. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Refrigerator Track 8208354
#9

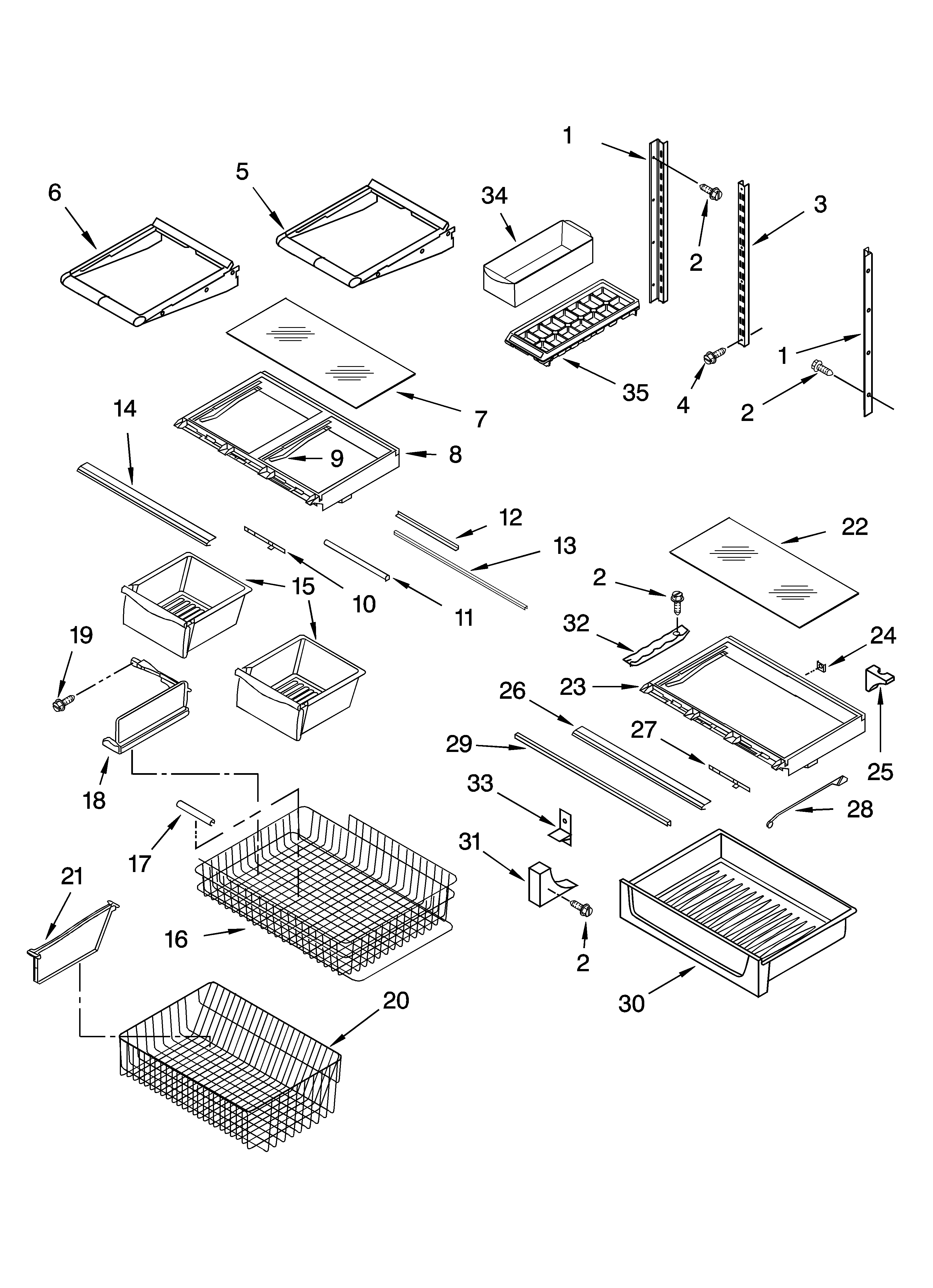

Shelf parts, optional parts diagram

Refrigerator track

Part #8208354

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 8208354. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Start Device 8208290
#12

Unit parts diagram

Start device

Part #8208290

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 8208290. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Capacitor 8208368
#11

Unit parts diagram

Refrigerator capacitor

Part #8208368

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 8208368. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Switch 8208349
#16

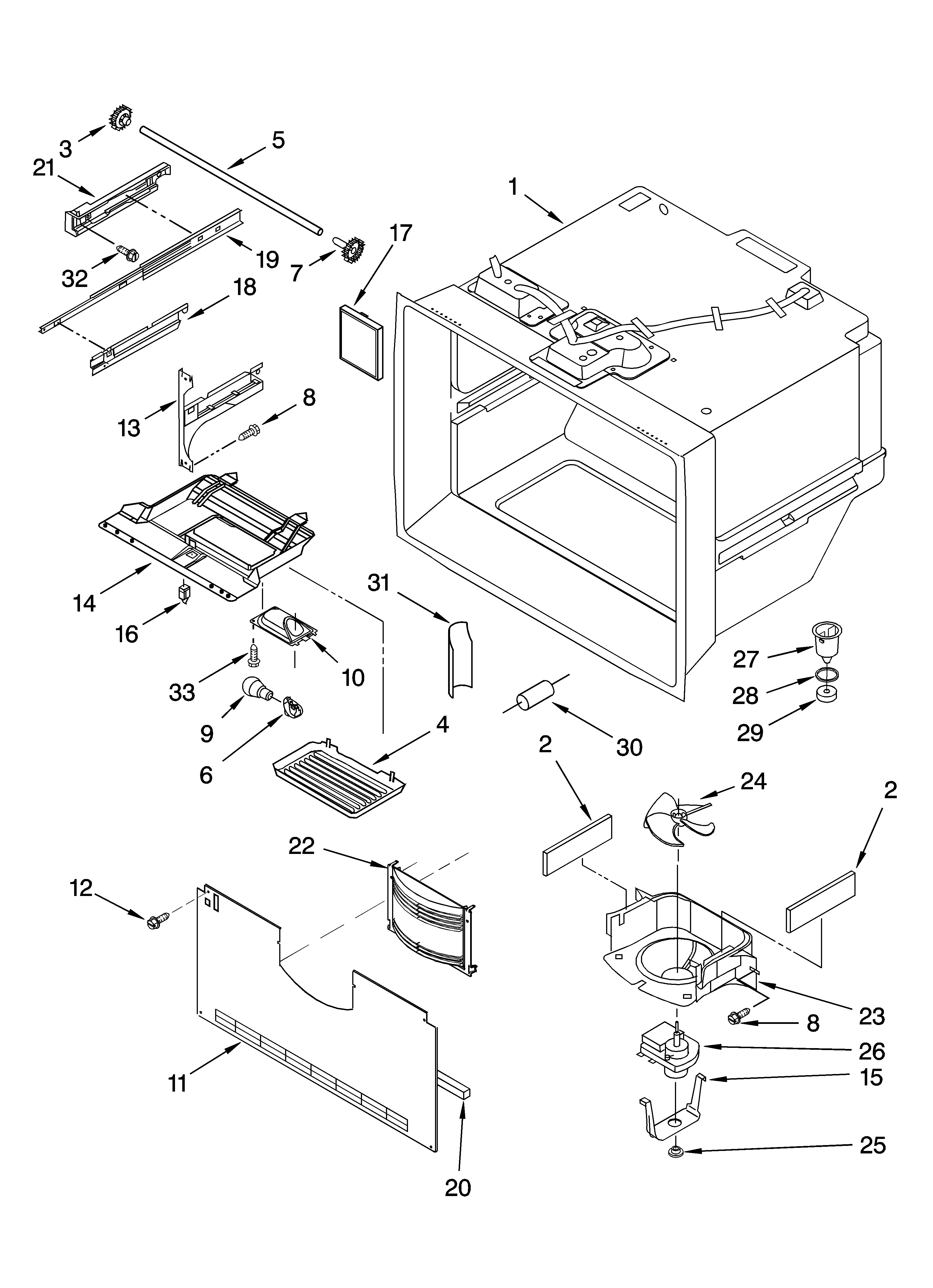

Freezer liner parts diagram

Refrigerator switch

Part #8208349

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 8208349. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Defrost Bi-metal 8208287
#14

Unit parts diagram

Refrigerator defrost bi-metal

Part #8208287

Replaced by #WP67003426

?
Manufacturer substitution
This part replaces 8208287. Substitute parts can look different from the original.
BEST SELLER
$44.85 |
12% OFF Phone Price : $50.85
In Stock
Refrigerator Thermistor 8208278
Refrigerator thermistor

Part #8208278

Replaced by #12002355

?
Manufacturer substitution
This part replaces 8208278. Substitute parts can look different from the original.
BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
