Model # 113298842 Official Craftsman table saw

Here are the diagrams and repair parts for Official Craftsman 113298842 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

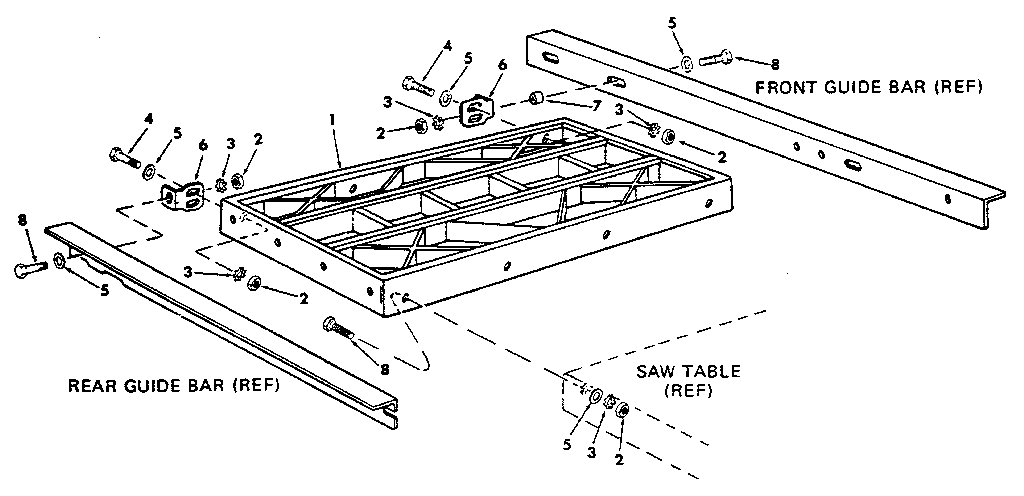

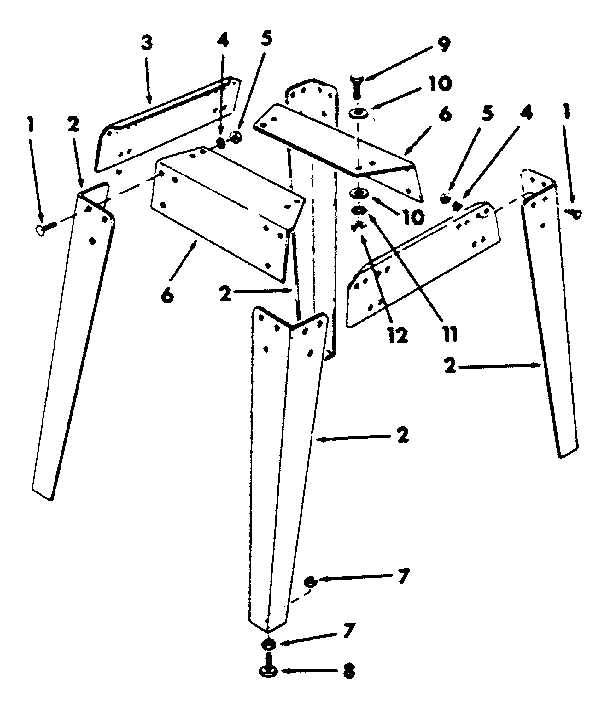

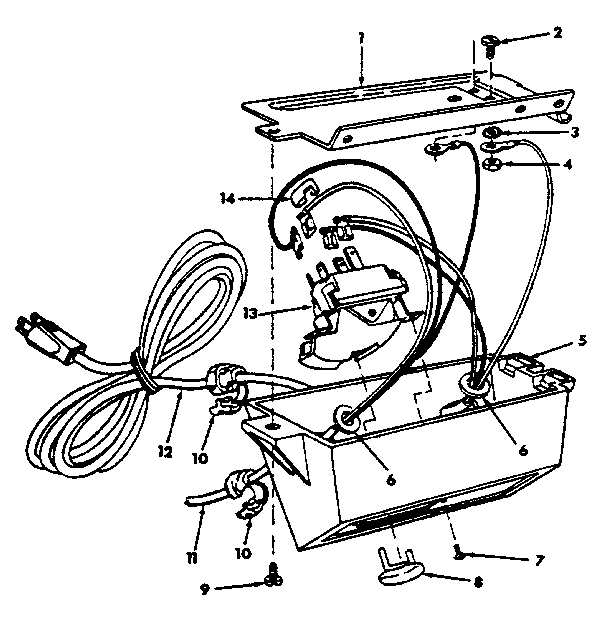

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Table Saw Miter Gauge Clamp Stud 62225
#12

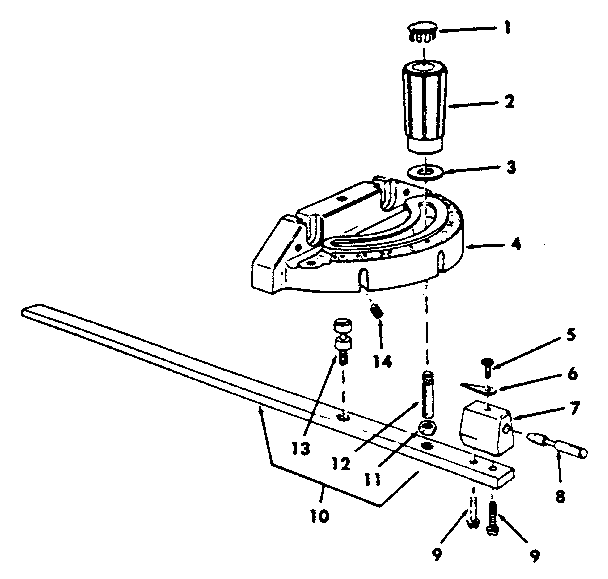

Figure 4 + 9-29929 miter gauge assembly diagram

Table saw miter gauge clamp stud

Part #62225

The manufacturer no longer makes this part, and there's no substitute part

Ryobi Table Saw Washer 37838
#33

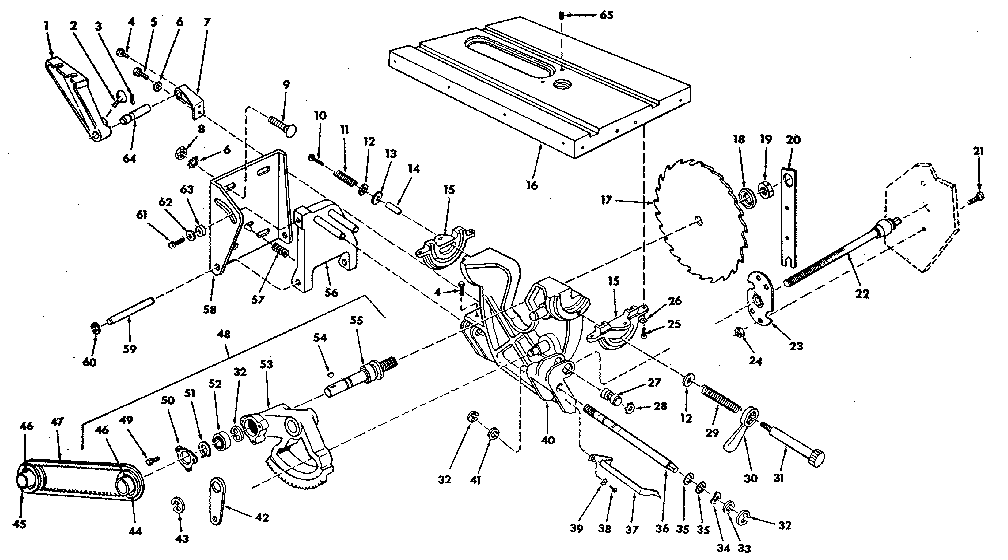

Figure 2 diagram

Ryobi table saw washer

Part #37838

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Motor Clamp 64089
#27

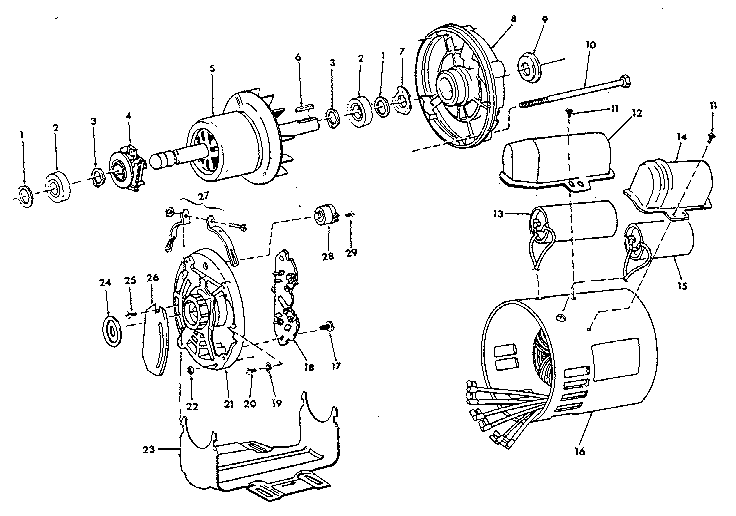

Motor 818320 diagram

Table saw motor clamp

Part #64089

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Knob Cap 62693
#1

Figure 4 + 9-29929 miter gauge assembly diagram

Table saw knob cap

Part #62693

The manufacturer no longer makes this part, and there's no substitute part

Ryobi Radial Saw Trigger Pin 62410
#10

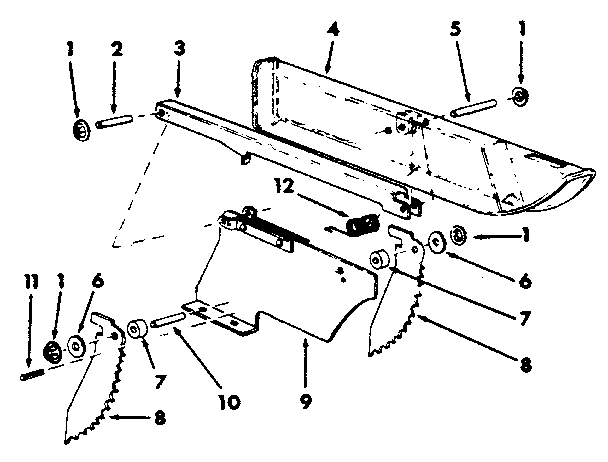

Figure 5 - 62579 guard assembly diagram

Ryobi radial saw trigger pin

Part #62410

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Rip Fence Guide Spacer 62539
Table saw rip fence guide spacer

Part #62539

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Spacer 62520
#7

Figure 5 - 62579 guard assembly diagram

Table saw spacer

Part #62520

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Hand Wheel (replaces 170195, 62689, 63434, 820452, 824572) 818526
#26

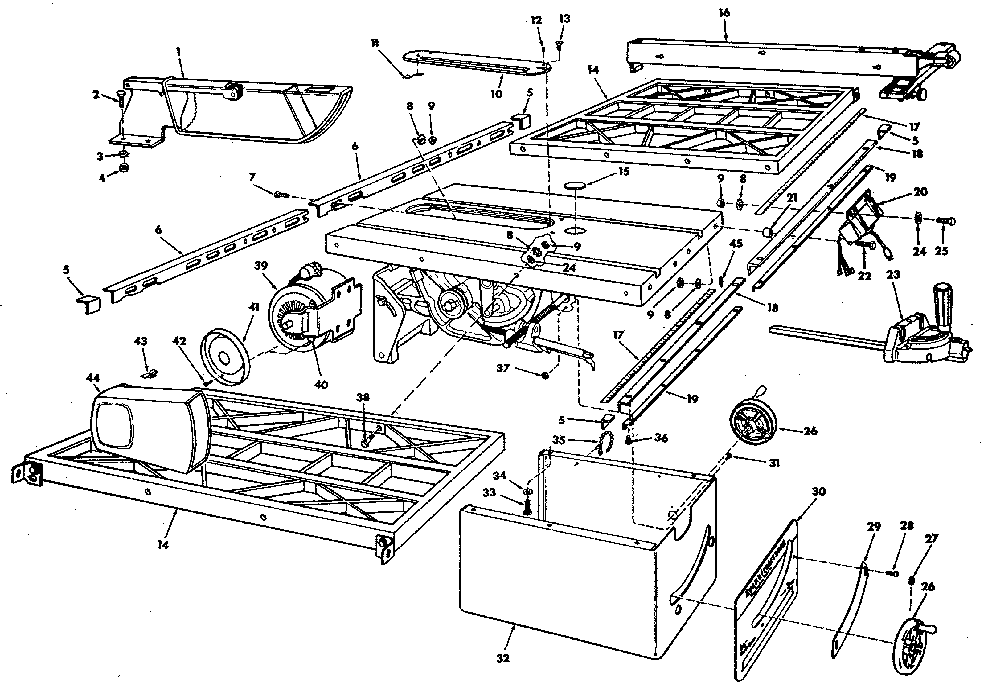

Figure 1 diagram

Table saw hand wheel (replaces 170195, 62689, 63434, 820452, 824572)

Part #818526

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Screw 62698
#22

Figure 2 diagram

Table saw screw

Part #62698

The manufacturer no longer makes this part, and there's no substitute part

Cam (black) 62940
#25

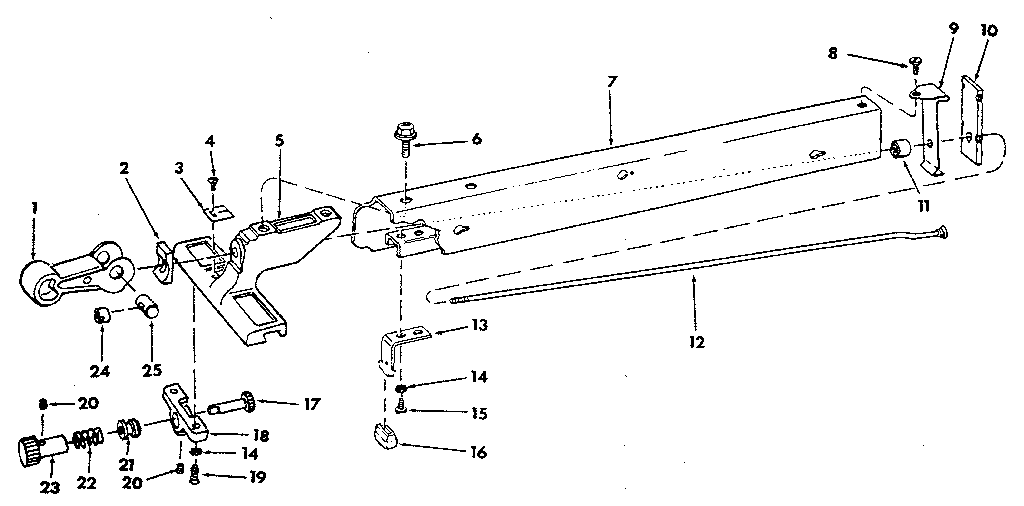

Figure 3 - rip fence assembly diagram

Cam (black)

Part #62940

The manufacturer no longer makes this part, and there's no substitute part
