Model # 917187213 Official Craftsman gearcase assembly

Here are the diagrams and repair parts for Official Craftsman 917187213 gearcase assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Washer (1581 183509
#13

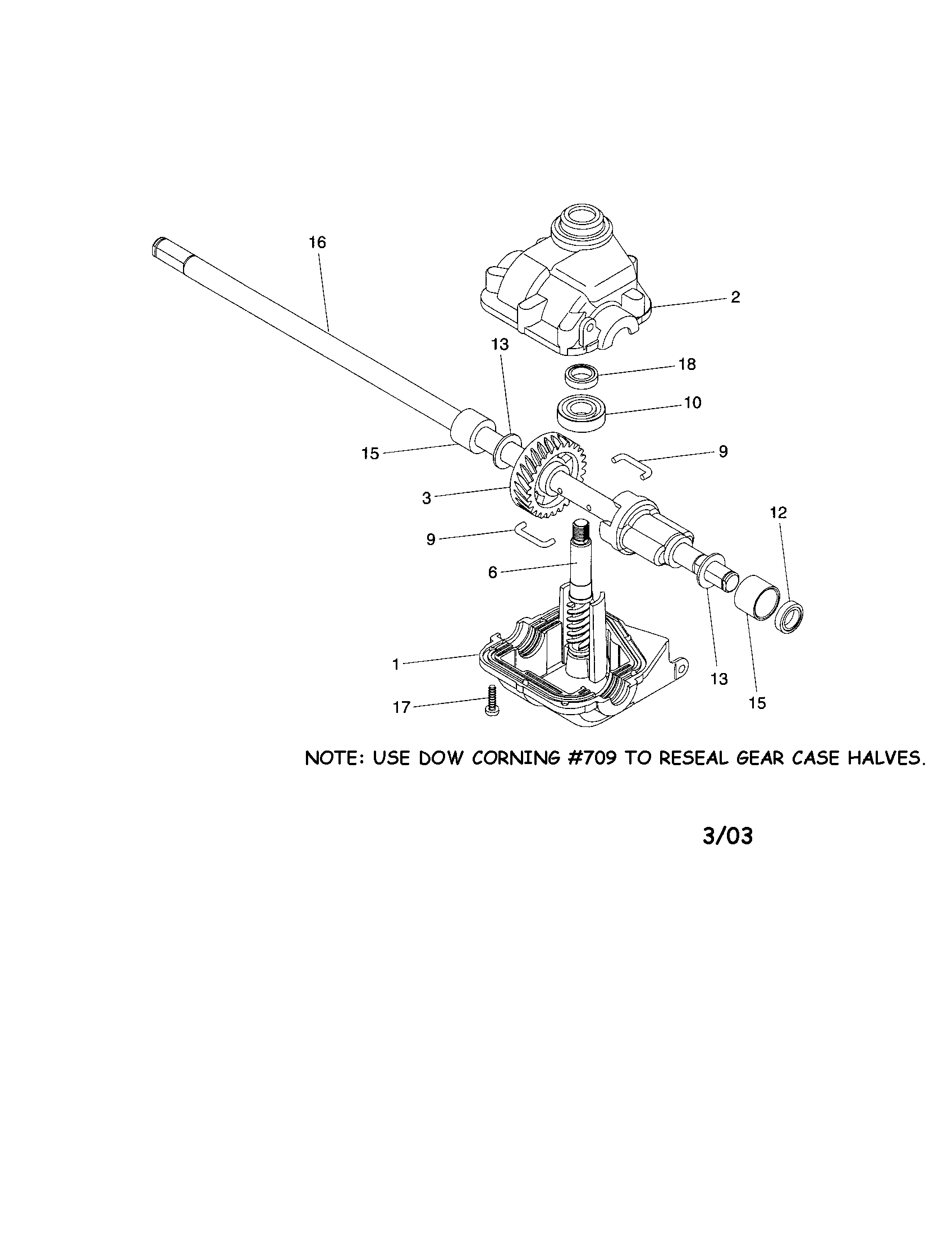

Gearcase assembly diagram

Washer (1581

Part #183509

Replaced by #532183509

?
Manufacturer substitution
This part replaces 183509. Substitute parts can look different from the original.
This item is not returnable
In Stock
Ball Bearing 183506
#10

Gearcase assembly diagram

Ball bearing

Part #183506

The manufacturer no longer makes this part, and there's no substitute part

Formed Wire 183505
#9

Gearcase assembly diagram

Formed wire

Part #183505

The manufacturer no longer makes this part, and there's no substitute part

Bushing(1101 183511
#15

Gearcase assembly diagram

Bushing(1101

Part #183511

The manufacturer no longer makes this part, and there's no substitute part

Case, Upper 187531
#2

Gearcase assembly diagram

Case, upper

Part #187531

The manufacturer no longer makes this part, and there's no substitute part

Output Shaft 187534
#16

Gearcase assembly diagram

Output shaft

Part #187534

The manufacturer no longer makes this part, and there's no substitute part

Output Seal 183508
#12

Gearcase assembly diagram

Output seal

Part #183508

The manufacturer no longer makes this part, and there's no substitute part

Seal.input.s 183514
#18

Gearcase assembly diagram

Seal.input.s

Part #183514

The manufacturer no longer makes this part, and there's no substitute part

Worm.input.s 187533
#6

Gearcase assembly diagram

Worm.input.s

Part #187533

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Screw 183513
#17

Gearcase assembly diagram

Lawn mower screw

Part #183513

The manufacturer no longer makes this part, and there's no substitute part
