Model # 201728610 Official Kenmore cookstove

Here are the diagrams and repair parts for Official Kenmore 201728610 cookstove, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
O-ring 100058
#7

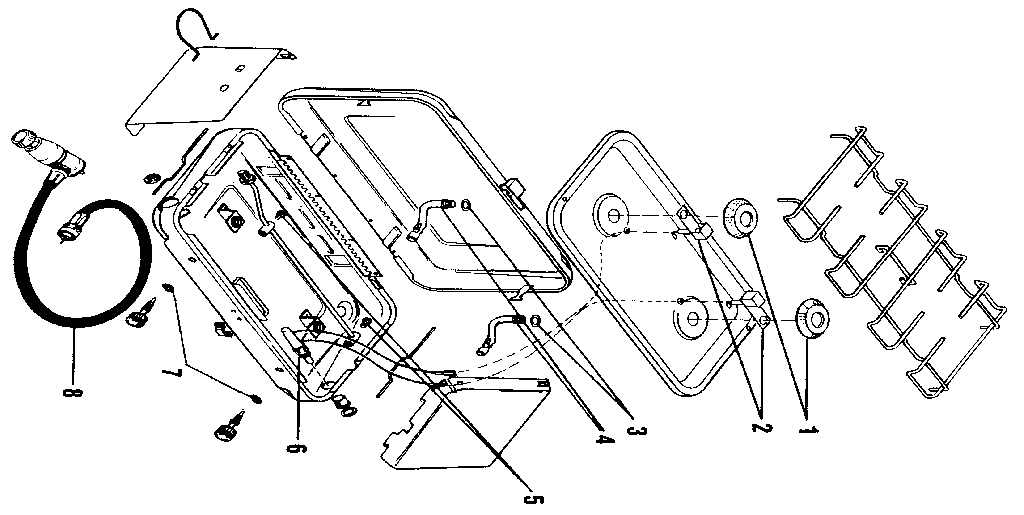

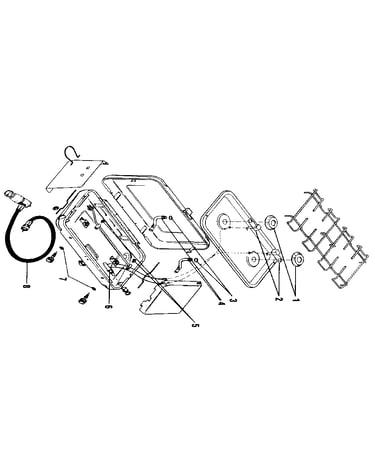

Unit parts diagram

O-ring

Part #100058

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 120103

#NI

All parts diagram

Owner's manual

Part #120103

The manufacturer no longer makes this part, and there's no substitute part

Washer 100046
#3

Unit parts diagram

Washer

Part #100046

The manufacturer no longer makes this part, and there's no substitute part

Ingntr 100414
#6

Unit parts diagram

Ingntr

Part #100414

The manufacturer no longer makes this part, and there's no substitute part

Mixer Tube 100045BZ
#4

Unit parts diagram

Mixer tube

Part #100045BZ

The manufacturer no longer makes this part, and there's no substitute part

Regltr/hose 100515
#8

Unit parts diagram

Regltr/hose

Part #100515

The manufacturer no longer makes this part, and there's no substitute part

Orifice 100166
#5

Unit parts diagram

Orifice

Part #100166

The manufacturer no longer makes this part, and there's no substitute part

Elctrd Assm 100424
#2

Unit parts diagram

Elctrd assm

Part #100424

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 100003
#1

Unit parts diagram

Burner head

Part #100003

The manufacturer no longer makes this part, and there's no substitute part
