Front-Engine Lawn Tractor

Model # YT46-96043019700 Official Jonsered lawn tractor

Here are the diagrams and repair parts for Official Jonsered YT46-96043019700 lawn tractor, as well as links to manuals and error code tables, if available.

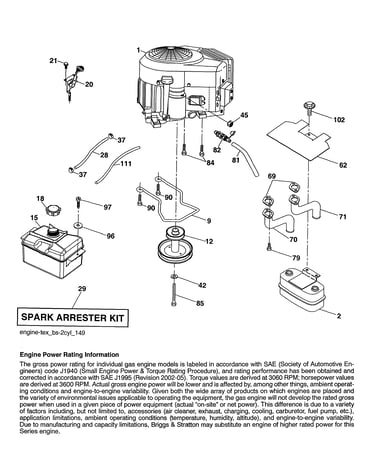

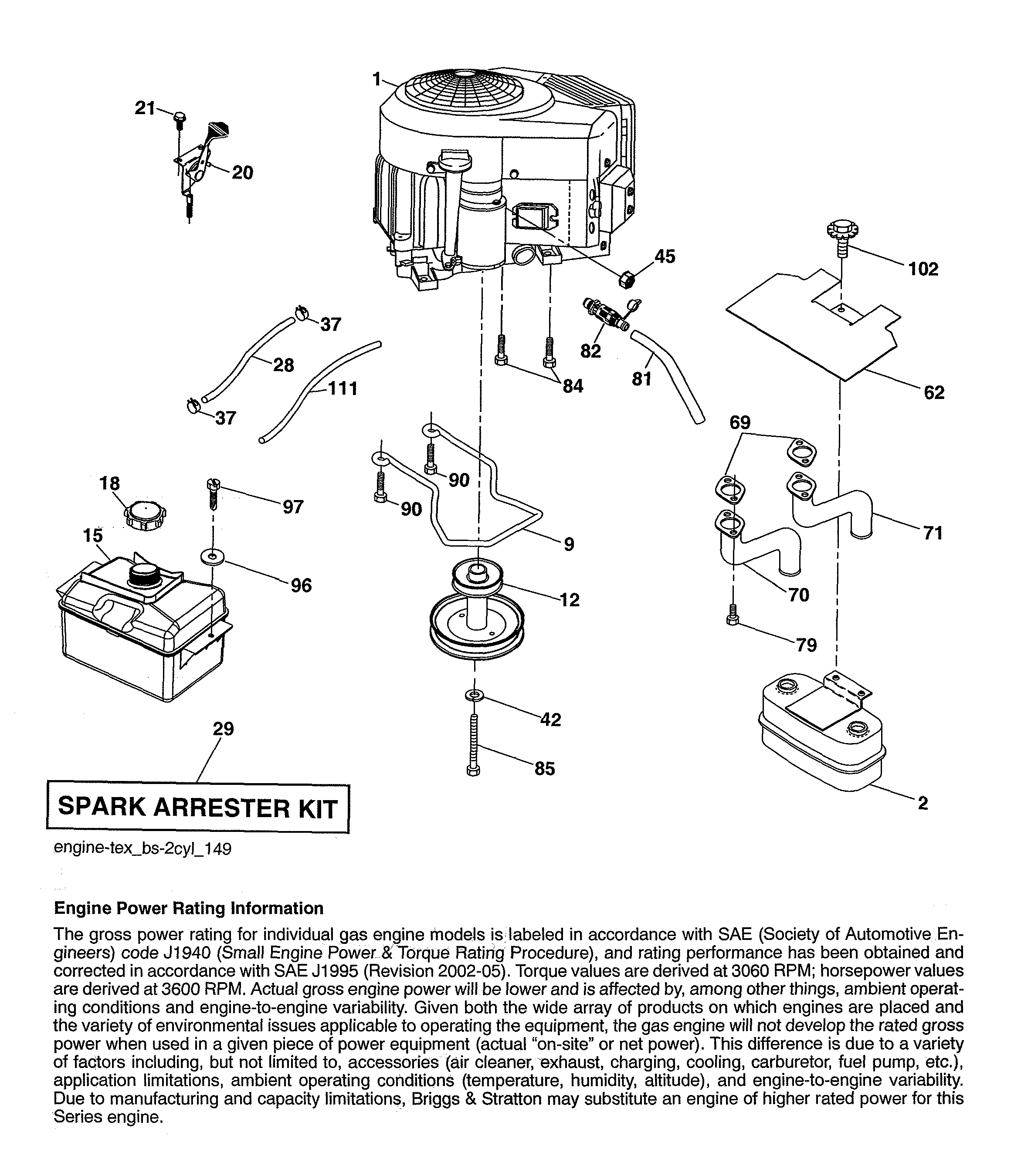

Error Code Icon View engine

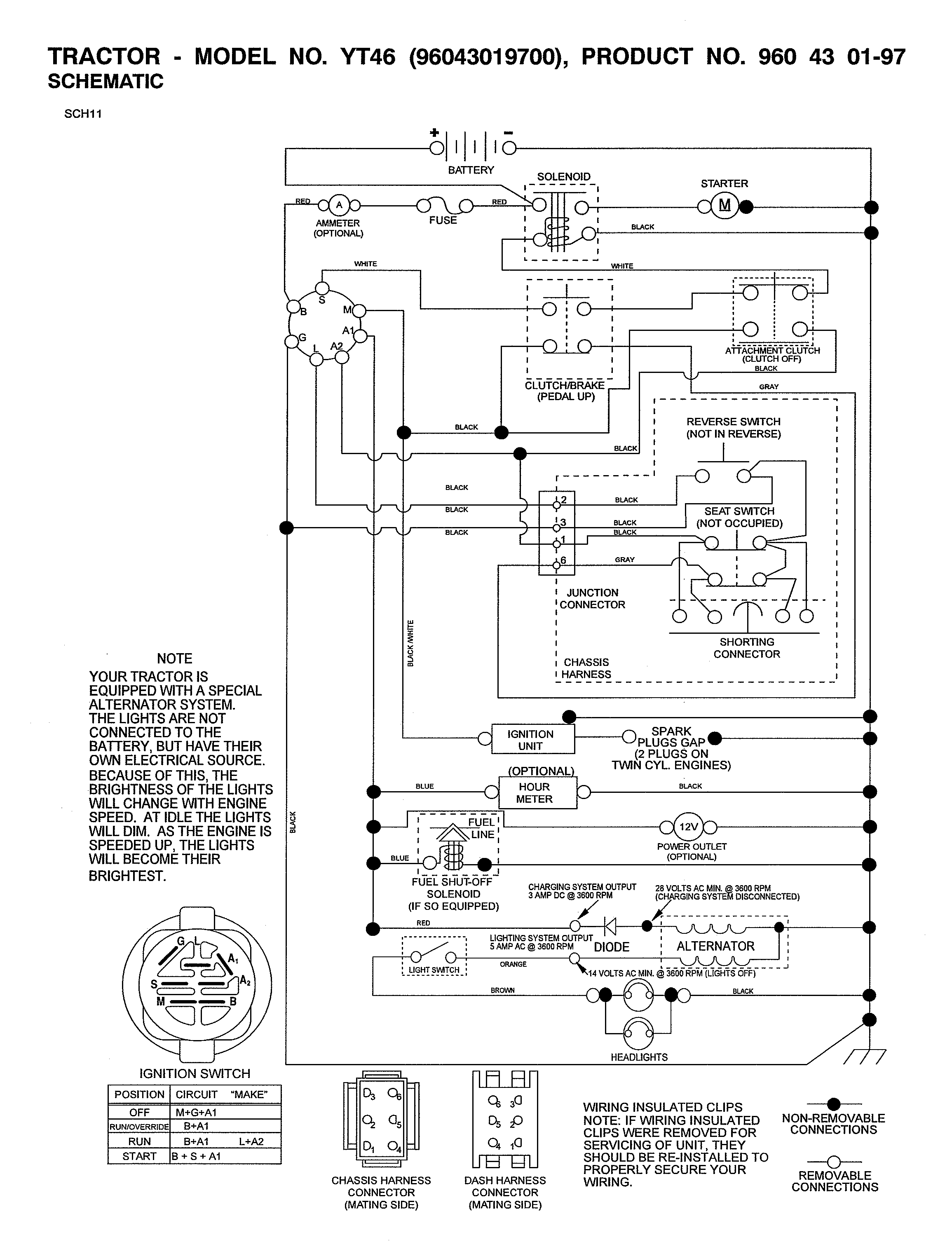

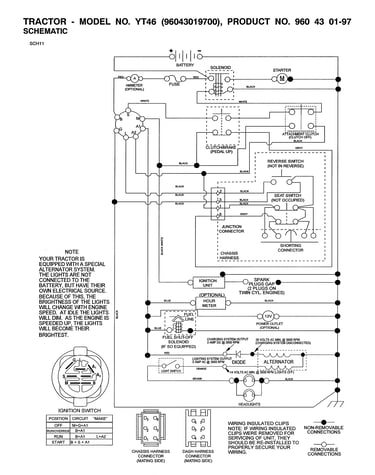

By Schematic
By Part

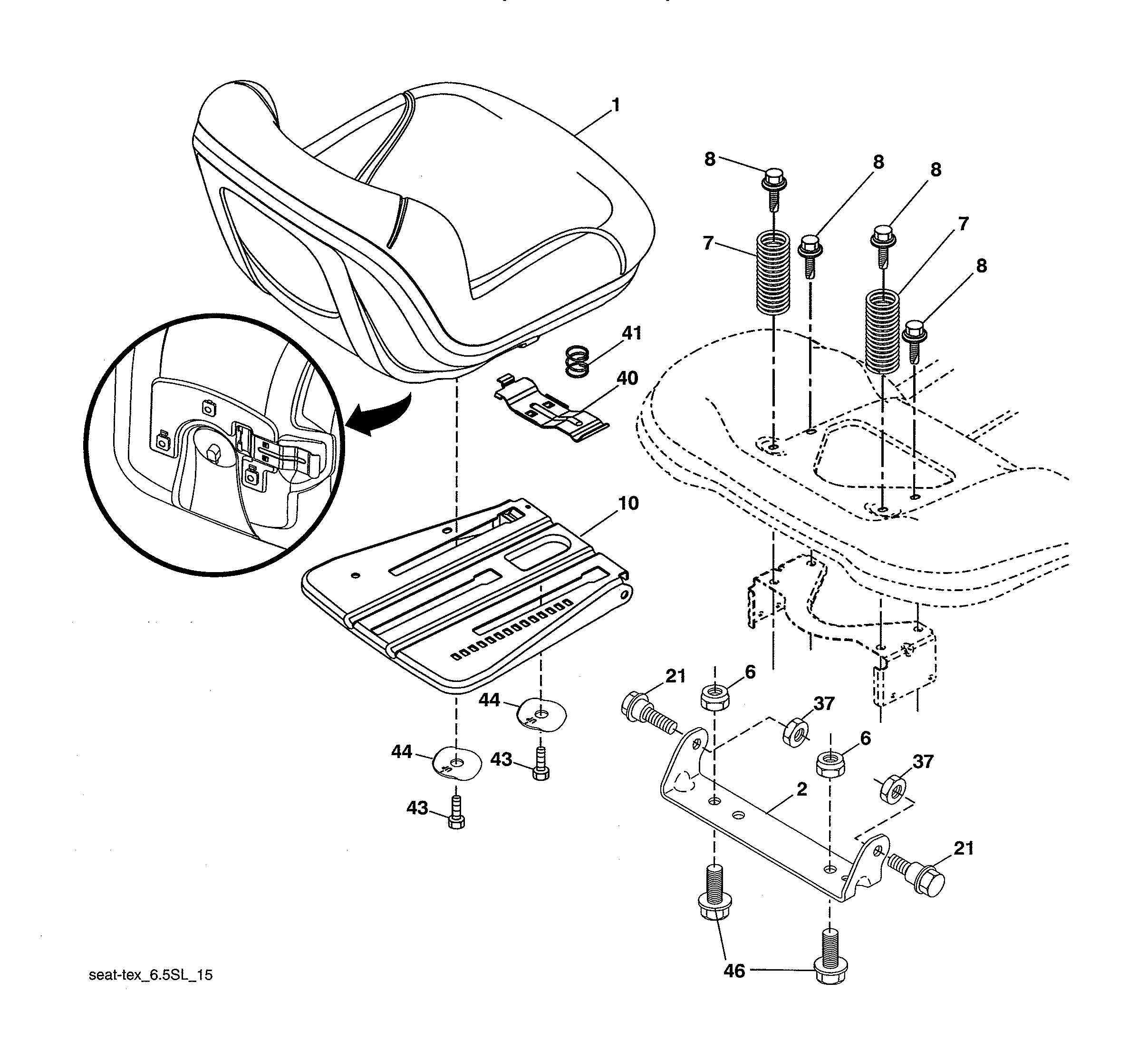

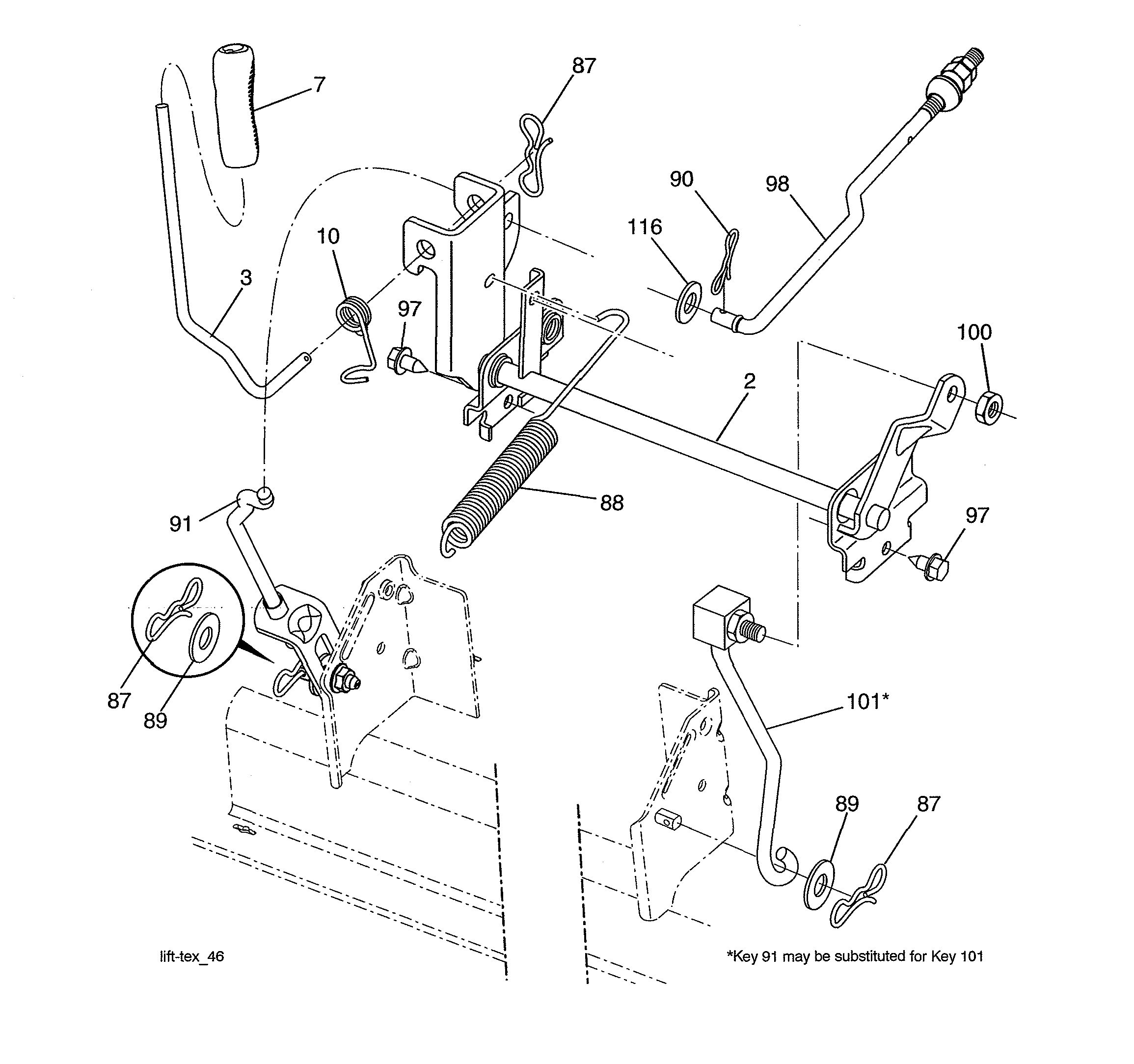

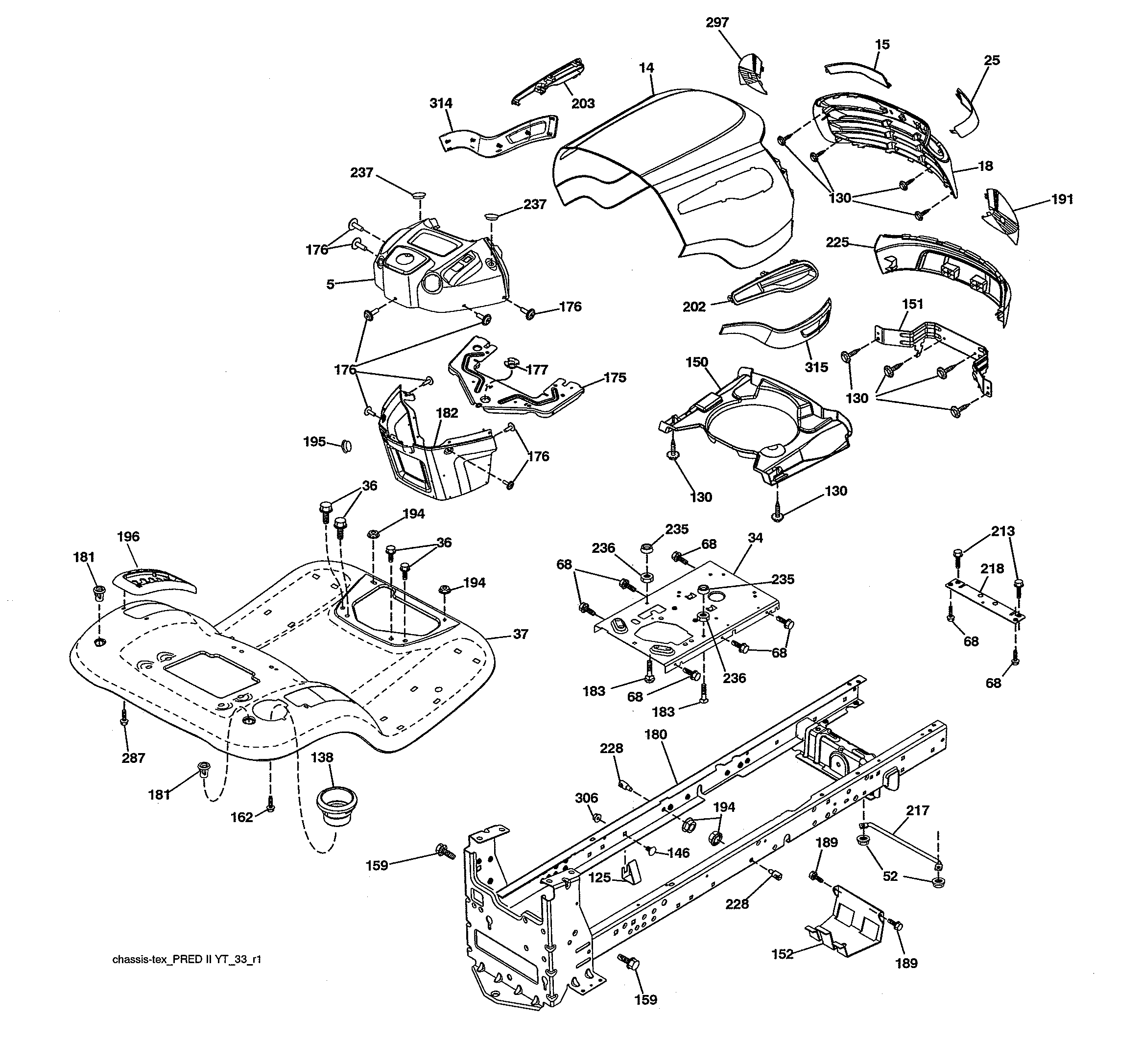

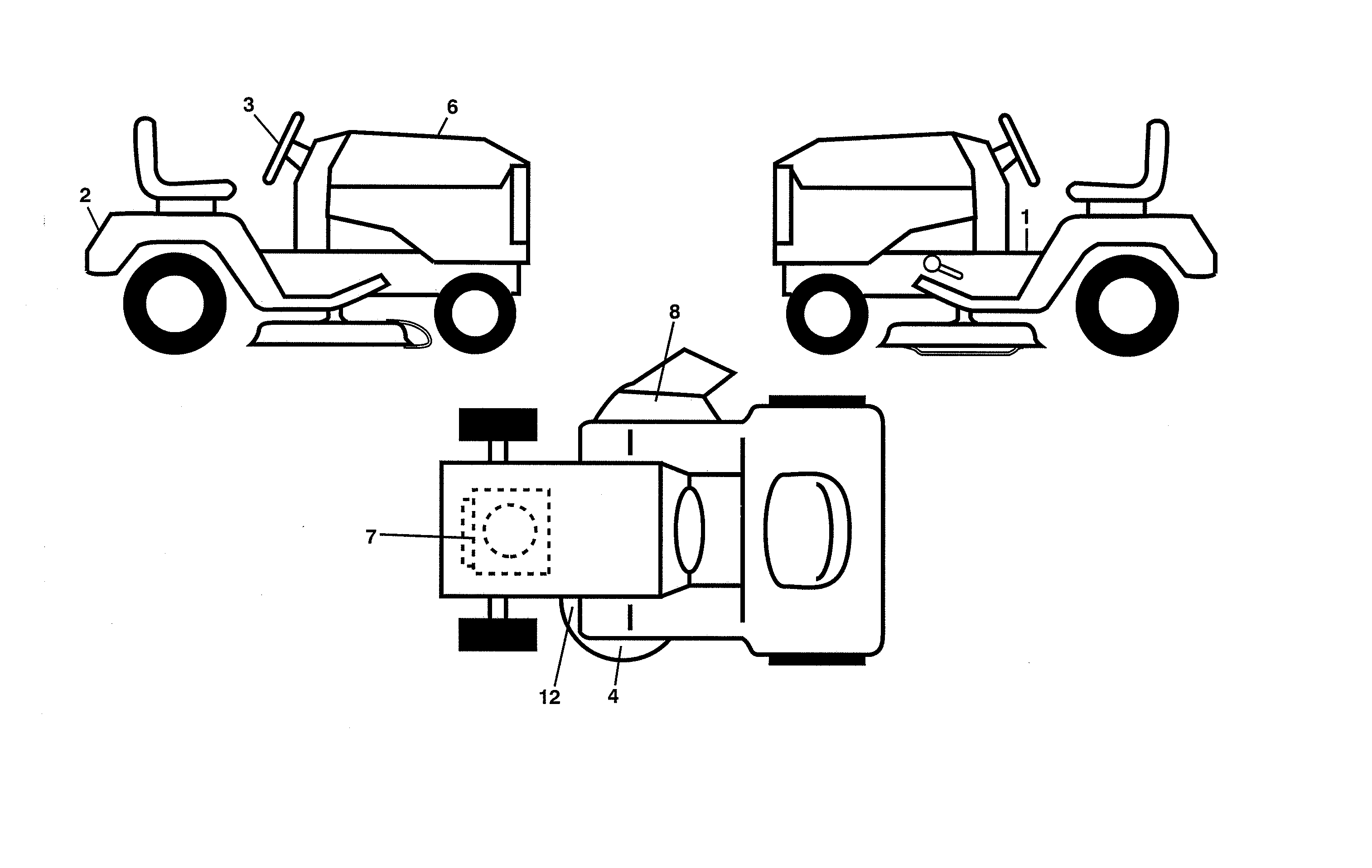

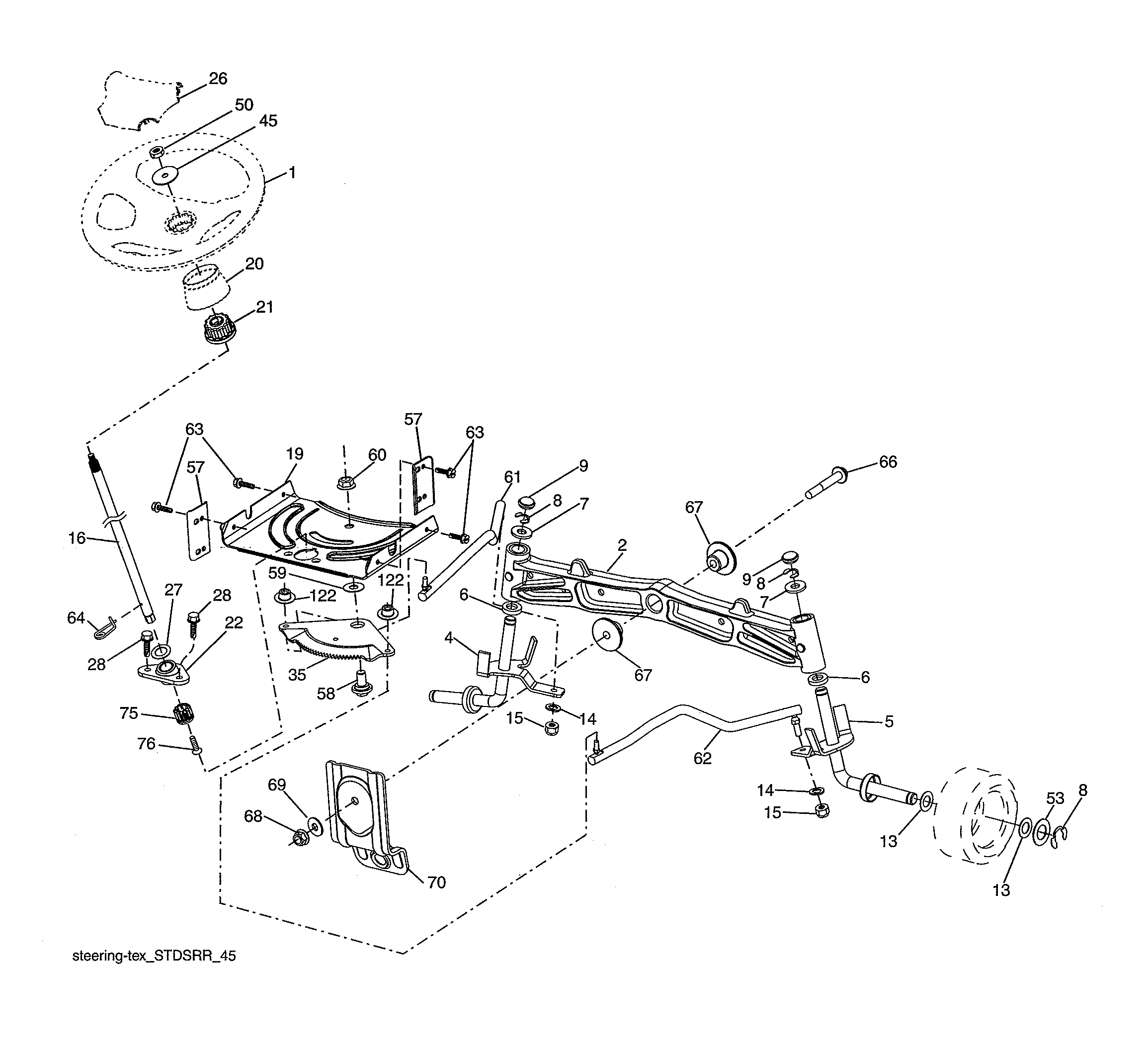

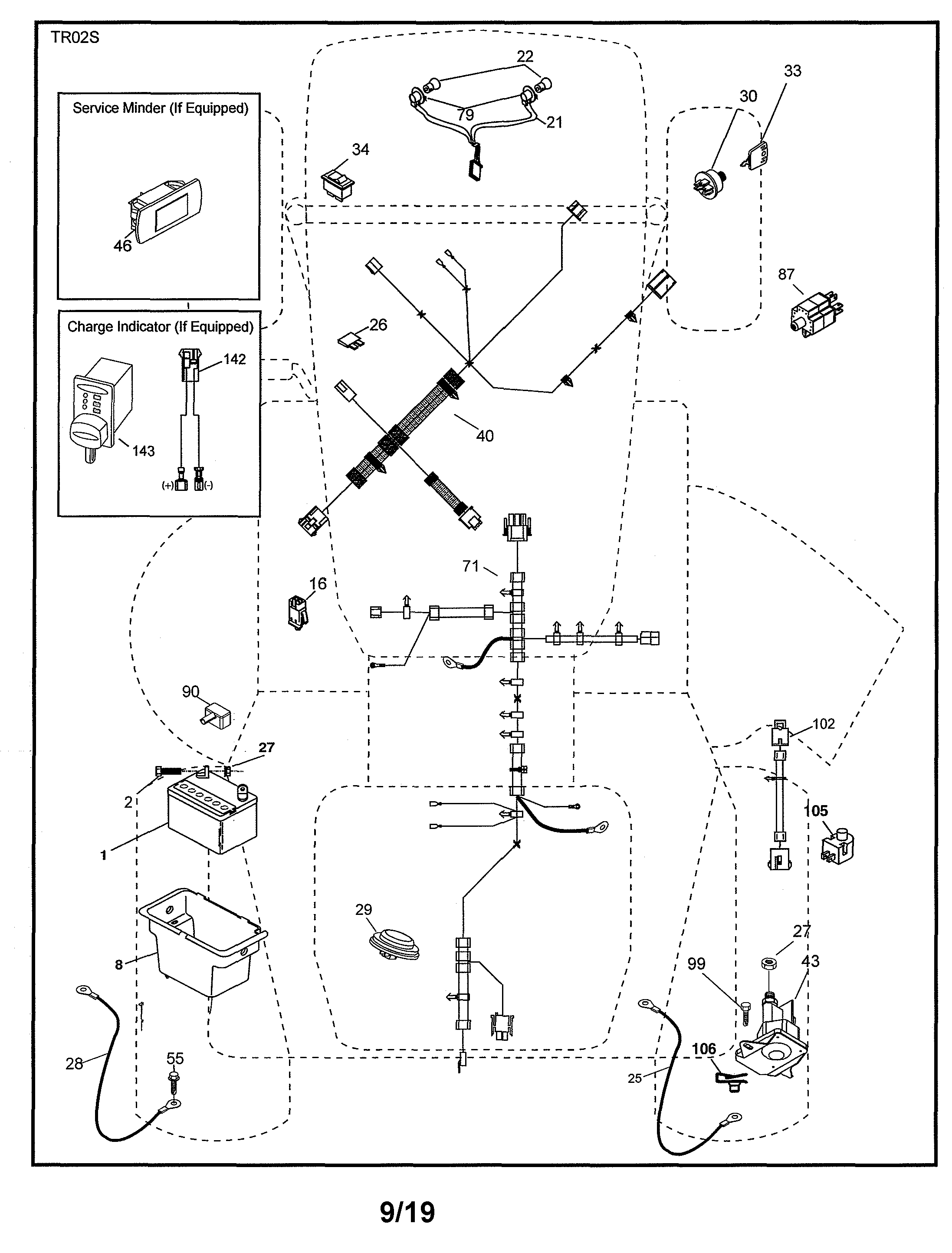

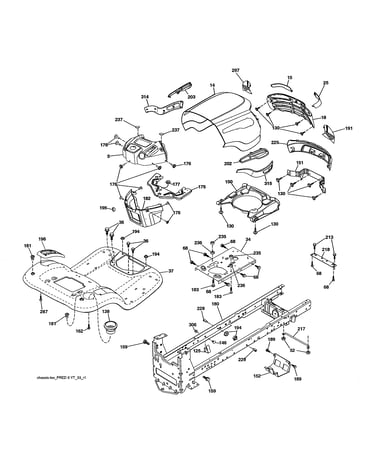

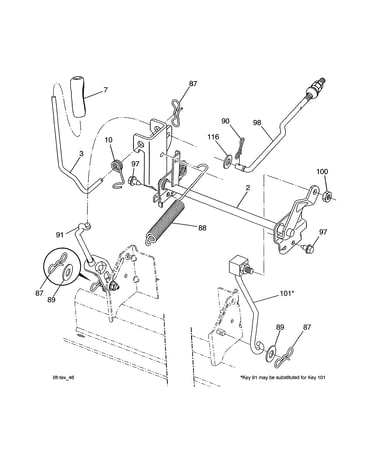

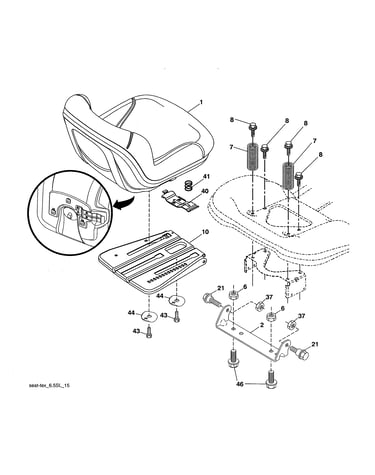

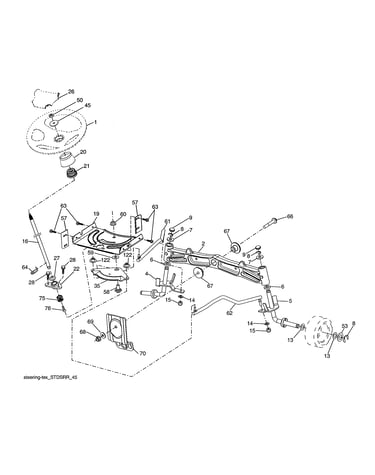

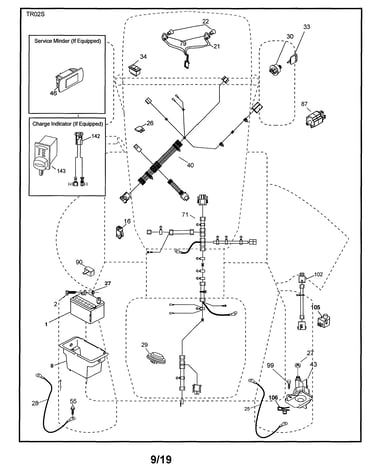

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
YT46-96043019700 Riding Mowers & Tractors
Lawn Mower Mandrel Assembly 587253301
#NI02

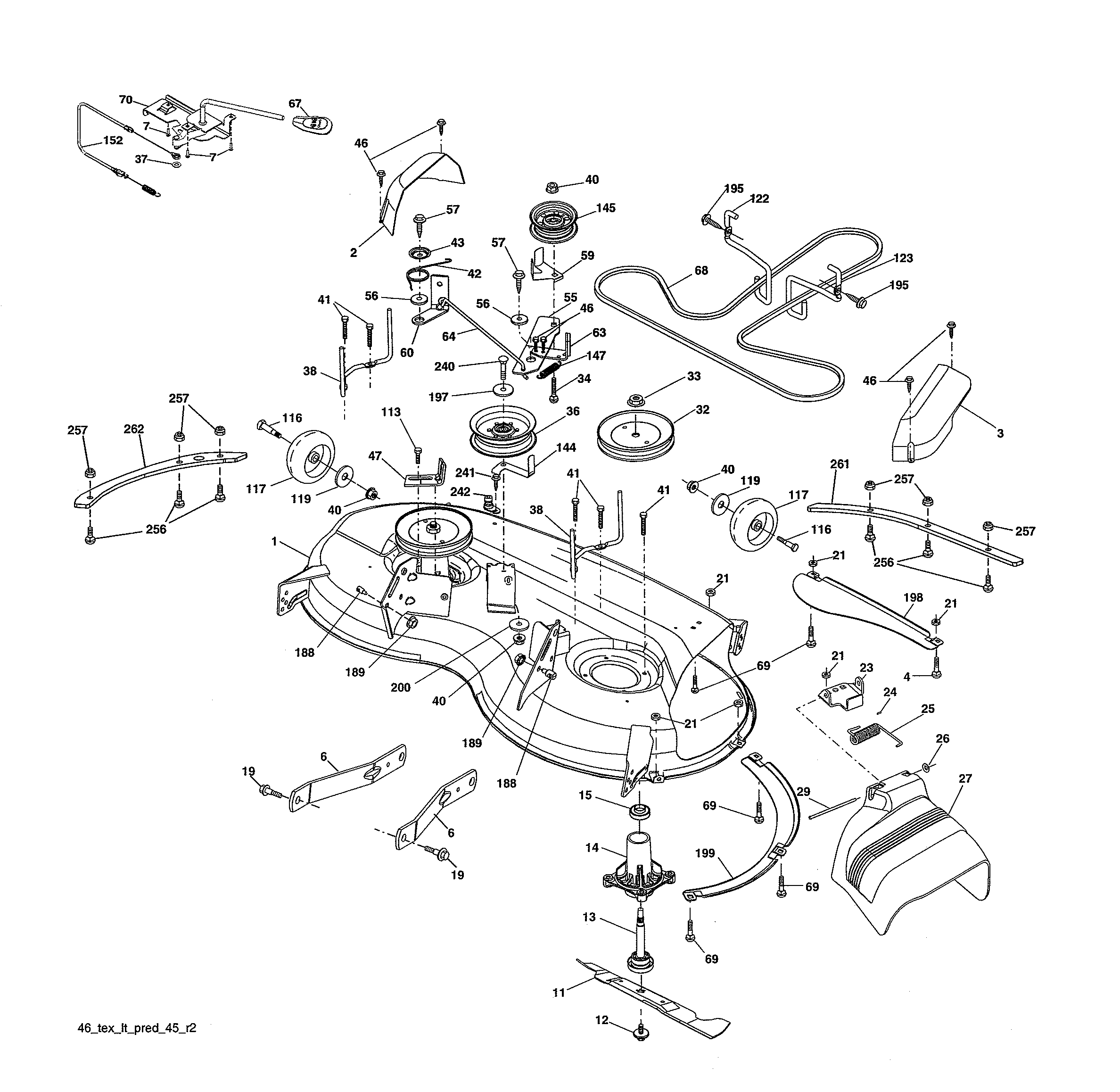

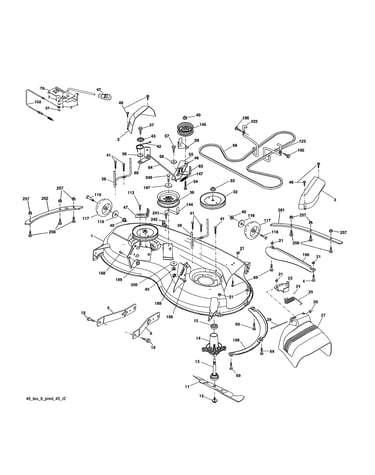

Mower deck diagram

Lawn mower mandrel assembly

Part #587253301

Replaced by #587819701

?
Manufacturer substitution
This part replaces 587253301. Substitute parts can look different from the original.
4.17 (656)
BEST SELLER
$56.63 |
10% OFF Phone Price : $62.63
In Stock
Lawn Tractor Mandrel Housing 532187281
#14

Mower deck diagram

Lawn tractor mandrel housing

Part #532187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 532187281. Substitute parts can look different from the original.
4.17 (656)
BEST SELLER
$56.63 |
10% OFF Phone Price : $62.63
In Stock
Lawn Tractor Mandrel Shaft 587256501
#13

Mower deck diagram

Lawn tractor mandrel shaft

Part #587256501

Replaced by #587819701

?
Manufacturer substitution
This part replaces 587256501. Substitute parts can look different from the original.
4.17 (656)
BEST SELLER
$56.63 |
10% OFF Phone Price : $62.63
In Stock
Drive V-belt 532405143
#68

Mower deck diagram

Drive v-belt

Part #532405143

Replaced by #584453101

?
Manufacturer substitution
This part replaces 532405143. Substitute parts can look different from the original.
4.35 (156)
BEST SELLER

Get free shipping with Automatic Reorder

$54.98 |
10% OFF Phone Price : $60.98
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 94-in 532130969
#56

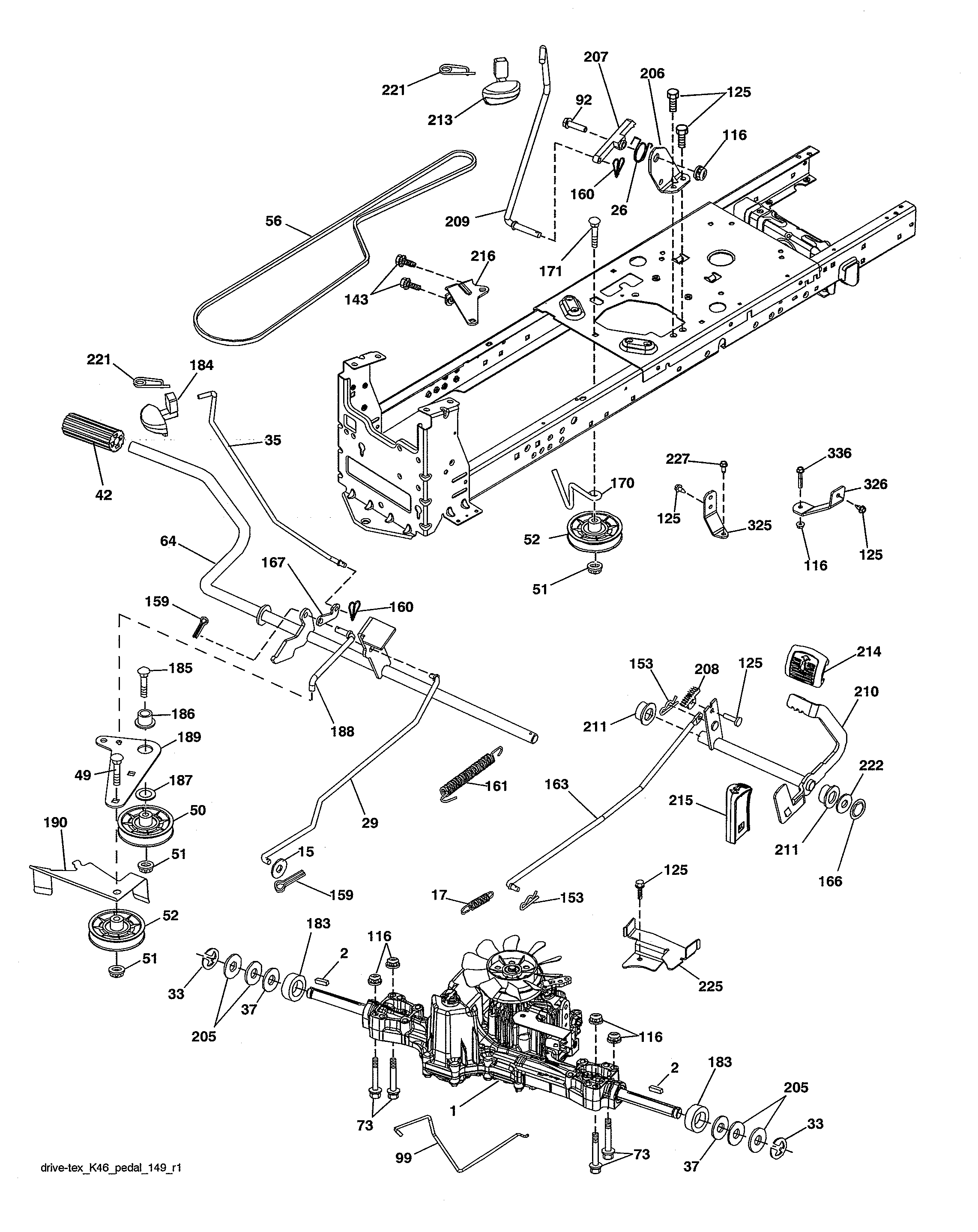

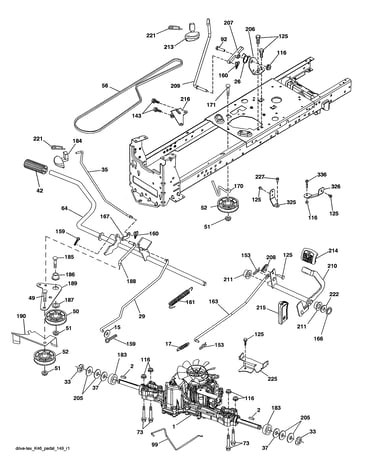

Drive diagram

Lawn tractor ground drive belt, 1/2 x 94-in

Part #532130969

Replaced by #592855201

?
Manufacturer substitution
This part replaces 532130969. Substitute parts can look different from the original.
5 (1)
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$28.15 |
18% OFF Phone Price : $34.15
In Stock
Husqvarna Lawn Tractor 46-in Deck High-lift Blade (replaces 33285, 594892801) 532405380
#11

Mower deck diagram

Husqvarna lawn tractor 46-in deck high-lift blade (replaces 33285, 594892801)

Part #532405380

4.18 (28)
BEST SELLER

Get free shipping with Automatic Reorder

$33.31 |
15% OFF Phone Price : $39.31
In Stock
Hub Cap 532175039
#8

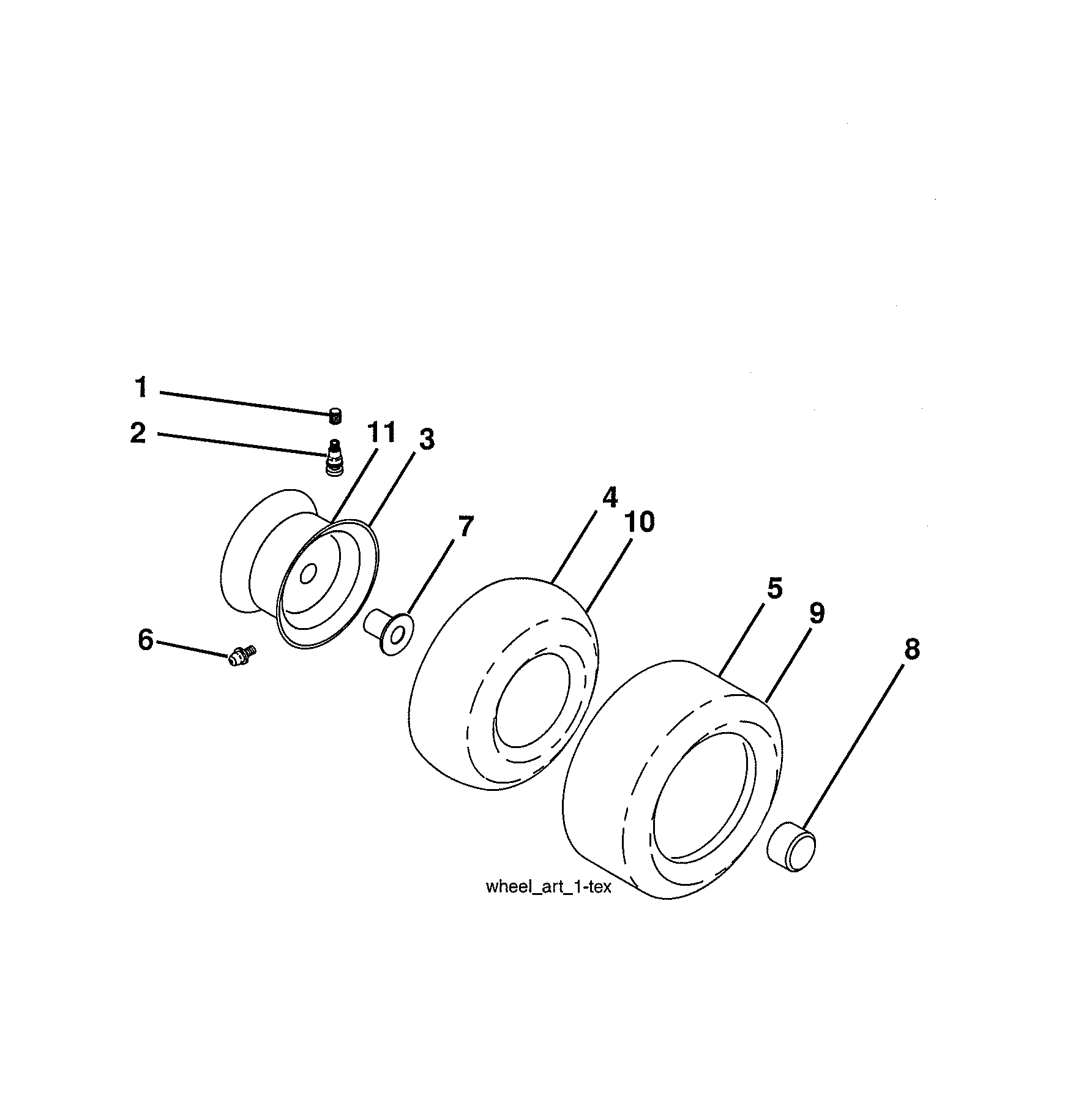

Wheels & tires diagram

Hub cap

Part #532175039

Replaced by #532104757

?
Manufacturer substitution
This part replaces 532175039. Substitute parts can look different from the original.
4.54 (54)
BEST SELLER
This item is not returnable
$5.90 |
14% OFF Phone Price : $6.90
In Stock
Locking Flange Nut 873900600
Locking flange nut

Part #873900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 873900600. Substitute parts can look different from the original.
4.33 (12)
BEST SELLER
This item is not returnable
$5.93 |
14% OFF Phone Price : $6.93
In Stock
Lawn Tractor Self-tapping Bolt (replaces 173984) 584953901
#41

Mower deck diagram

Lawn tractor self-tapping bolt (replaces 173984)

Part #584953901

3.7 (23)
BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Lawn Tractor Gauge Wheel (replaces 174873, 587048801) 589527301
#117

Mower deck diagram

Lawn tractor gauge wheel (replaces 174873, 587048801)

Part #589527301

4.04 (27)
BEST SELLER
$13.37 |
13% OFF Phone Price : $15.37
In Stock
