Front-Engine Lawn Tractor

Model # 917257620 Official Craftsman lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917257620 lawn tractor, as well as links to manuals and error code tables, if available.

Error Code Icon View engine
By Schematic
By Part

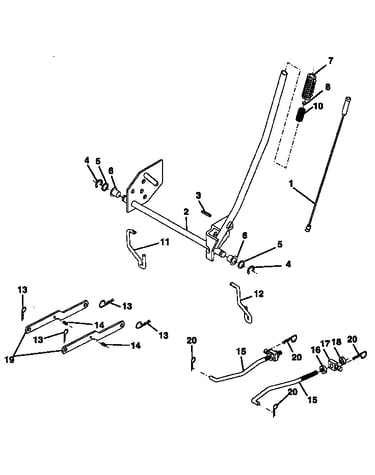

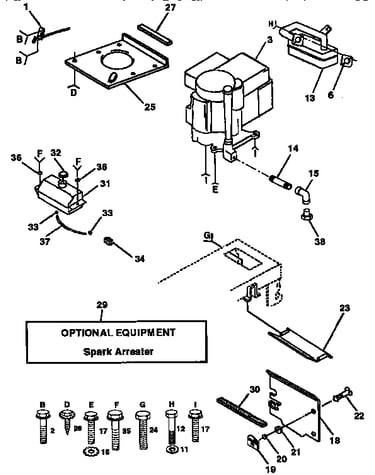

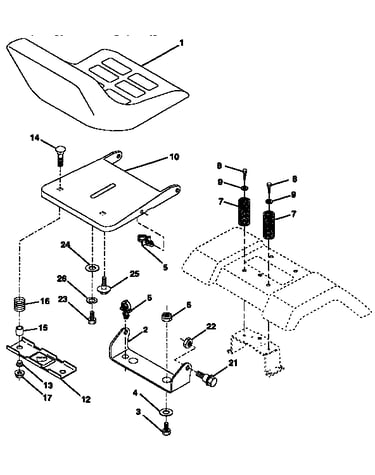

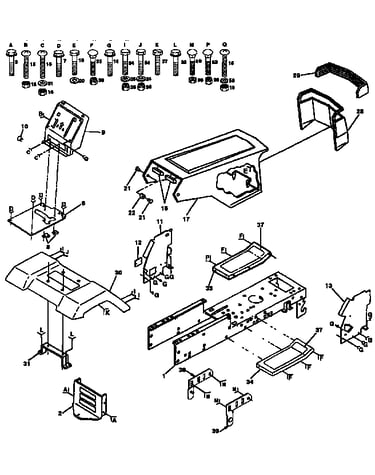

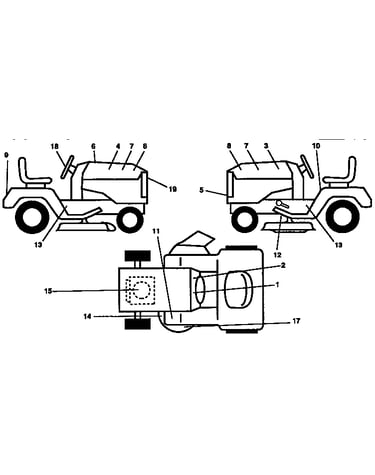

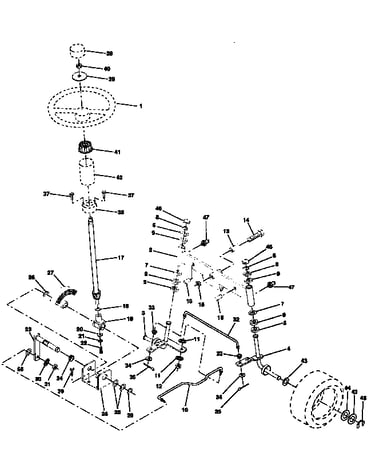

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
917257620 Riding Mowers & Tractors
Hub Cap 104757X
#11

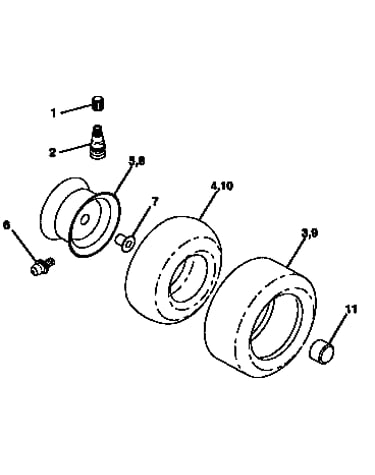

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
4.54 (54)
BEST SELLER
This item is not returnable
$5.90 |
14% OFF Phone Price : $6.90
In Stock
Lawn Tractor Drive Belt 138255
#57

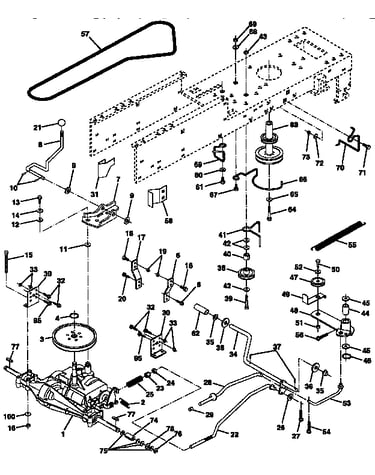

Drive diagram

Lawn tractor drive belt

Part #138255

Replaced by #532138255

?
Manufacturer substitution
This part replaces 138255. Substitute parts can look different from the original.
4.05 (116)
BEST SELLER

Get free shipping with Automatic Reorder

$37.98 |
14% OFF Phone Price : $43.98
In Stock
Screw 138776
#30

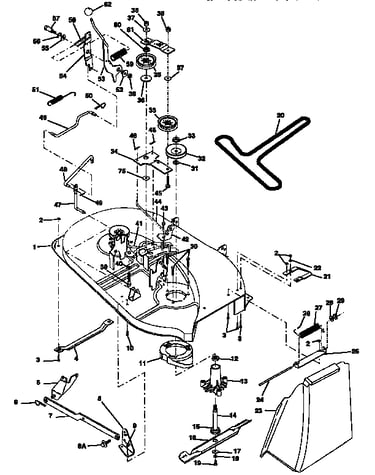

38" mower diagram

Screw

Part #138776

Replaced by #584953901

?
Manufacturer substitution
This part replaces 138776. Substitute parts can look different from the original.
3.7 (23)
BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Solenoid 138406
#10

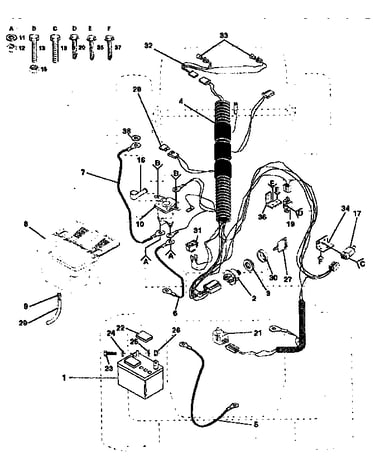

Electrical diagram

Solenoid

Part #138406

Replaced by #532146154

?
Manufacturer substitution
This part replaces 138406. Substitute parts can look different from the original.
4.12 (122)
BEST SELLER
$29.15 |
17% OFF Phone Price : $35.15
In Stock
Lawn Tractor Drive V-belt 131290
#20

38" mower diagram

Lawn tractor drive v-belt

Part #131290

Replaced by #532144200

?
Manufacturer substitution
This part replaces 131290. Substitute parts can look different from the original.
4.22 (88)
BEST SELLER

Get free shipping with Automatic Reorder

$44.98 |
12% OFF Phone Price : $50.98
In Stock
Tire 106222X
#3

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
3.86 (36)
BEST SELLER
$61.78 |
9% OFF Phone Price : $67.78
In Stock
Washer, 13/32 X 1-1/4 X 12 19132012
#72

Drive diagram

Washer, 13/32 x 1-1/4 x 12

Part #19132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132012. Substitute parts can look different from the original.
5 (2)
BEST SELLER
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Vented Mandrel Shaft Assembly 137645
#14

38" mower diagram

Vented mandrel shaft assembly

Part #137645

Replaced by #532137646

?
Manufacturer substitution
This part replaces 137645. Substitute parts can look different from the original.
4.23 (133)
BEST SELLER
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Rim 106732X361
#5

Wheels and tires diagram

Rim

Part #106732X361

Replaced by #532106732

?
Manufacturer substitution
This part replaces 106732X361. Substitute parts can look different from the original.
3.95 (22)
BEST SELLER
$82.38 |
7% OFF Phone Price : $88.38
In Stock
Lawn Tractor Blade Idler Pulley 127783
#47

Drive diagram

Lawn tractor blade idler pulley

Part #127783

Replaced by #532139245

?
Manufacturer substitution
This part replaces 127783. Substitute parts can look different from the original.
4.09 (32)
BEST SELLER
$36.03 |
14% OFF Phone Price : $42.03
In Stock
