Model # GDF640HGM5WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GDF640HGM5WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

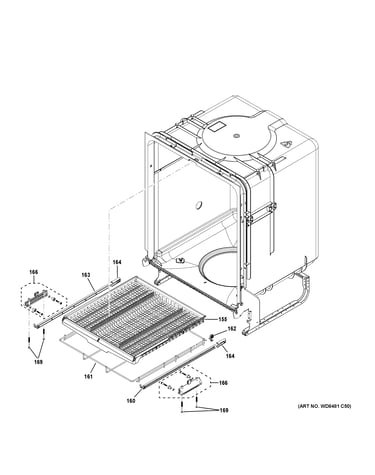

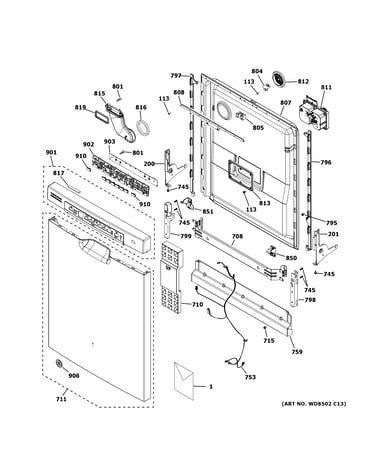

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Dishwasher Pressure Sensor WD21X25468
#333

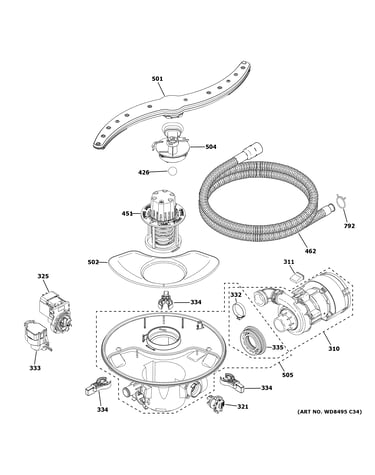

Motor, sump & filter assembly diagram

Dishwasher pressure sensor

Part #WD21X25468

BEST SELLER
$30.14 |
17% OFF Phone Price : $36.14
In Stock
Dishwasher Spray Arm, Lower WD22X26621
#501

Motor, sump & filter assembly diagram

Dishwasher spray arm, lower

Part #WD22X26621

Replaced by #WD22X27724

?
Manufacturer substitution
This part replaces WD22X26621. Substitute parts can look different from the original.
BEST SELLER
$20.65 |
23% OFF Phone Price : $26.65
In Stock
Dishwasher Drain Pump (replaces Wd19x26143, Wd19x31178) WD19X25461
#325

Motor, sump & filter assembly diagram

Dishwasher drain pump (replaces wd19x26143, wd19x31178)

Part #WD19X25461

BEST SELLER
$49.96 |
11% OFF Phone Price : $55.96
In Stock
Wash Pump Main Asm WD19X25460
#310

Motor, sump & filter assembly diagram

Wash pump main asm

Part #WD19X25460

Replaced by #WD19X25700

?
Manufacturer substitution
This part replaces WD19X25460. Substitute parts can look different from the original.
BEST SELLER
$107.41 |
10% OFF Phone Price : $119.41
In Stock
Dishwasher Door Latch Lock WD21X10490
#803

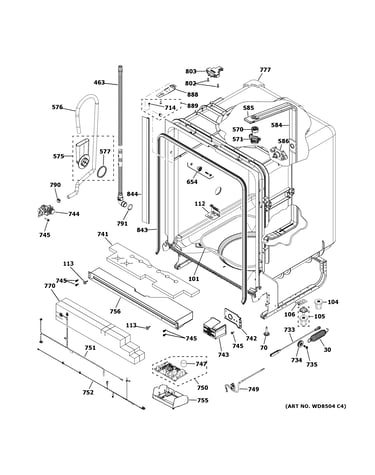

Body parts (1) diagram

Dishwasher door latch lock

Part #WD21X10490

BEST SELLER
$27.83 |
18% OFF Phone Price : $33.83
In Stock
Dishwasher Heating Element WD05X24385
#101

Body parts (1) diagram

Dishwasher heating element

Part #WD05X24385

Replaced by #WD05X30298

?
Manufacturer substitution
This part replaces WD05X24385. Substitute parts can look different from the original.
BEST SELLER
$46.76 |
11% OFF Phone Price : $52.76
In Stock
Rack Lower Asm Complete WD28X24478
#701

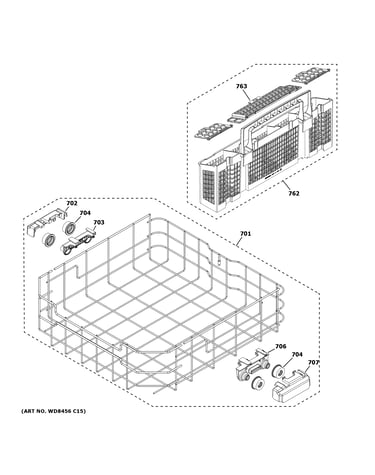

Lower rack assembly diagram

Rack lower asm complete

Part #WD28X24478

Replaced by #WD28X26099

?
Manufacturer substitution
This part replaces WD28X24478. Substitute parts can look different from the original.
BEST SELLER
$77.17 |
7% OFF Phone Price : $83.17
In Stock
Dishwasher Spray Arm, Middle WD22X26622
#618

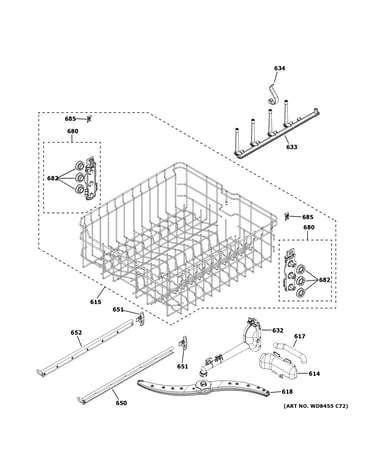

Upper rack assembly diagram

Dishwasher spray arm, middle

Part #WD22X26622

Replaced by #WD22X27740

?
Manufacturer substitution
This part replaces WD22X26622. Substitute parts can look different from the original.
BEST SELLER
$29.82 |
17% OFF Phone Price : $35.82
In Stock
Dishwasher Tub Gasket WD08X22094
#843

Body parts (1) diagram

Dishwasher tub gasket

Part #WD08X22094

Replaced by #WD08X23476

?
Manufacturer substitution
This part replaces WD08X22094. Substitute parts can look different from the original.
BEST SELLER
$21.09 |
22% OFF Phone Price : $27.09
In Stock
Dishwasher Water Inlet Valve (replaces Wd15x32009) WD15X26078
#744

Body parts (1) diagram

Dishwasher water inlet valve (replaces wd15x32009)

Part #WD15X26078

BEST SELLER
$23.62 |
20% OFF Phone Price : $29.62
In Stock
