Kenmore
Gas Range

Model # 79073433310 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79073433310 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

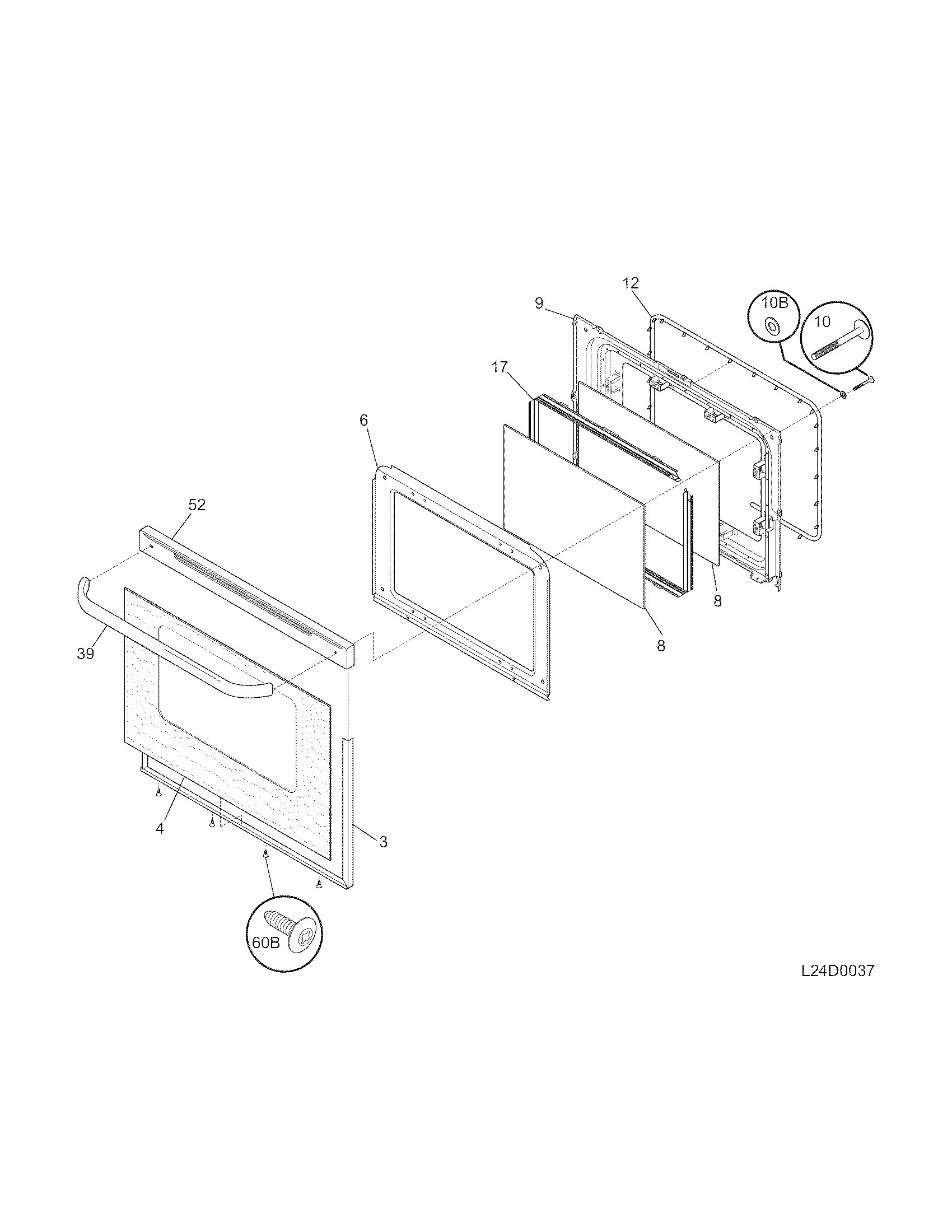

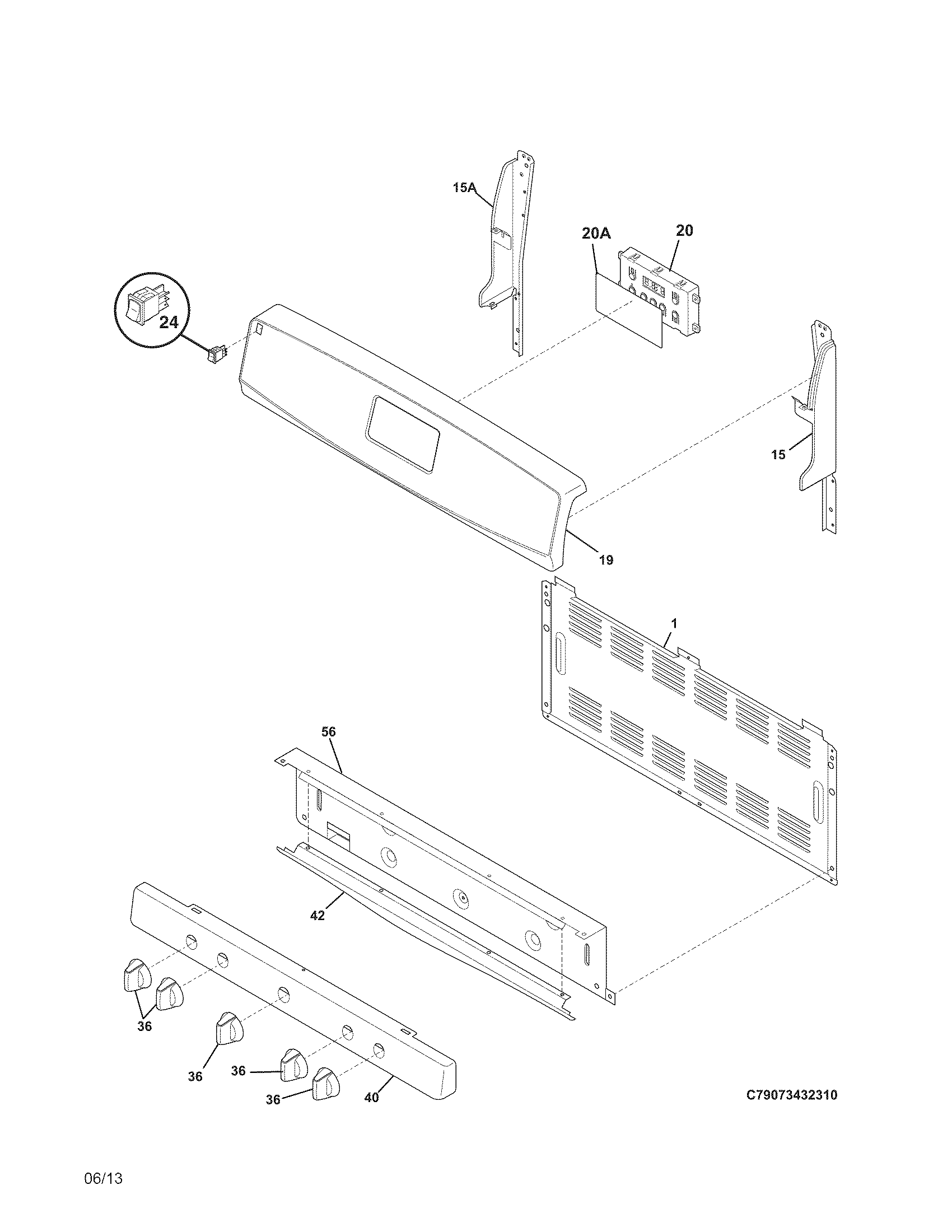

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Range Oven Burner Igniter 316489402
#19

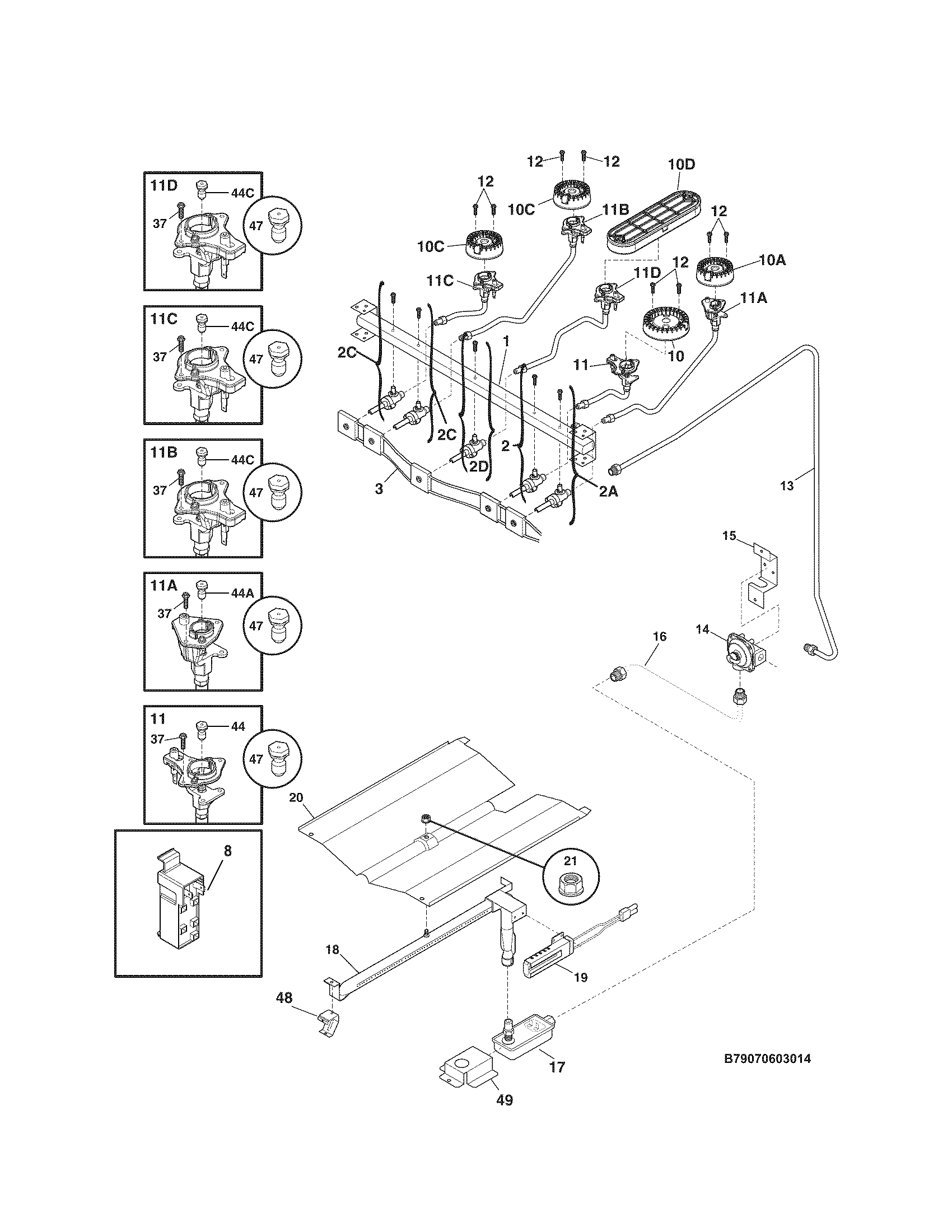

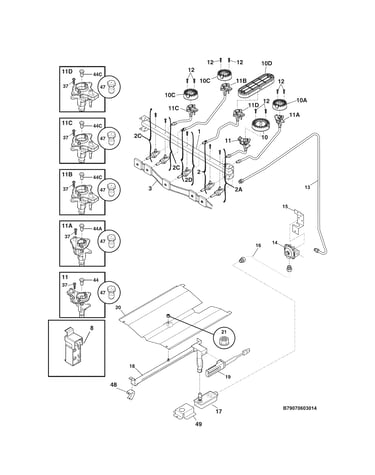

Burner diagram

Range oven burner igniter

Part #316489402

Replaced by #5304509706

?
Manufacturer substitution
This part replaces 316489402. Substitute parts can look different from the original.
BEST SELLER
$120.14 |
9% OFF Phone Price : $132.14
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

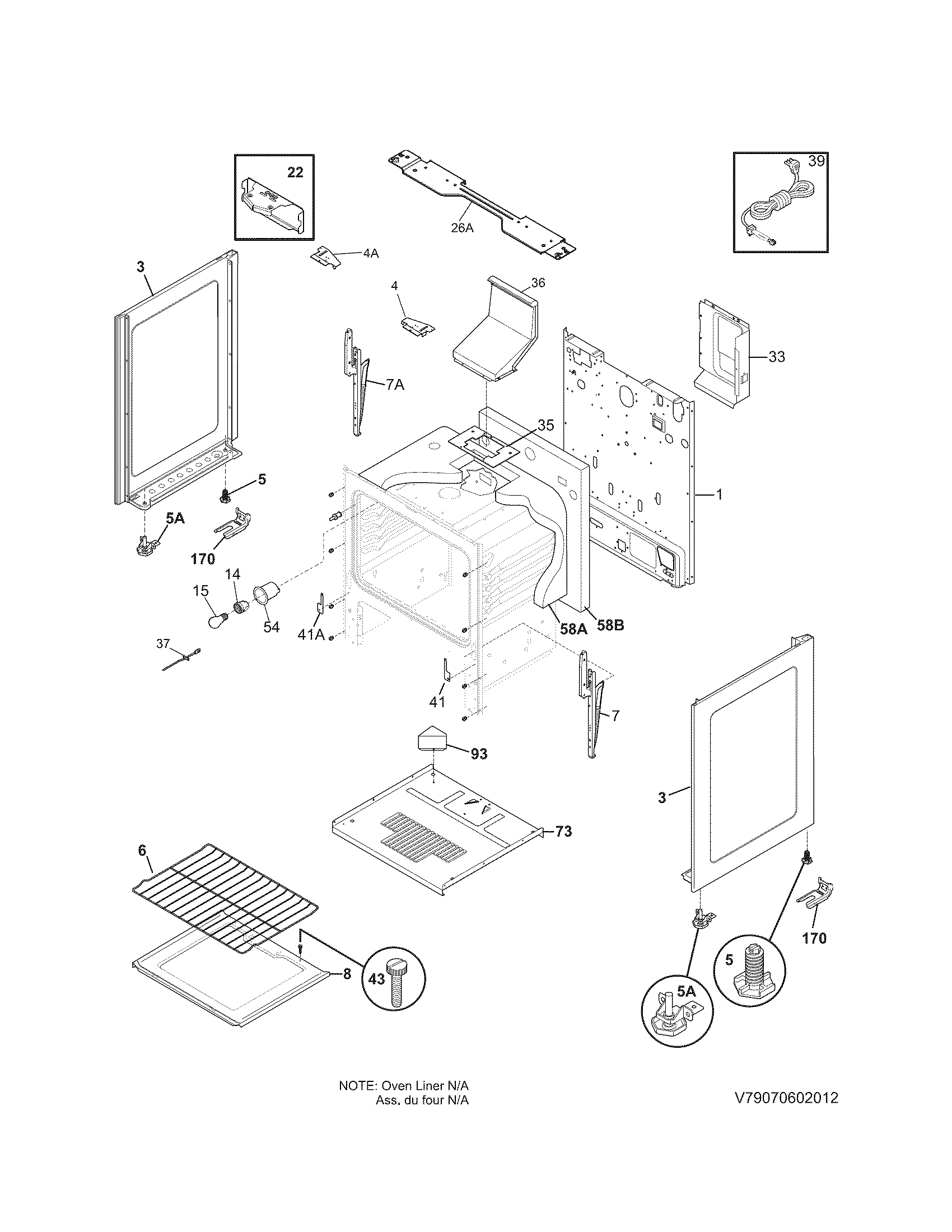

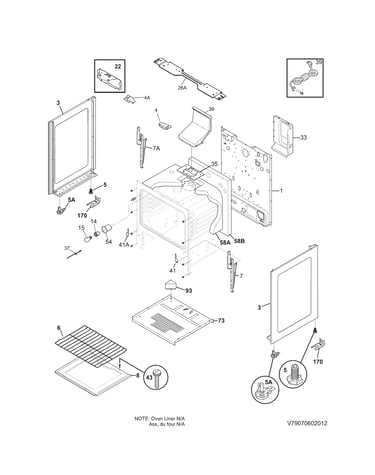

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Igniter Switch And Harness Assembly (replaces 316219025) 316580615
#3

Burner diagram

Range igniter switch and harness assembly (replaces 316219025)

Part #316580615

BEST SELLER
$59.33 |
9% OFF Phone Price : $65.33
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Spark Module 316262400
#8

Burner diagram

Range spark module

Part #316262400

Replaced by #5304508269

?
Manufacturer substitution
This part replaces 316262400. Substitute parts can look different from the original.
BEST SELLER
$65.12 |
8% OFF Phone Price : $71.12
In Stock
Tappan Range Surface Burner Igniter And Orifice Holder (replaces 316449500) 316536610
#11A

Burner diagram

Tappan range surface burner igniter and orifice holder (replaces 316449500)

Part #316536610

BEST SELLER
$56.52 |
10% OFF Phone Price : $62.52
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10C

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22C

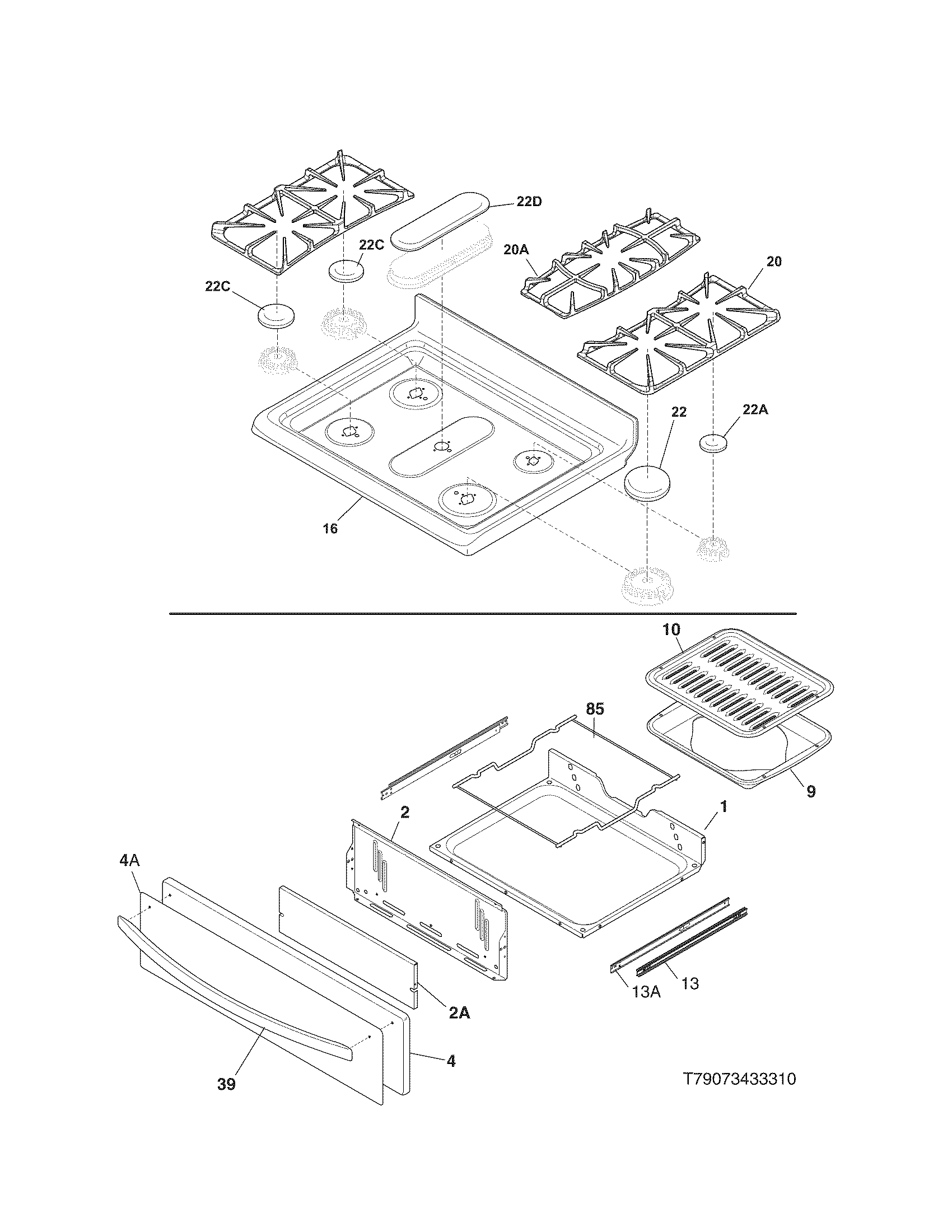

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22A

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449304) 316536623
#11D

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449304)

Part #316536623

BEST SELLER
$96.65 |
11% OFF Phone Price : $108.65
In Stock
