Dacor
Dishwasher

Model # PD24 Official Dacor dishwasher

Here are the diagrams and repair parts for Official Dacor PD24 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

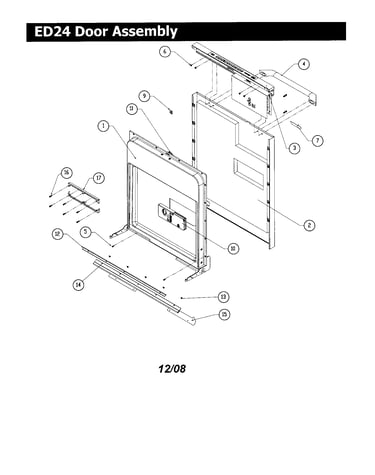

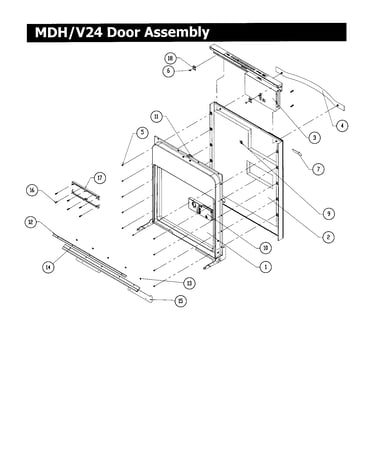

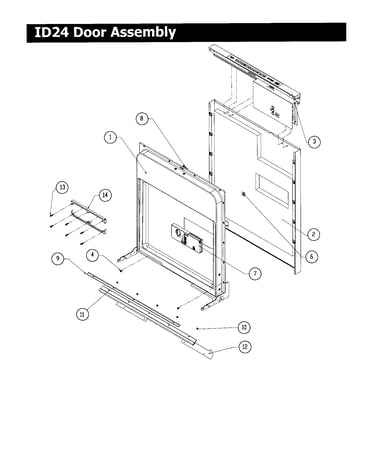

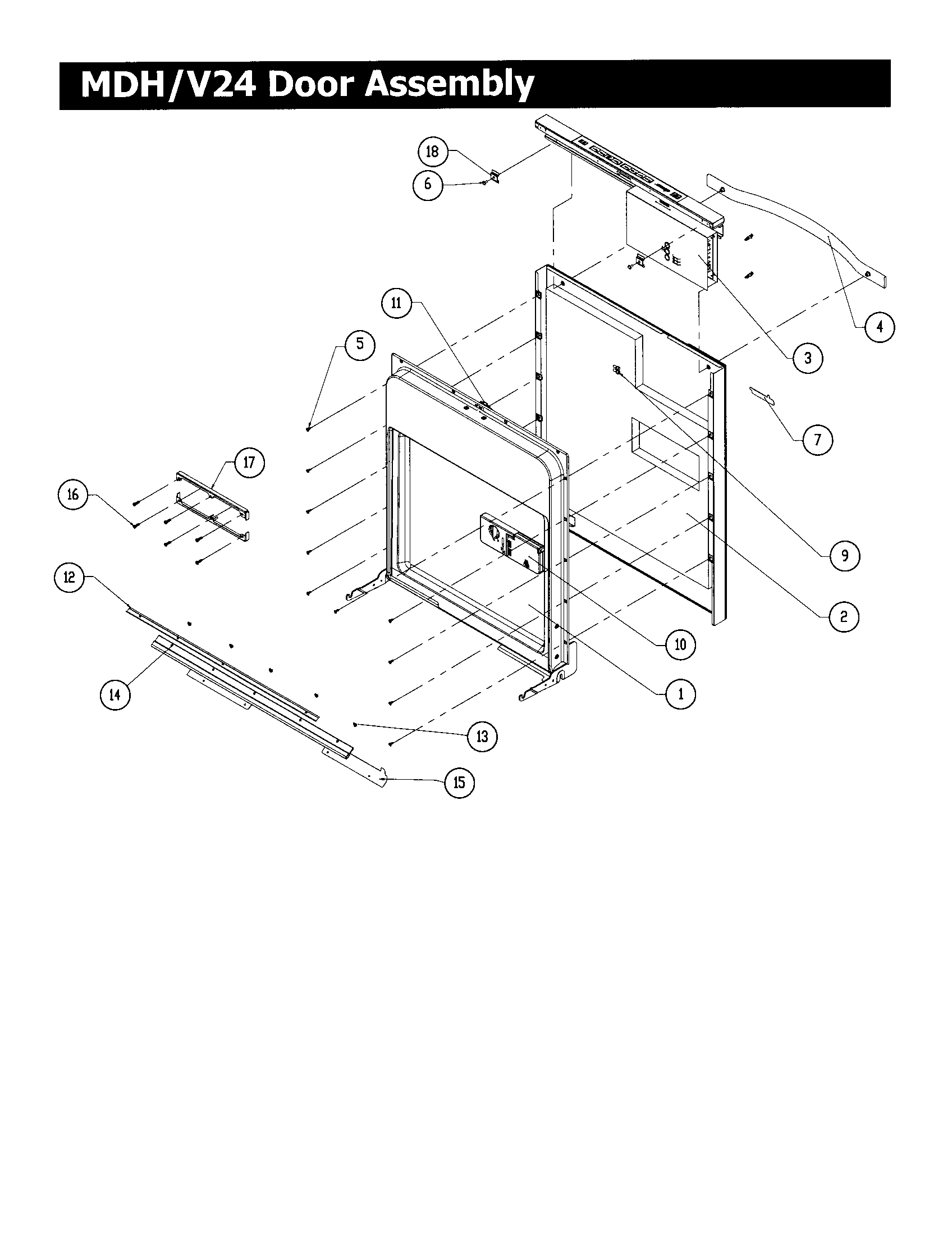

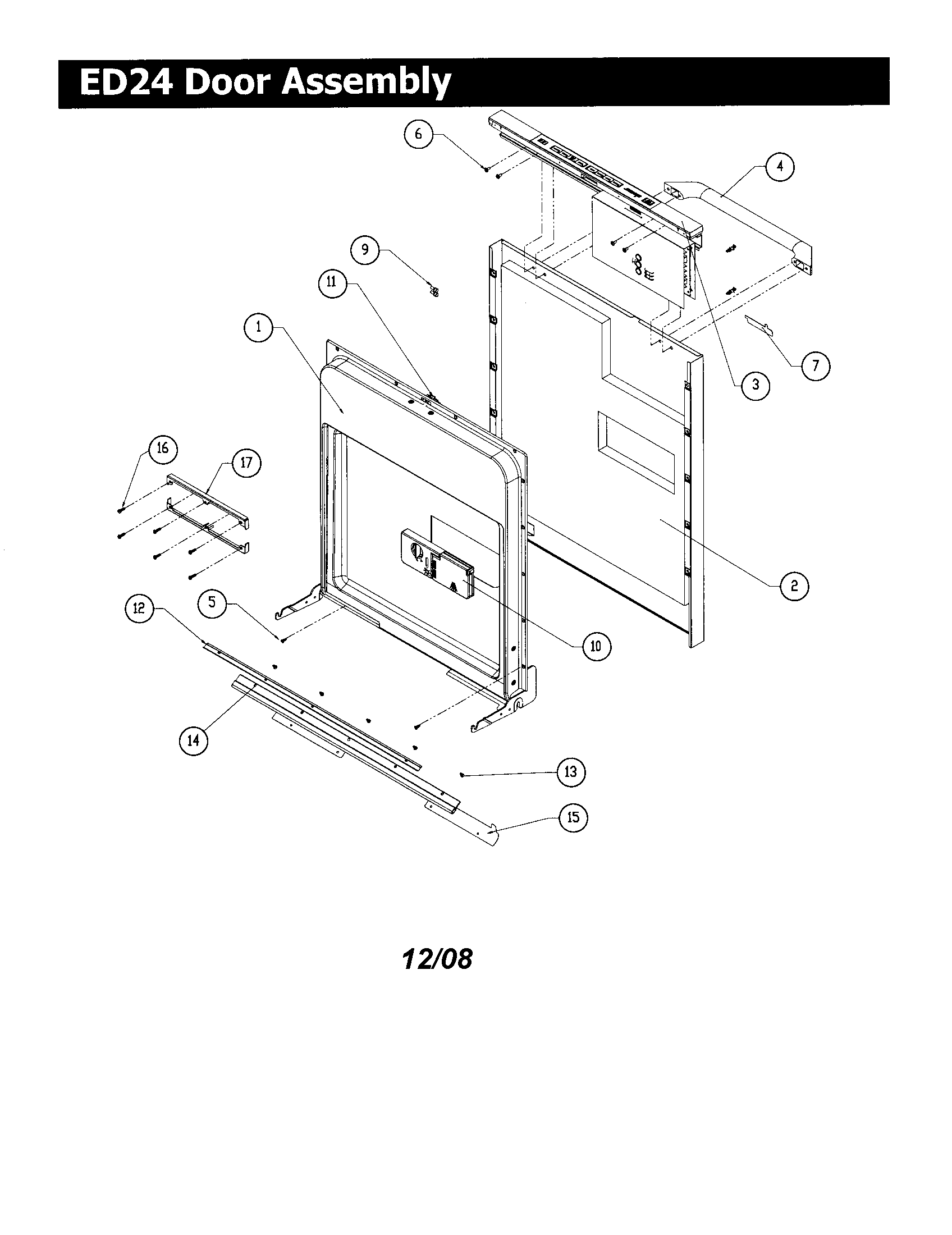

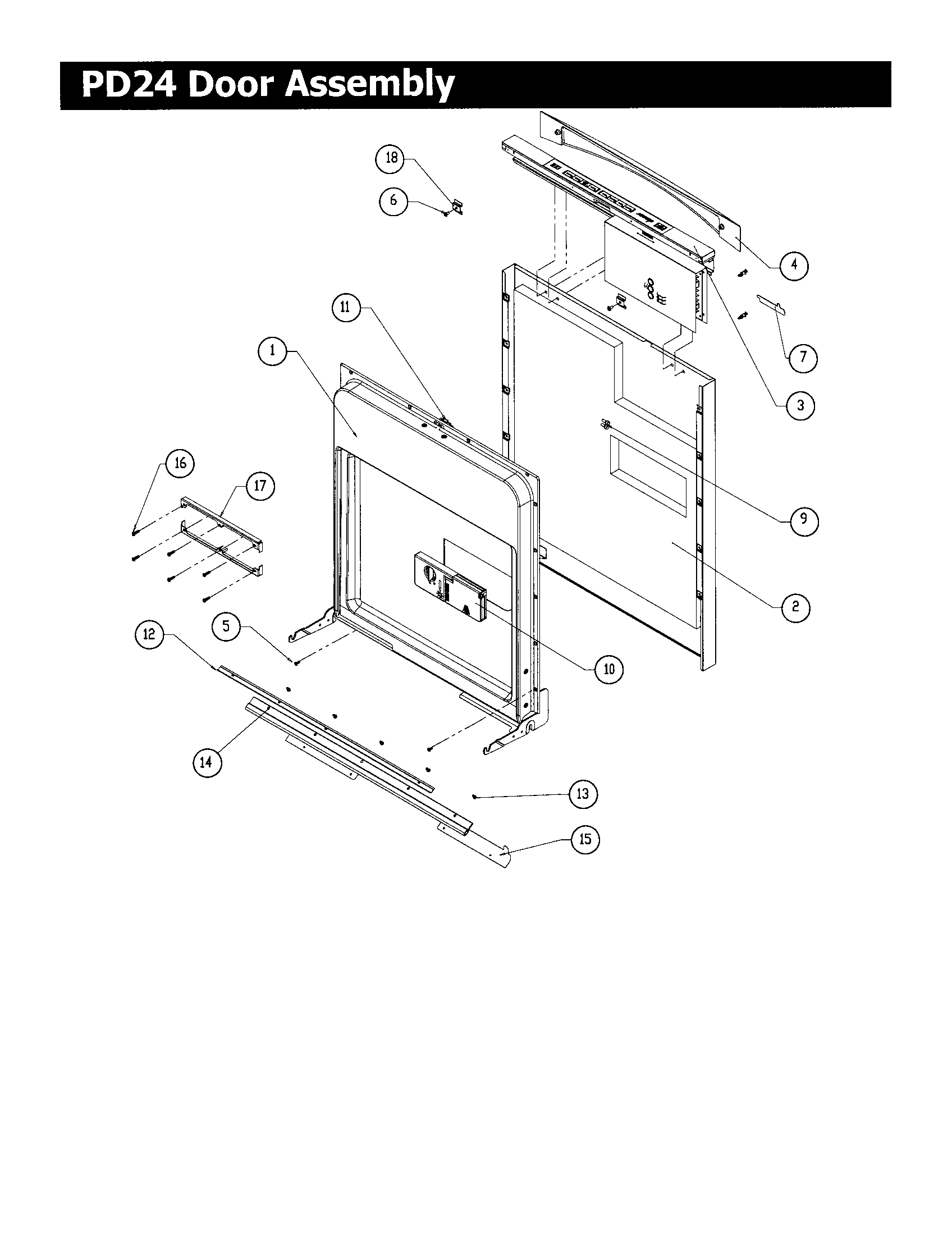

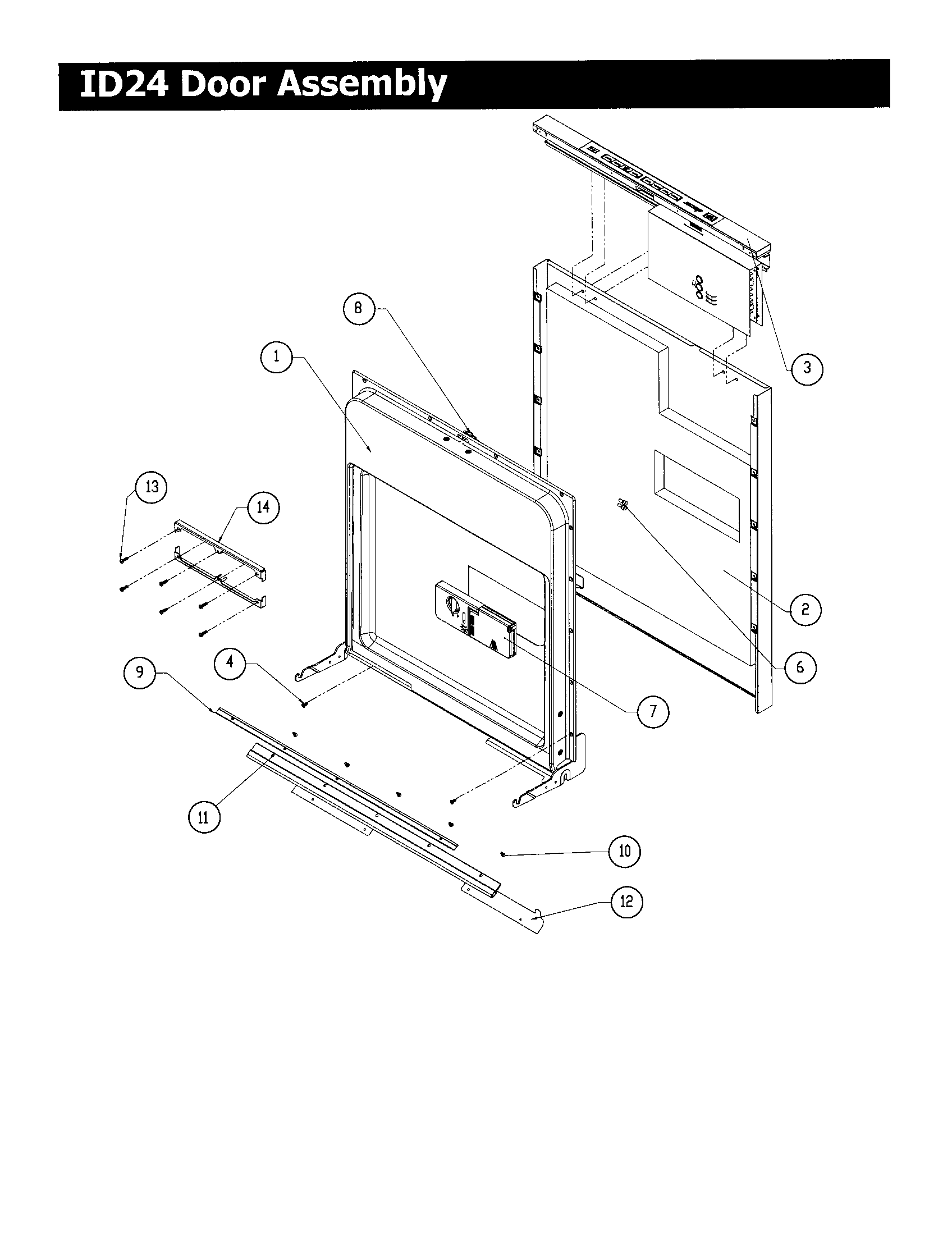

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Dishwasher Door Seal 72051
#19

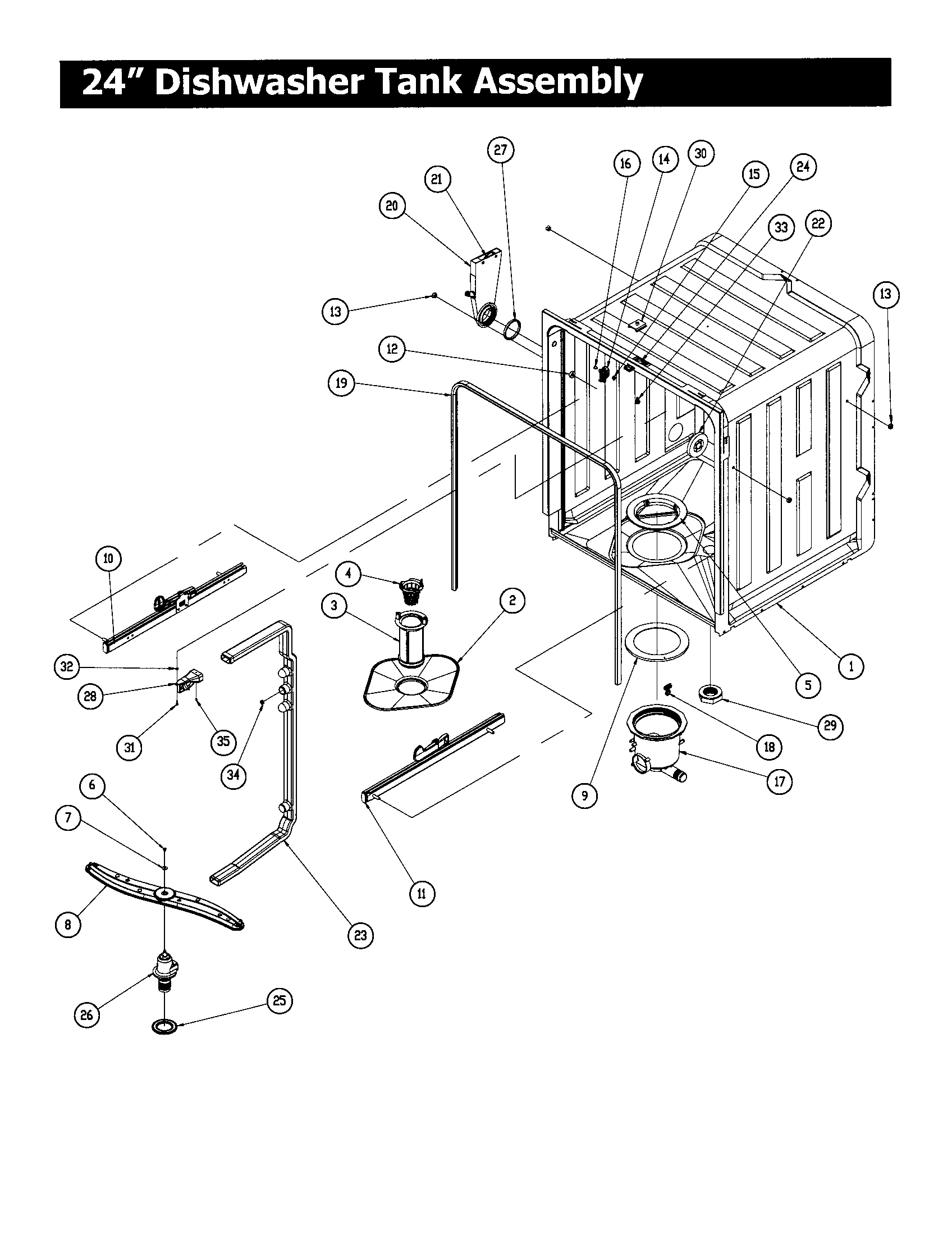

Tank diagram

Dishwasher door seal

Part #72051

$44.49
In Stock
Dishwasher Roller Assembly 92285
#3

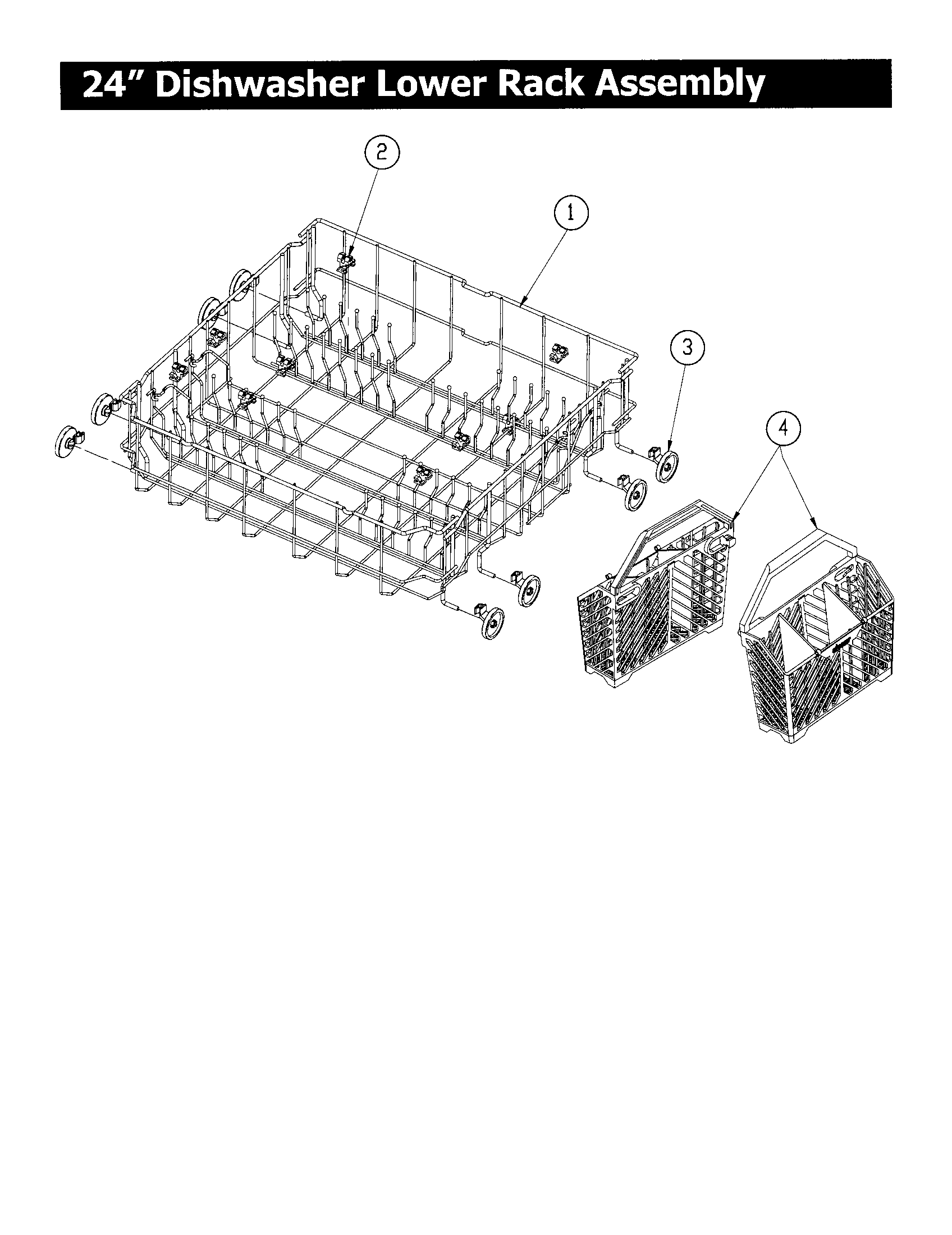

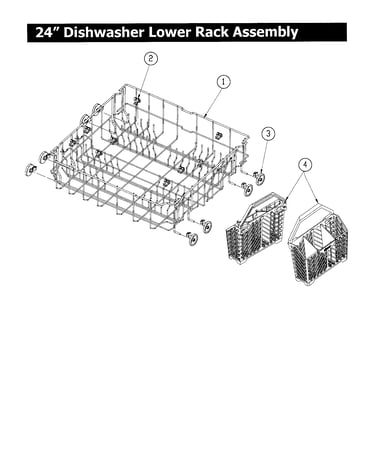

Lower rack diagram

Dishwasher roller assembly

Part #92285

This item is not returnable
$6.49
In Stock
Screw 83023
#43

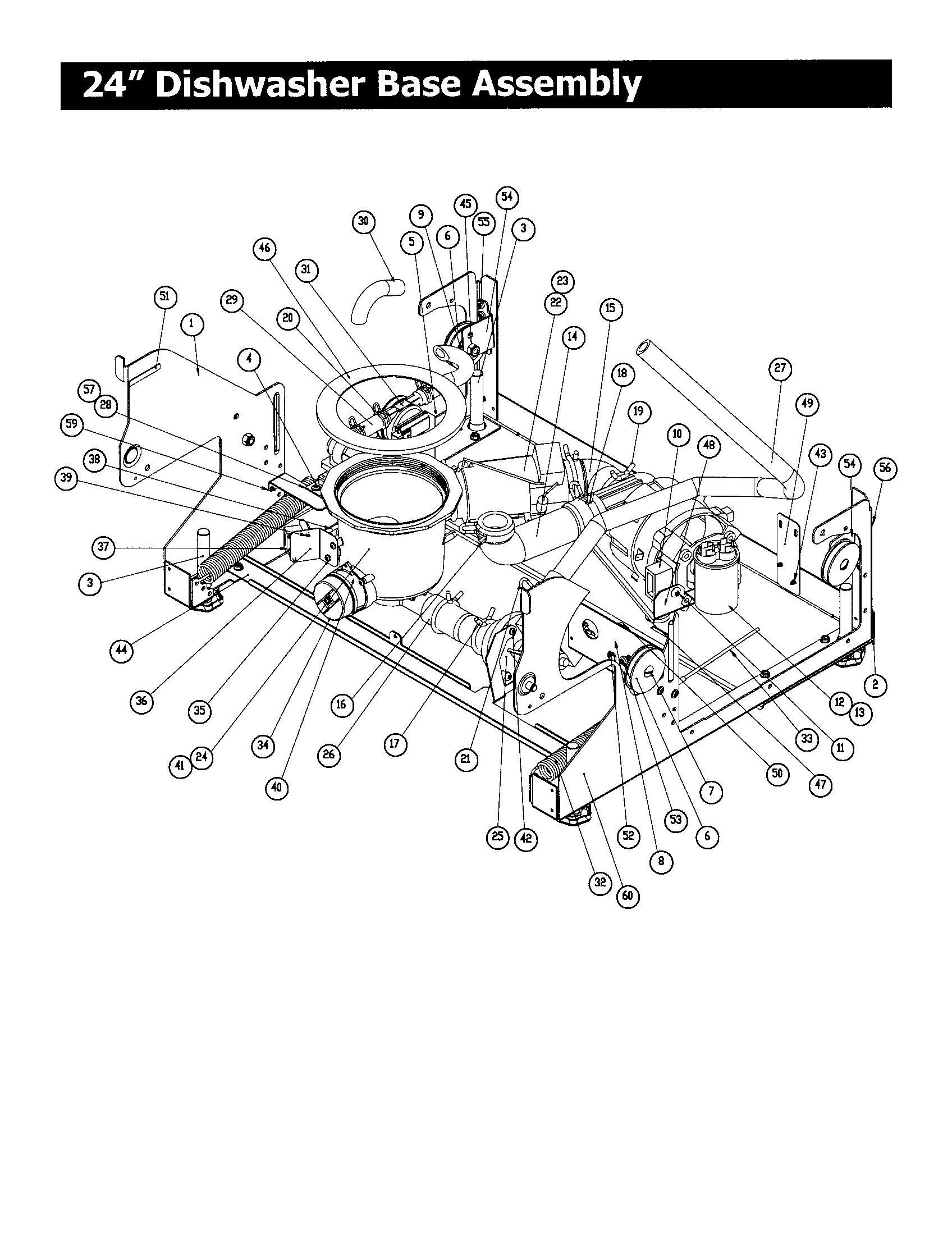

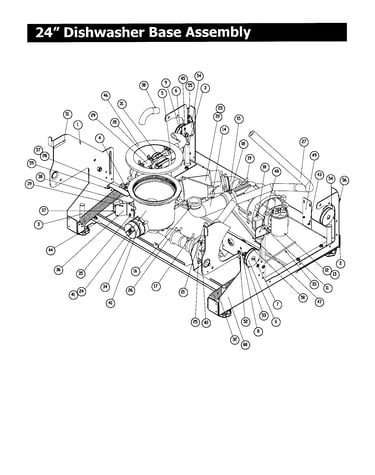

Base diagram

Screw

Part #83023

This item is not returnable
$2.16
In Stock
Appliance Screw, #8 X 3/8-in 83263
#5

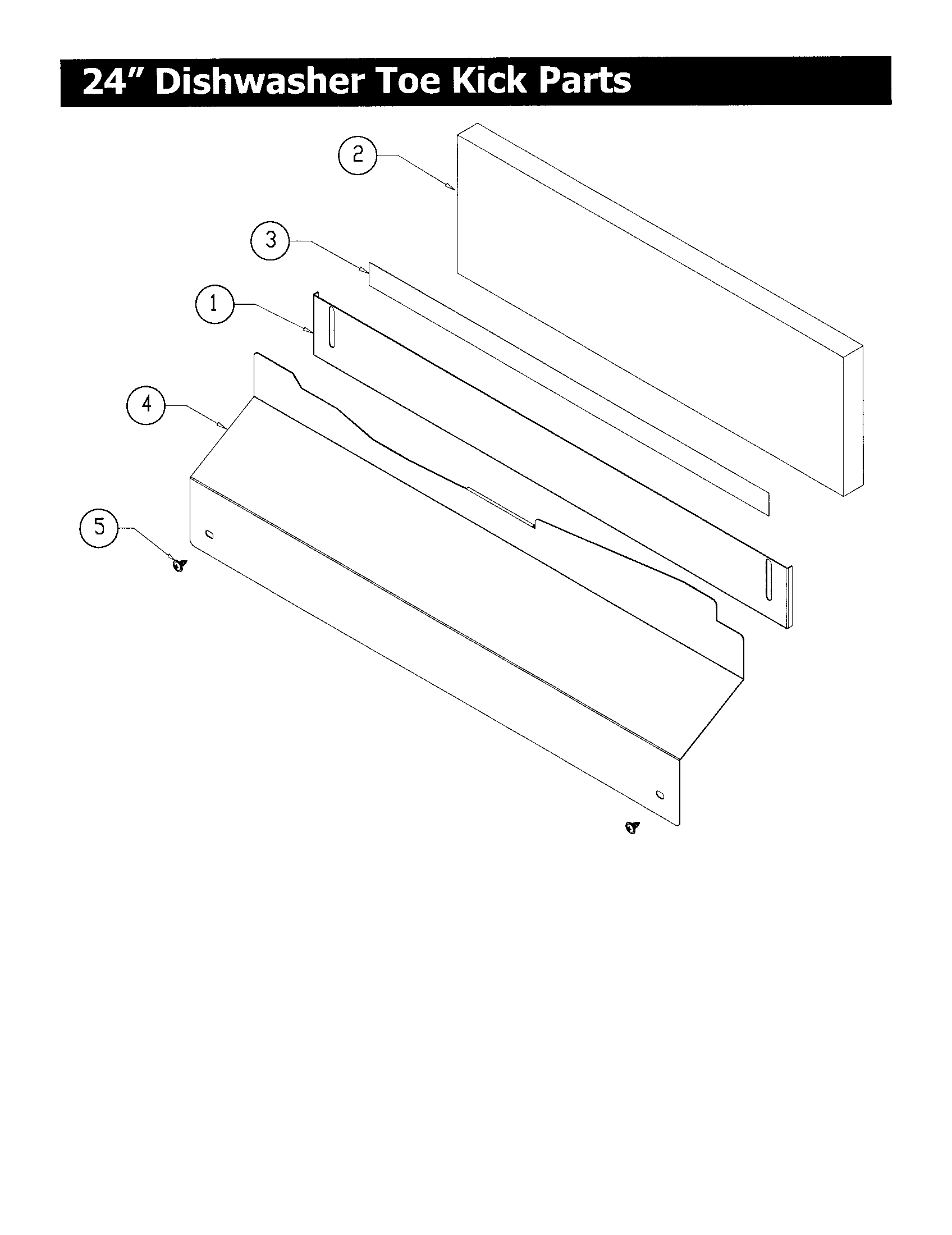

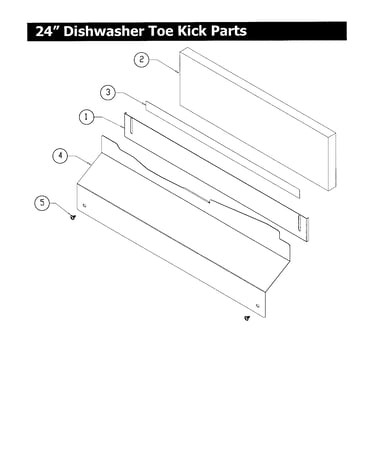

Toe kick diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
Back Order
Screw 83571
#4

Base diagram

Screw

Part #83571

Replaced by #83263

?
Manufacturer substitution
This part replaces 83571. Substitute parts can look different from the original.
This item is not returnable
$2.16
Back Order
Gasket 72464
#9

Tank diagram

Gasket

Part #72464

The manufacturer no longer makes this part, and there's no substitute part

Control Cover 101548
#4

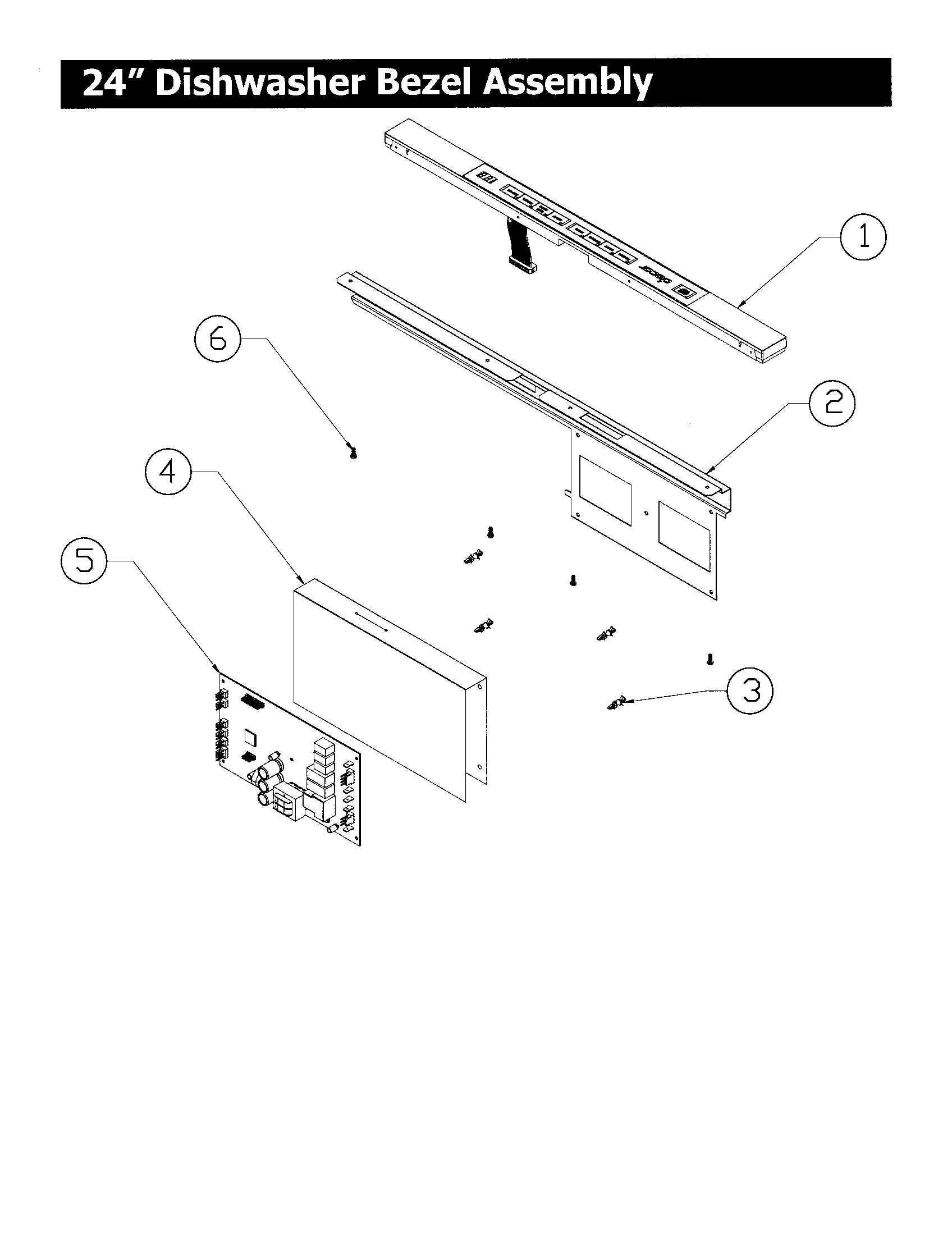

Bezel diagram

Control cover

Part #101548

$16.49
In Stock
End Splice 83543
End splice

Part #83543

This item is not returnable
$2.16
In Stock
Dishwasher Tine Row 701047
#14

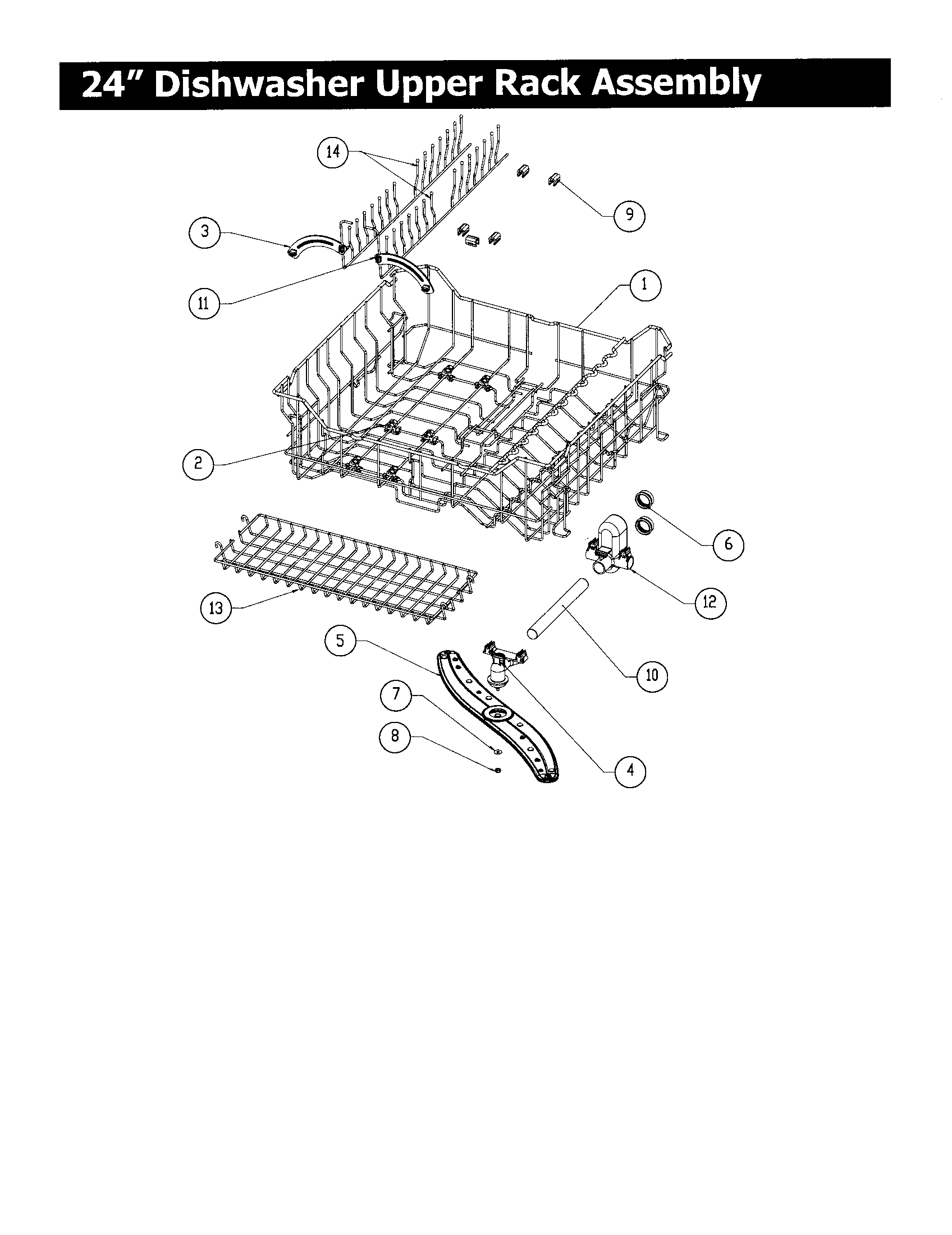

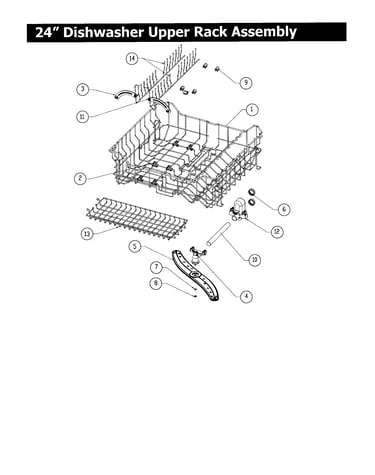

Upper rack diagram

Dishwasher tine row

Part #701047

$129.49
In Stock
Screw 102016
Screw

Part #102016

This item is not returnable
$2.16
In Stock
