Model # LCE462LW2 Official Frigidaire 24" laundry center - lf31790060

Here are the diagrams and repair parts for Official Frigidaire LCE462LW2 24" laundry center - lf31790060, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

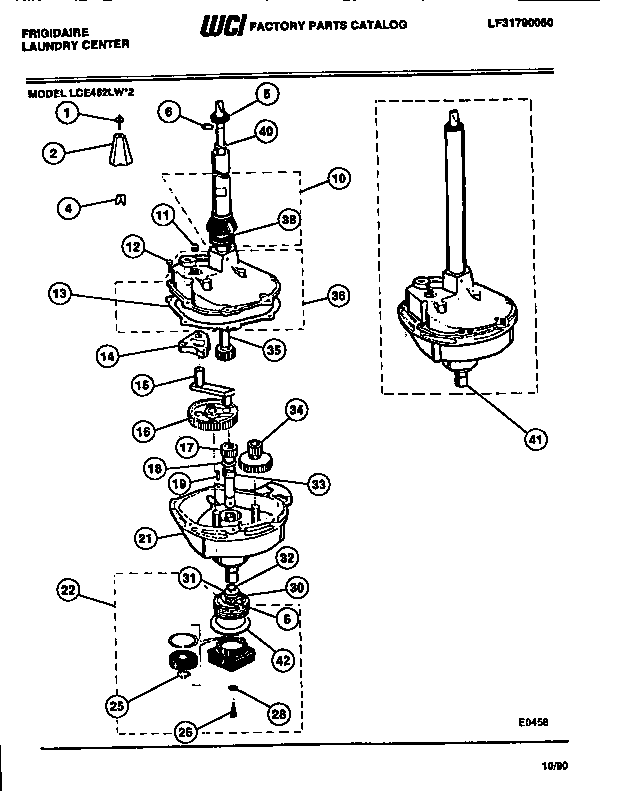

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 275 parts  |
Screw 3161233
Screw

Part #3161233

Replaced by #131168200

?
Manufacturer substitution
This part replaces 3161233. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Lock Plate 08001923
#14

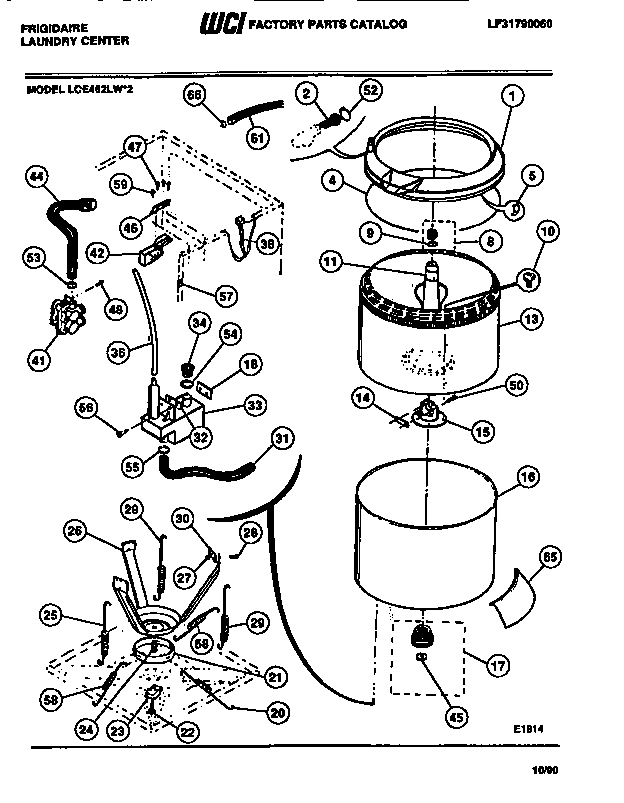

Washer-tubs, hoses diagram

Lock plate

Part #08001923

Replaced by #137107000

?
Manufacturer substitution
This part replaces 08001923. Substitute parts can look different from the original.
BEST SELLER
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Washer 08002401
#45

Washer-tubs, hoses diagram

Washer

Part #08002401

Replaced by #5308002401

?
Manufacturer substitution
This part replaces 08002401. Substitute parts can look different from the original.
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Strike 3204970
#31

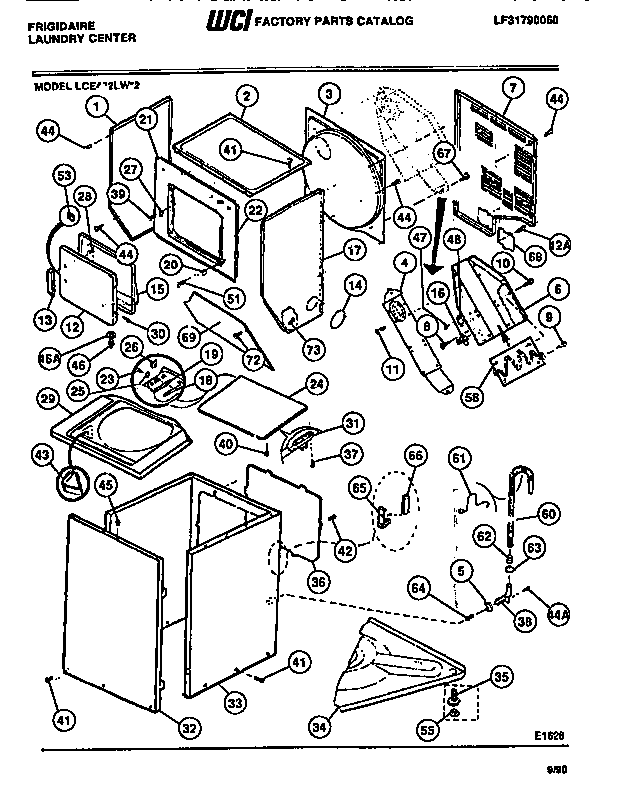

Cabinet diagram

Strike

Part #3204970

Replaced by #131390000

?
Manufacturer substitution
This part replaces 3204970. Substitute parts can look different from the original.
$54.89 |
10% OFF Phone Price : $60.89
In Stock
Belt 3161152
#7

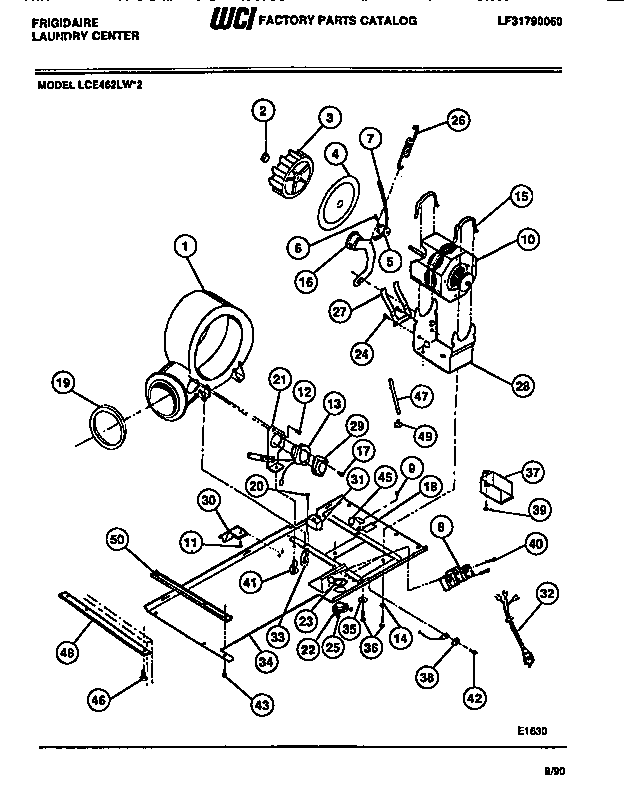

Washer motor diagram

Belt

Part #3161152

Replaced by #5303280326

?
Manufacturer substitution
This part replaces 3161152. Substitute parts can look different from the original.
This item is not returnable
$33.14 |
15% OFF Phone Price : $39.14
In Stock
Heater 5303206879
#13

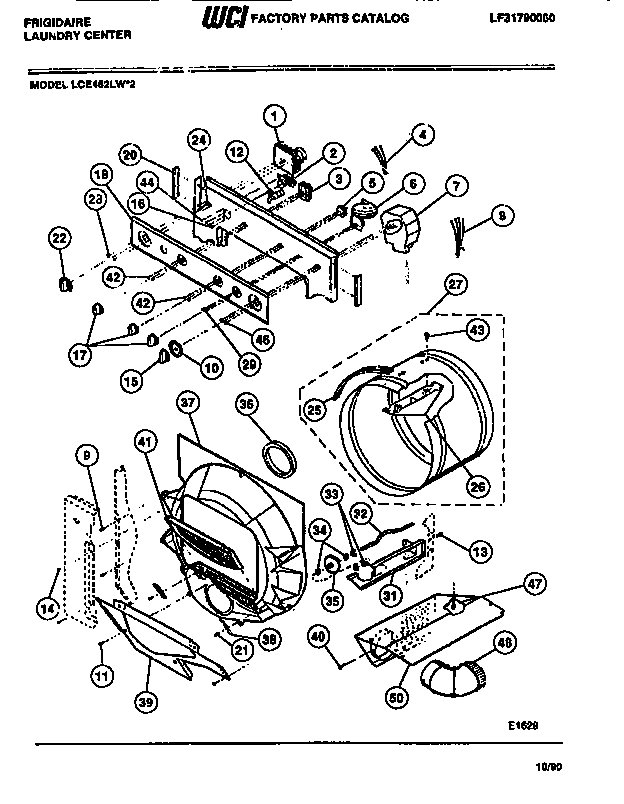

Dryer-motor, blower, belt diagram

Heater

Part #5303206879

Replaced by #131658100

?
Manufacturer substitution
This part replaces 5303206879. Substitute parts can look different from the original.
$62.60
In Stock
Adhesive F133016-000

#NI

All parts diagram

Adhesive

Part #F133016-000

Replaced by #5303283849

?
Manufacturer substitution
This part replaces F133016-000. Substitute parts can look different from the original.
$58.64
In Stock
Washer 3161296
#66

Washer-tubs, hoses diagram

Washer

Part #3161296

Replaced by #5303161296

?
Manufacturer substitution
This part replaces 3161296. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Cover (almond) 3204953
#14

Cabinet diagram

Cover (almond)

Part #3204953

This item is not returnable
$7.49
In Stock
Electrolux Laundry Center Screw, #6-20 X 3/8-in 3204368
#37

Cabinet diagram

Electrolux laundry center screw, #6-20 x 3/8-in

Part #3204368

This item is not returnable
$12.57
In Stock
