Model # LT4900XMW2 Official Whirlpool stacked laundry center

Here are the diagrams and repair parts for Official Whirlpool LT4900XMW2 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

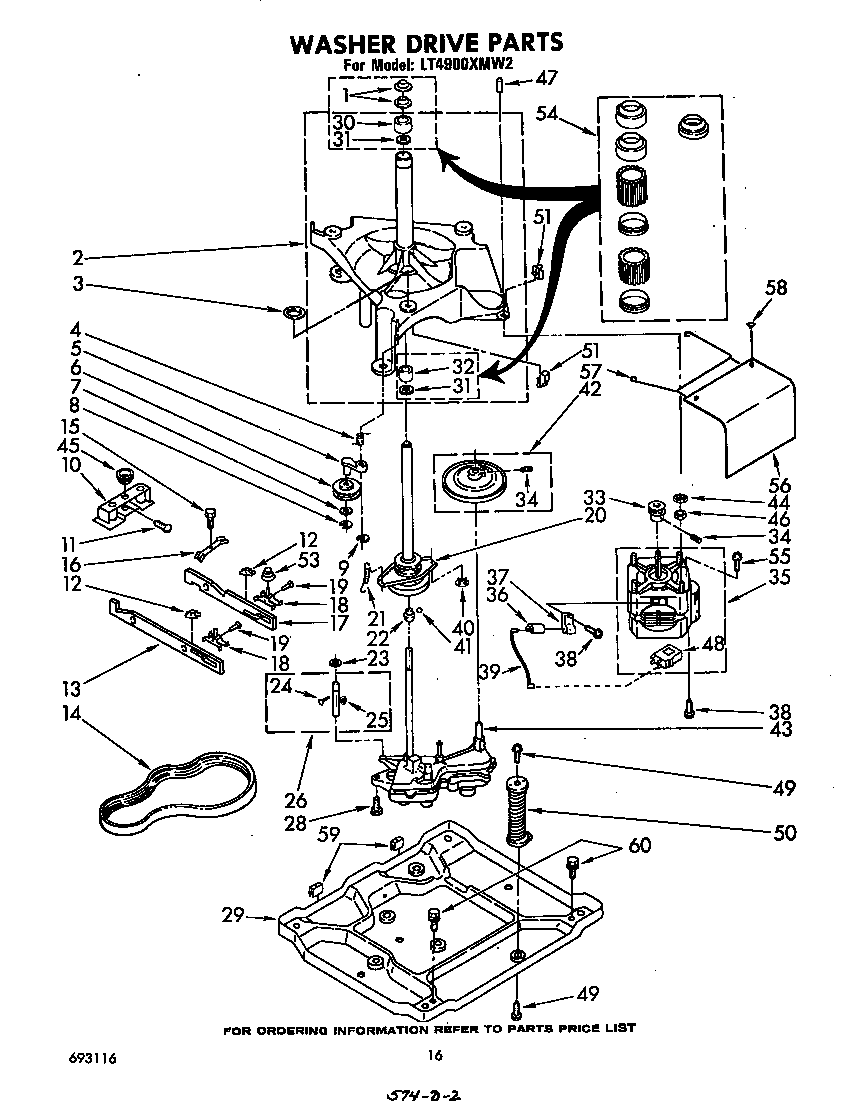

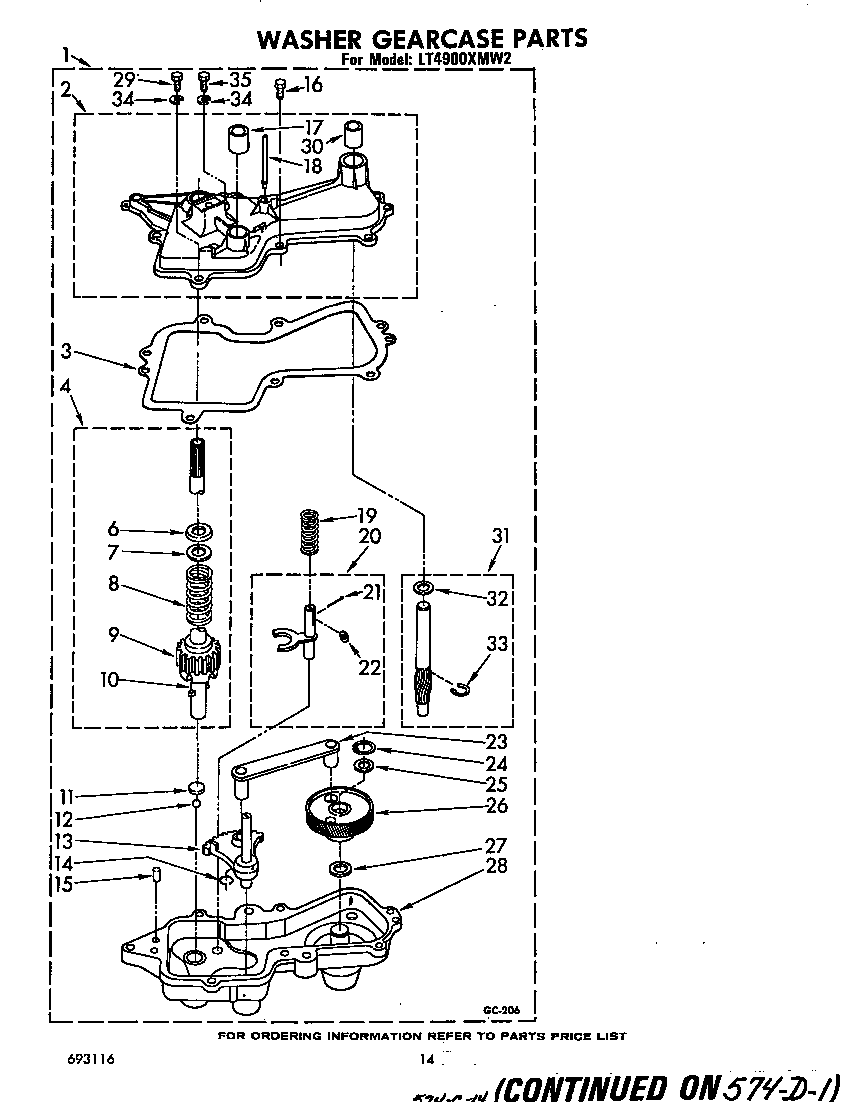

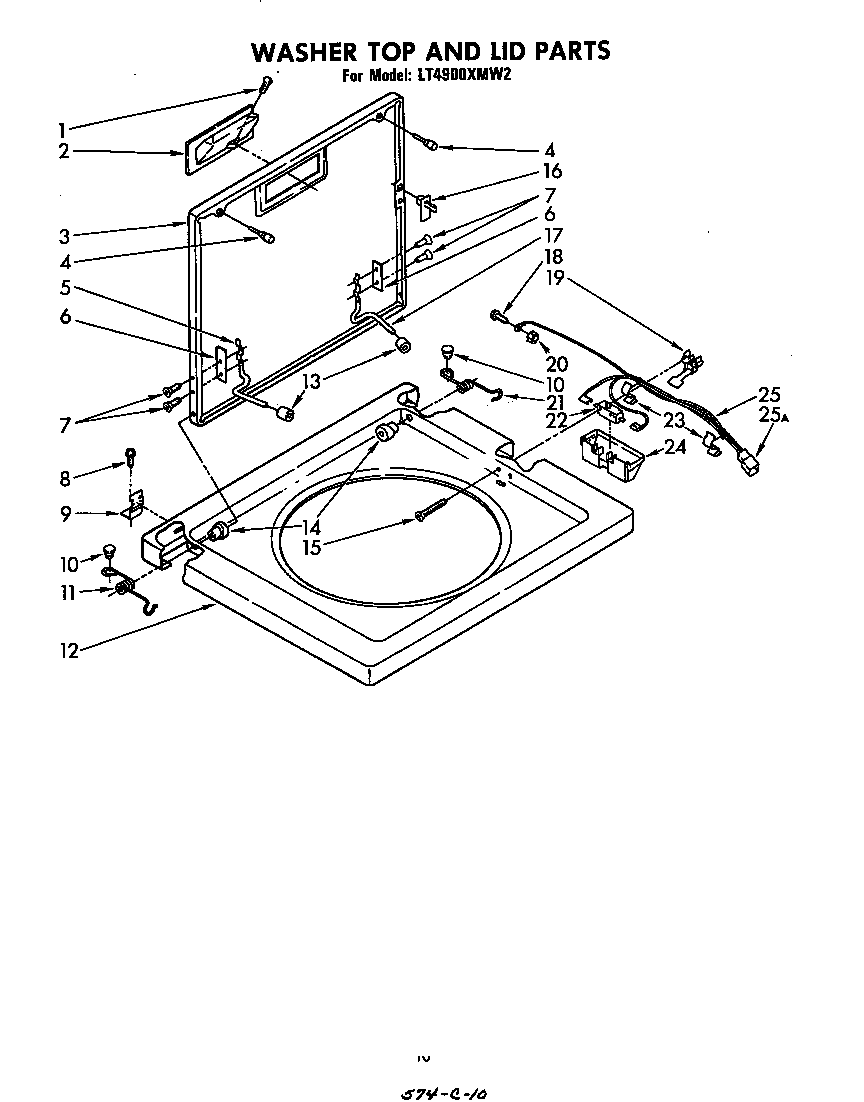

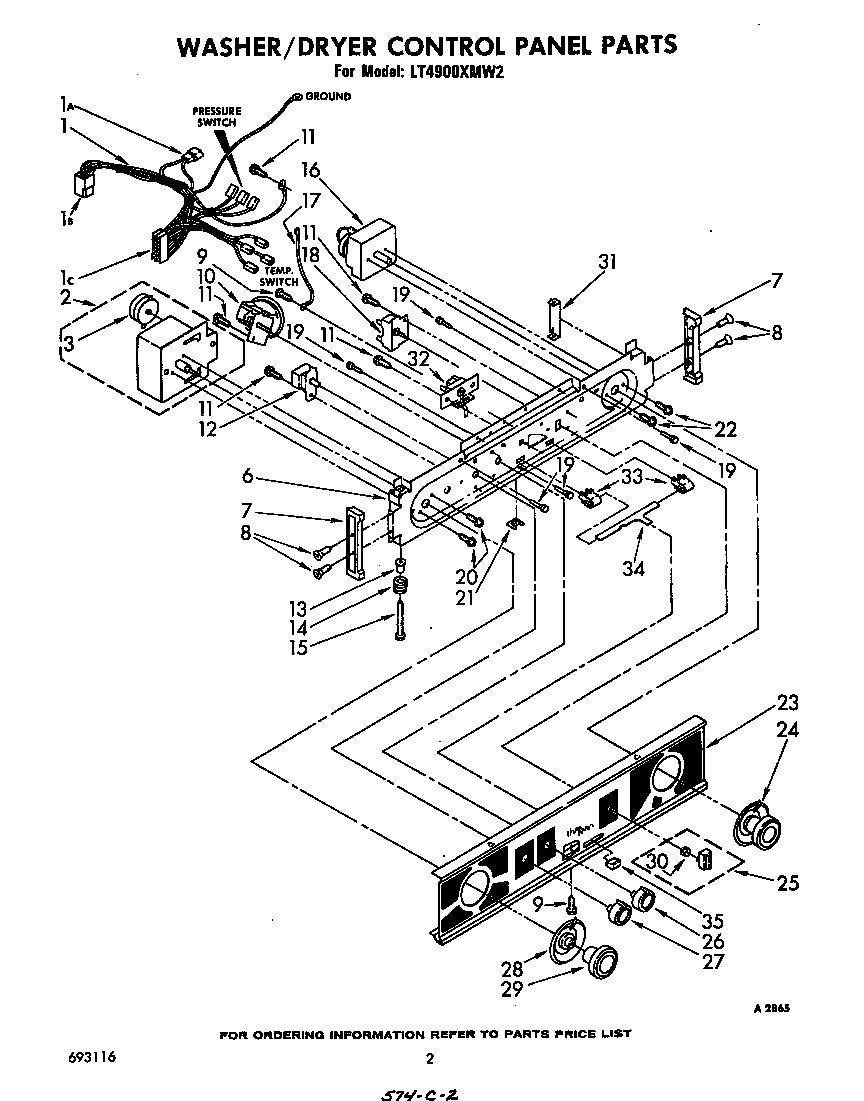

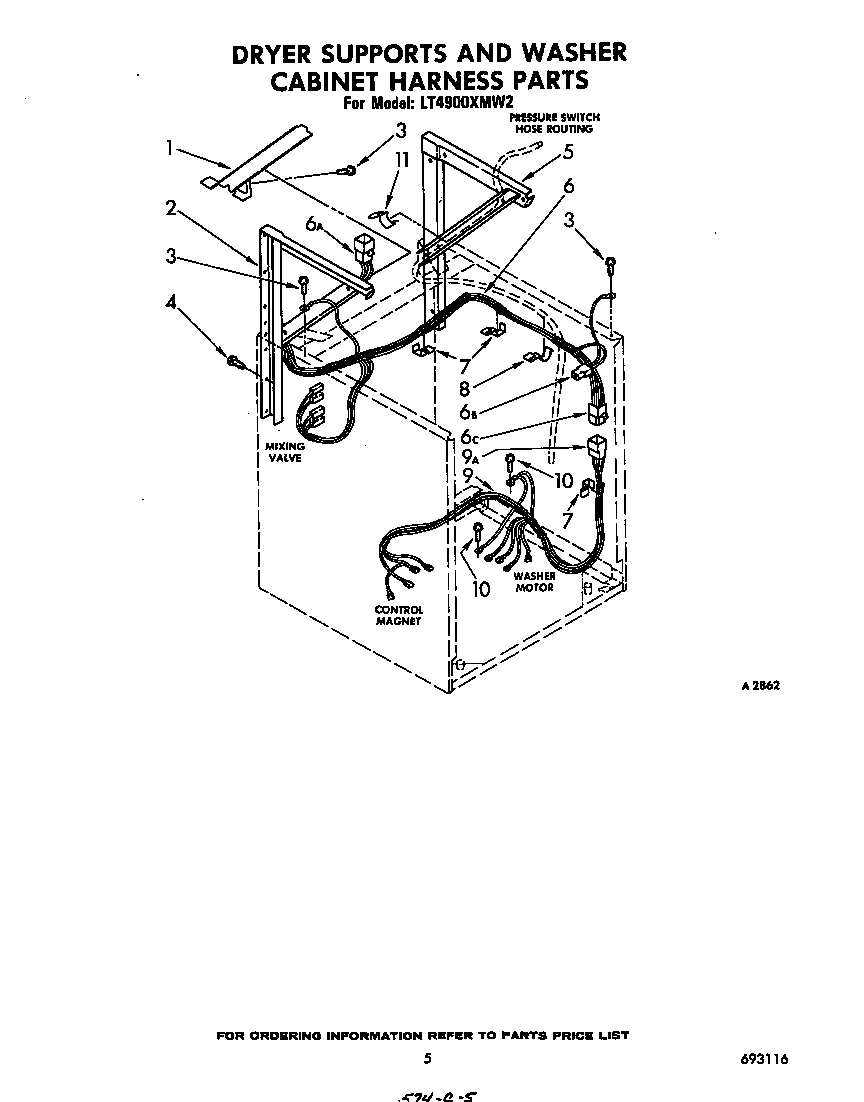

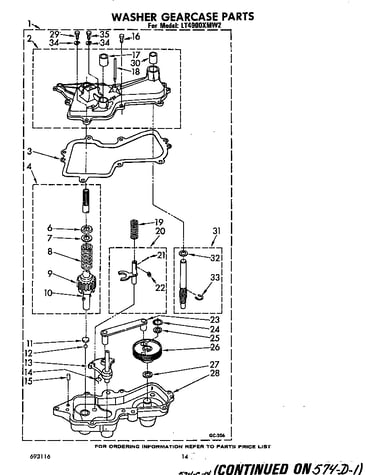

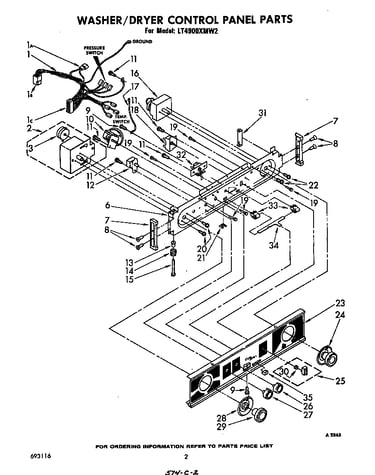

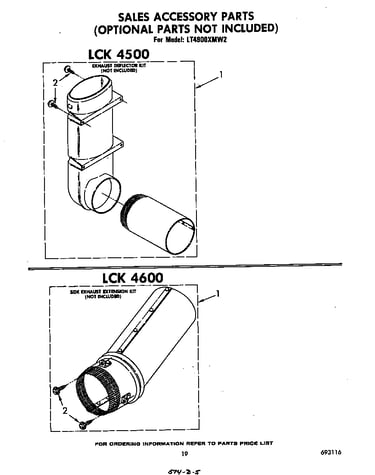

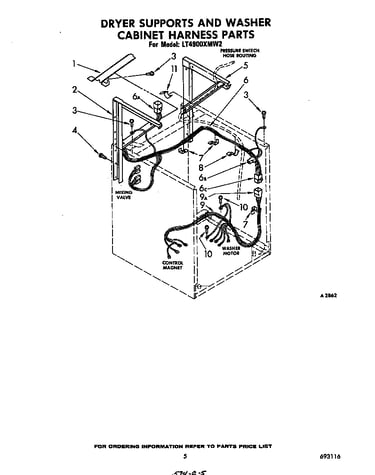

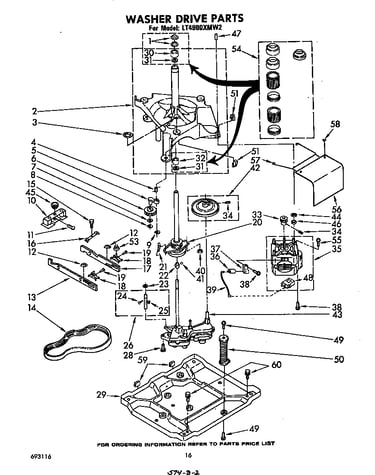

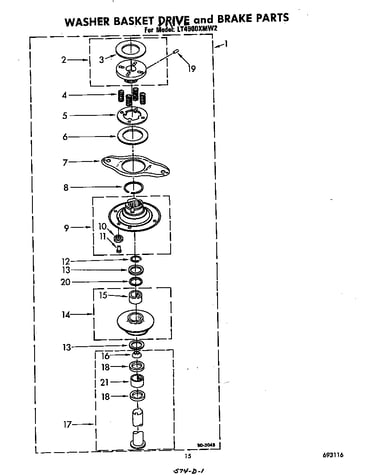

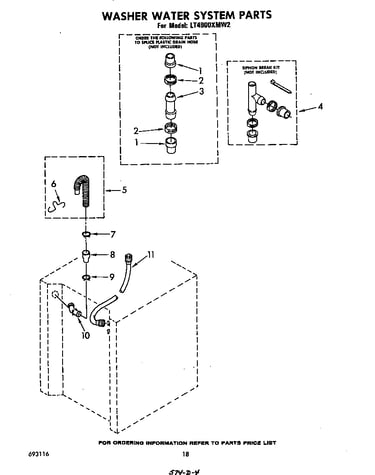

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 428 parts  |
Dryer Idler Pulley 691366
#22

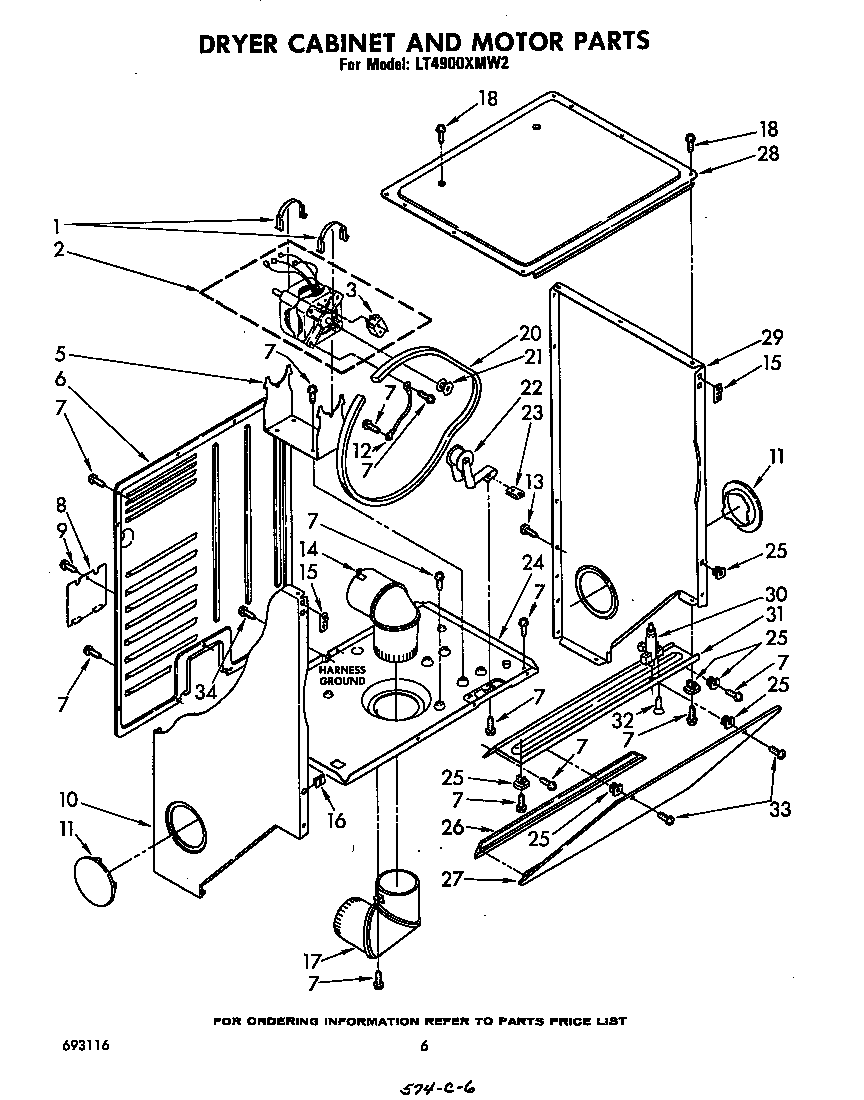

Dryer cabinet and motor diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Motor 695075
#2

Dryer cabinet and motor diagram

Motor

Part #695075

Replaced by #279827

?
Manufacturer substitution
This part replaces 695075. Substitute parts can look different from the original.
BEST SELLER
$96.62 |
11% OFF Phone Price : $108.62
In Stock
Switch 337351
#3

Dryer cabinet and motor diagram

Switch

Part #337351

Replaced by #279827

?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
BEST SELLER
$96.62 |
11% OFF Phone Price : $108.62
In Stock
Catch 690081
#14

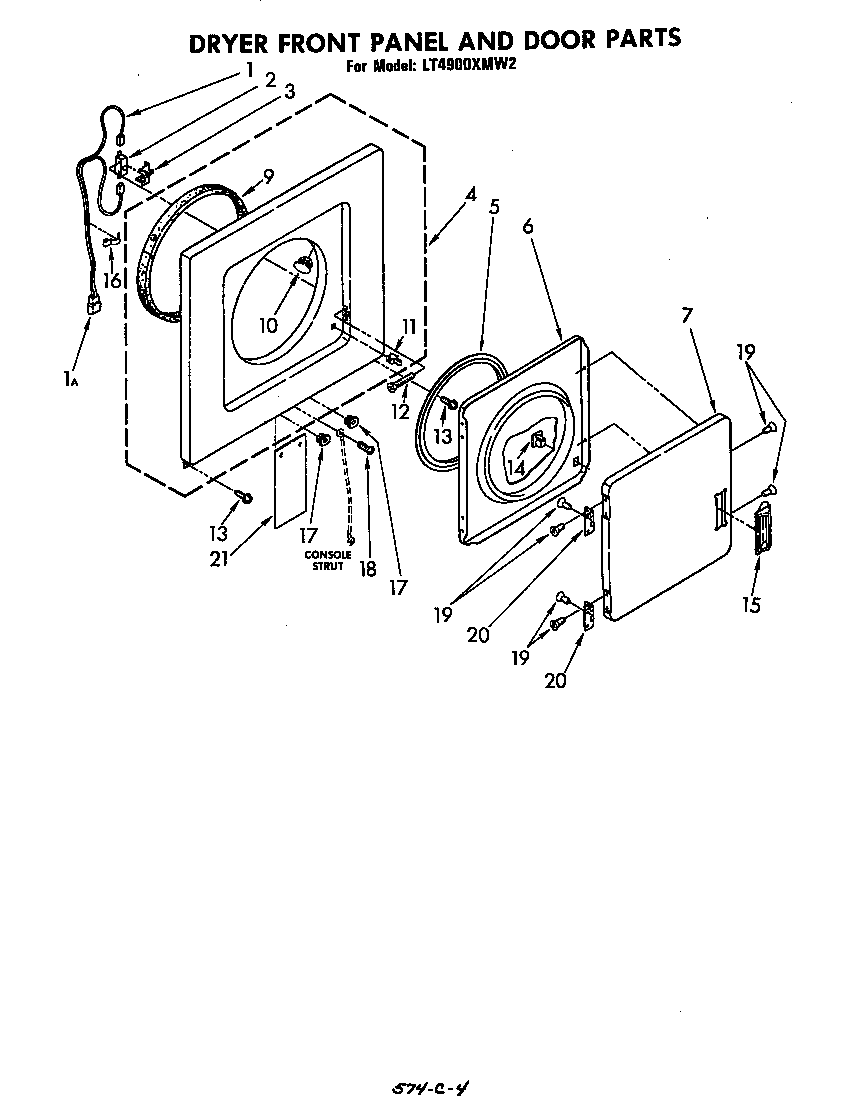

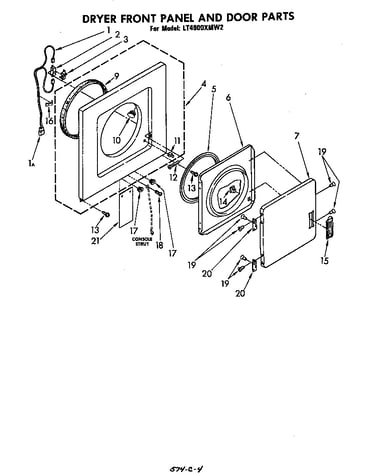

Dryer front panel and door diagram

Catch

Part #690081

Replaced by #279570

?
Manufacturer substitution
This part replaces 690081. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Strike 696144
#11

Dryer front panel and door diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Washer Agitator Bolt 358237
#2

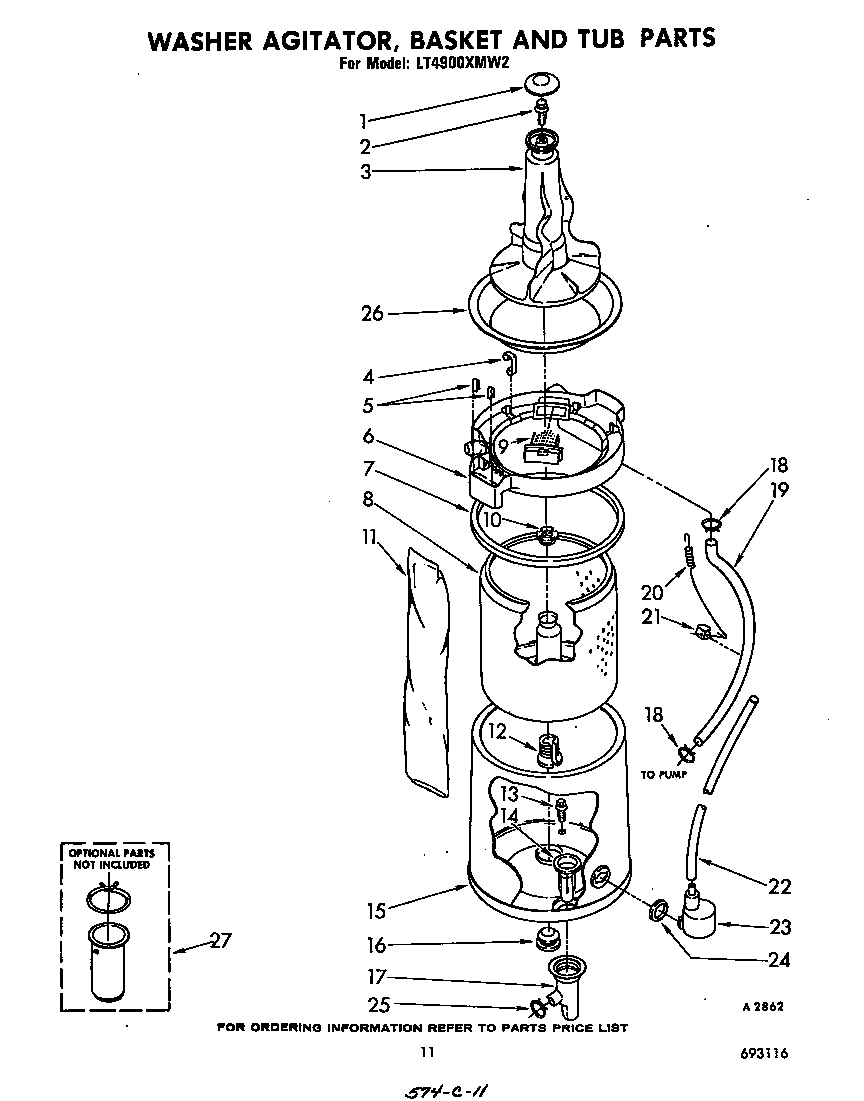

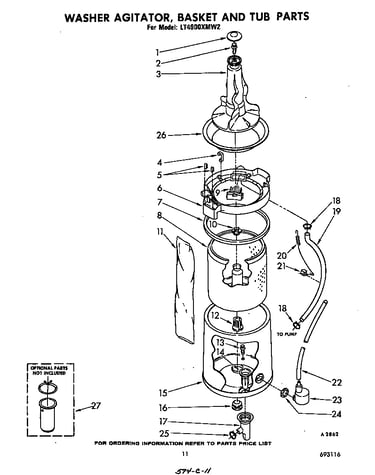

Washer agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.92 |
14% OFF Phone Price : $6.92
In Stock
Gasket 96690
#16

Washer agitator, basket and tub diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Valve 358992
#5

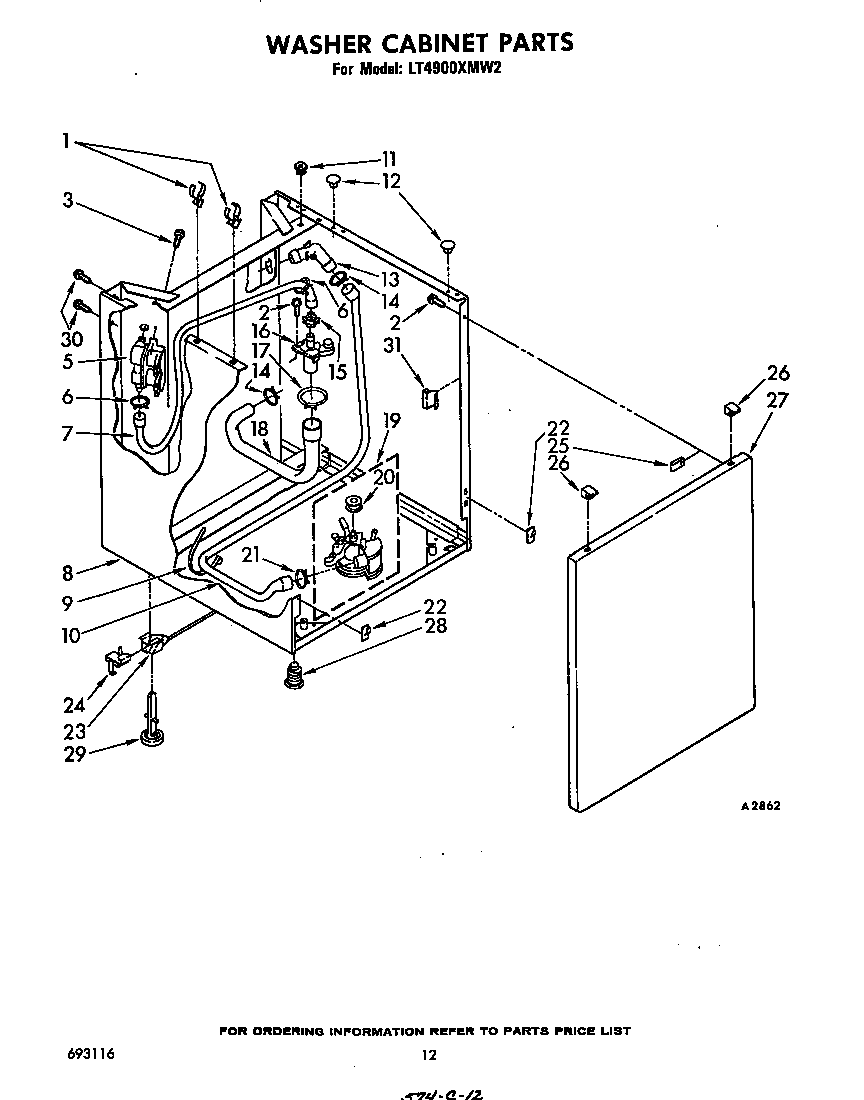

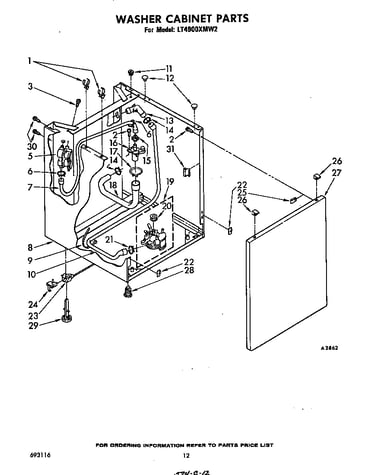

Washer cabinet diagram

Valve

Part #358992

Replaced by #285805

?
Manufacturer substitution
This part replaces 358992. Substitute parts can look different from the original.
BEST SELLER
$26.83 |
18% OFF Phone Price : $32.83
In Stock
Dryer Tri-ring Retainer 690997
#30

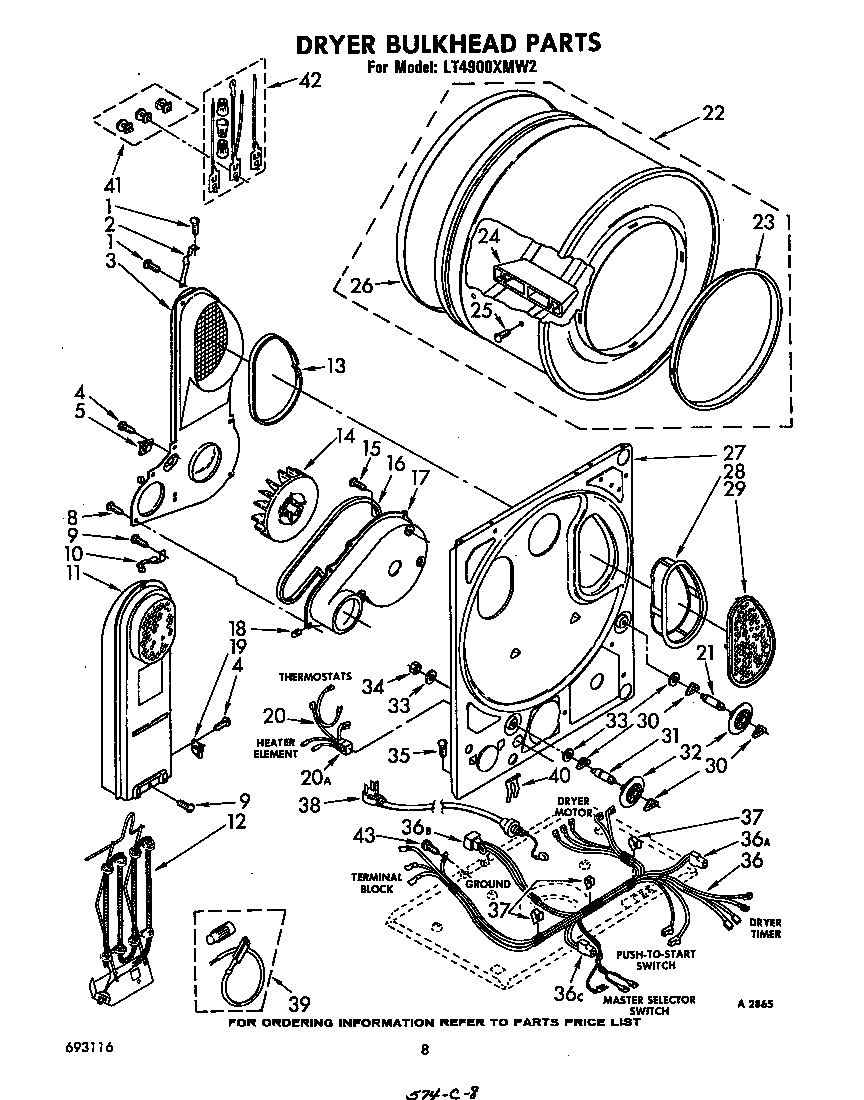

Dryer bulkhead diagram

Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.73 |
13% OFF Phone Price : $7.73
In Stock
Dryer Door Switch 347207
#2

Dryer front panel and door diagram

Dryer door switch

Part #347207

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 347207. Substitute parts can look different from the original.
BEST SELLER
$24.95 |
19% OFF Phone Price : $30.95
In Stock
