Model # ZBD6600G01SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE ZBD6600G01SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Clamp 1.1" D WD01X10053
#319

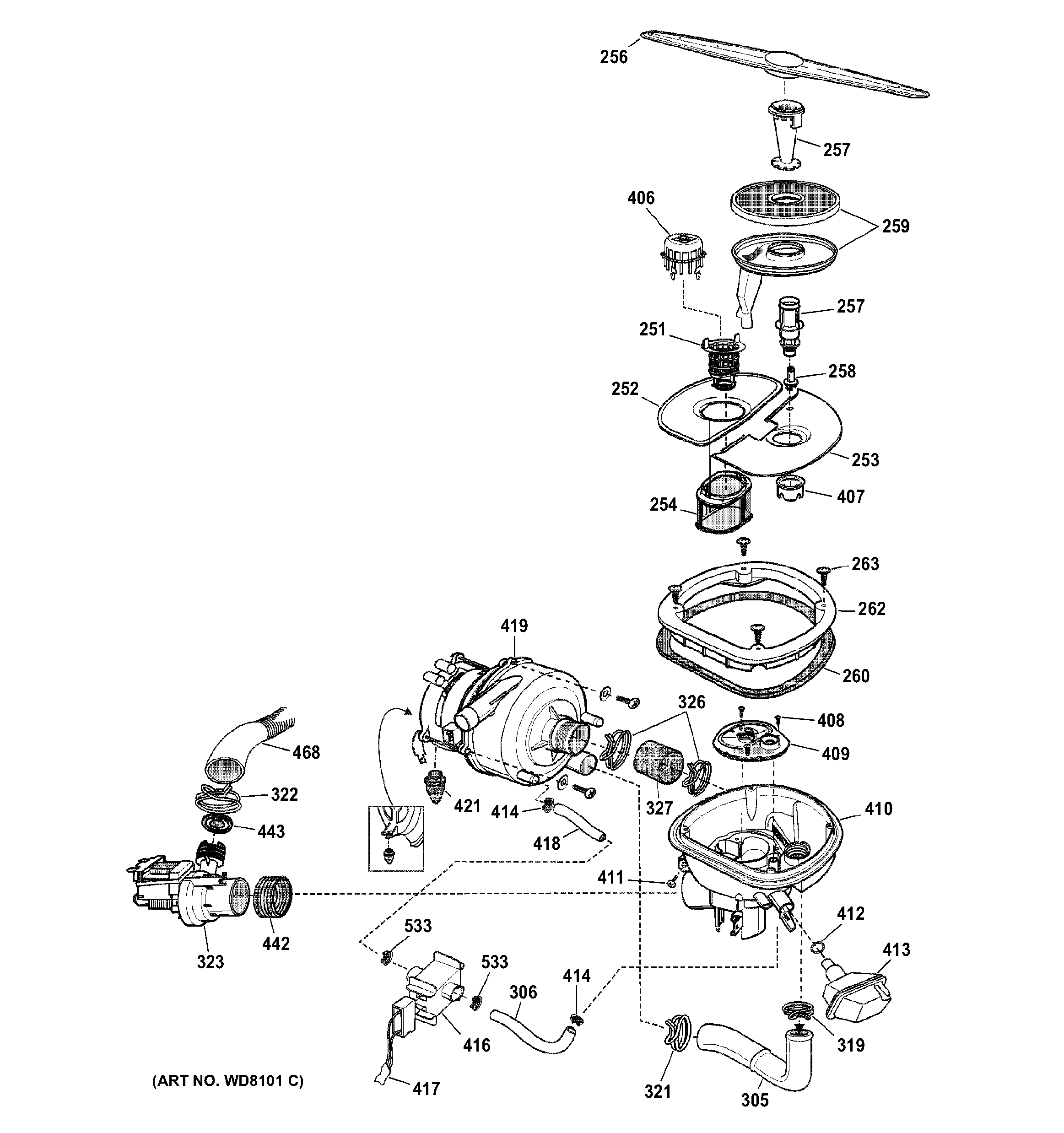

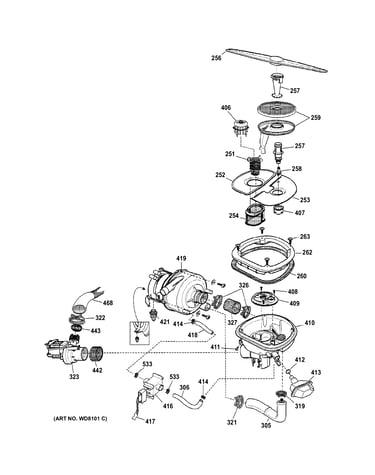

Sump assembly diagram

Clamp 1.1" d

Part #WD01X10053

Replaced by #WD01X24246

?
Manufacturer substitution
This part replaces WD01X10053. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Badge, Monog WD01X10148
#482

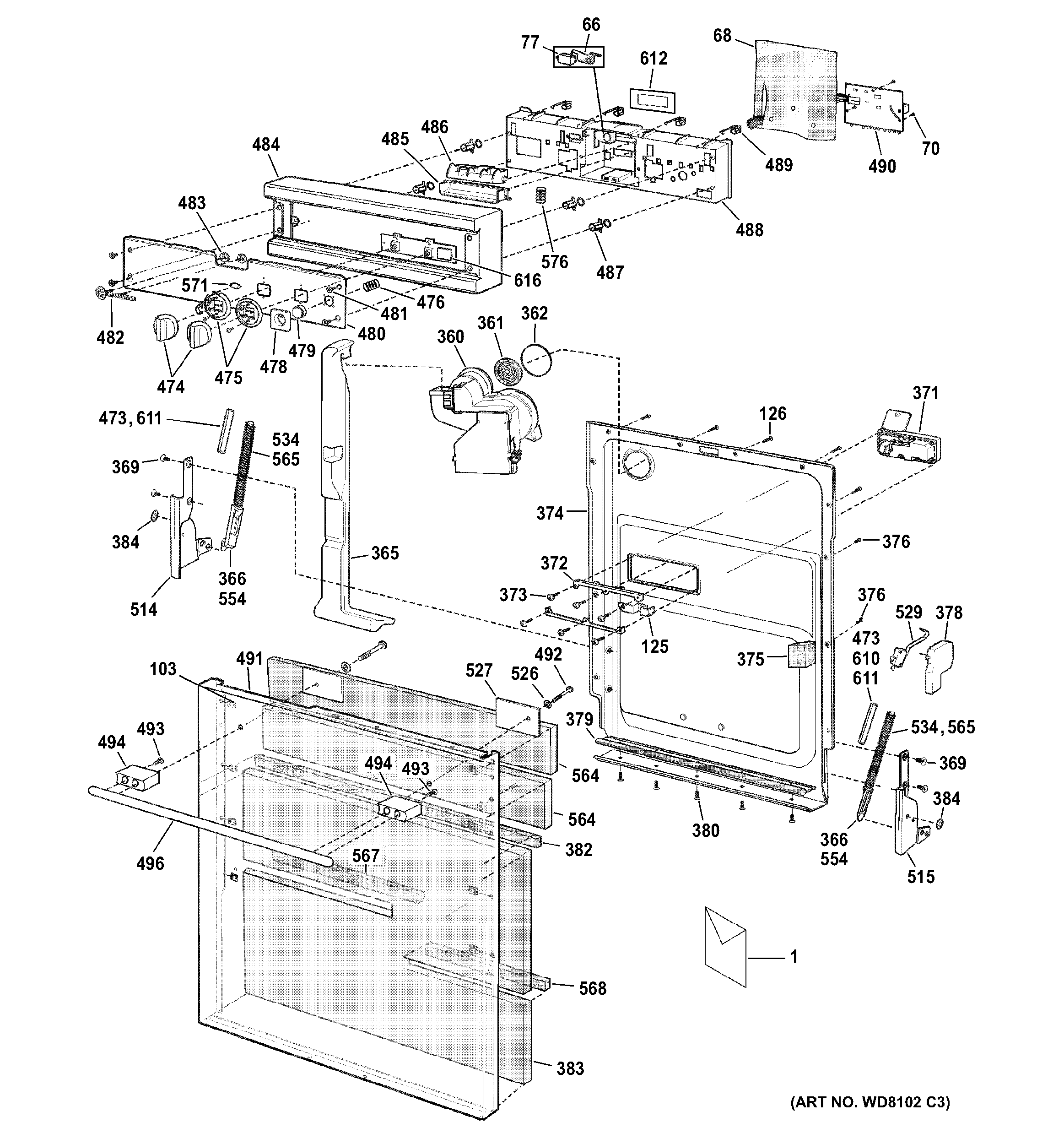

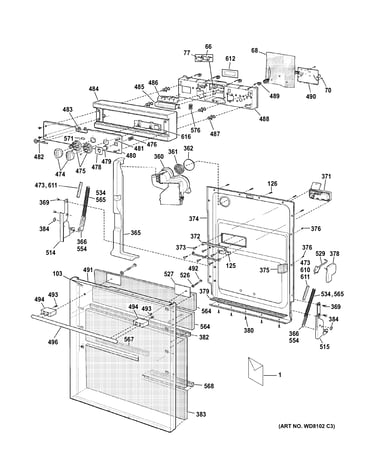

Escutcheon & door assembly diagram

Badge, monog

Part #WD01X10148

$34.49
In Stock
Wheel Axle WD01X10047
#214

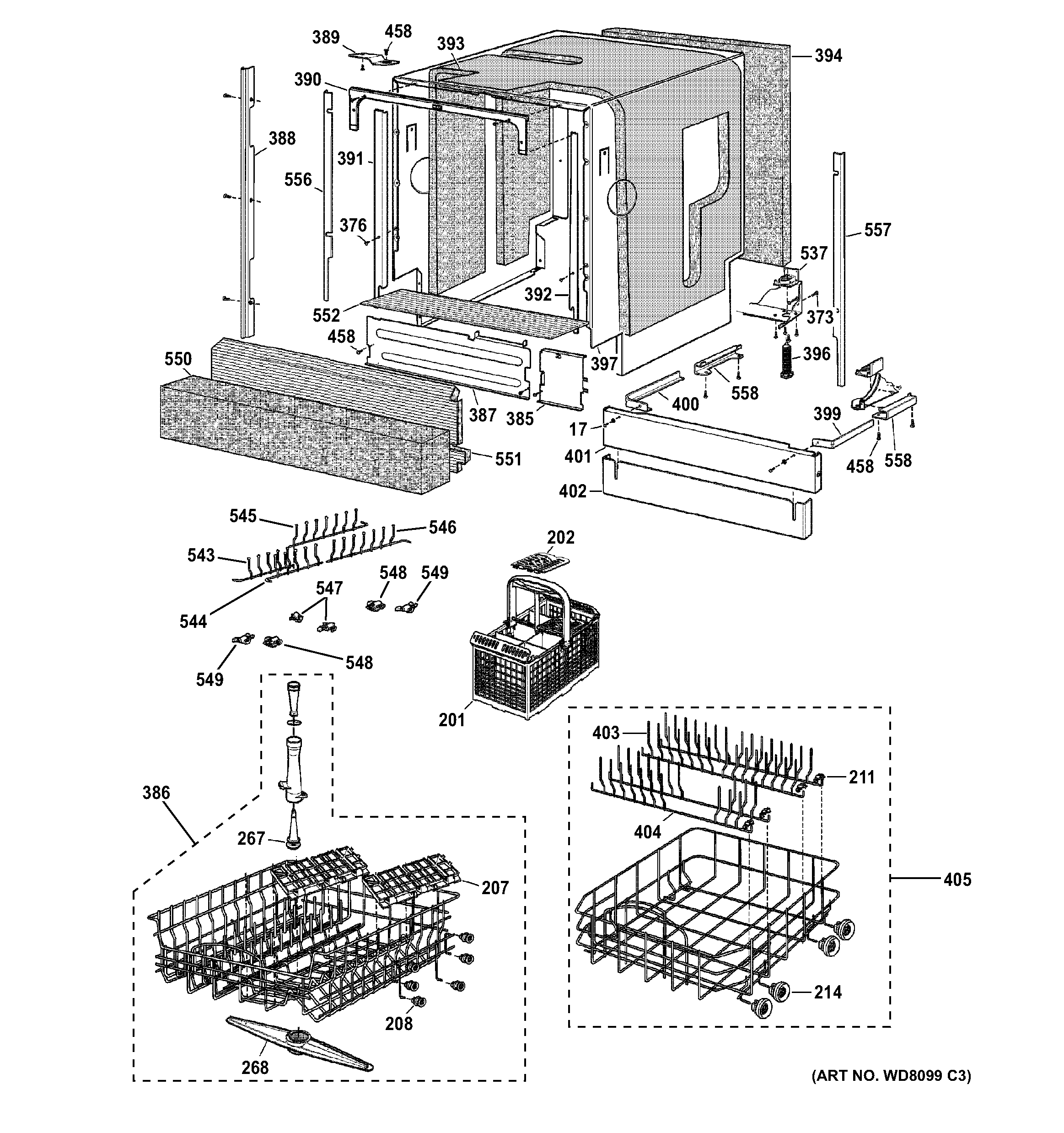

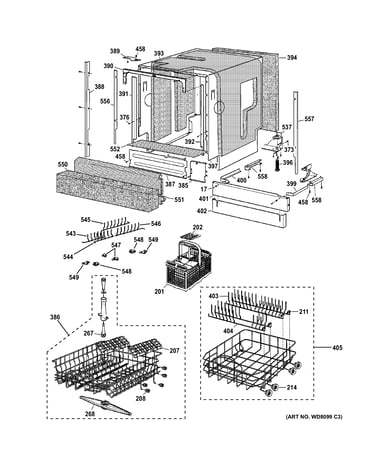

Basket & wrap assembly diagram

Wheel axle

Part #WD01X10047

$17.35
In Stock
Clamp 1.15" WD01X10054
#320

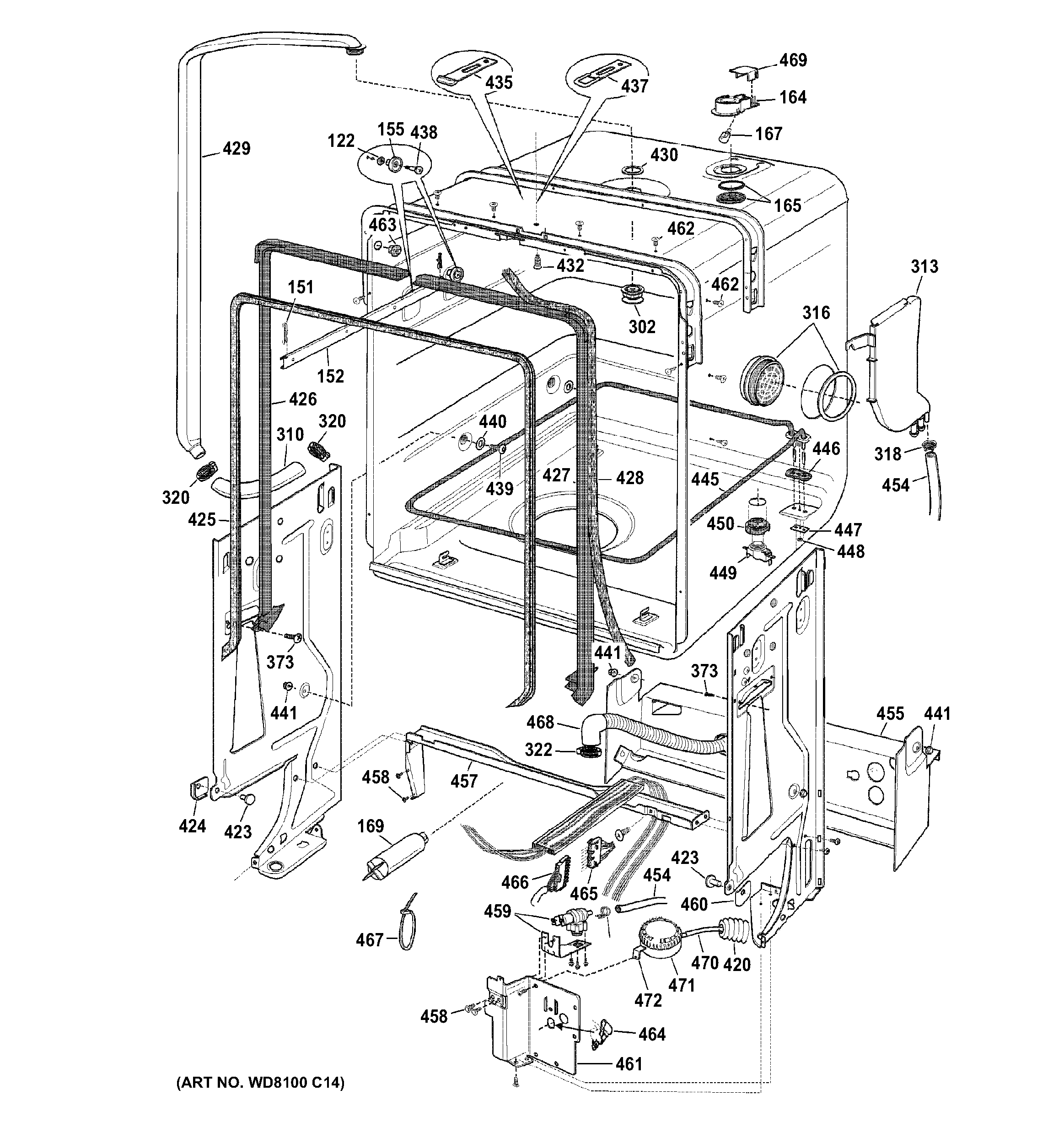

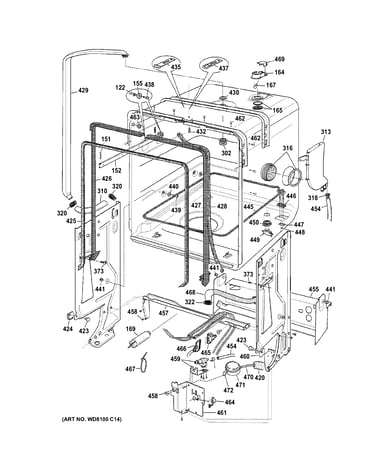

Liner assembly diagram

Clamp 1.15"

Part #WD01X10054

This item is not returnable
$5.49
In Stock
Push O Clip WD01X10146
#483

Escutcheon & door assembly diagram

Push o clip

Part #WD01X10146

Replaced by #WR01X10300

?
Manufacturer substitution
This part replaces WD01X10146. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Zbd6400 + Mo 49-5904
#1

Escutcheon & door assembly diagram

Zbd6400 + mo

Part #49-5904

Replaced by #49-5904-2

?
Manufacturer substitution
This part replaces 49-5904. Substitute parts can look different from the original.
$17.99
In Stock
Screw No. 7 WD02X10029
#70

Escutcheon & door assembly diagram

Screw no. 7

Part #WD02X10029

Replaced by #WD2X10029

?
Manufacturer substitution
This part replaces WD02X10029. Substitute parts can look different from the original.
$16.99
In Stock
O-ring D/lin WD01X10034
#122

Liner assembly diagram

O-ring d/lin

Part #WD01X10034

Replaced by #WD1X10034

?
Manufacturer substitution
This part replaces WD01X10034. Substitute parts can look different from the original.
$18.49
In Stock
Load Collector WD01X10050
#313

Liner assembly diagram

Load collector

Part #WD01X10050

Replaced by #WD1X10050

?
Manufacturer substitution
This part replaces WD01X10050. Substitute parts can look different from the original.
$33.99
In Stock
Zbd6400 + Mo 49-5905
#1

Escutcheon & door assembly diagram

Zbd6400 + mo

Part #49-5905

Replaced by #49-5905-2

?
Manufacturer substitution
This part replaces 49-5905. Substitute parts can look different from the original.
$17.99
In Stock
