HealthRider
Elliptical Machine

Model # HREL49010 Official HealthRider 830 elliptical machine

Here are the diagrams and repair parts for Official HealthRider HREL49010 830 elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

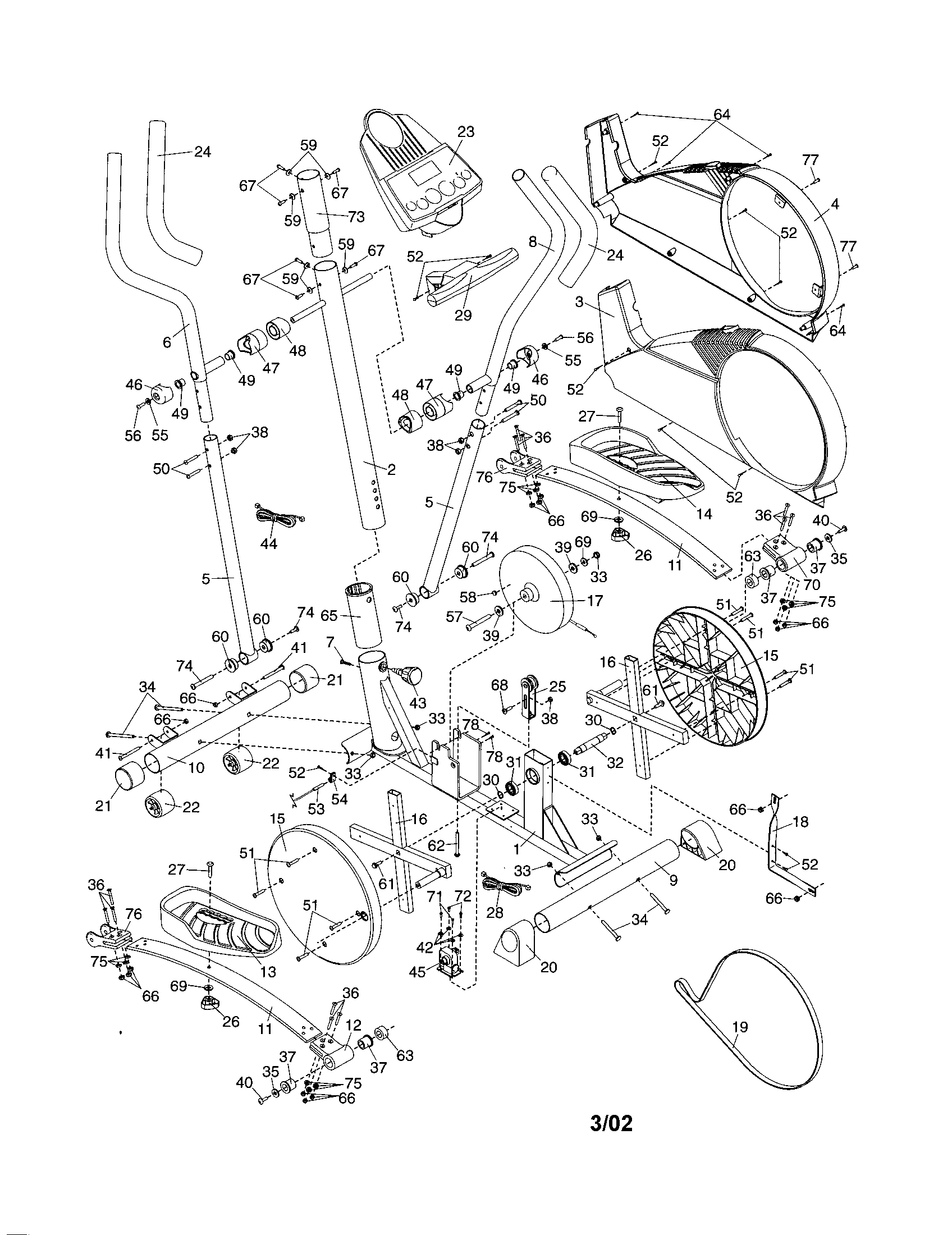

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Black & Decker Exercise Equipment Lubricating Grease 104838

#NI06

All parts diagram

Black & decker exercise equipment lubricating grease

Part #104838

This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Elliptical Nut 012042
#38

Healthrider 830 diagram

Elliptical nut

Part #012042

This item is not returnable
$2.16
In Stock
Exercise Cycle Retainer Ring 163349
#30

Healthrider 830 diagram

Exercise cycle retainer ring

Part #163349

Replaced by #143742

?
Manufacturer substitution
This part replaces 163349. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Black & Decker Exercise Equipment Screw 154848
#64

Healthrider 830 diagram

Black & decker exercise equipment screw

Part #154848

This item is not returnable
$2.16
In Stock
Motor 182557
#45

Healthrider 830 diagram

Motor

Part #182557

Replaced by #193356

?
Manufacturer substitution
This part replaces 182557. Substitute parts can look different from the original.
$81.99
In Stock
Screw,sfhms, 183631
#36

Healthrider 830 diagram

Screw,sfhms,

Part #183631

This item is not returnable
$2.16
In Stock
Front Stabilizer 181996
#10

Healthrider 830 diagram

Front stabilizer

Part #181996

$20.99
In Stock
Weslo Screw, M5 X 12 013424
#72

Healthrider 830 diagram

Weslo screw, m5 x 12

Part #013424

This item is not returnable
$2.16
In Stock
Weslo Exercise Equipment Flat Washer 183633
#42

Healthrider 830 diagram

Weslo exercise equipment flat washer

Part #183633

This item is not returnable
$2.16
In Stock
Right Pedal 175587
#14

Healthrider 830 diagram

Right pedal

Part #175587

$37.99
In Stock
