Tappan
Gas Range

Model # 72-7977-66-05 Official Tappan gas range - lt32489270

Here are the diagrams and repair parts for Official Tappan 72-7977-66-05 gas range - lt32489270, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

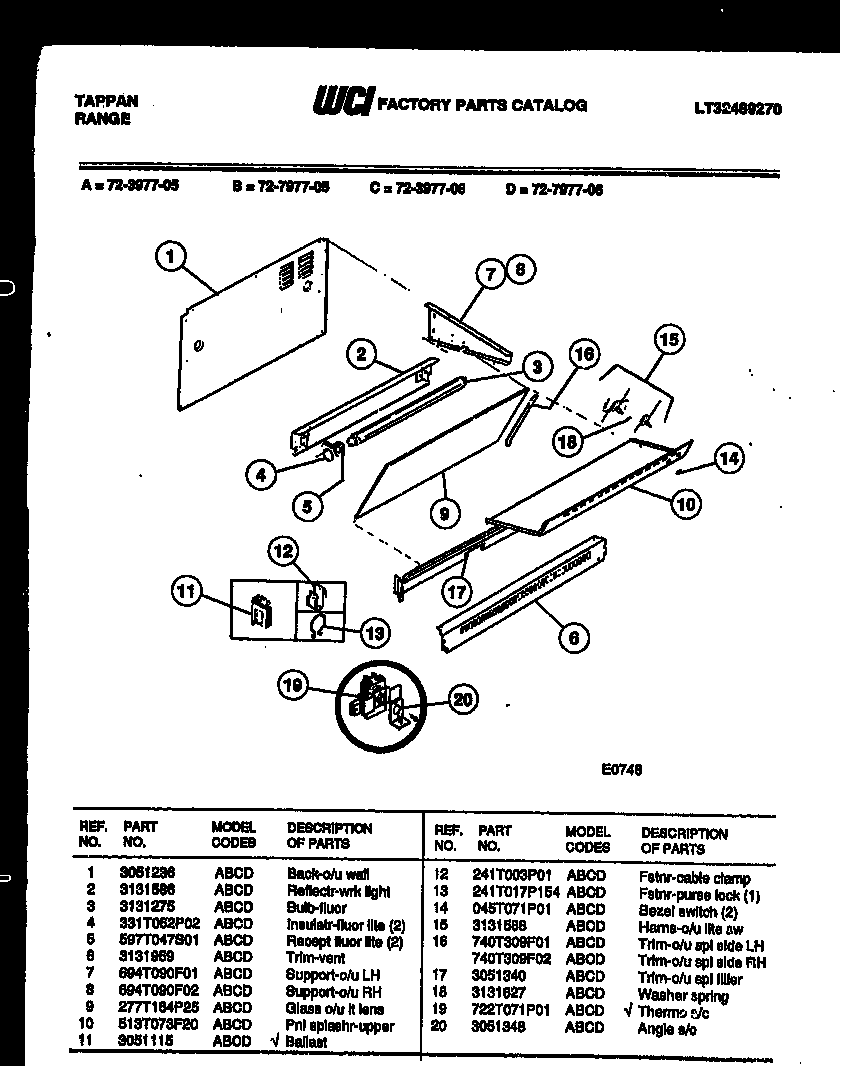

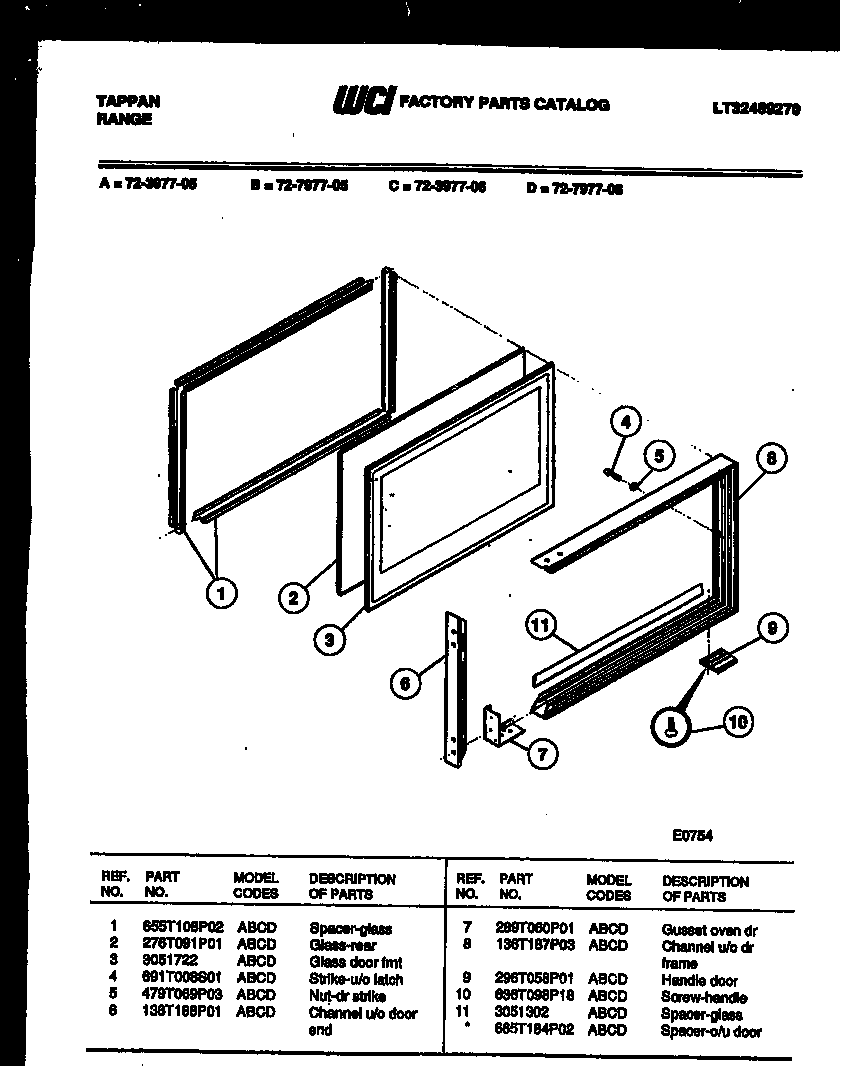

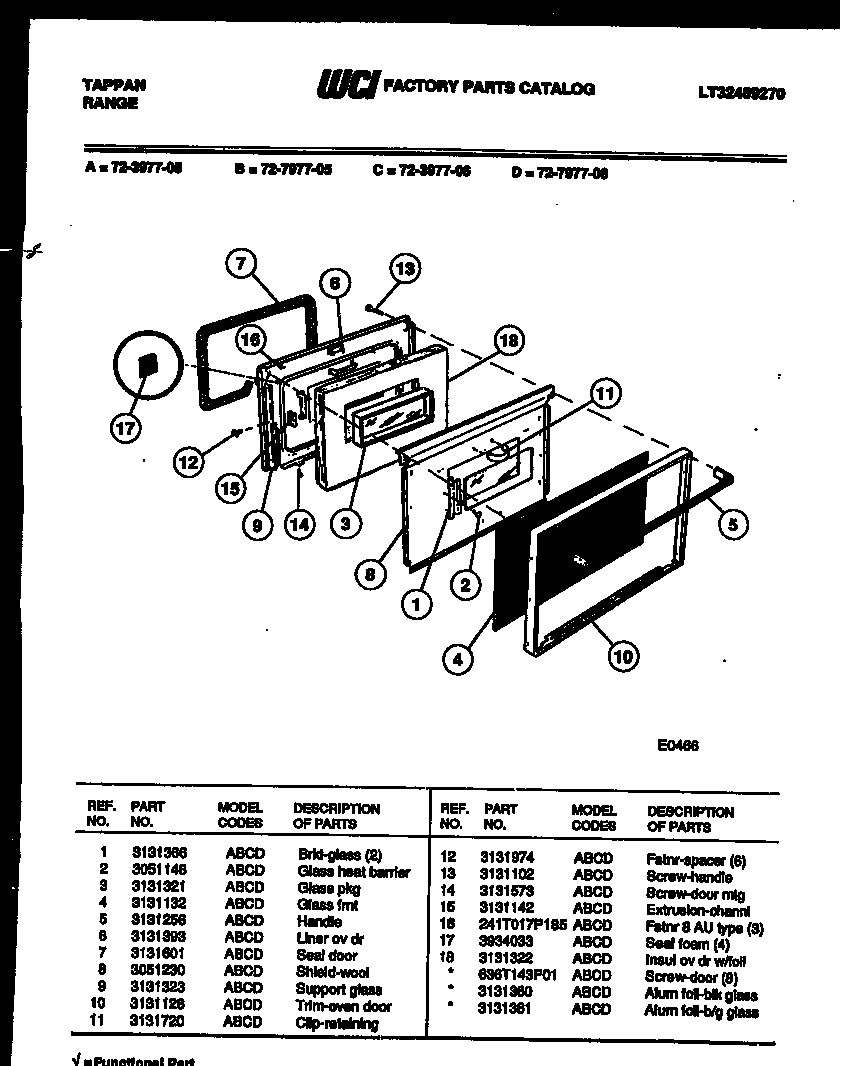

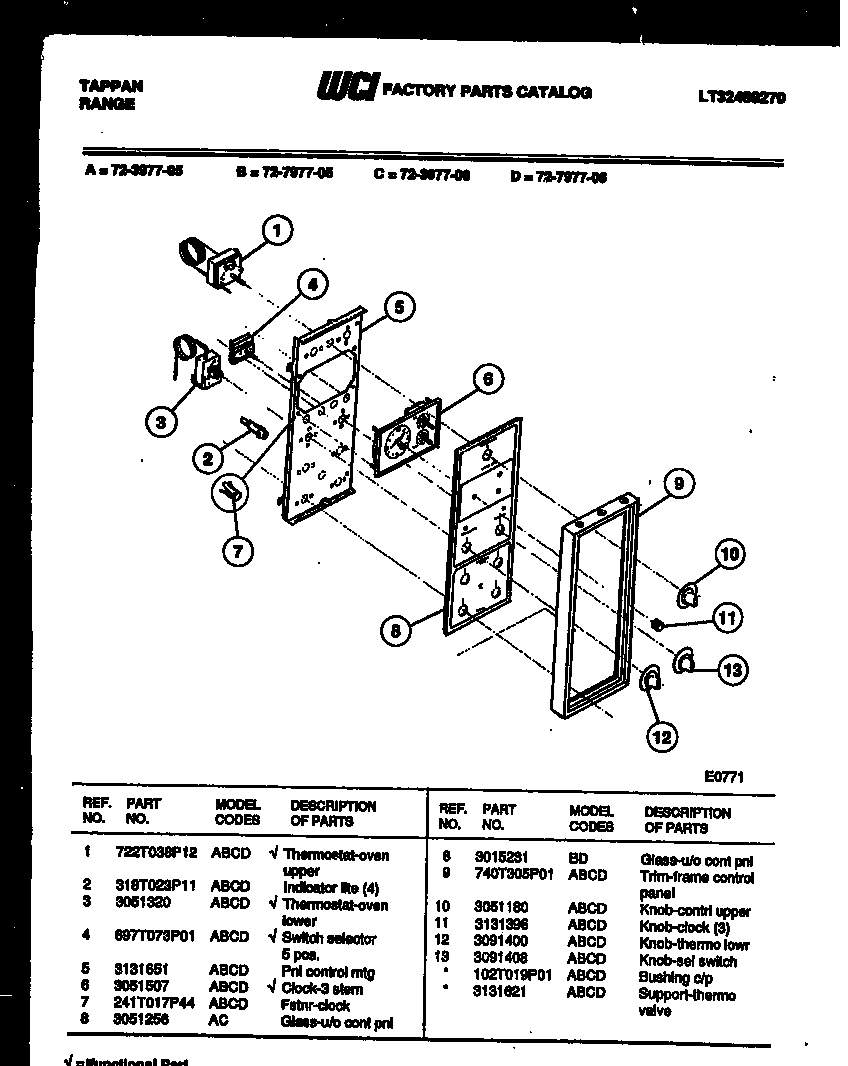

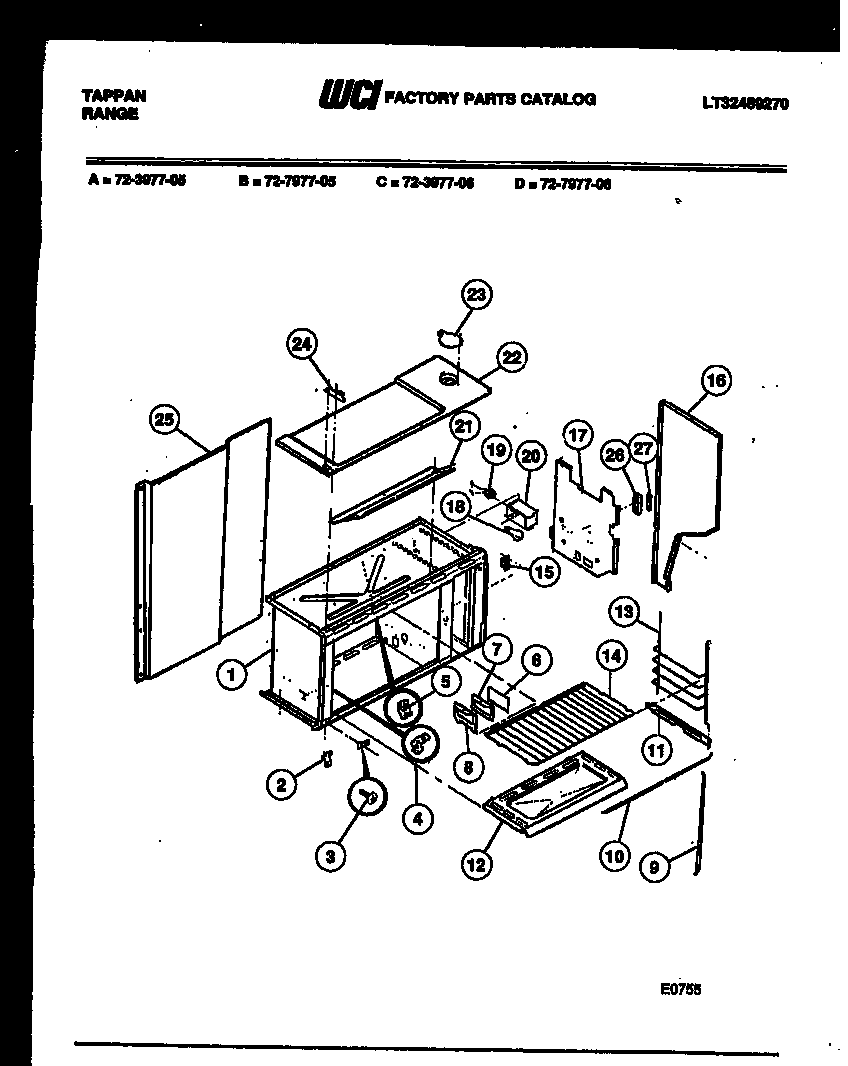

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Light 374T018P05
Light

Part #374T018P05

Replaced by #316538904

?
Manufacturer substitution
This part replaces 374T018P05. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#44

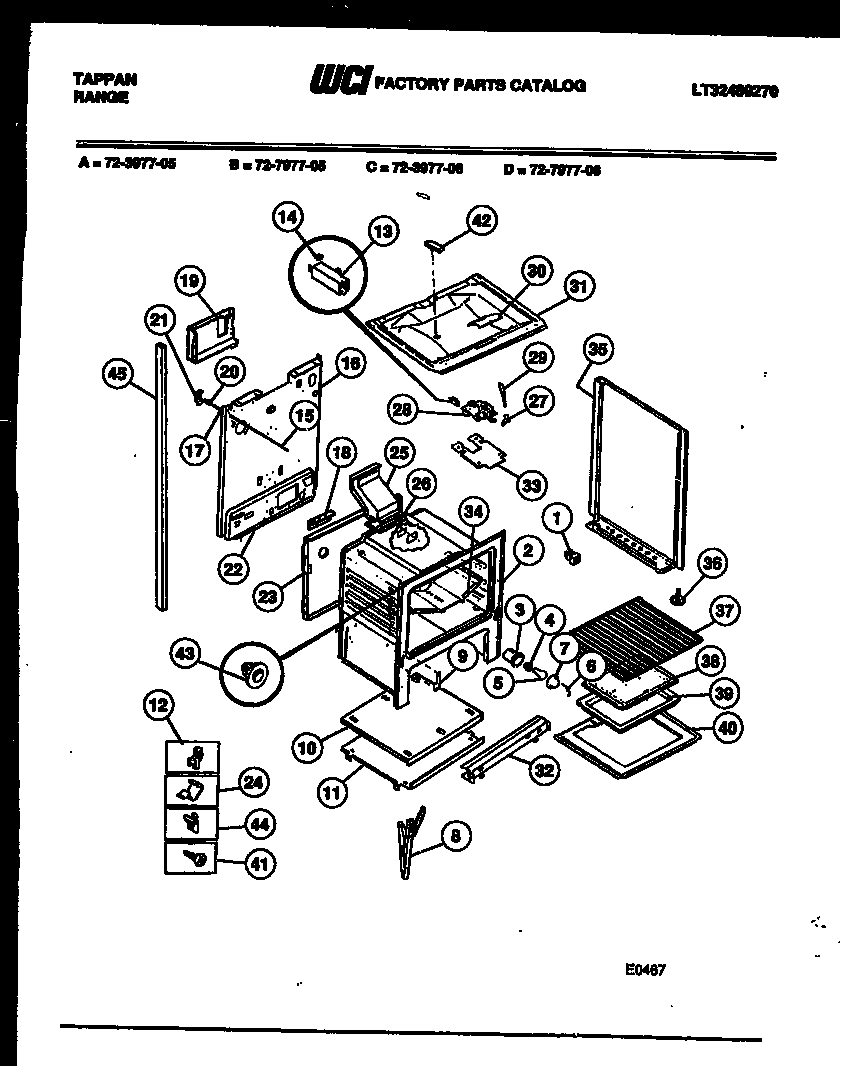

Lower body parts diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#2

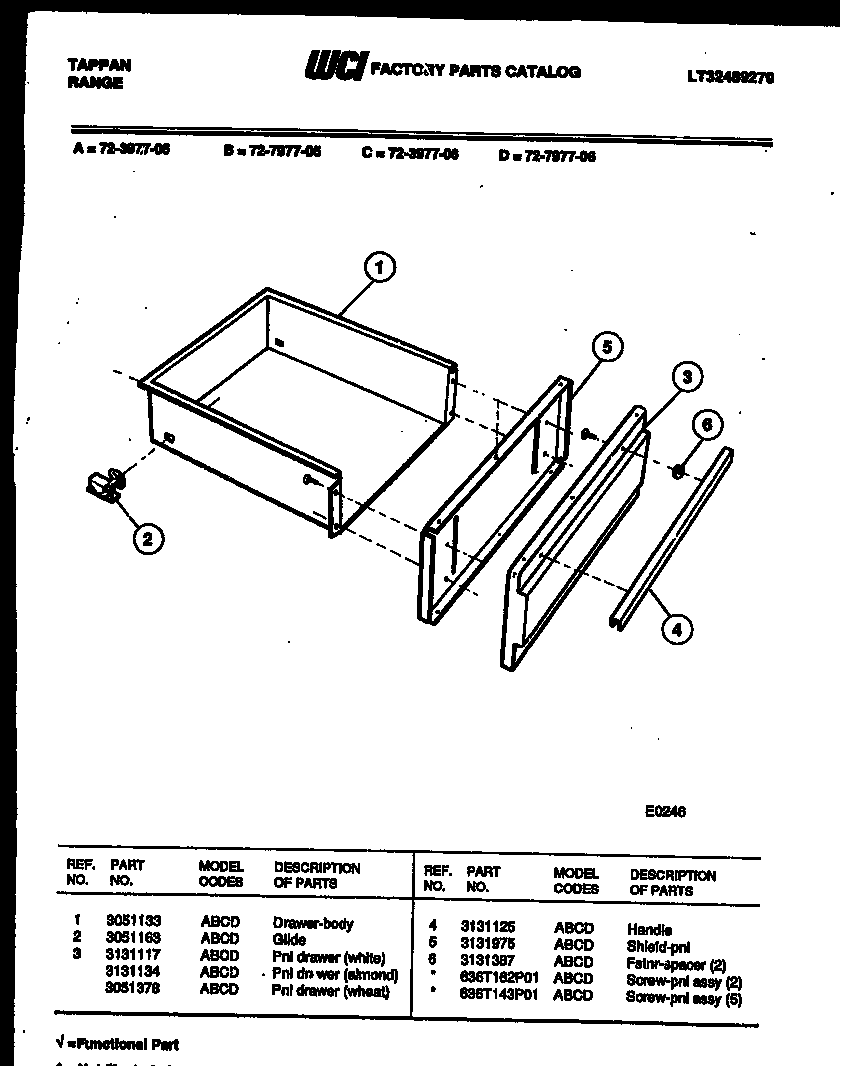

Drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Range Power Cord 3131425
#15A

Lower body parts diagram

Range power cord

Part #3131425

Replaced by #5304509199

?
Manufacturer substitution
This part replaces 3131425. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Oven Rack 3131973
#37

Lower body parts diagram

Oven rack

Part #3131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Screw 636T143P01

#NI

All parts diagram

Screw

Part #636T143P01

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 636T143P01. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Range Screw 3131732
Range screw

Part #3131732

Replaced by #316282700

?
Manufacturer substitution
This part replaces 3131732. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Pan Burner 3131115
#7

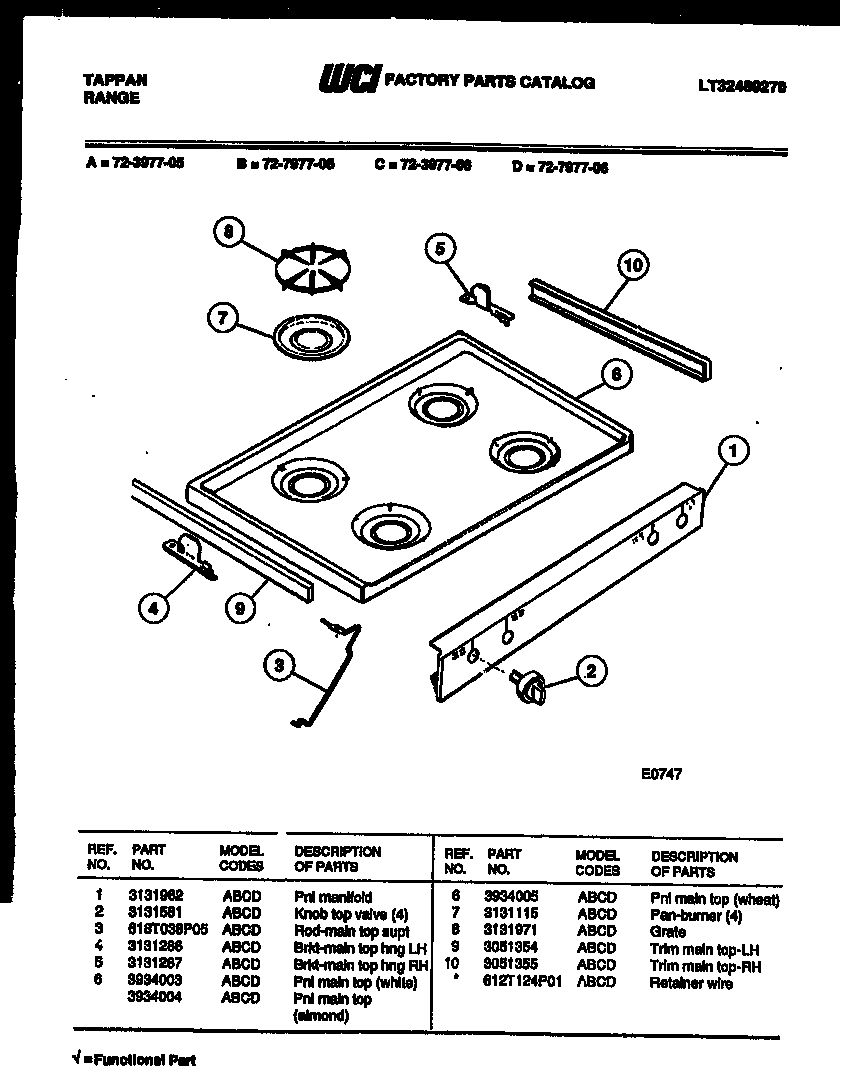

Cooktop parts diagram

Pan burner

Part #3131115

Replaced by #5303131115

?
Manufacturer substitution
This part replaces 3131115. Substitute parts can look different from the original.
This item is not returnable
$9.19 |
10% OFF Phone Price : $10.19
In Stock
Module 3200669
#16

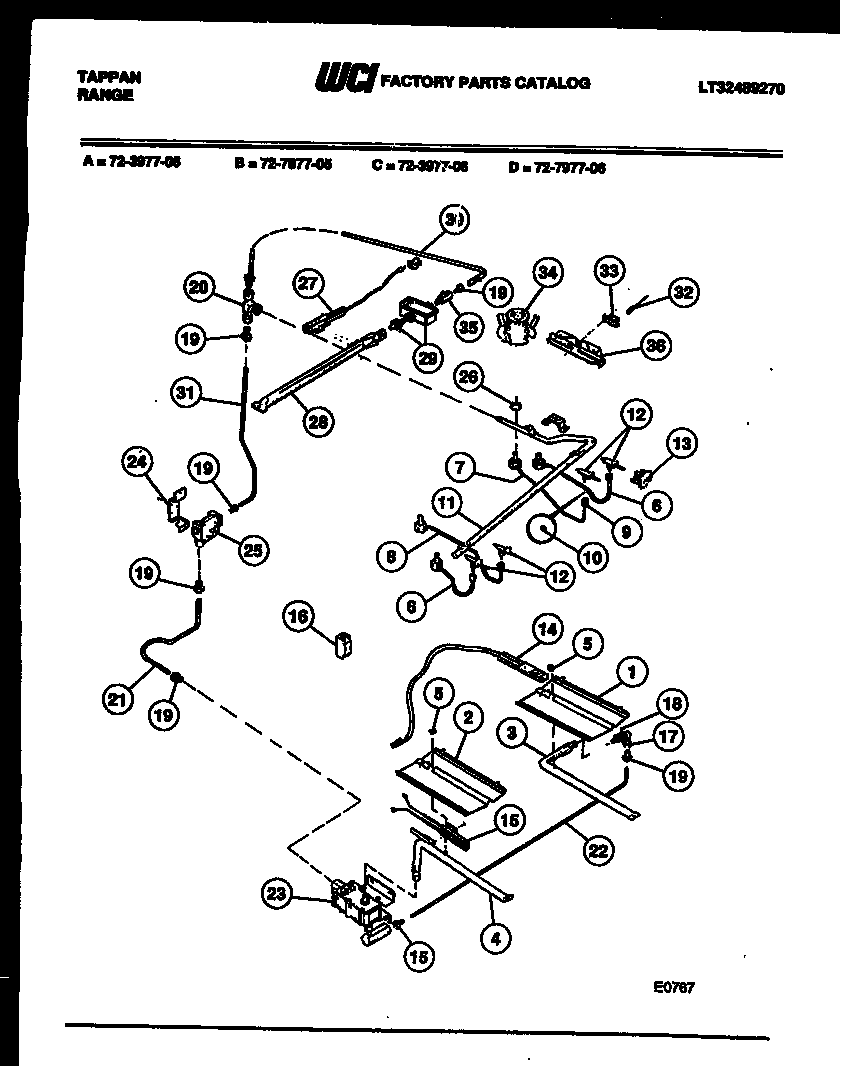

Burner, manifold and gas control diagram

Module

Part #3200669

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 3200669. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Channel 3051414
#8

Lower body parts diagram

Channel

Part #3051414

Replaced by #316007002

?
Manufacturer substitution
This part replaces 3051414. Substitute parts can look different from the original.
$184.55 |
6% OFF Phone Price : $196.55
In Stock
