Hoover
Upright Vacuum

Model # U5161900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5161900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Ribbed Shoe 013261AY
#10

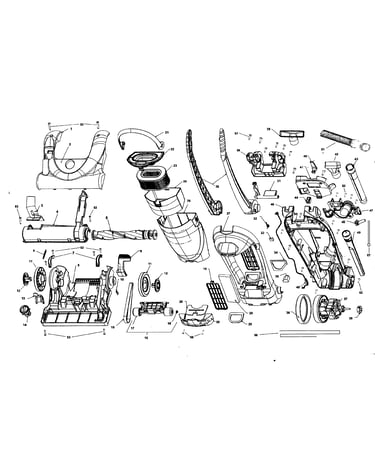

Vacuum diagram

Ribbed shoe

Part #013261AY

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#53

Vacuum diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Trunnion Bracket 36131118
#7

Vacuum diagram

Vacuum trunnion bracket

Part #36131118

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Door 37248005
#20

Vacuum diagram

Vacuum door

Part #37248005

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21447269
#54

Vacuum diagram

Carpet cleaner screw

Part #21447269

The manufacturer no longer makes this part, and there's no substitute part

Toolholder 36433182
#41

Vacuum diagram

Toolholder

Part #36433182

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#38

Vacuum diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part

Lower Duct 38646085
#3

Vacuum diagram

Lower duct

Part #38646085

The manufacturer no longer makes this part, and there's no substitute part

Housing 37243040
#4

Vacuum diagram

Housing

Part #37243040

The manufacturer no longer makes this part, and there's no substitute part

Handle 39453001
#26

Vacuum diagram

Handle

Part #39453001

The manufacturer no longer makes this part, and there's no substitute part
