GE
Microwave/Hood Combo

Model # JNM3160DF1CC Official GE microwave

Here are the diagrams and repair parts for Official GE JNM3160DF1CC microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Microwave Fuse WB27X11138
#119

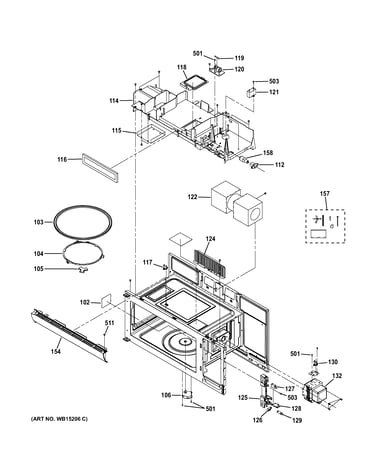

Oven cavity parts diagram

Microwave fuse

Part #WB27X11138

BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Microwave Door Monitor Switch (replaces Wb24x10147) WB24X10205
#128

Oven cavity parts diagram

Microwave door monitor switch (replaces wb24x10147)

Part #WB24X10205

BEST SELLER
$57.39 |
9% OFF Phone Price : $63.39
In Stock
Micro-switch WB24X10147
#129

Oven cavity parts diagram

Micro-switch

Part #WB24X10147

Replaced by #WB24X10205

?
Manufacturer substitution
This part replaces WB24X10147. Substitute parts can look different from the original.
BEST SELLER
$57.39 |
9% OFF Phone Price : $63.39
In Stock
Microwave Door Interlock Switch (replaces Wb24x10148, Wb24x28940) WB24X10204
#127

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x10148, wb24x28940)

Part #WB24X10204

BEST SELLER
$55.44 |
10% OFF Phone Price : $61.44
In Stock
Microwave Magnetron WB27X11211
#132

Oven cavity parts diagram

Microwave magnetron

Part #WB27X11211

Replaced by #WB26X23320

?
Manufacturer substitution
This part replaces WB27X11211. Substitute parts can look different from the original.
BEST SELLER
$318.95
In Stock
Microwave Noise Filter WB27X11140
#120

Oven cavity parts diagram

Microwave noise filter

Part #WB27X11140

BEST SELLER
$136.07 |
10% OFF Was : $151.19
In Stock
Microwave Thermostat WB27X11210
#130

Oven cavity parts diagram

Microwave thermostat

Part #WB27X11210

BEST SELLER
$69.28 |
8% OFF Phone Price : $75.28
In Stock
Microwave Thermostat (replaces Wb24x28950, Wb27x10846) WB27X11213
#138

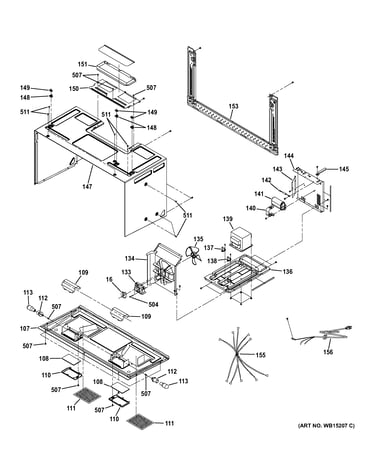

Interior parts diagram

Microwave thermostat (replaces wb24x28950, wb27x10846)

Part #WB27X11213

This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Microwave Door Latch WB14X10053
#204

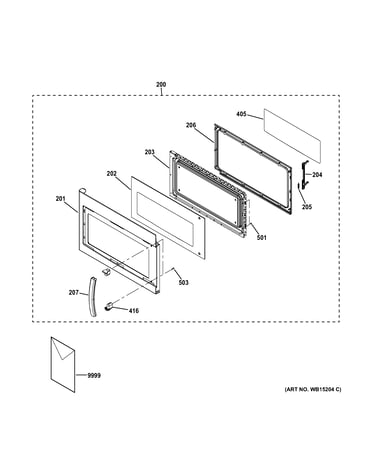

Door parts diagram

Microwave door latch

Part #WB14X10053

Replaced by #WB10X32782

?
Manufacturer substitution
This part replaces WB14X10053. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Microwave Light Socket WB06X10929
Microwave light socket

Part #WB06X10929

$36.89 |
14% OFF Phone Price : $42.89
In Stock
