Model # 11161202714 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 11161202714 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

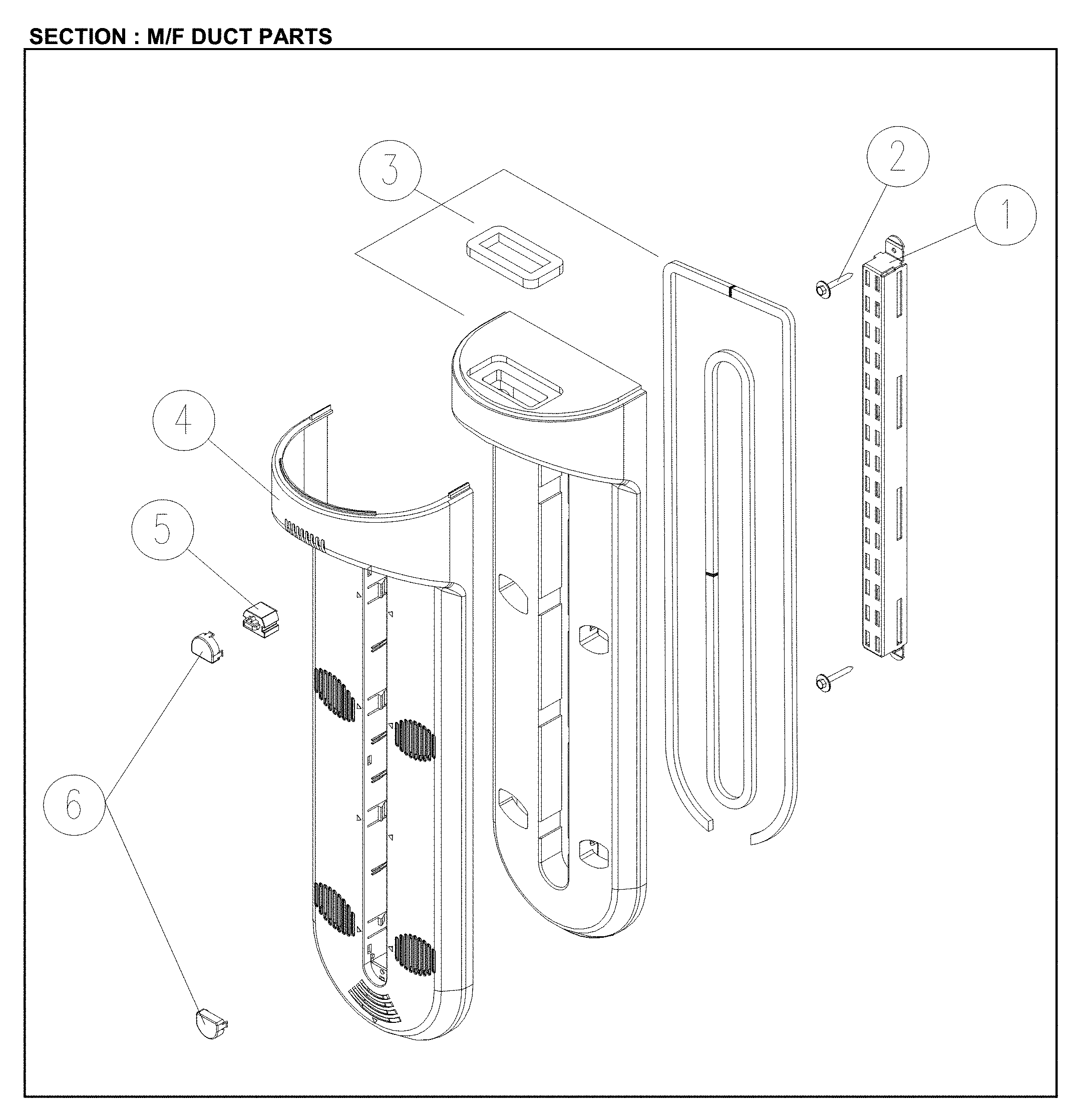

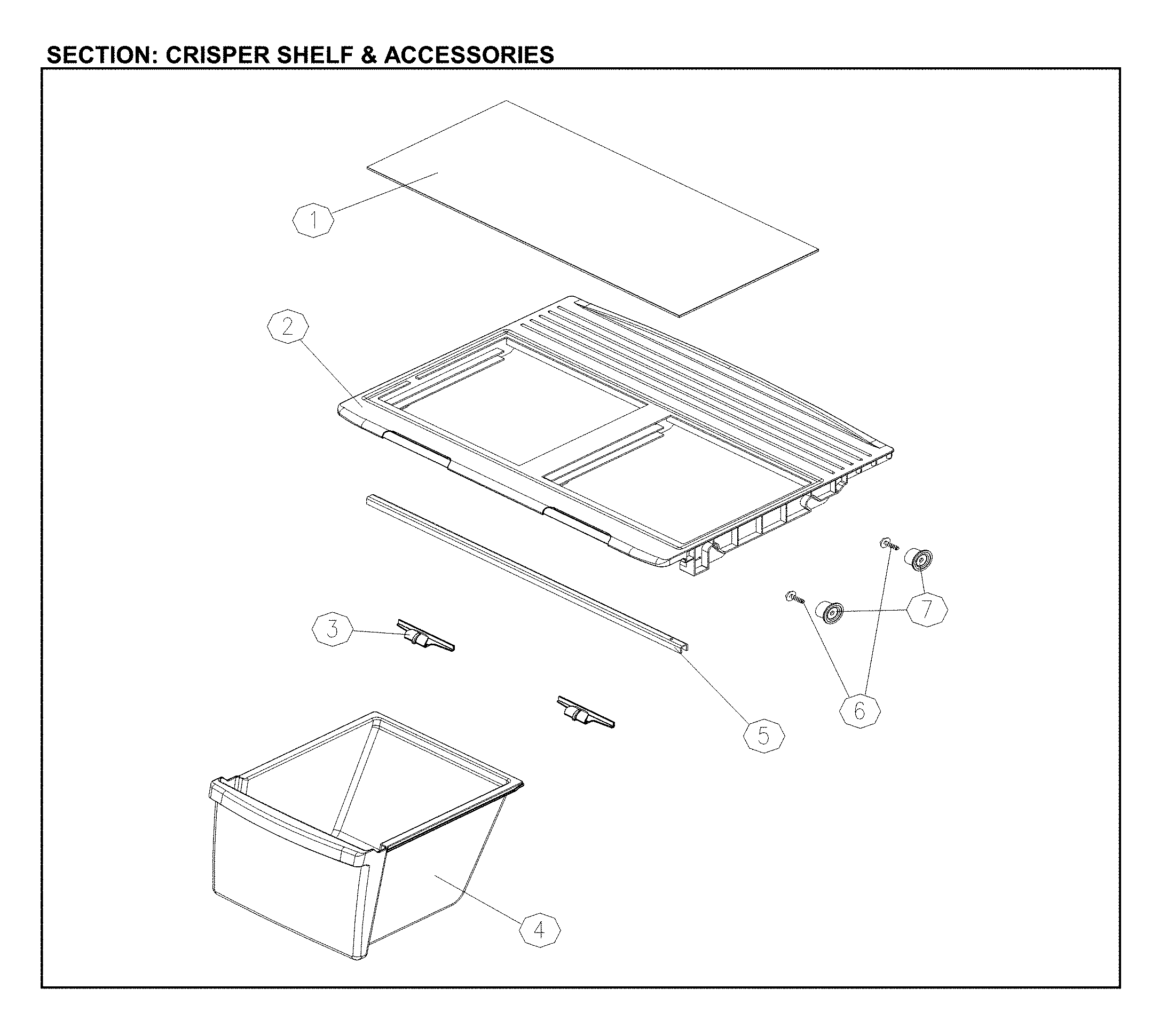

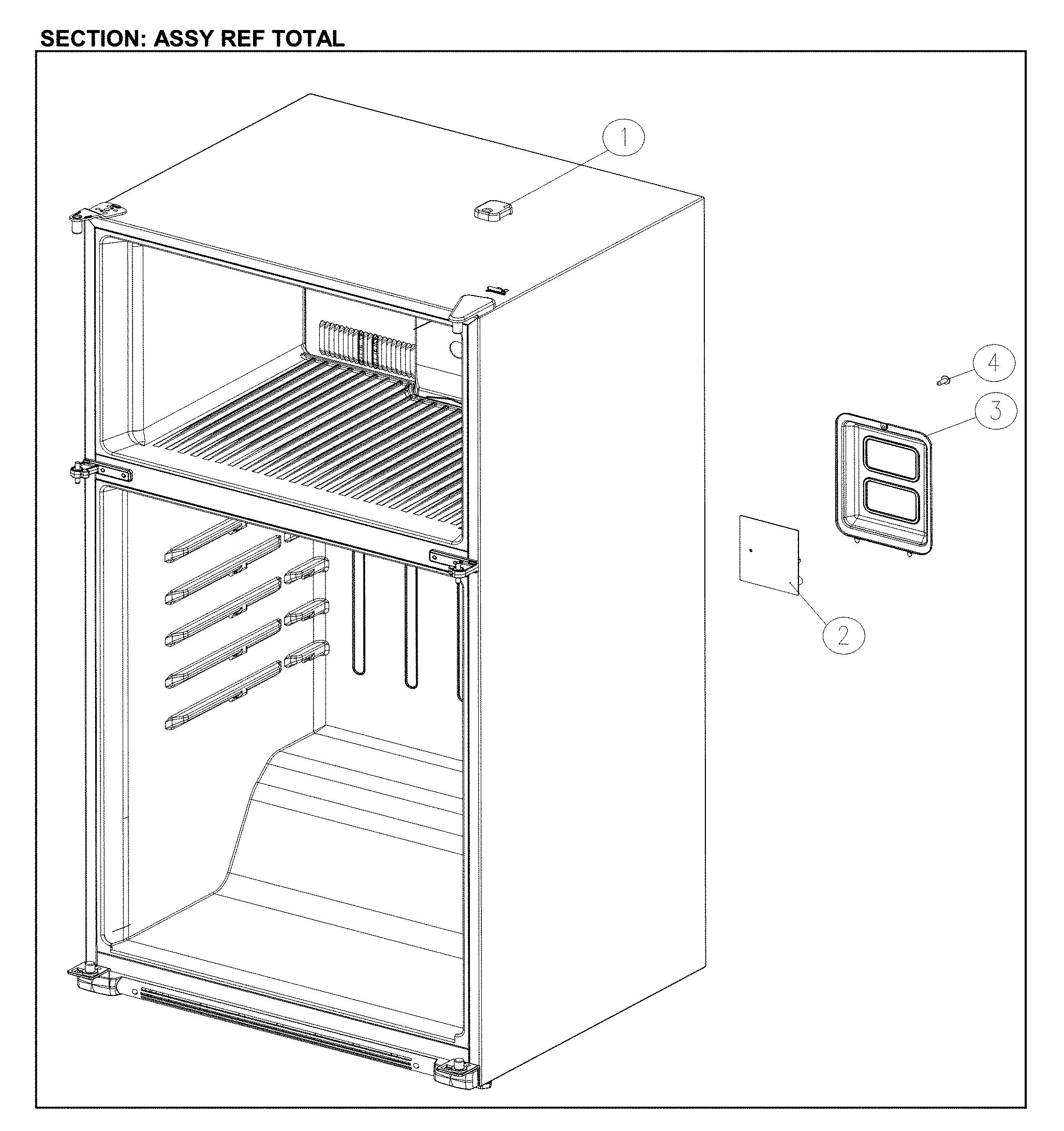

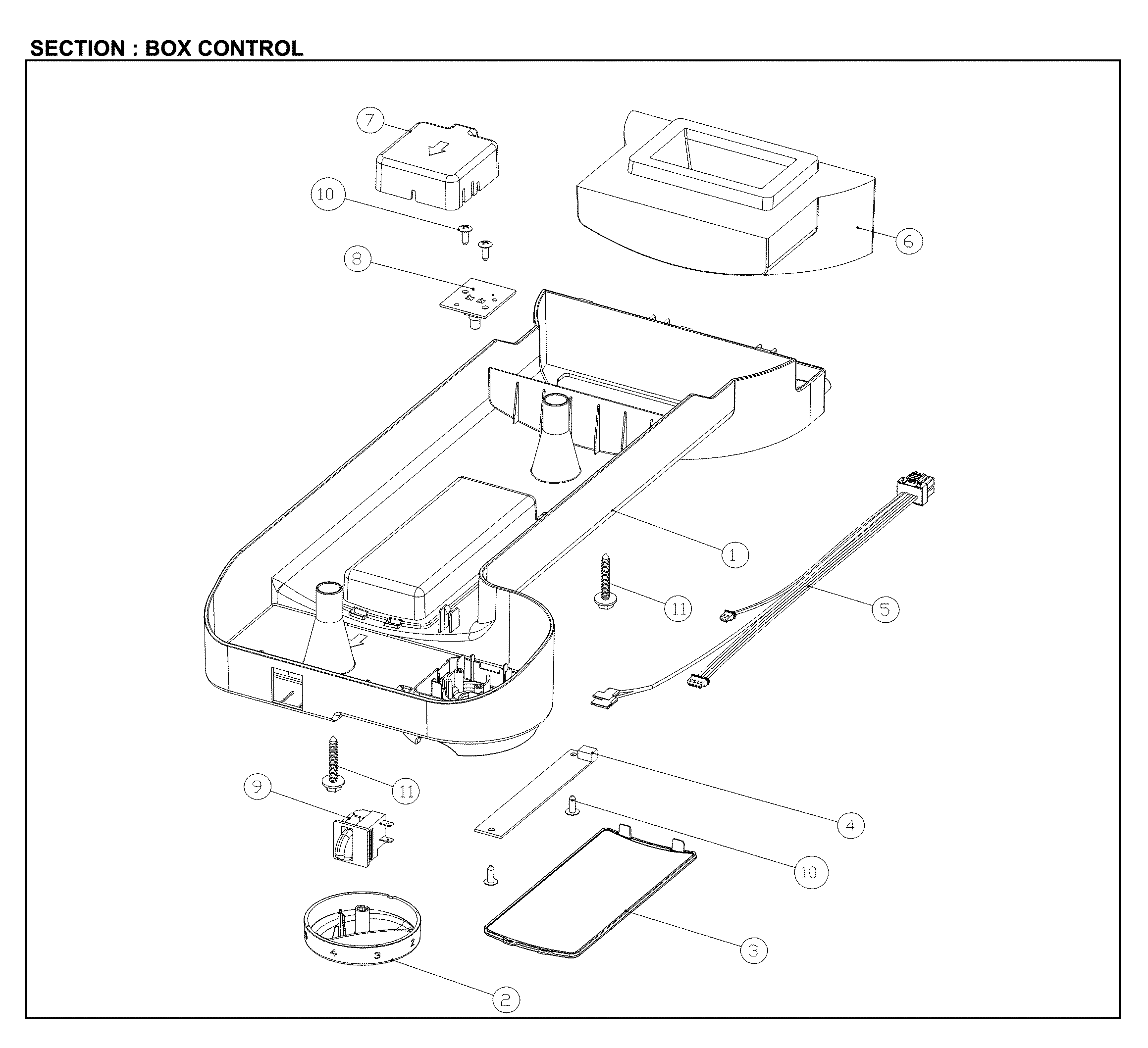

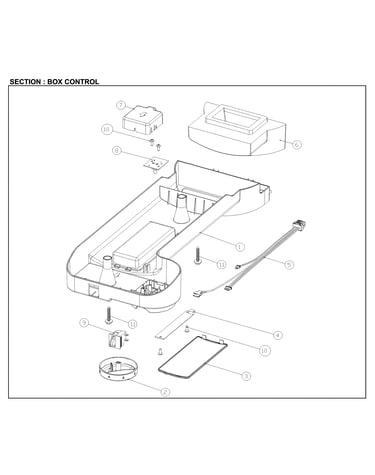

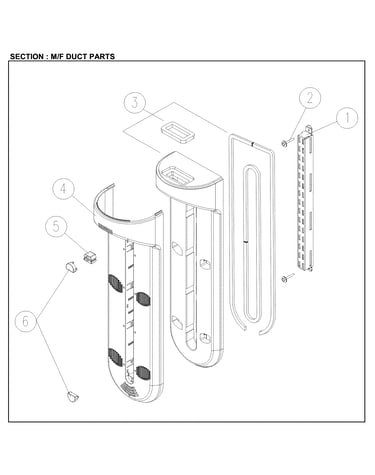

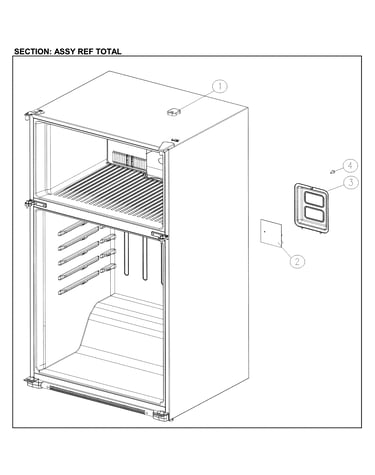

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Refrigerator Evaporator Fan Motor (replaces 3015915420, 60159-0011800) 60159-0011800-01
#7-1

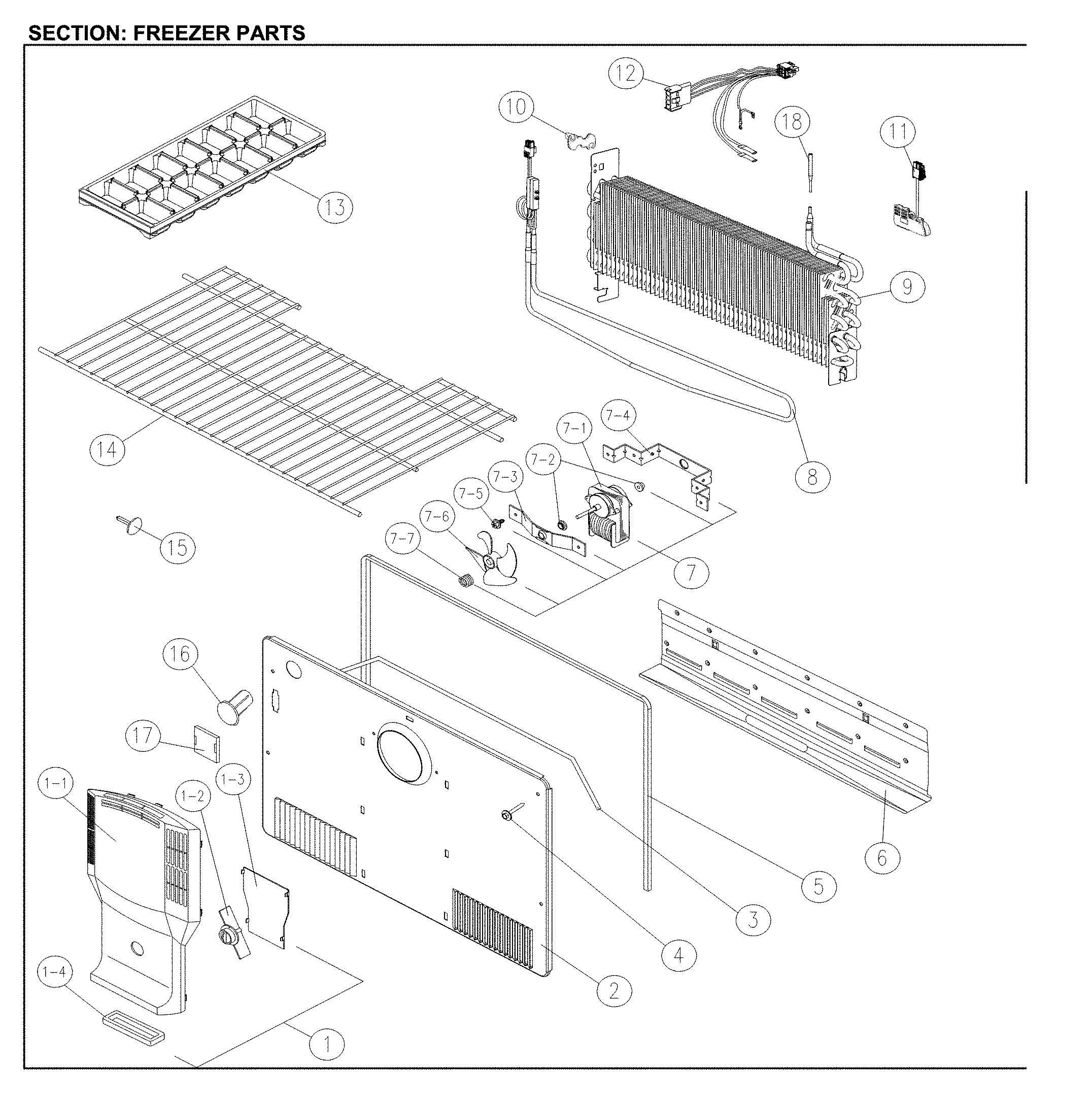

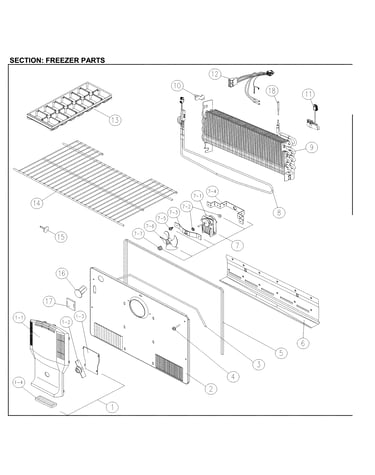

Freezer parts diagram

Refrigerator evaporator fan motor (replaces 3015915420, 60159-0011800)

Part #60159-0011800-01

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Refrigerator Shelf Assembly 3017837600
#8

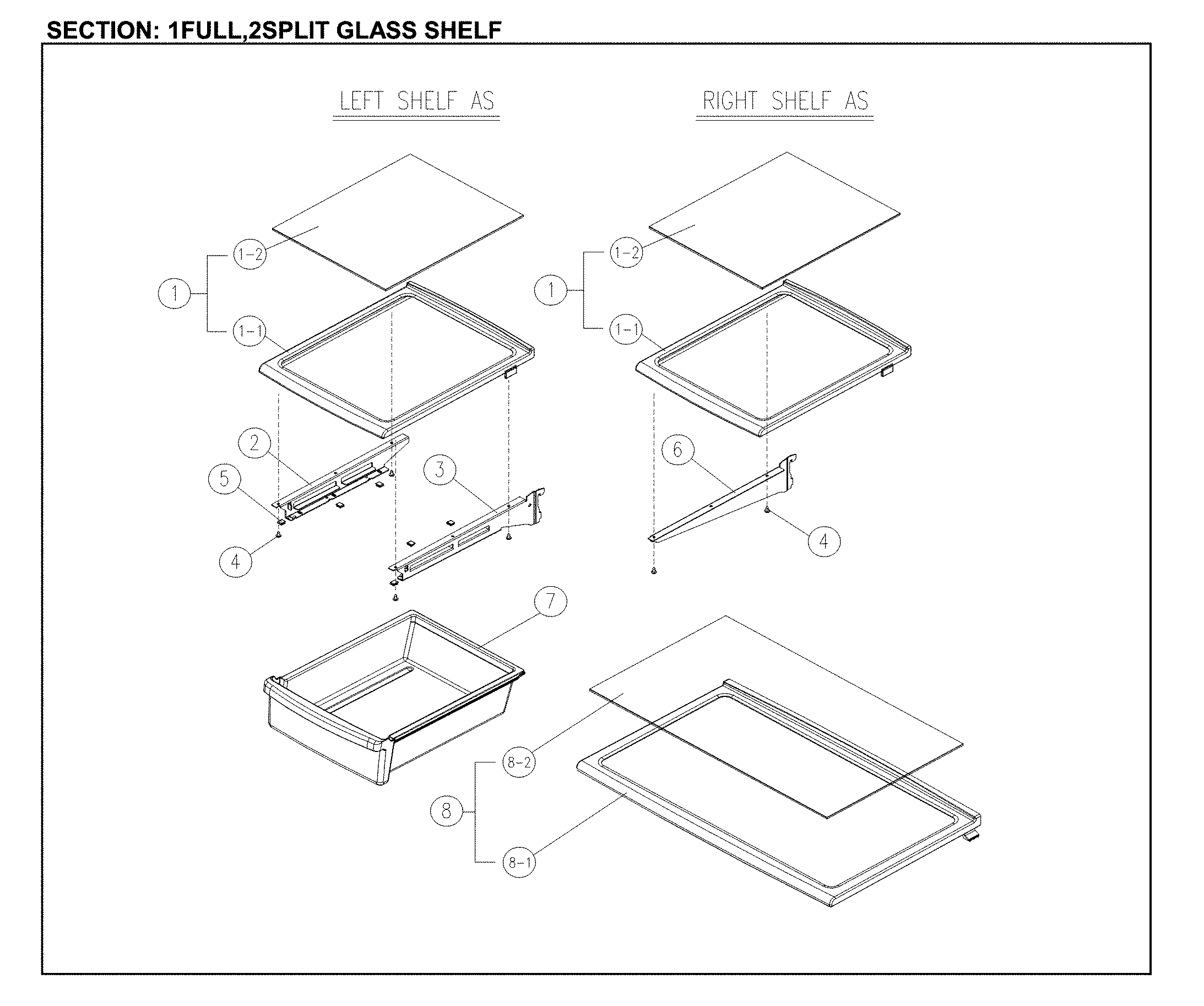

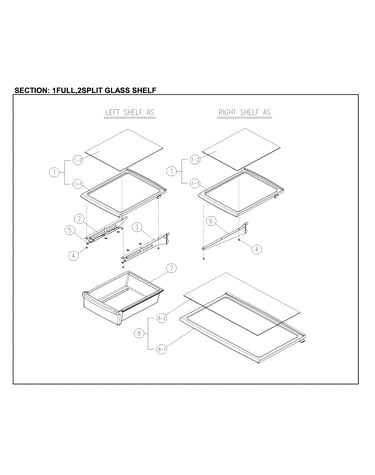

1full, 2split glass shelf diagram

Kenmore refrigerator shelf assembly

Part #3017837600

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Hinge Pin Washer 3016031800
Refrigerator door hinge pin washer

Part #3016031800

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Filter Dryer 3016801107
#6

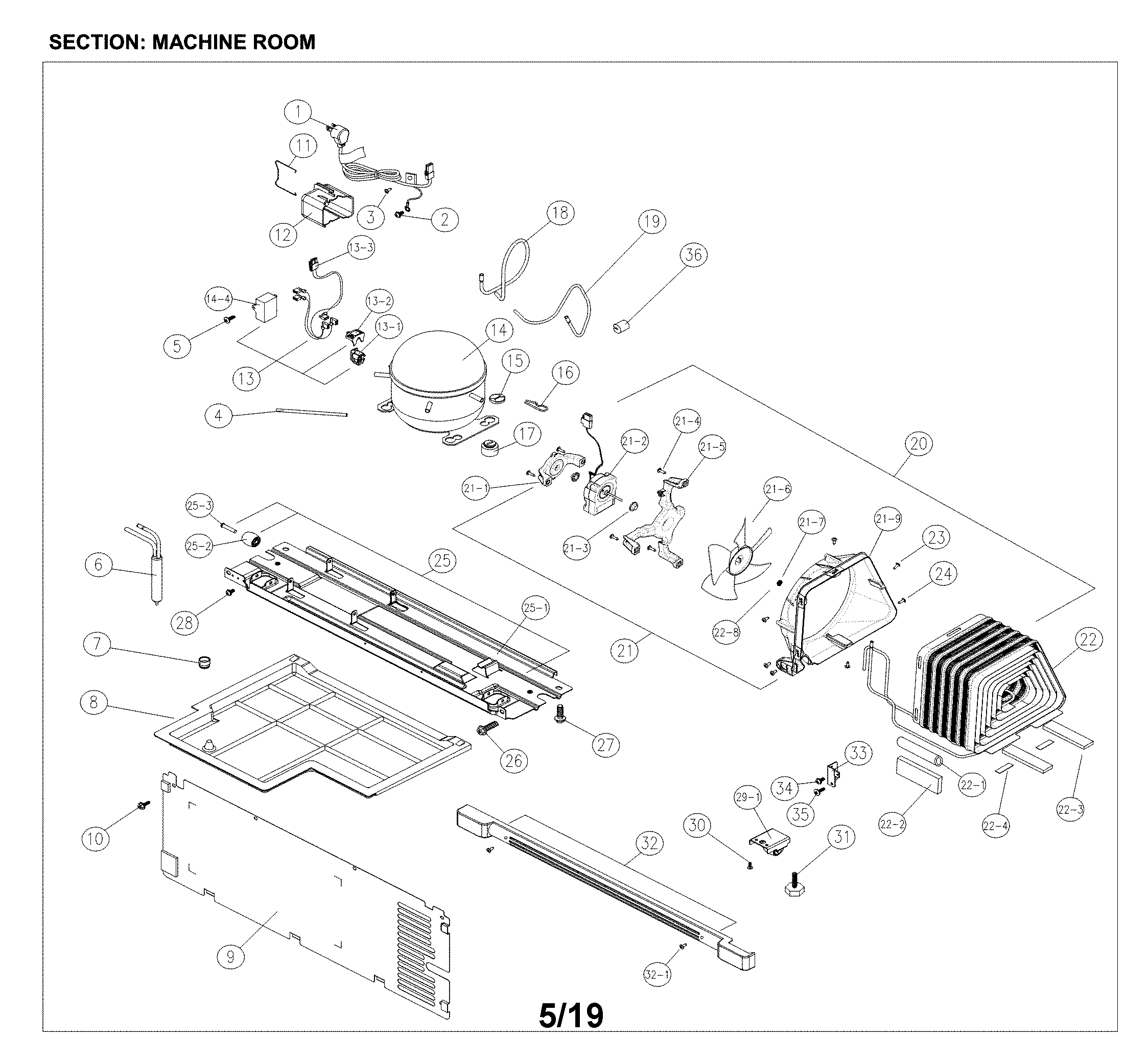

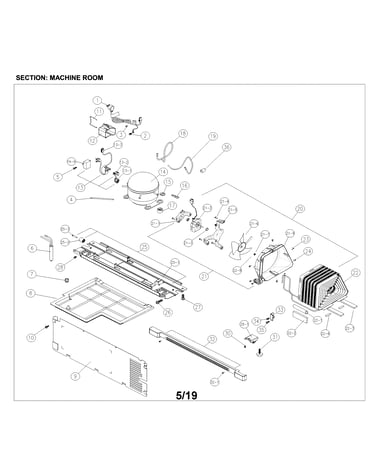

Machine/compressor room diagram

Refrigerator filter dryer

Part #3016801107

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Power Cord 60113-0006601
#1

Machine/compressor room diagram

Refrigerator power cord

Part #60113-0006601

The manufacturer no longer makes this part, and there's no substitute part

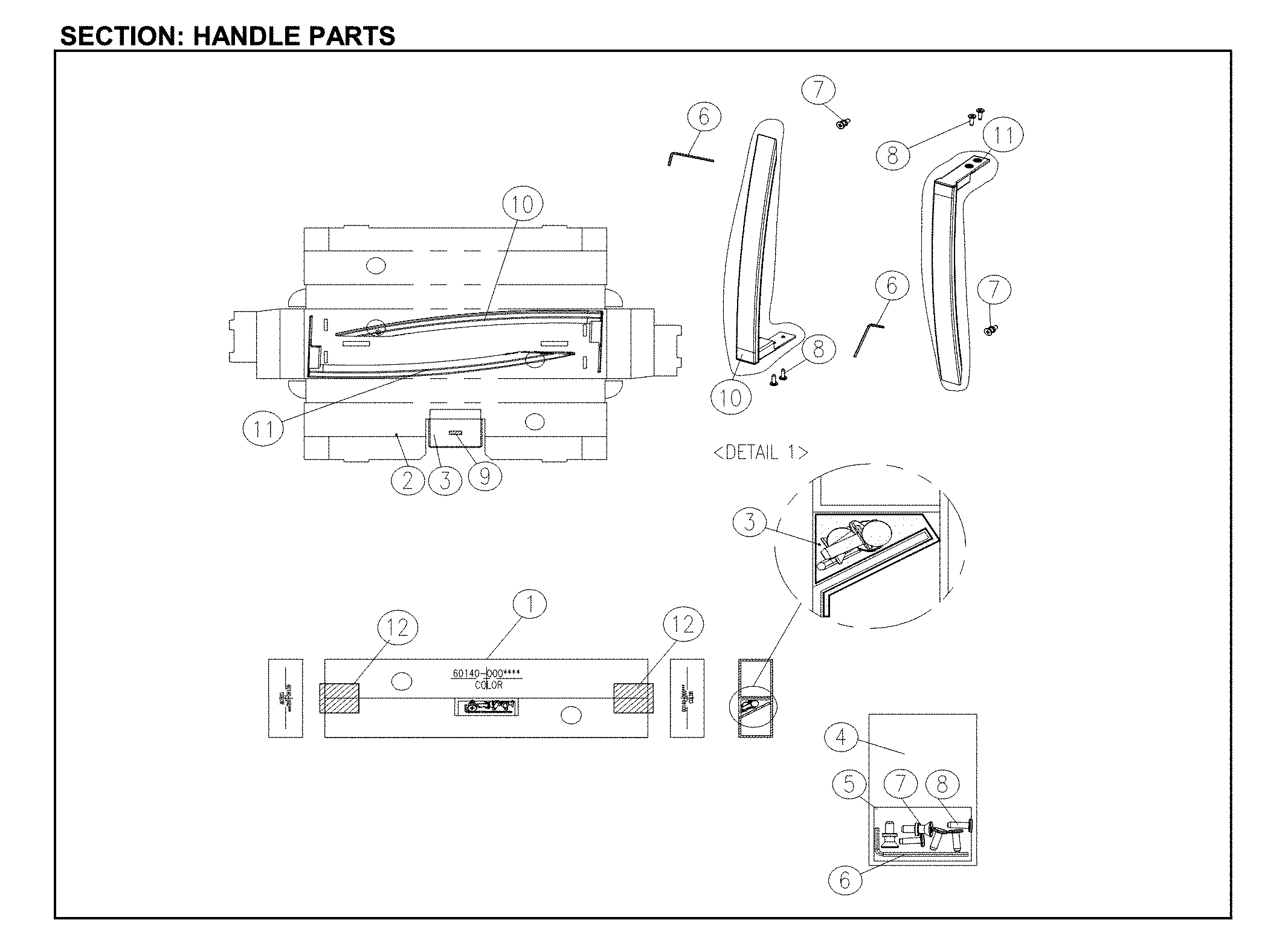

Refrigerator Door Handle Set (silver) 60140-0007100
Refrigerator door handle set (silver)

Part #60140-0007100

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Shelf Rail 3019025500
#16

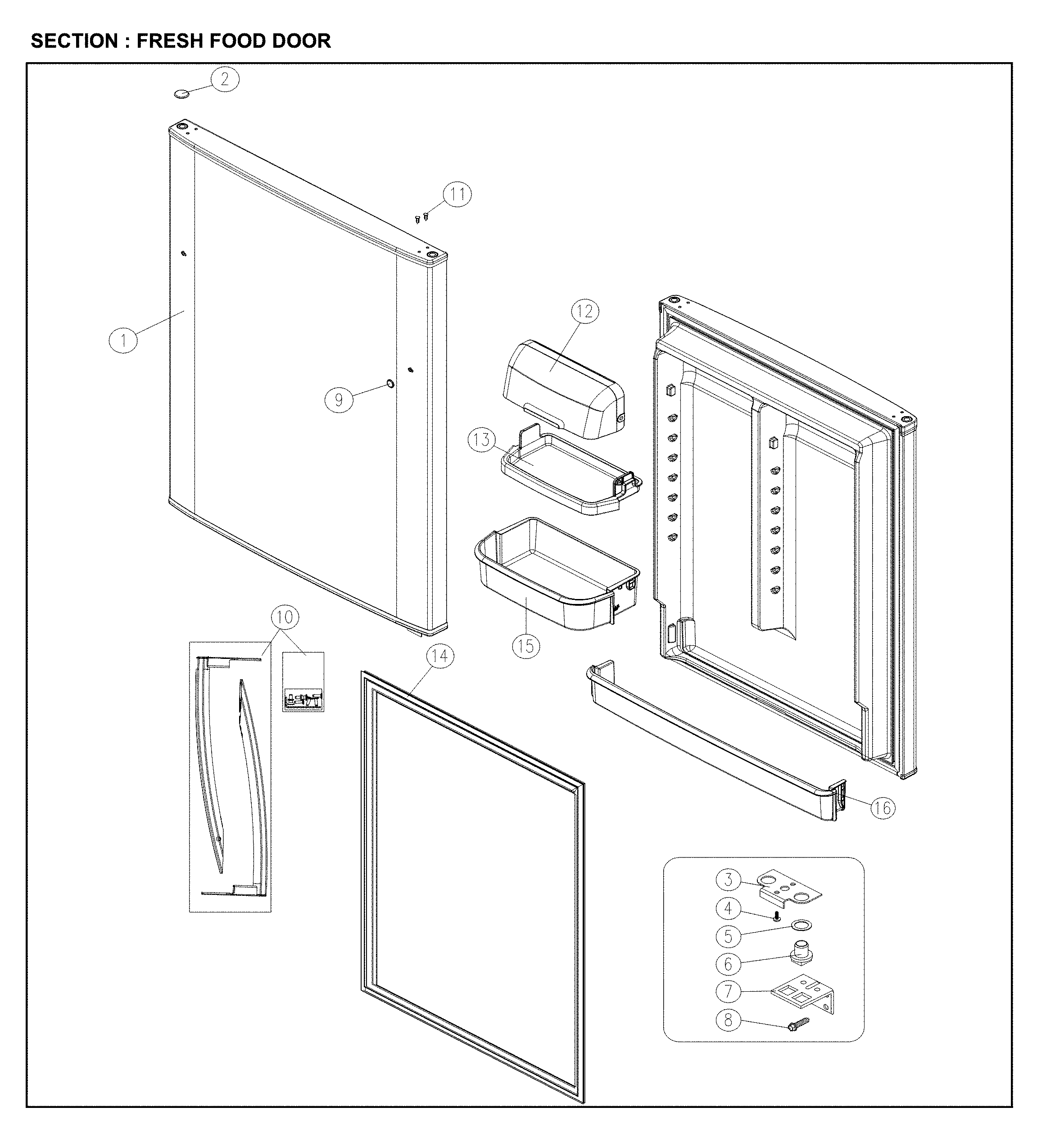

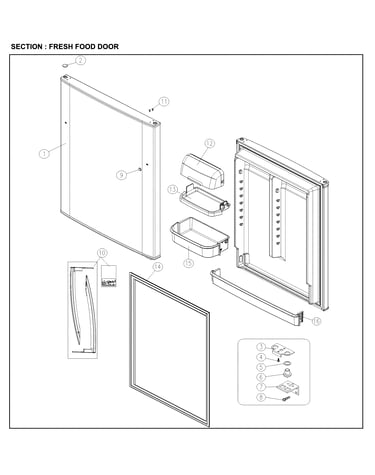

Fresh food door diagram

Refrigerator door shelf rail

Part #3019025500

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Dairy Bin Cover 3011497500
#12

Fresh food door diagram

Refrigerator dairy bin cover

Part #3011497500

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Base Plate 3010338000
#25

Machine/compressor room diagram

Refrigerator base plate

Part #3010338000

$31.99
In Stock
Refrigerator Nameplate (silver) 60135-0017702
#14

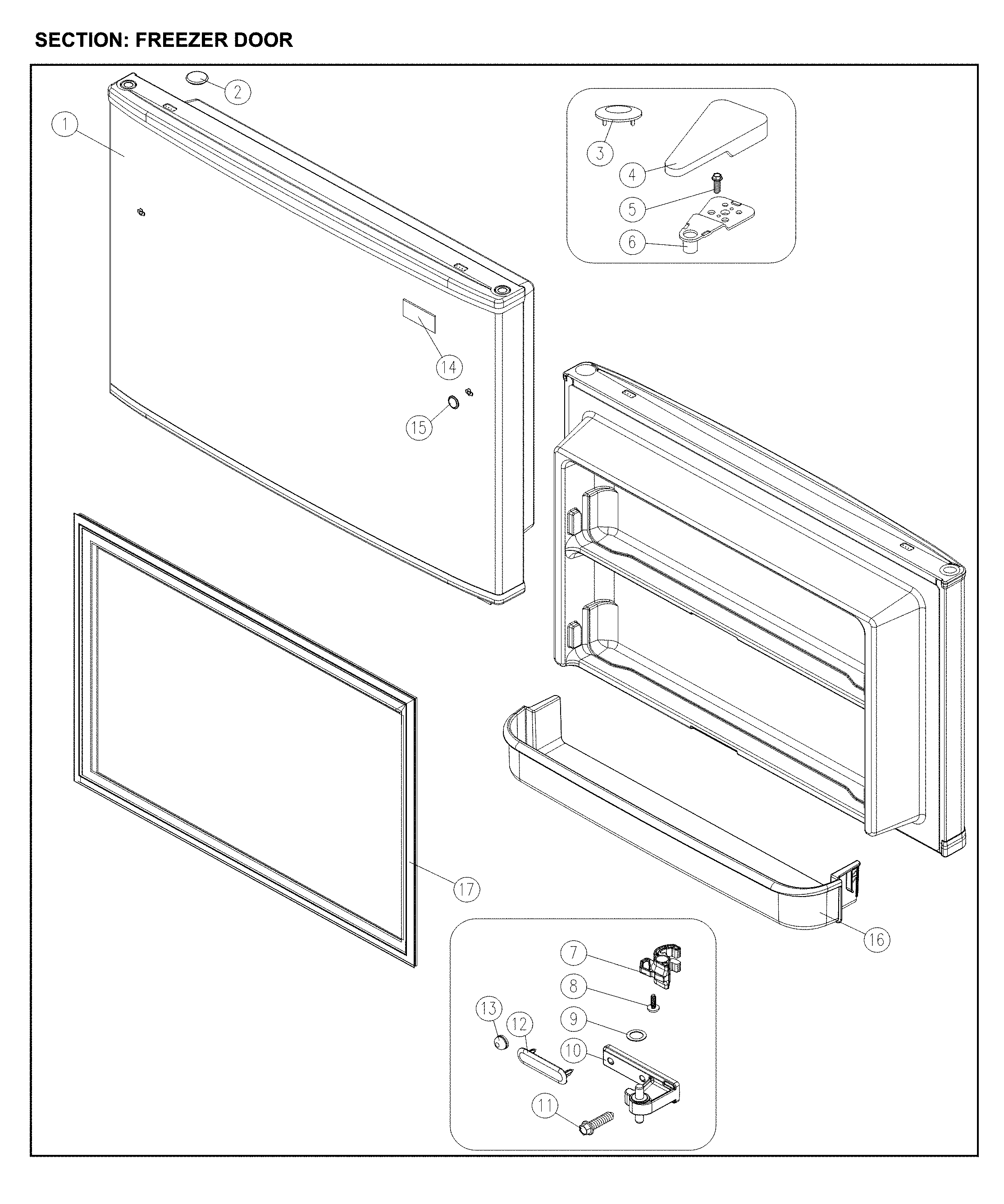

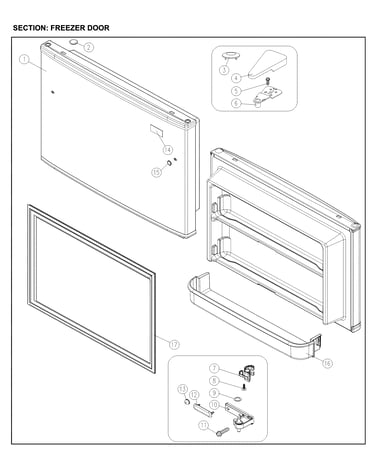

Freezer door diagram

Refrigerator nameplate (silver)

Part #60135-0017702

The manufacturer no longer makes this part, and there's no substitute part
