Model # 59675262701 Official Kenmore bottom-mount refrigerator
Here are the diagrams and repair parts for Official Kenmore 59675262701 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

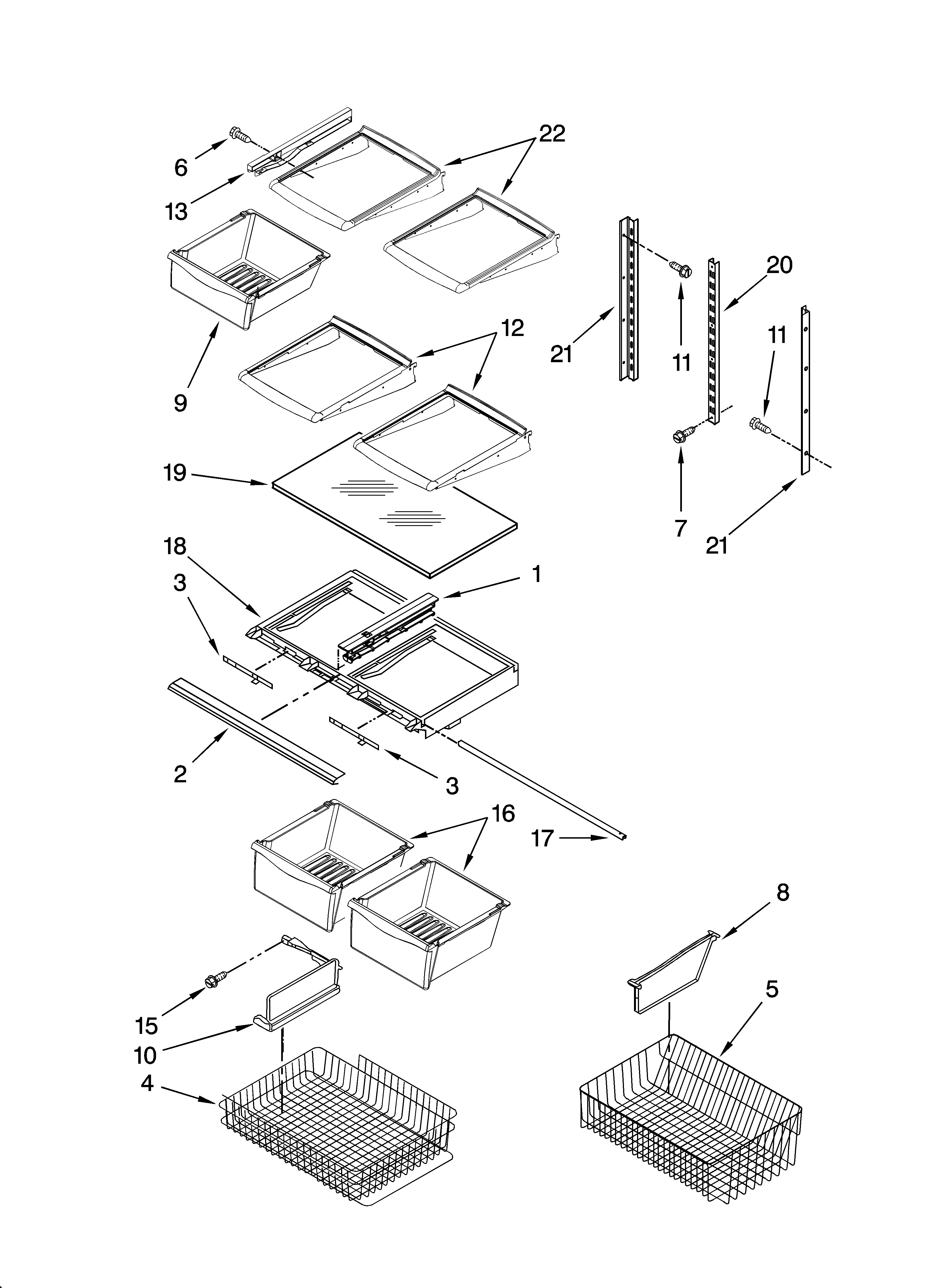

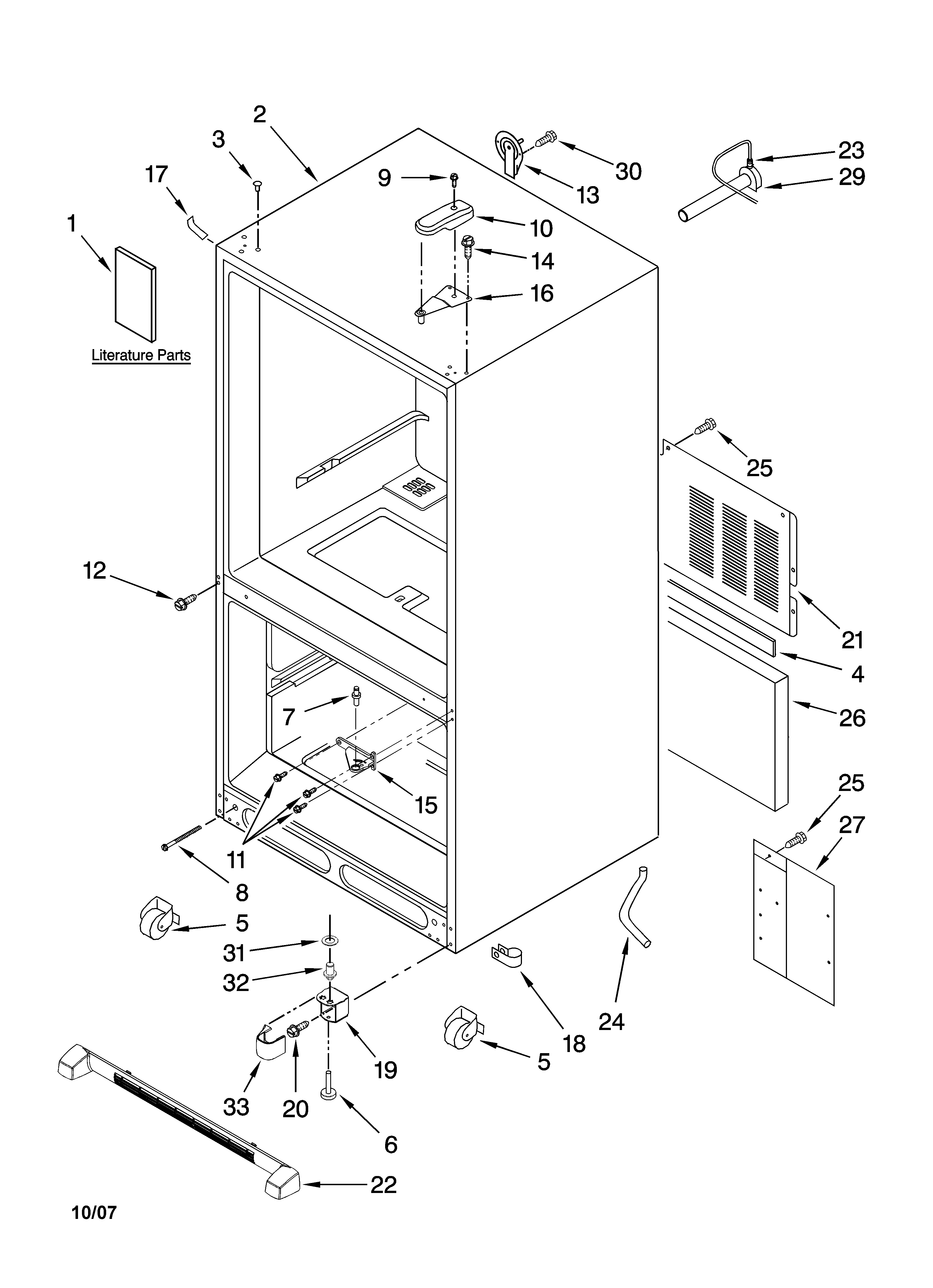

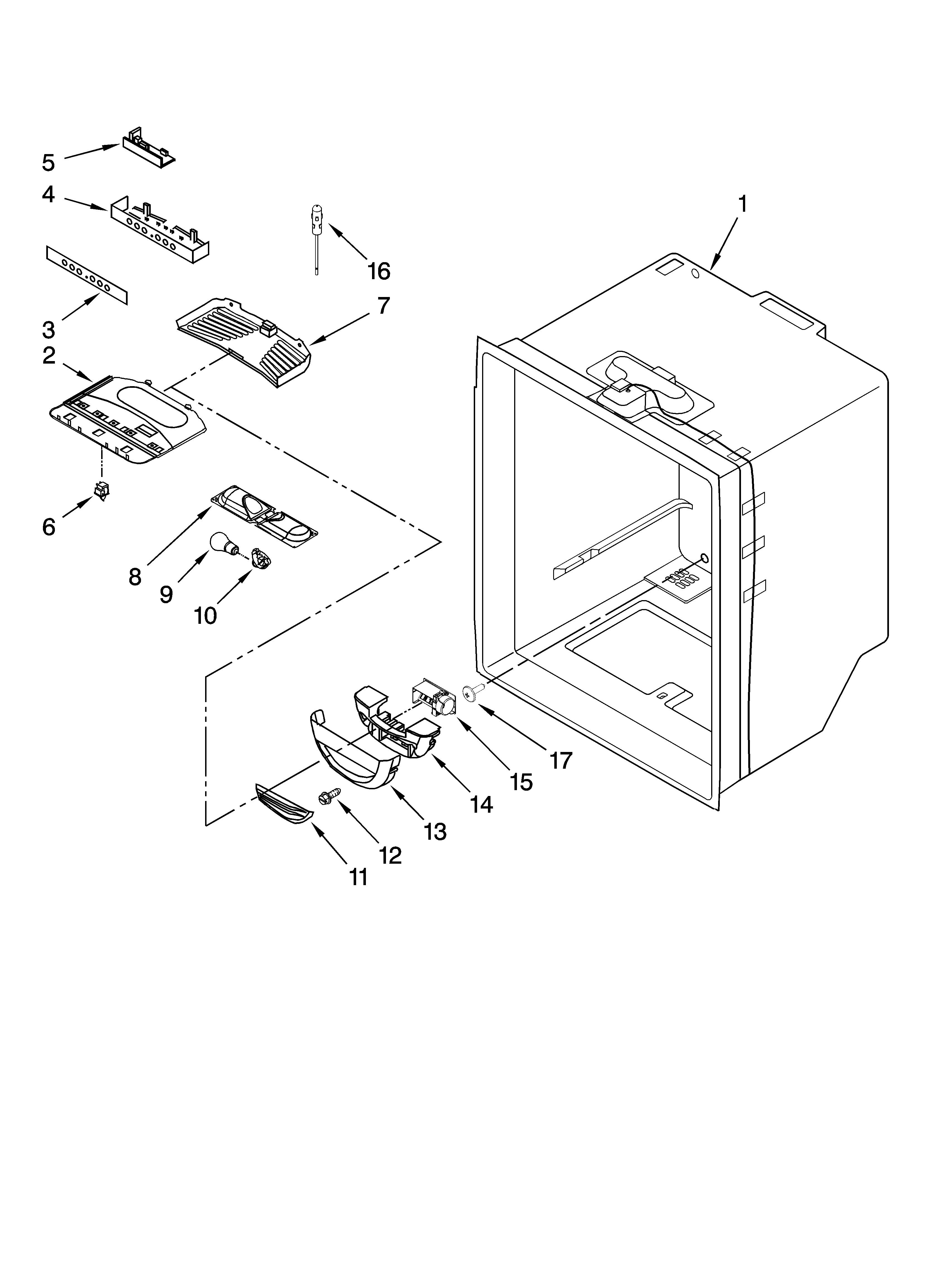

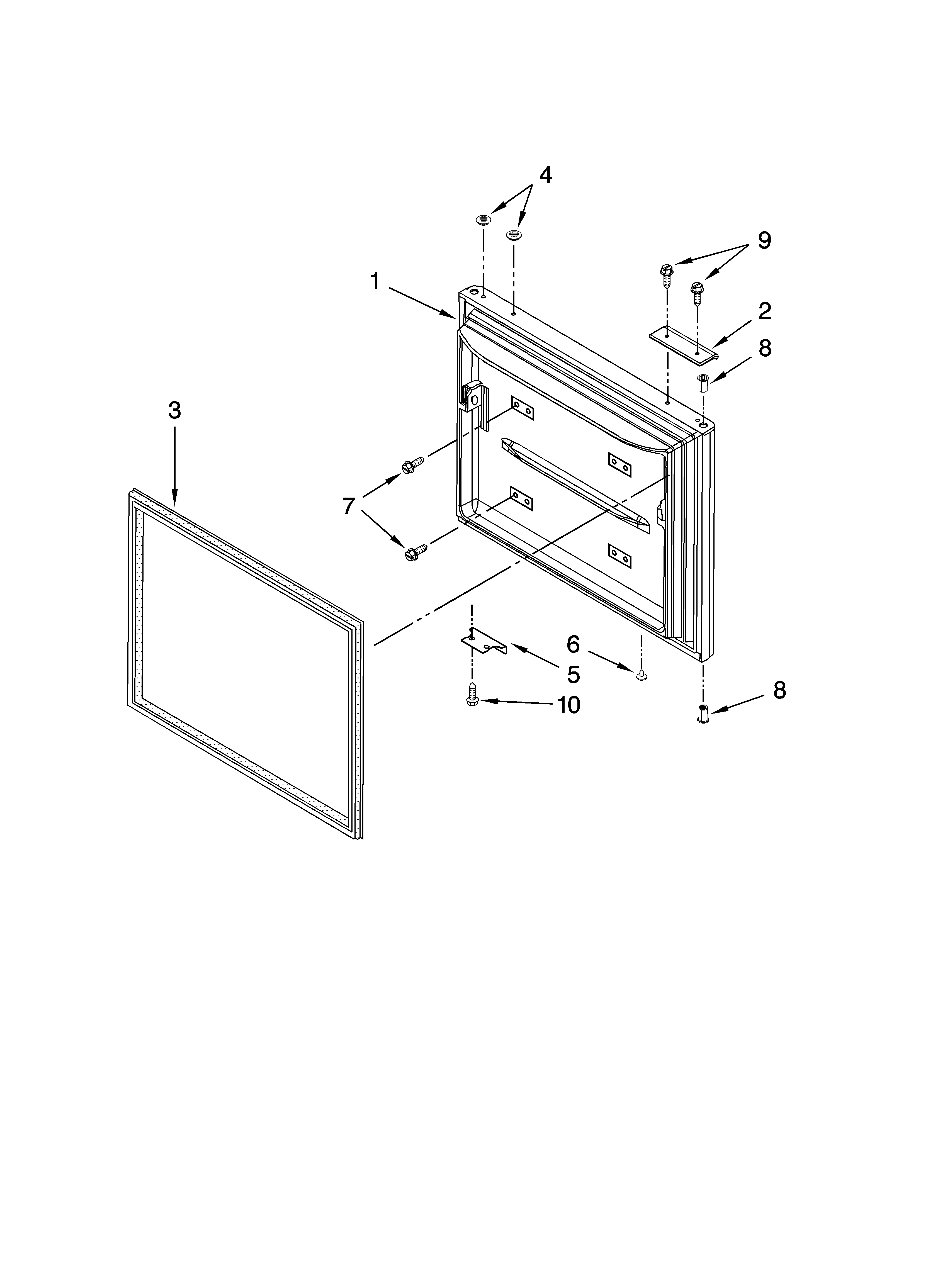

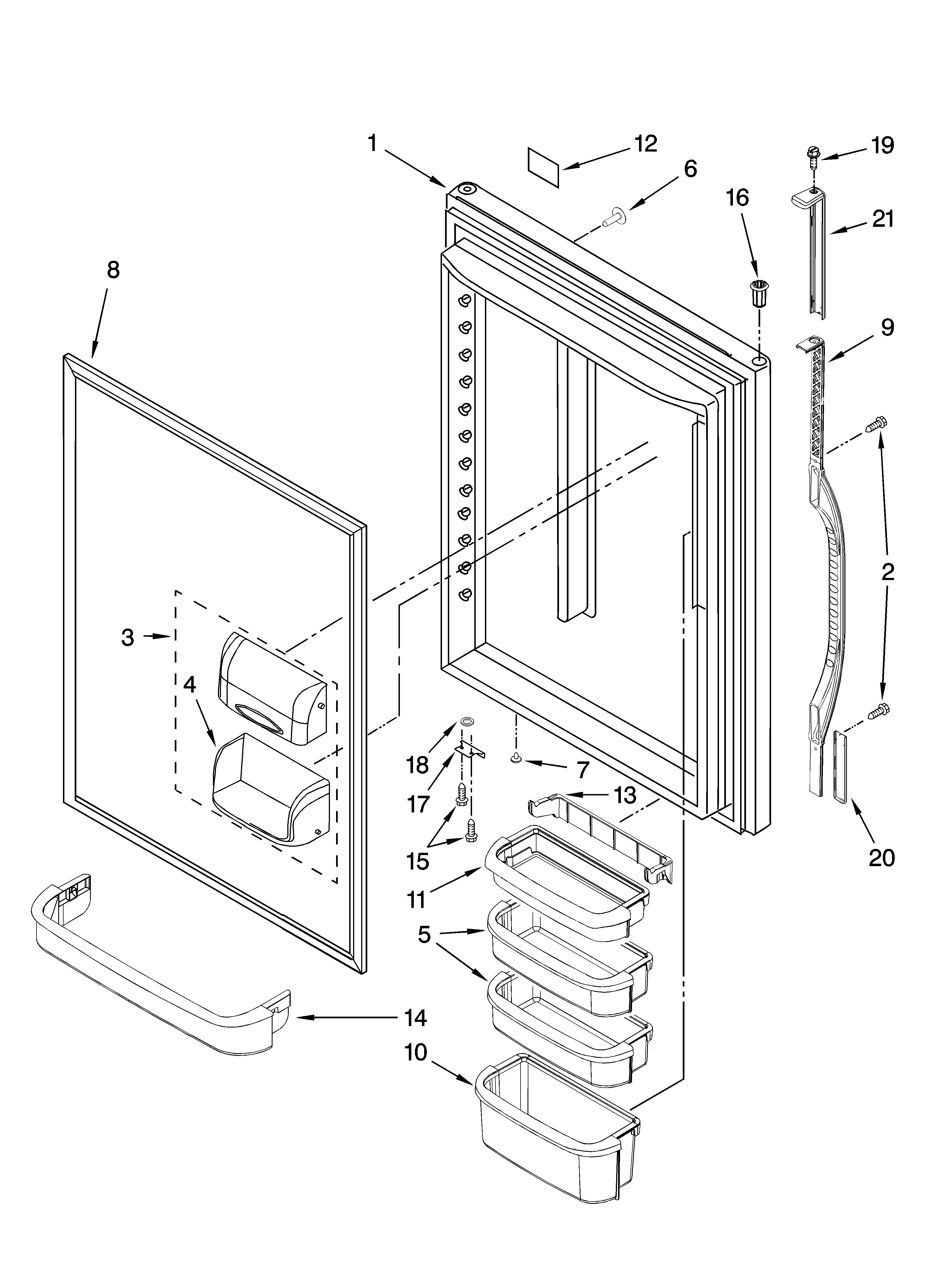

SELECT DIAGRAM
Browse Parts for59675262701 Refrigerators
- #100

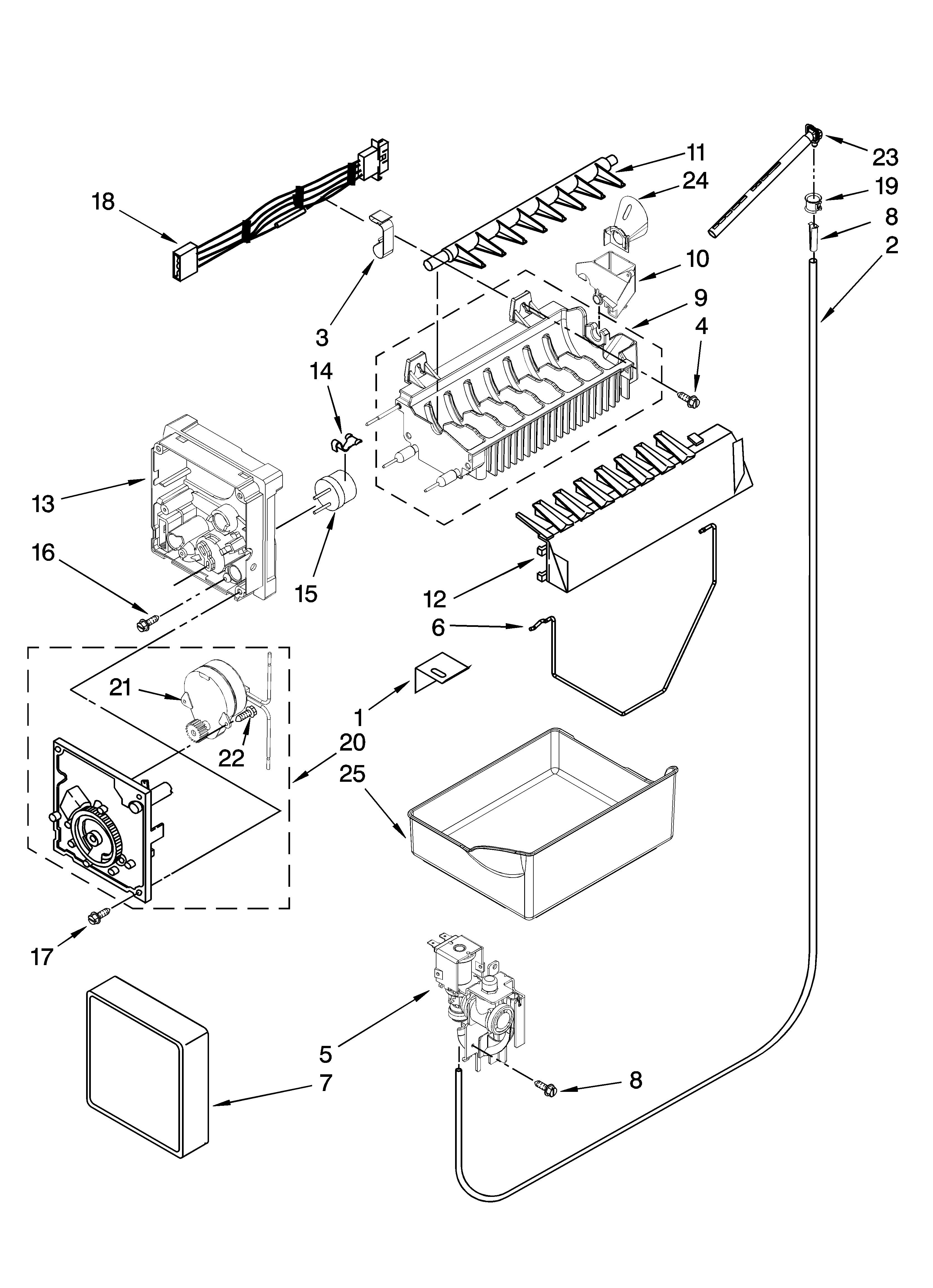

Icemaker parts, optional parts diagram
Refrigerator ice makerPart #W10122519
Replaced by #D7824706Q
?Manufacturer substitutionThis part replaces W10122519. Substitute parts can look different from the original.$84.20 |7% OFF Phone Price : $90.20In Stock - #24

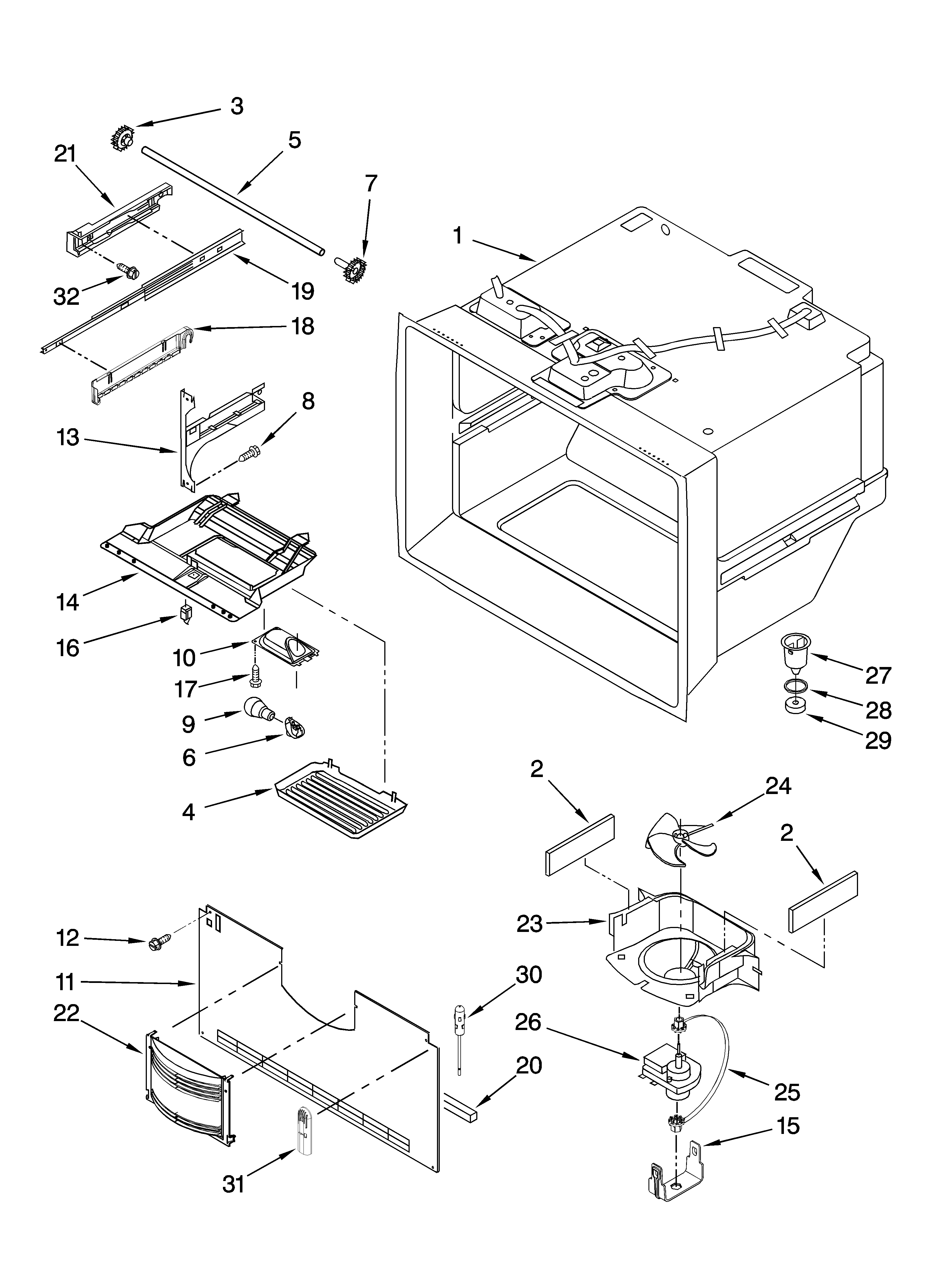

Freezer liner parts diagram
Refrigerator evaporator fan bladePart #2169142
Replaced by #WP2169142
?Manufacturer substitutionThis part replaces 2169142. Substitute parts can look different from the original.$24.98 |19% OFF Phone Price : $30.98In Stock - #29

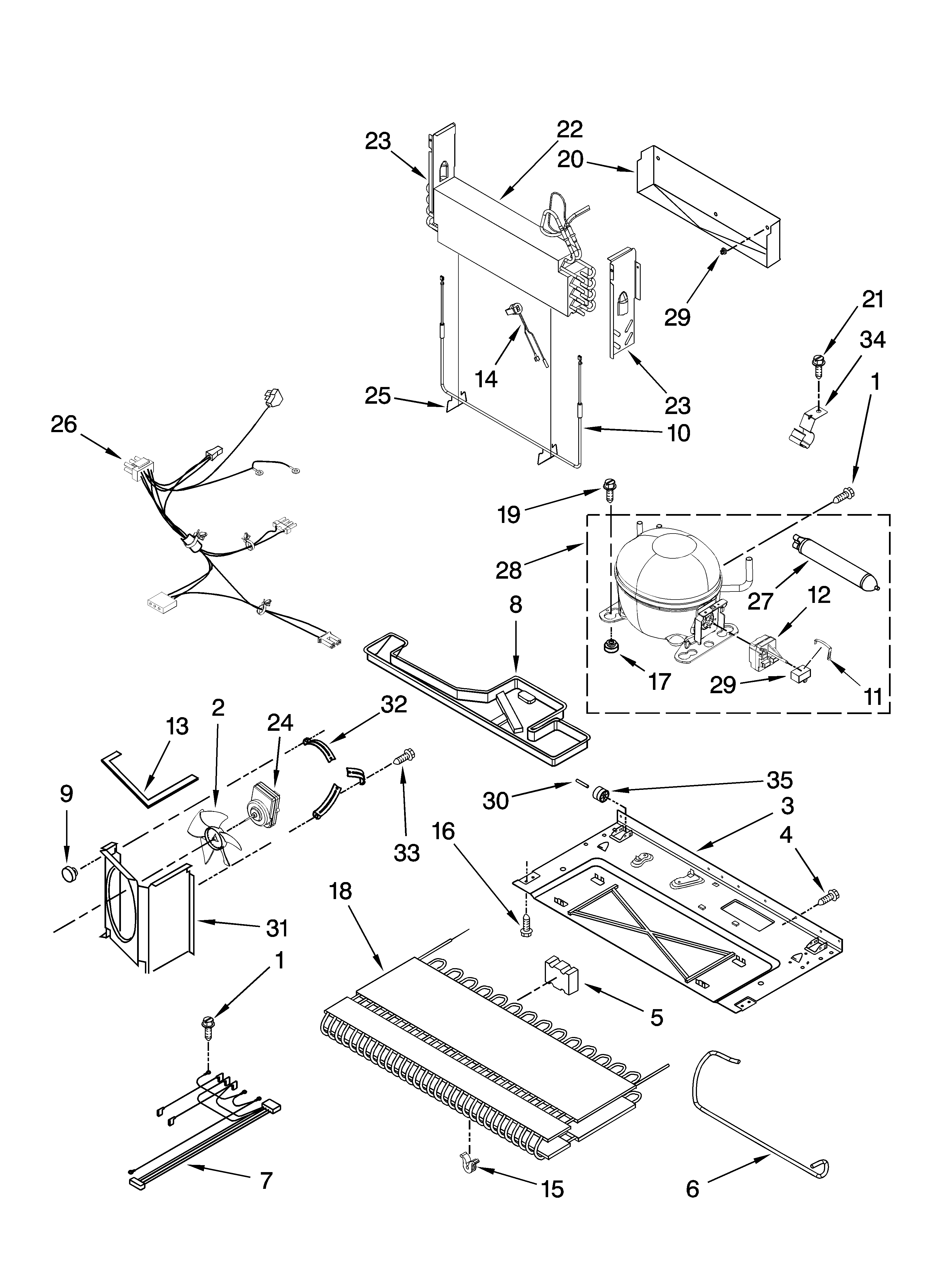

Unit parts diagram
Refrigerator run capacitorPart #2264017
Replaced by #WPW10662129
?Manufacturer substitutionThis part replaces 2264017. Substitute parts can look different from the original.$38.49 |13% OFF Phone Price : $44.49In Stock - Refrigerator temperature sensor
Part #12002355
$35.33 |15% OFF Phone Price : $41.33In Stock - #NI
Icemaker parts, optional parts diagram
Danby appliance touch-up paint, 0.6-oz (white)Part #72017
$7.13 |14% OFF Was : $8.29In Stock - Refrigerator freezer drawer gear
Part #12002497
This item is not returnable$15.49 |11% OFF Phone Price : $17.49In Stock - #15
Icemaker parts, optional parts diagram
Refrigerator ice maker thermostatPart #627985
Replaced by #WP627985
?Manufacturer substitutionThis part replaces 627985. Substitute parts can look different from the original.$51.73 |10% OFF Phone Price : $57.73In Stock - #4
Icemaker parts, optional parts diagram
ScrewPart #489276
Replaced by #WP681249
?Manufacturer substitutionThis part replaces 489276. Substitute parts can look different from the original.This item is not returnable$4.46 |18% OFF Phone Price : $5.46In Stock - #20
Icemaker parts, optional parts diagram
Motor moldPart #626678
Replaced by #8201515
?Manufacturer substitutionThis part replaces 626678. Substitute parts can look different from the original.$82.93 |7% OFF Phone Price : $88.93In Stock - #NI
Icemaker parts, optional parts diagram
Appliance silicone lubricantPart #542638
Replaced by #WP542638
?Manufacturer substitutionThis part replaces 542638. Substitute parts can look different from the original.$31.44 |16% OFF Phone Price : $37.44In Stock
Most common symptoms to help you fix your refrigerators
Choose a symptom to see related refrigerator repairs.
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…
Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
