Craftsman
Front-Engine Lawn Tractor

Model # 5022561321 Official Craftsman riding lawn mower

Here are the diagrams and repair parts for Official Craftsman 5022561321 riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

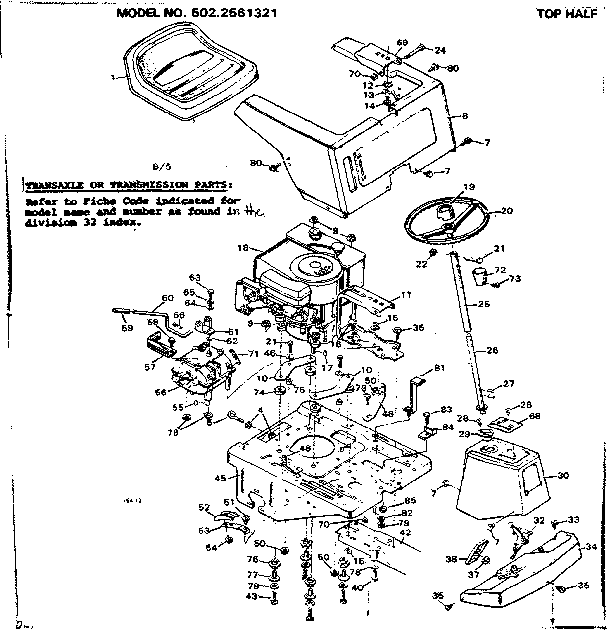

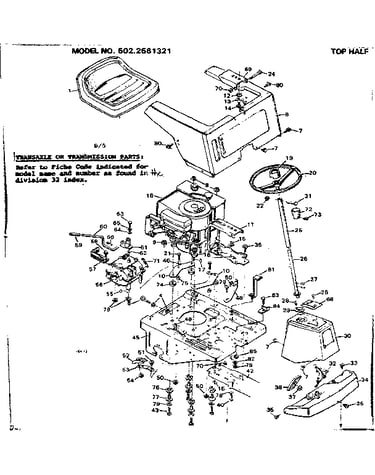

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Battery 54141
#13

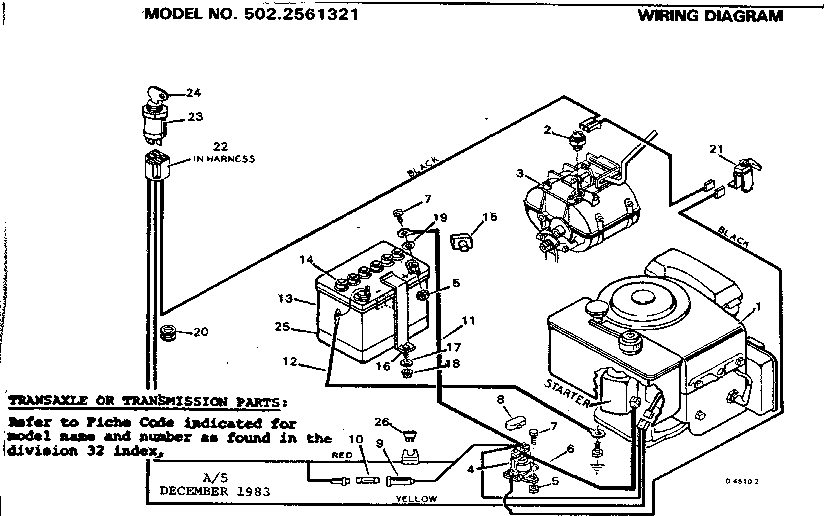

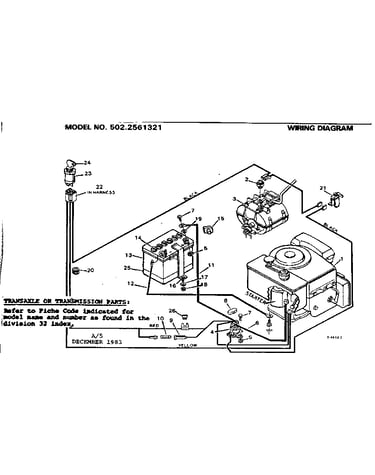

Wiring diagram diagram

Battery

Part #54141

The manufacturer no longer makes this part, and there's no substitute part

Tire 24399
#63A

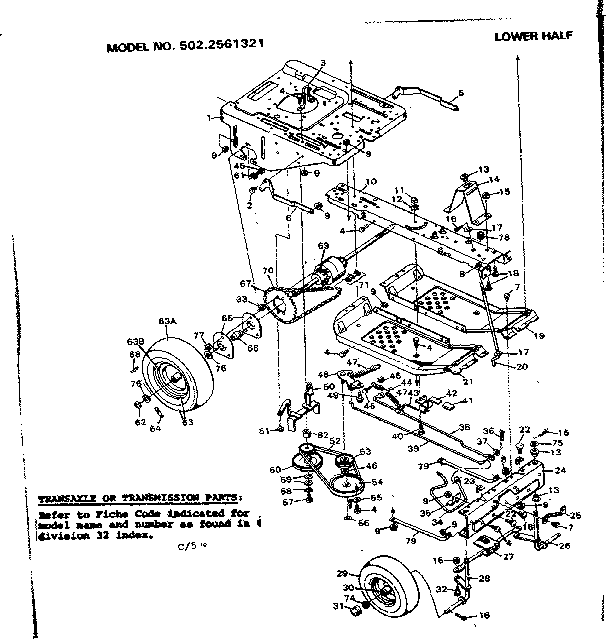

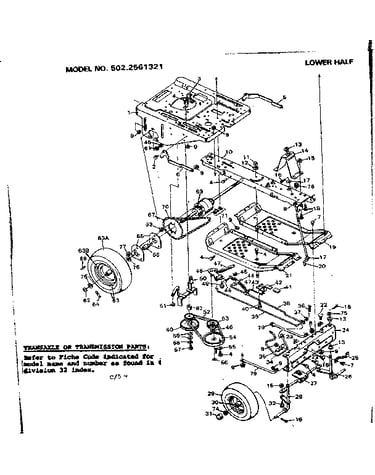

Lower half diagram

Tire

Part #24399

Replaced by #532122075

?
Manufacturer substitution
This part replaces 24399. Substitute parts can look different from the original.
BEST SELLER
$71.47 |
8% OFF Phone Price : $77.47
In Stock
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Idler Pulley 20613
Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Spacer 24533Z
Spacer

Part #24533Z

Replaced by #91925MA

?
Manufacturer substitution
This part replaces 24533Z. Substitute parts can look different from the original.
$22.54
In Stock
Washer 10851Z
Washer

Part #10851Z

Replaced by #10851ZMA

?
Manufacturer substitution
This part replaces 10851Z. Substitute parts can look different from the original.
$9.97
In Stock
Spring 166X4
#64

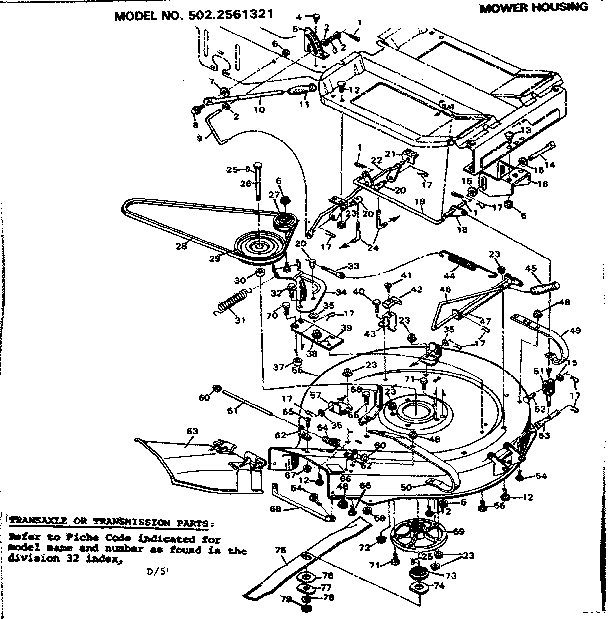

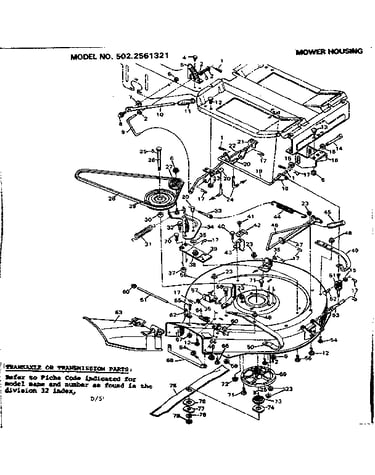

Mower housing diagram

Spring

Part #166X4

Replaced by #166X4MA

?
Manufacturer substitution
This part replaces 166X4. Substitute parts can look different from the original.
$11.80
In Stock
Belt 37X12
#28

Mower housing diagram

Belt

Part #37X12

Replaced by #37X12MA

?
Manufacturer substitution
This part replaces 37X12. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$44.11
In Stock
Wheel 24391E
#63B

Lower half diagram

Wheel

Part #24391E

Replaced by #92308601MA

?
Manufacturer substitution
This part replaces 24391E. Substitute parts can look different from the original.
$227.31
In Stock
