GE
Electric Range

Model # JAS03*M3 Official GE range

Here are the diagrams and repair parts for Official GE JAS03M3 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Unit Pan 8" WB32X5073
#167

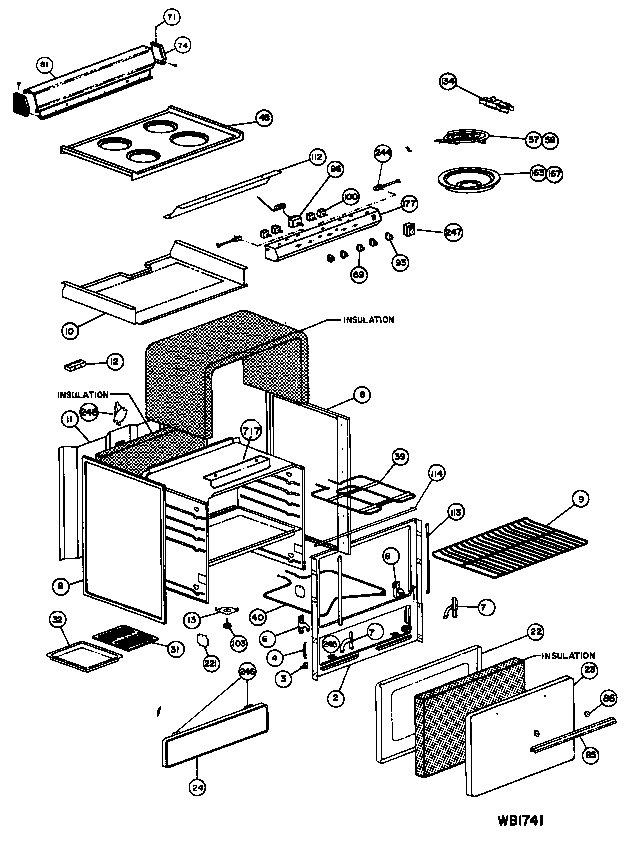

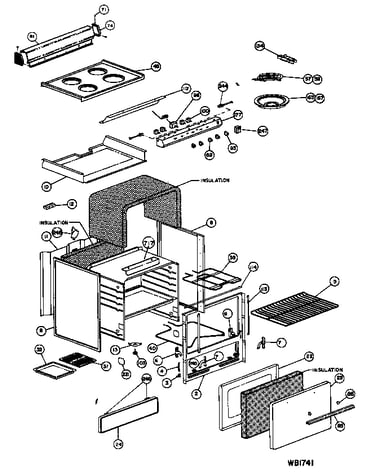

Chassis assembly diagram

Unit pan 8"

Part #WB32X5073

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces WB32X5073. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Sur Unit 8" WB30X5095
#58

Chassis assembly diagram

Sur unit 8"

Part #WB30X5095

Replaced by #WB30X253

?
Manufacturer substitution
This part replaces WB30X5095. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Receptacle WB17X5111
#134

Chassis assembly diagram

Receptacle

Part #WB17X5111

Replaced by #WB18X30954

?
Manufacturer substitution
This part replaces WB17X5111. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Light Switch WB24X5253
#247

Chassis assembly diagram

Oven light switch

Part #WB24X5253

Replaced by #WB24K5035

?
Manufacturer substitution
This part replaces WB24X5253. Substitute parts can look different from the original.
This item is not returnable
$20.34 |
23% OFF Phone Price : $26.34
In Stock
Sur Unt Sw 8 WB23X5084
#100B

Chassis assembly diagram

Sur unt sw 8

Part #WB23X5084

Replaced by #WB21X5349

?
Manufacturer substitution
This part replaces WB23X5084. Substitute parts can look different from the original.
$96.13 |
11% OFF Phone Price : $108.13
In Stock
Range Bake Element WB44X5094
#40

Chassis assembly diagram

Range bake element

Part #WB44X5094

$40.84
In Stock
Sur Unt Sw 6 WB23X5083
#100A

Chassis assembly diagram

Sur unt sw 6

Part #WB23X5083

Replaced by #WB21X5348

?
Manufacturer substitution
This part replaces WB23X5083. Substitute parts can look different from the original.
$116.63 |
9% OFF Phone Price : $128.63
In Stock
Thermostat WB24X5285
#96

Chassis assembly diagram

Thermostat

Part #WB24X5285

The manufacturer no longer makes this part, and there's no substitute part

Unit Pan 6" WB32X5072
#163

Chassis assembly diagram

Unit pan 6"

Part #WB32X5072

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces WB32X5072. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Surface Knob WB3X5747
#93

Chassis assembly diagram

Surface knob

Part #WB3X5747

Replaced by #WB3K5069

?
Manufacturer substitution
This part replaces WB3X5747. Substitute parts can look different from the original.
$27.39 |
18% OFF Phone Price : $33.39
In Stock
