Model # GFU17M3AW0 Official Gibson freezer

Here are the diagrams and repair parts for Official Gibson GFU17M3AW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Filter Drier 216634500
#4

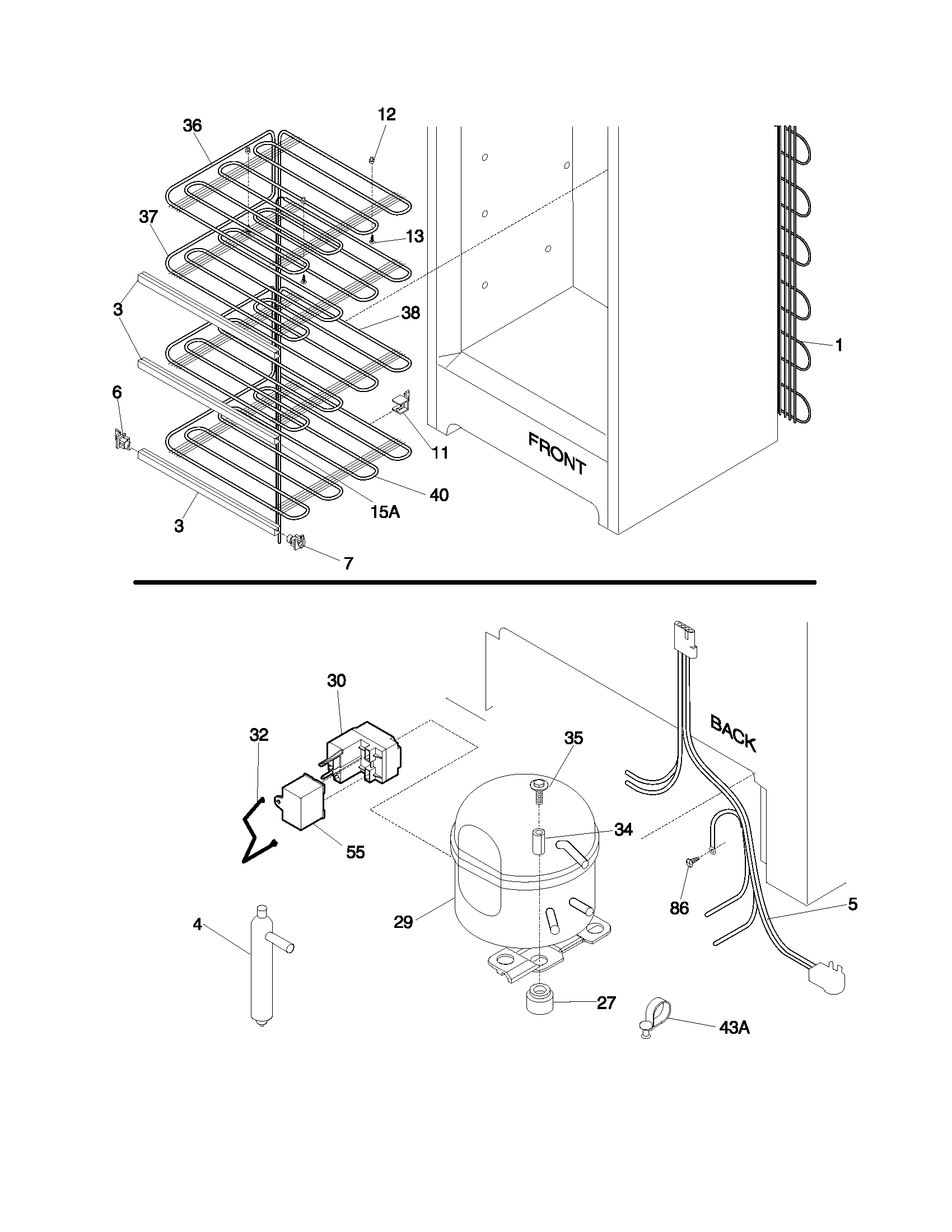

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

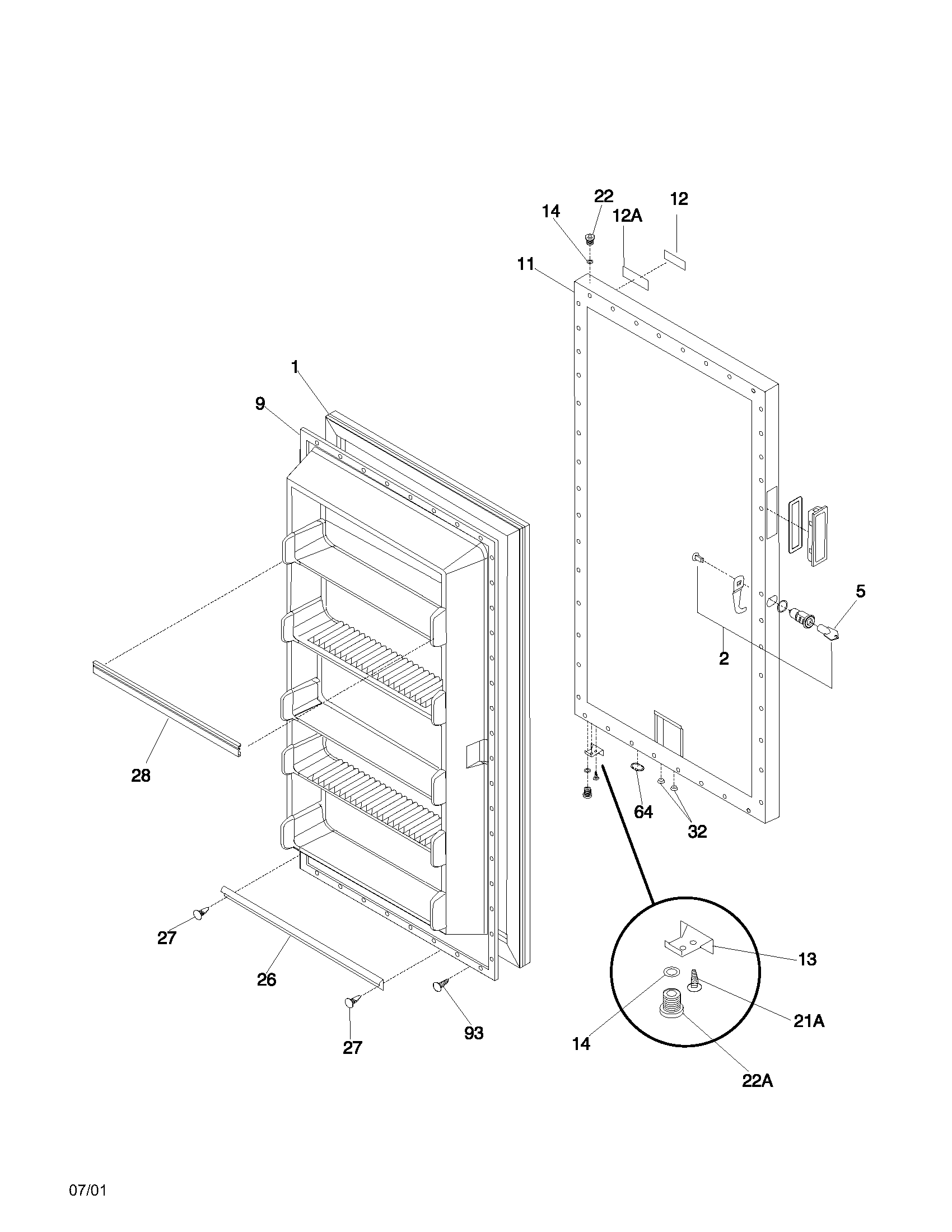

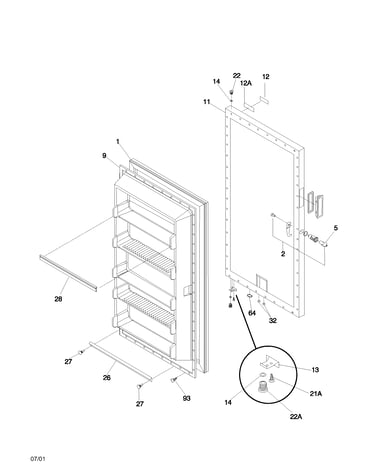

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Freezer Door Gasket 216522309
#1

Door diagram

Freezer door gasket

Part #216522309

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522309. Substitute parts can look different from the original.
BEST SELLER
$116.27 |
9% OFF Phone Price : $128.27
In Stock
Chest Freezer Run Capacitor 218909901
#55

System diagram

Chest freezer run capacitor

Part #218909901

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909901. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Freezer Door Closer Bearing 216503300
#26

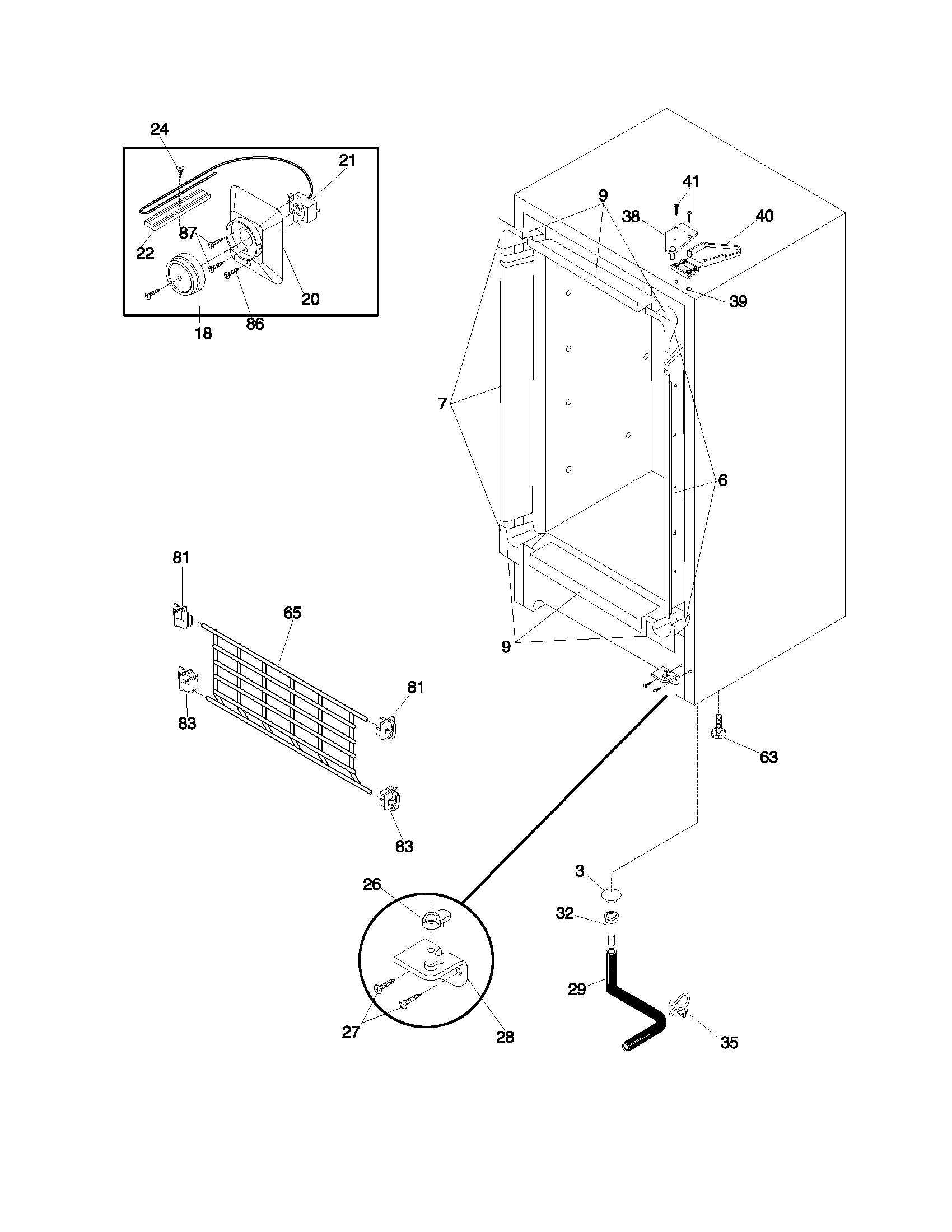

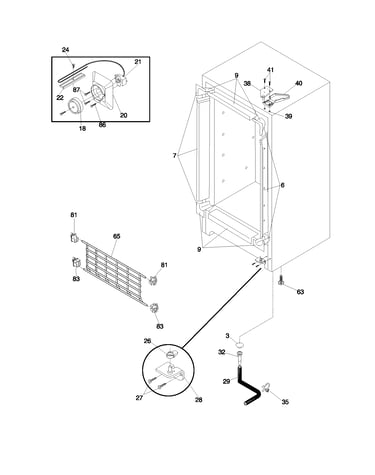

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Condenser Coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, F000300847, F000900204, F112069, F118630, F83339, F83727, F83897) 5300083897
#1

System diagram

Freezer condenser coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, f000300847, f000900204, f112069, f118630, f83339, f83727, f83897)

Part #5300083897

This item is not returnable
$417.18 |
$12.00 OFF Phone Price : $429.18
In Stock
Refrigerator Electronic Control Board 216649300
#30

System diagram

Refrigerator electronic control board

Part #216649300

Replaced by #5304491583

?
Manufacturer substitution
This part replaces 216649300. Substitute parts can look different from the original.
$63.18 |
9% OFF Phone Price : $69.18
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
