Model # N4H342GKA100 Official ICP split-system air conditioner
Here are the diagrams and repair parts for Official ICP N4H342GKA100 split-system air conditioner, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
N4H342GKA100 Split-System Air Conditioner
#26

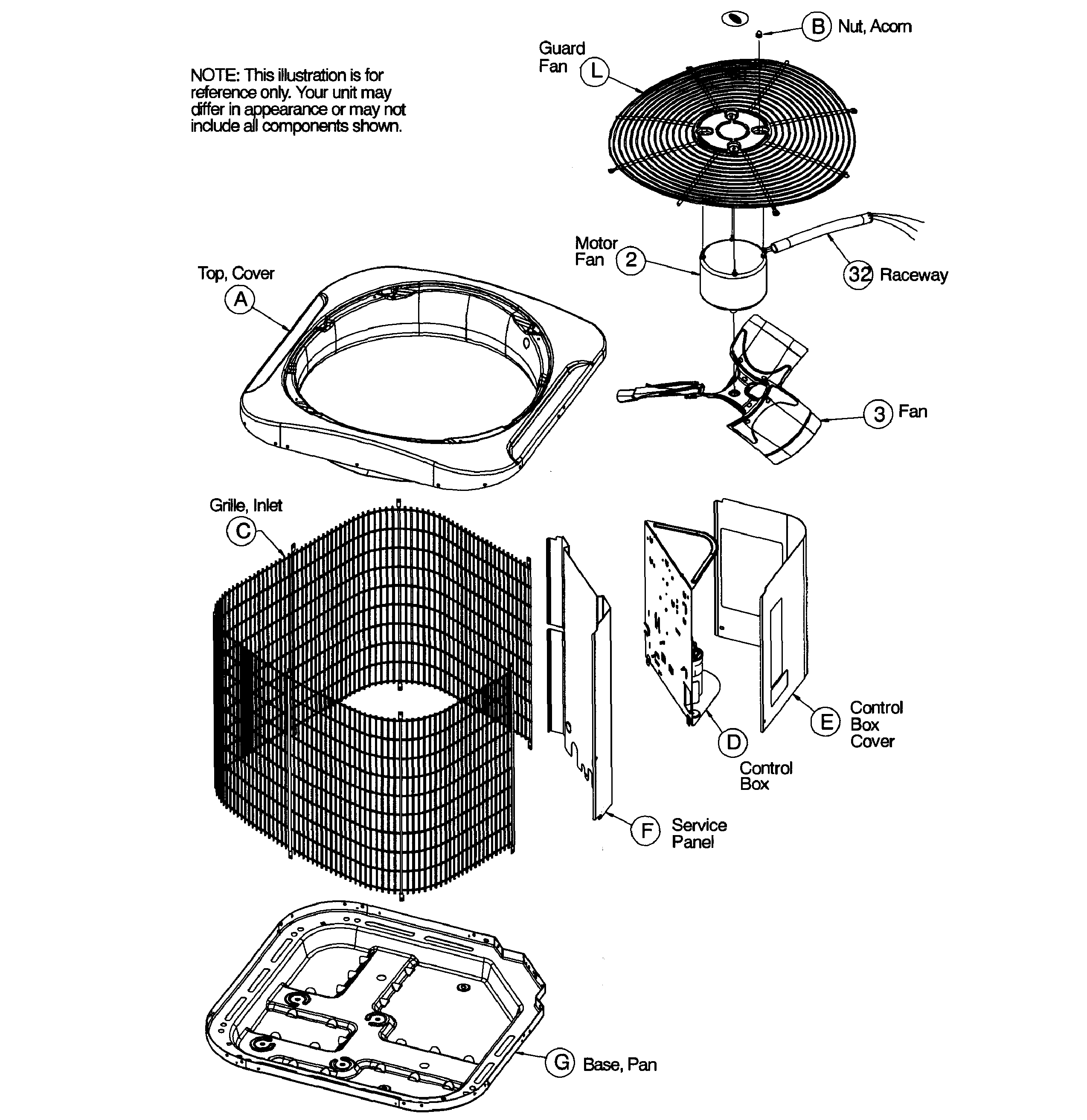

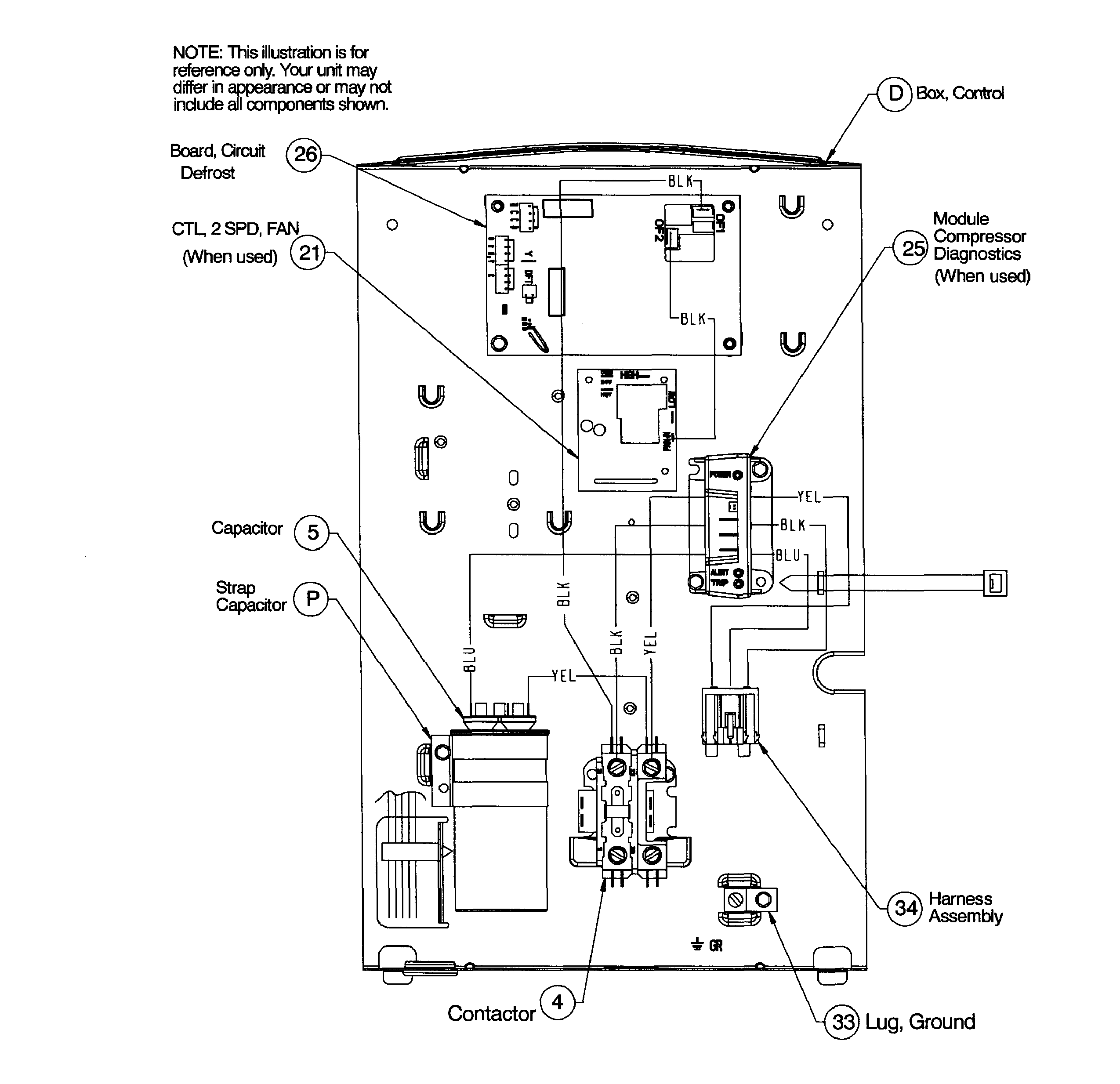

Control box diagram
Condensing unit defrost control board
Part #1173636
$190.41 |
6% OFF Phone Price : $202.41
Back Order
#4
Control box diagram
Central air conditioner contactor
Part #1172472
$61.35 |
9% OFF Phone Price : $67.35
In Stock
#22

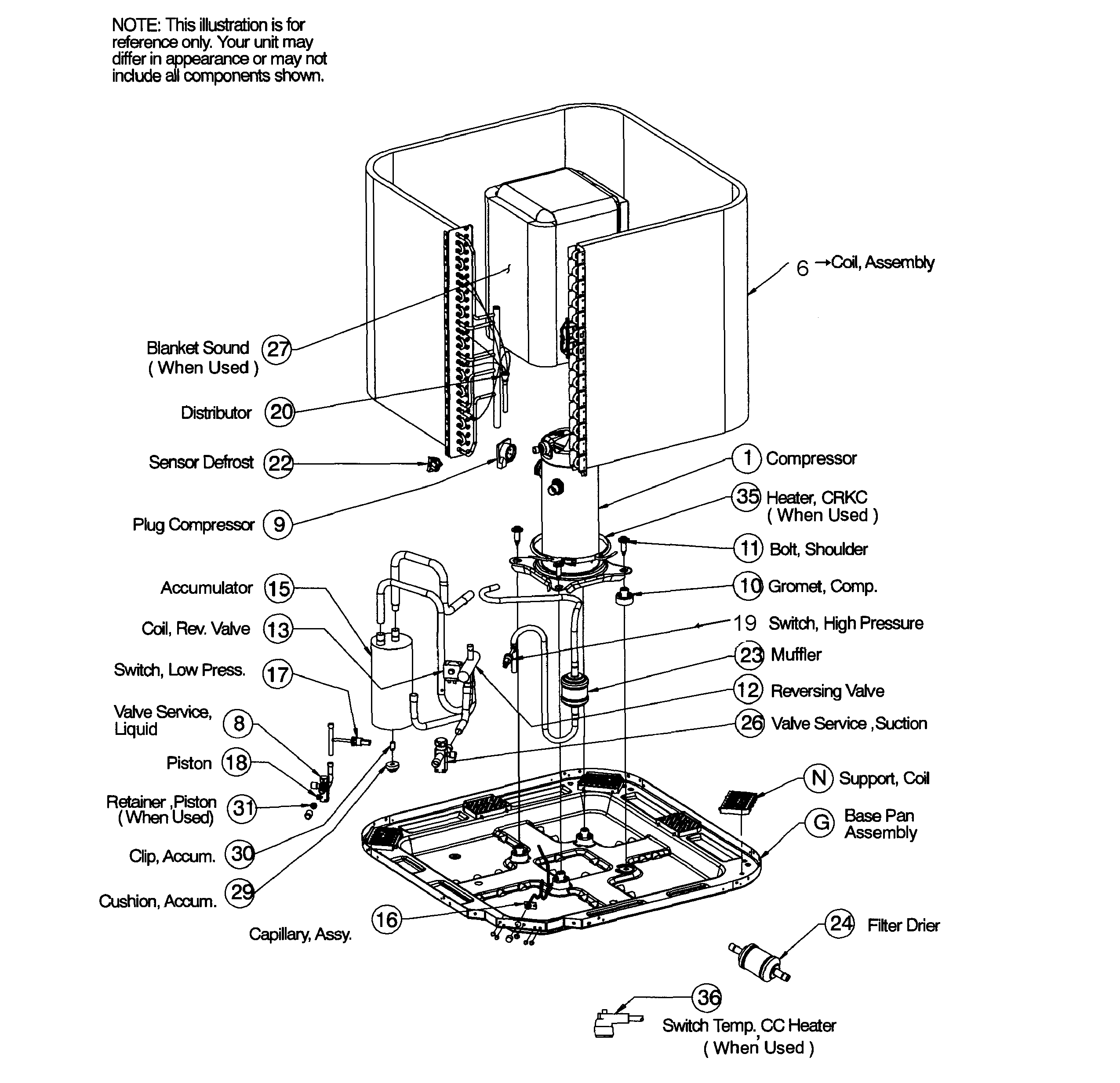

Heat pump diagram
Central air conditioner heat pump defrost control
Part #1173637
$1133.91
In Stock
#17
Heat pump diagram
Switch
Part #1174694
$59.67
In Stock
#30
Heat pump diagram
Clip
Part #1173640
This item is not returnable
$2.16
In Stock
#31
Heat pump diagram
Retainer
Part #1173641
$16.00
In Stock
#N
Heat pump diagram
Support
Part #1174068
$21.40
In Stock
#6
Heat pump diagram
Condenser coil
Part #1174101
$3031.86
In Stock
#10
Heat pump diagram
Carrier grommet
Part #1171270
This item is not returnable
$4.00
In Stock
#16
Heat pump diagram
Capillary
Part #1174096
$135.14
In Stock
