Crosley
Washer

Model # CW5000A Official Crosley washer

Here are the diagrams and repair parts for Official Crosley CW5000A washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

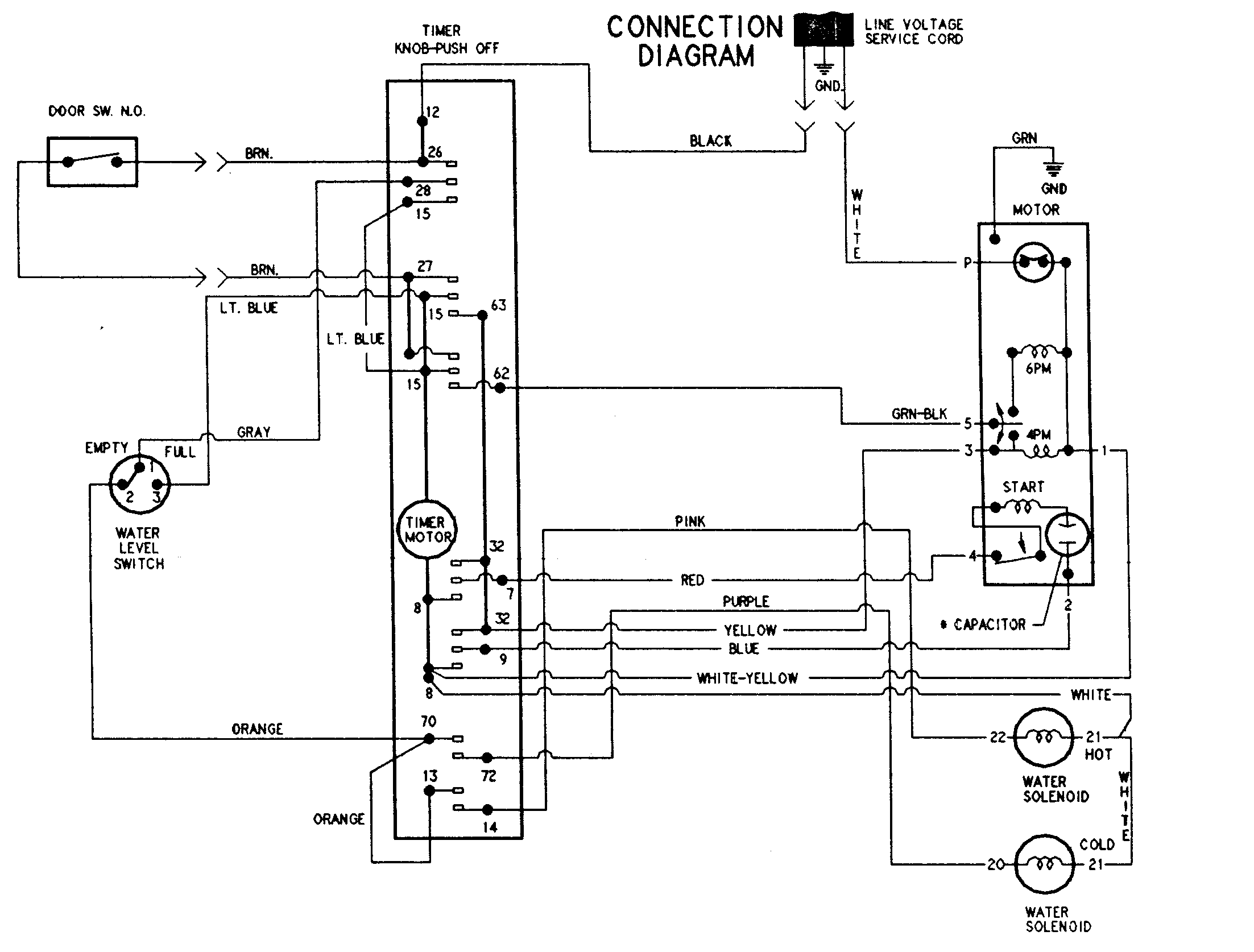

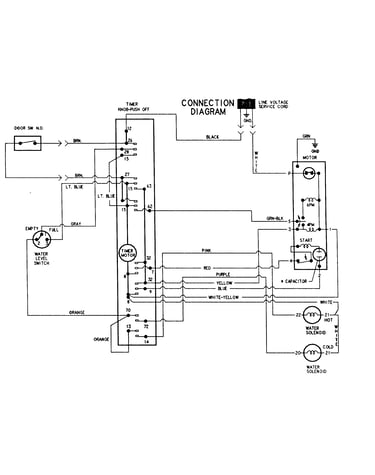

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Clamp, Pressure Switch Hose 25-7796
#21

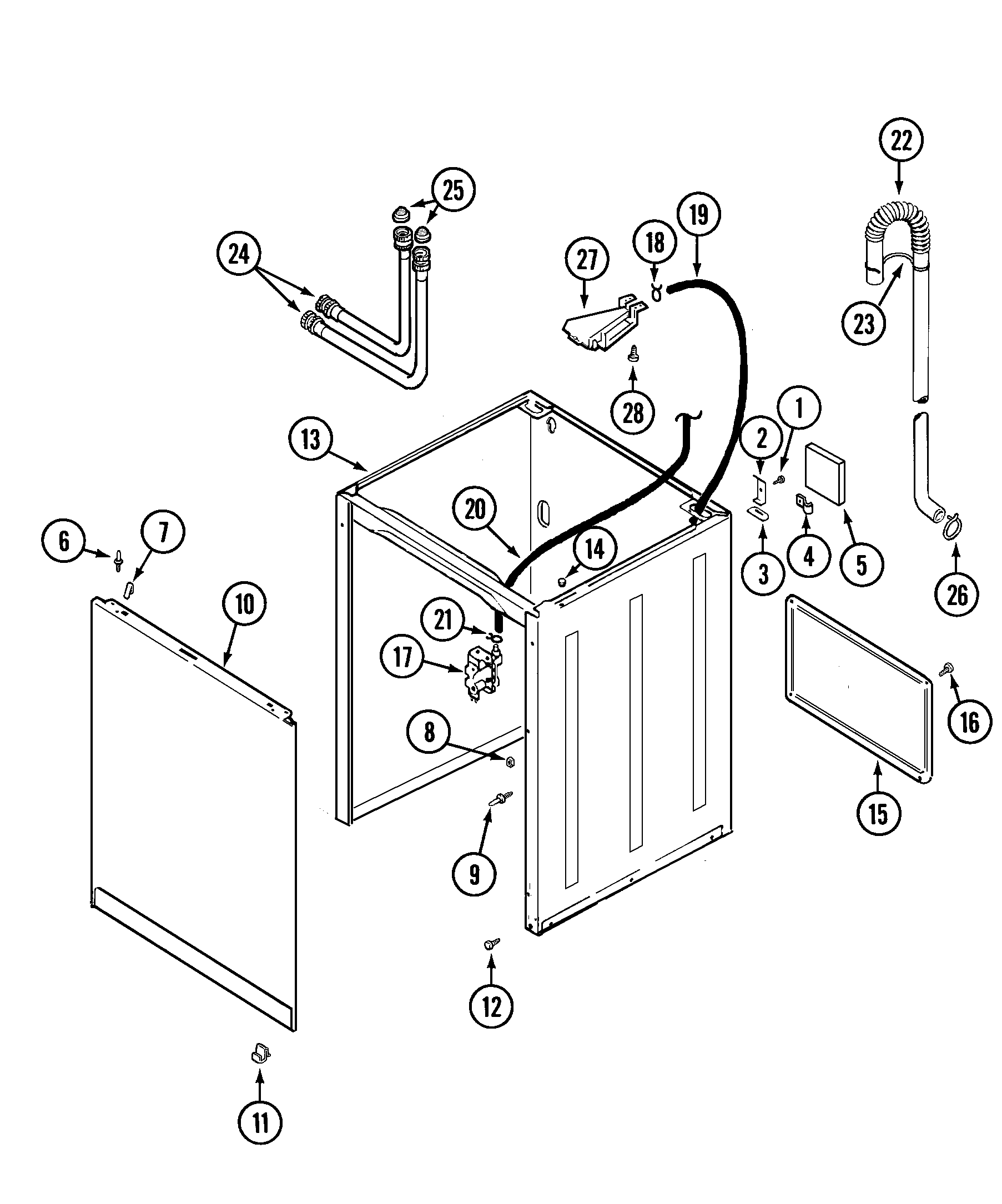

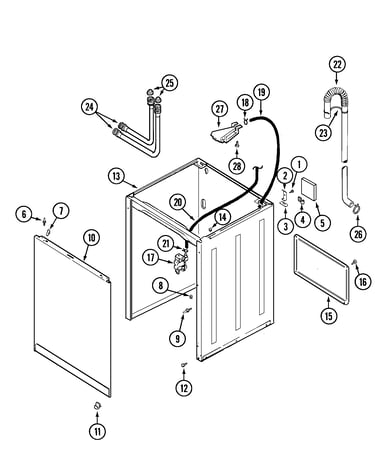

Cabinet diagram

Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 25-7867
#18

Cabinet diagram

Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Motor With Pulley 21001516
#2

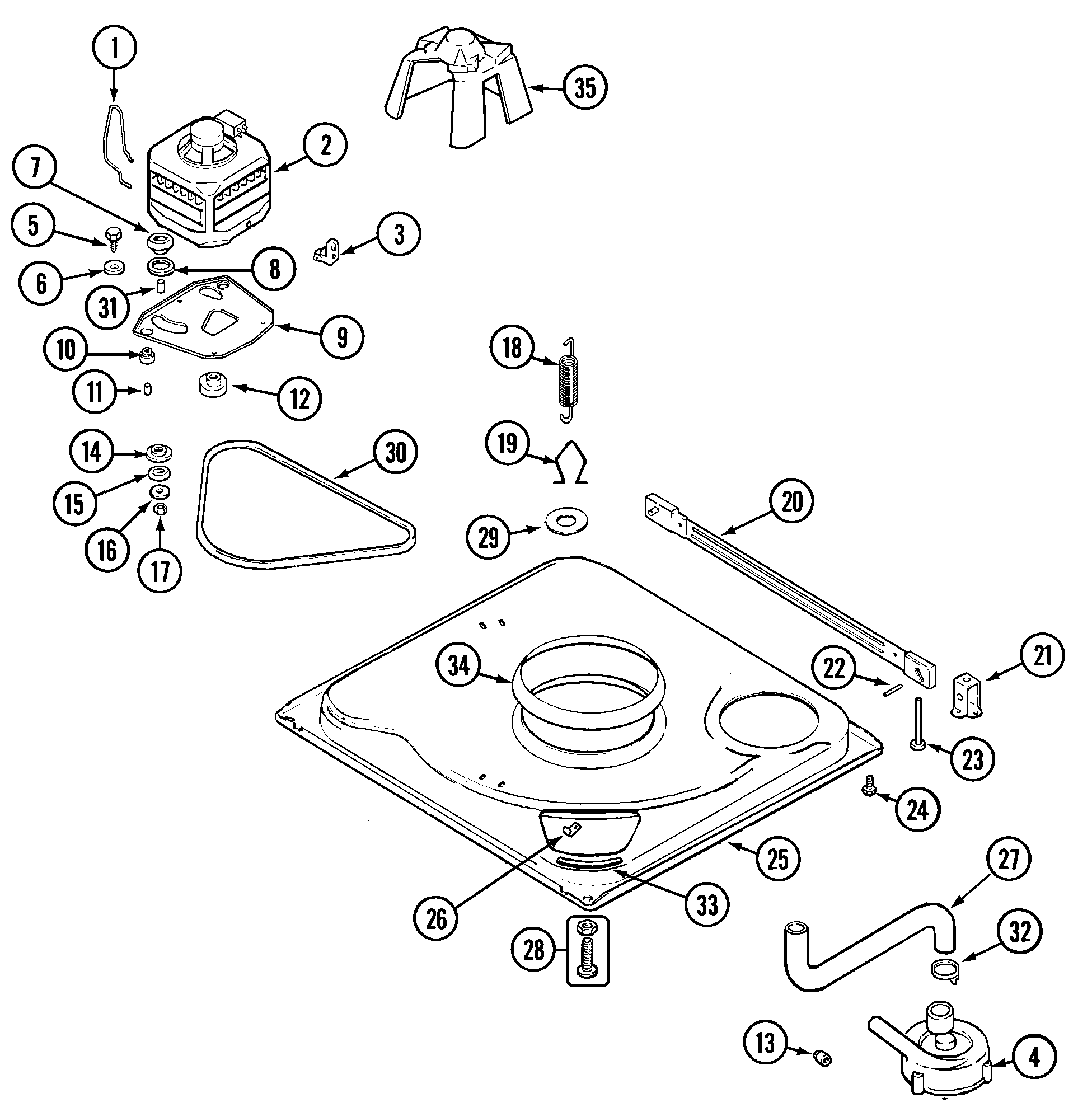

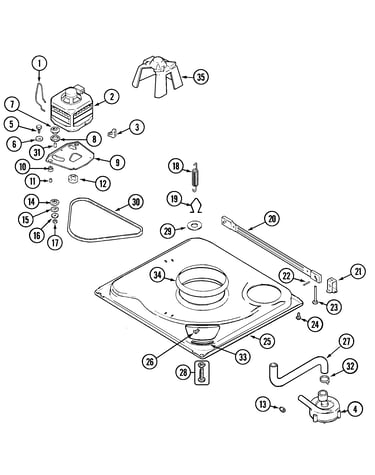

Base diagram

Motor with pulley

Part #21001516

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001516. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Washer Drive Motor 21001506
#12

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Keps Nut Motor 311426
#8

Cabinet diagram

Keps nut motor

Part #311426

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 311426. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Snubber 21001161
Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Washer Suspension Spring 21001598
#18

Base diagram

Washer suspension spring

Part #21001598

Replaced by #WP21001598

?
Manufacturer substitution
This part replaces 21001598. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Water Inlet Valve 35-2374N
#17

Cabinet diagram

Washer water inlet valve

Part #35-2374N

$180.32
In Stock
Screw 25-7893
Screw

Part #25-7893

Replaced by #WP25-7893

?
Manufacturer substitution
This part replaces 25-7893. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Washer Water-level Switch 21001554
#5

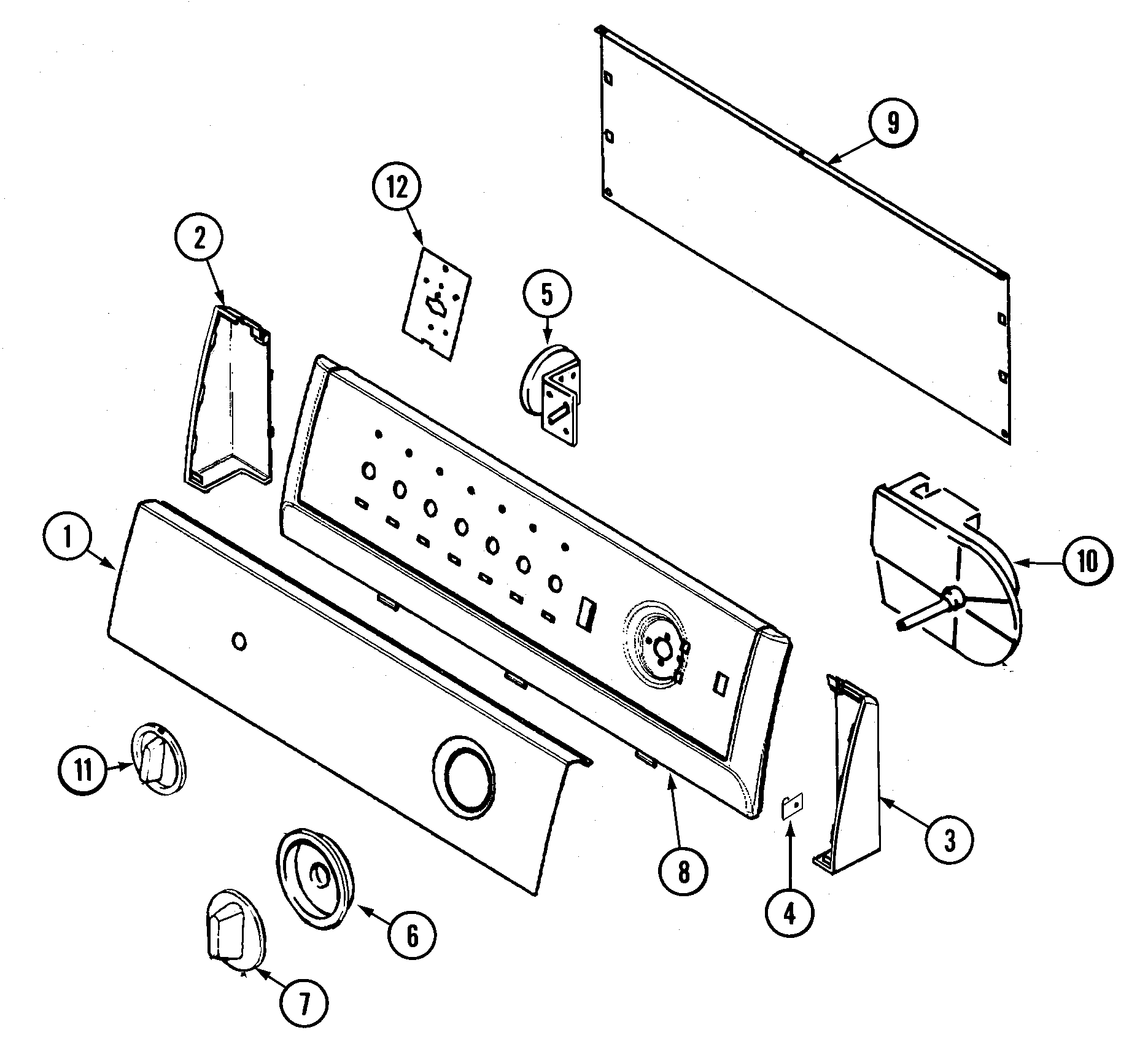

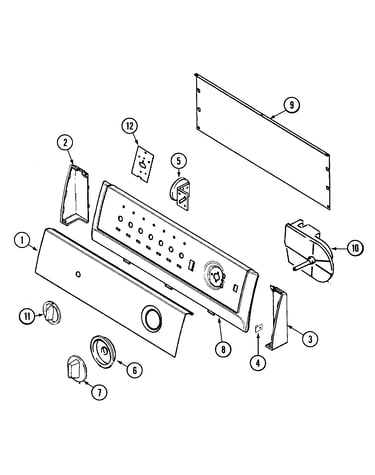

Control panel diagram

Washer water-level switch

Part #21001554

Replaced by #WP21001554

?
Manufacturer substitution
This part replaces 21001554. Substitute parts can look different from the original.
$76.55 |
7% OFF Phone Price : $82.55
In Stock
