Model # 11652612201 Official Kenmore powermate

Here are the diagrams and repair parts for Official Kenmore 11652612201 powermate, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Vacuum Foam Filter 4370713
#8

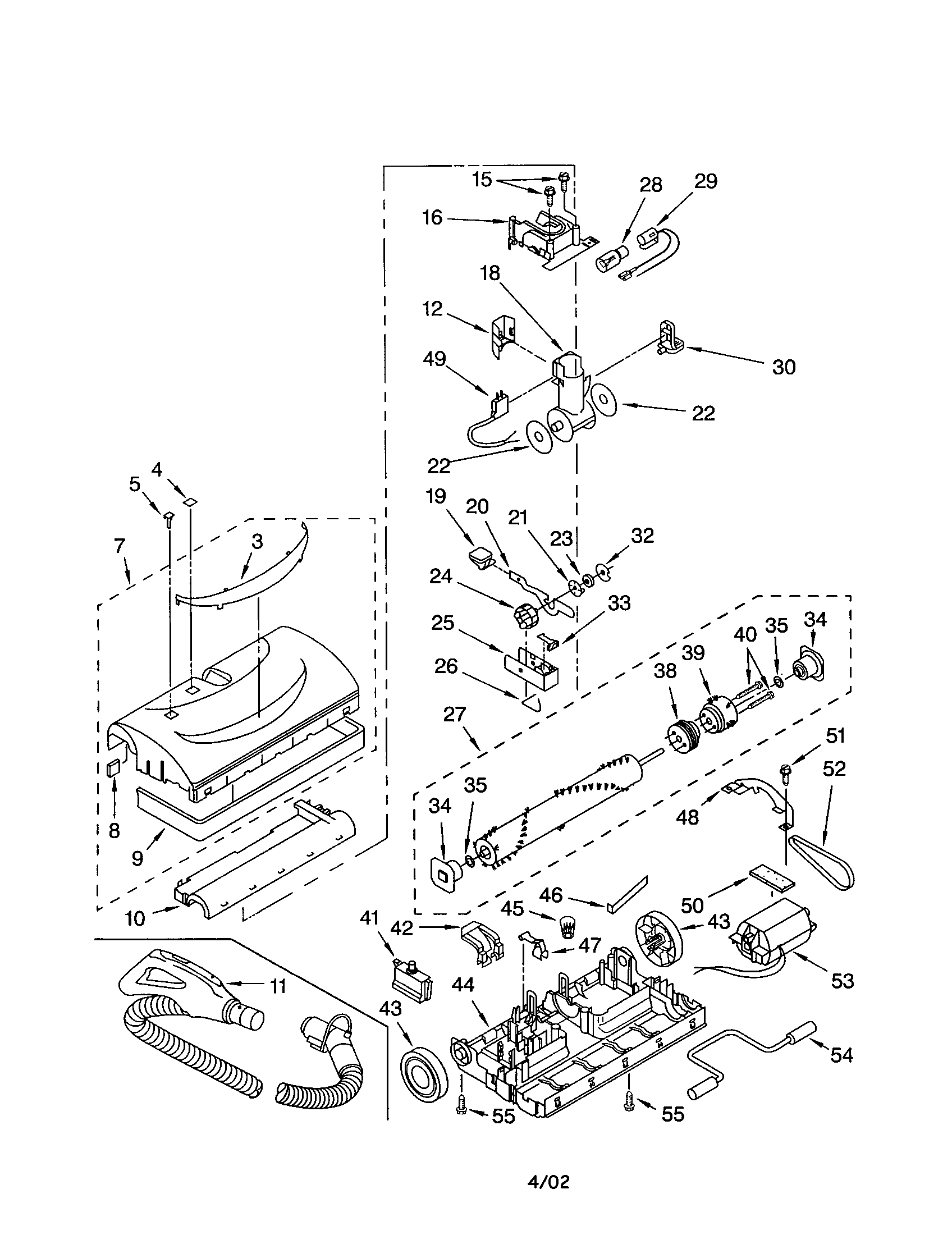

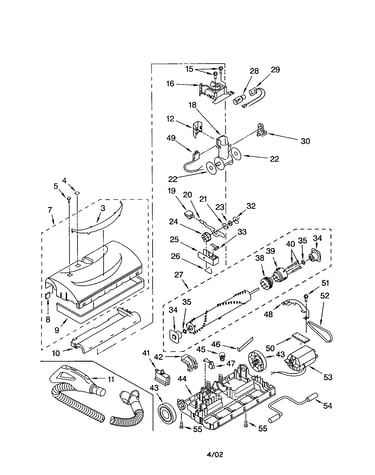

Power-mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Release 4370578
#42

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
End Brush (black) 8175101
#39

Power-mate diagram

End brush (black)

Part #8175101

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 8175177
#12

Power-mate diagram

Plug cover

Part #8175177

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 4370714
#9

Power-mate diagram

Vacuum furniture guard

Part #4370714

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 4368522
#45

Power-mate diagram

Twist-on wire connector

Part #4368522

The manufacturer no longer makes this part, and there's no substitute part

Motor (black) 8175246
#53

Power-mate diagram

Motor (black)

Part #8175246

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4153196
#18

Power-mate diagram

Swivel

Part #4153196

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 8175201
#7

Power-mate diagram

Nozzle

Part #8175201

The manufacturer no longer makes this part, and there's no substitute part
