Model # GFWS1500D1WW Official GE washer

Here are the diagrams and repair parts for Official GE GFWS1500D1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Washer Water Inlet Valve WH13X10023
#203

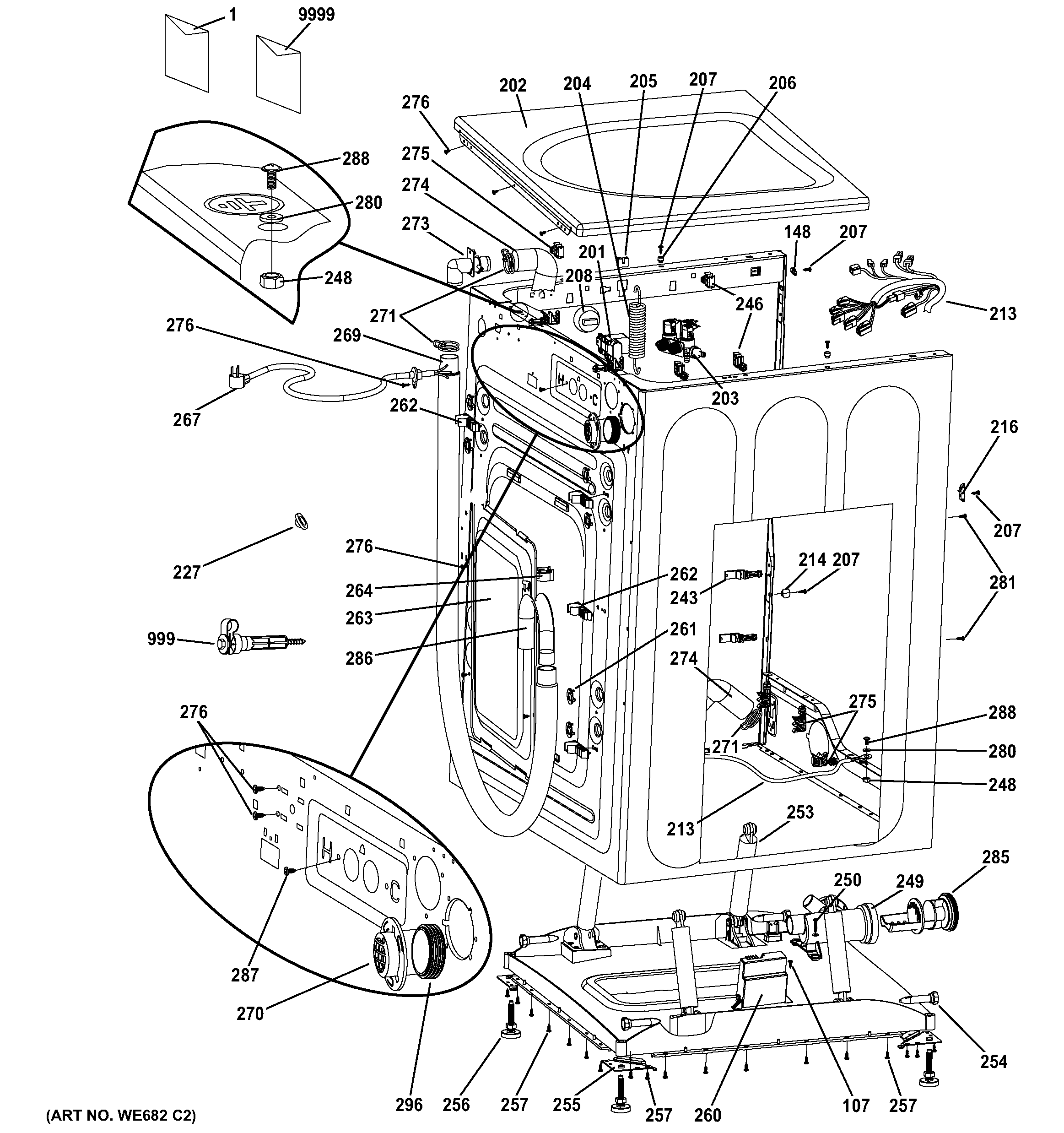

Cabinet & top panel diagram

Washer water inlet valve

Part #WH13X10023

BEST SELLER
$72.96 |
8% OFF Phone Price : $78.96
In Stock
Washer Suspension Spring WH05X10012
#204

Cabinet & top panel diagram

Washer suspension spring

Part #WH05X10012

BEST SELLER
$38.64 |
13% OFF Phone Price : $44.64
In Stock
Washer Dispenser Actuator (replaces Wh43x10031) WH43X10059
#140

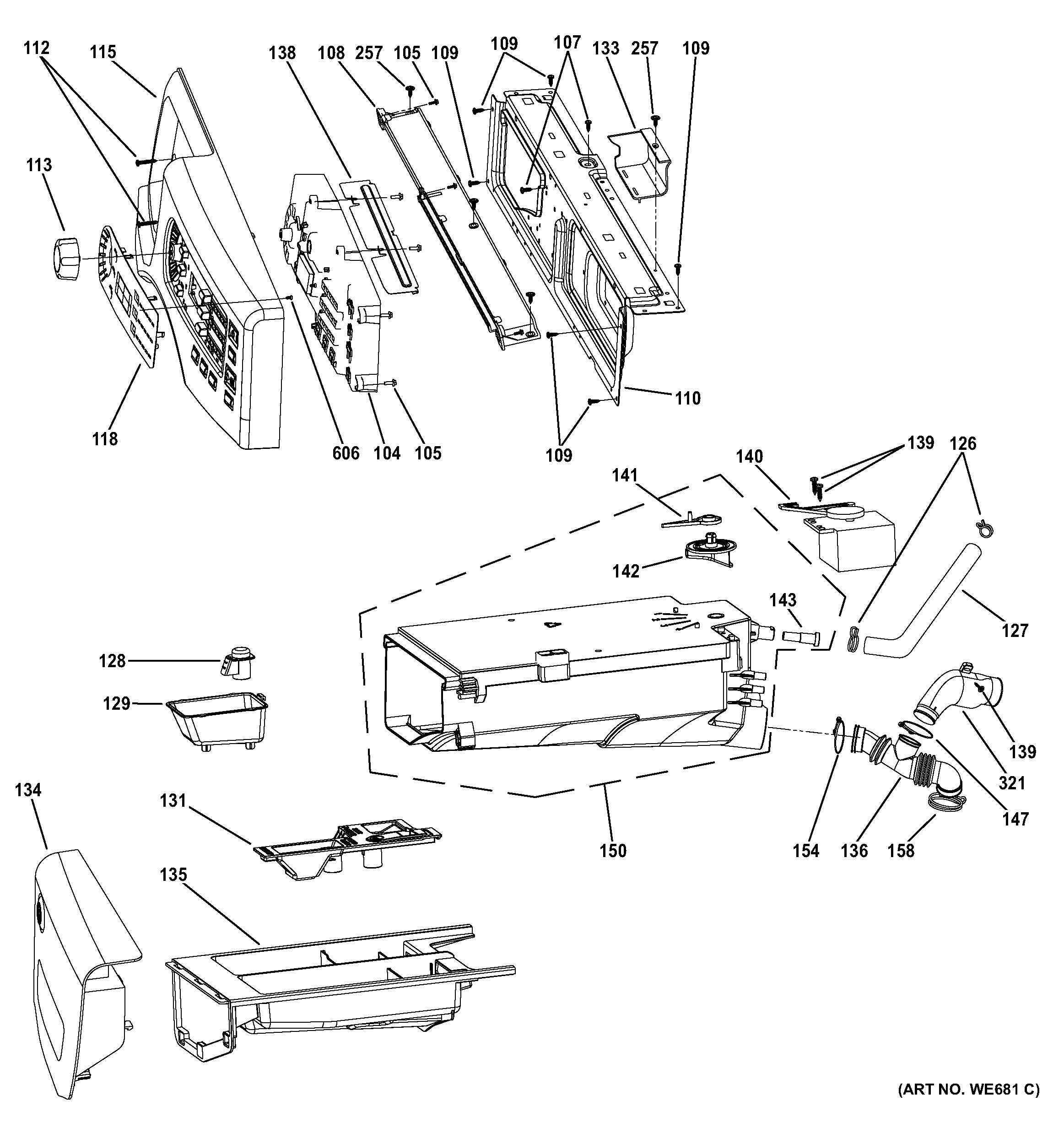

Controls & dispenser diagram

Washer dispenser actuator (replaces wh43x10031)

Part #WH43X10059

$129.55 |
8% OFF Phone Price : $141.55
In Stock
Washer Door Lock WH10X10006
#217

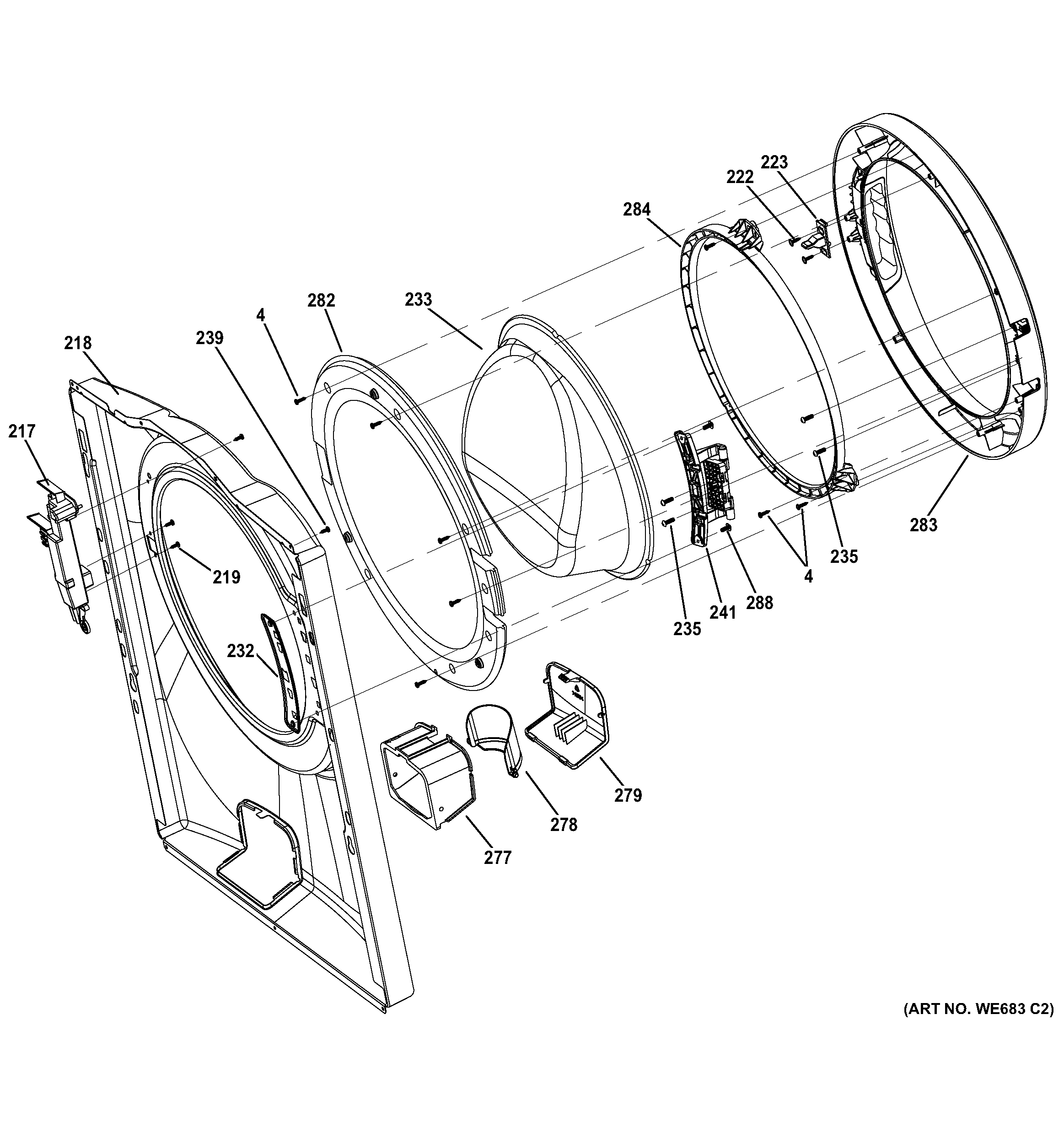

Front panel & door diagram

Washer door lock

Part #WH10X10006

$158.03 |
7% OFF Phone Price : $170.03
In Stock
Washer Drive Pulley Kit WH07X10022
#322

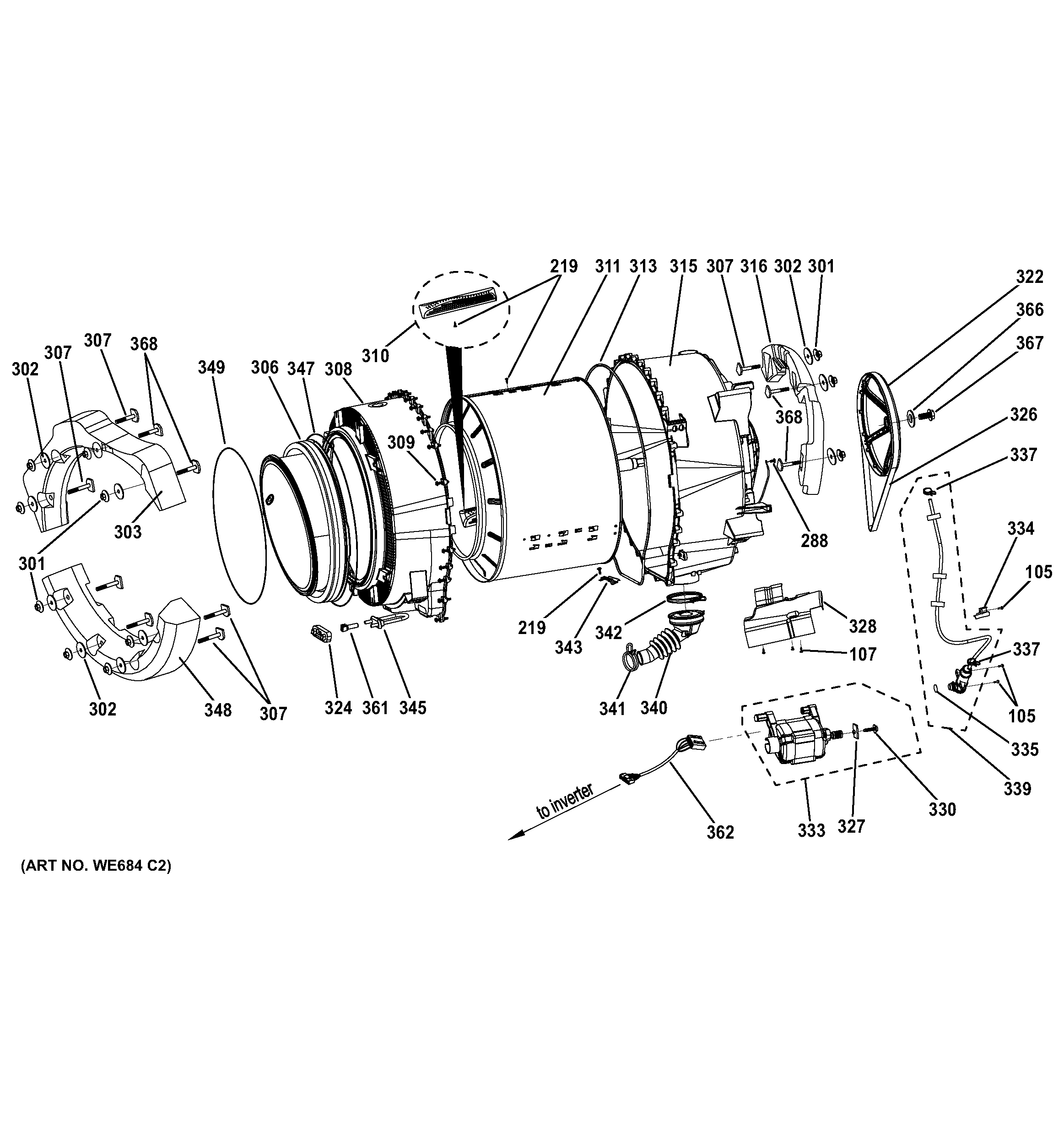

Tub & motor diagram

Washer drive pulley kit

Part #WH07X10022

$100.93 |
11% OFF Phone Price : $112.93
In Stock
Washer Drain Pump Filter (replaces Wh23x10027, Wh23x20840) WH23X10029
#285

Cabinet & top panel diagram

Washer drain pump filter (replaces wh23x10027, wh23x20840)

Part #WH23X10029

Replaced by #WH11X34741

?
Manufacturer substitution
This part replaces WH23X10029. Substitute parts can look different from the original.
$97.31
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Door Boot WH08X10064
#306

Tub & motor diagram

Washer door boot

Part #WH08X10064

$237.52 |
5% OFF Phone Price : $249.52
In Stock
Washer Door Boot Spring Clamp, Outer WH01X10279
#349

Tub & motor diagram

Washer door boot spring clamp, outer

Part #WH01X10279

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Door Boot Spring Clamp, Inner WH01X10277
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH01X10277

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
