Model # LGB356BEA2AD Official GE gas range

Here are the diagrams and repair parts for Official GE LGB356BEA2AD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
40a15bulb STD372401
#235

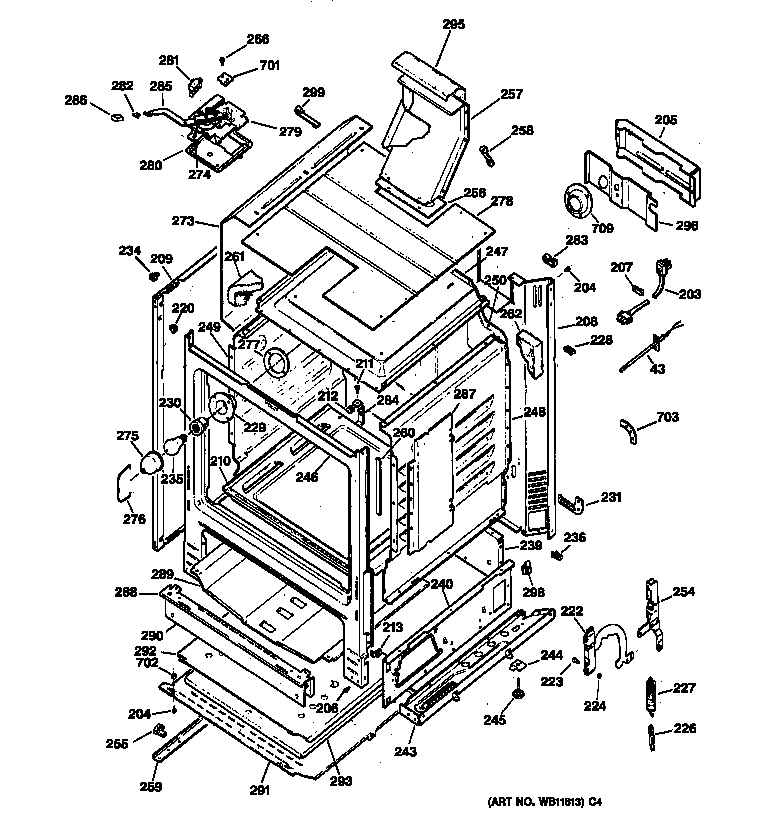

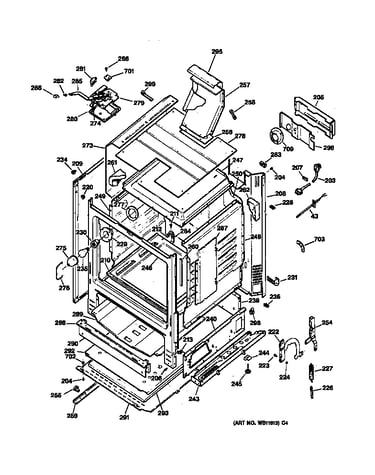

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Drawer Glide WB2K68
#343

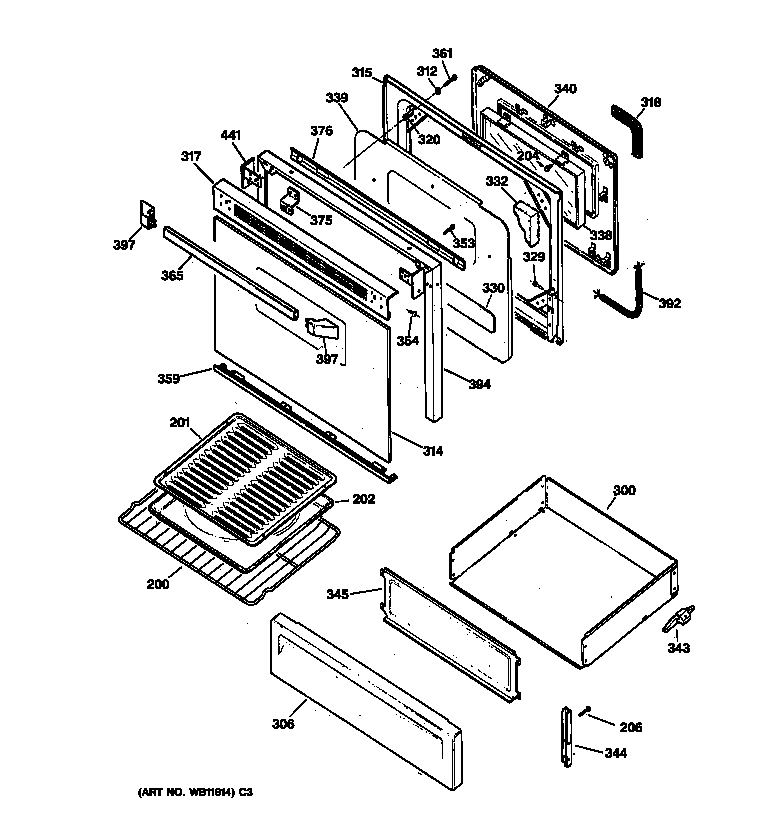

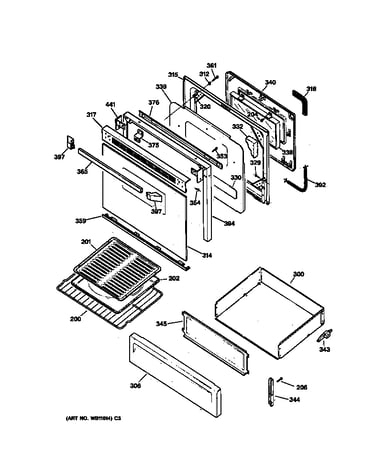

Door & drawer parts diagram

Range drawer glide

Part #WB2K68

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Handle End Cap, Right (replaces Wb07x7183, Wb15k5069, Wb7x7321) WB7X7183
#397

Door & drawer parts diagram

Range oven door handle end cap, right (replaces wb07x7183, wb15k5069, wb7x7321)

Part #WB7X7183

$15.82 |
11% OFF Phone Price : $17.82
In Stock
Range Oven Door Outer Panel (black) (replaces Wb57k0002, Wb57k10009, Wb57k10085) WB57K2
#314

Door & drawer parts diagram

Range oven door outer panel (black) (replaces wb57k0002, wb57k10009, wb57k10085)

Part #WB57K2

$165.98 |
7% OFF Phone Price : $177.98
In Stock
Range Surface Burner Grate WB31K10016
#113

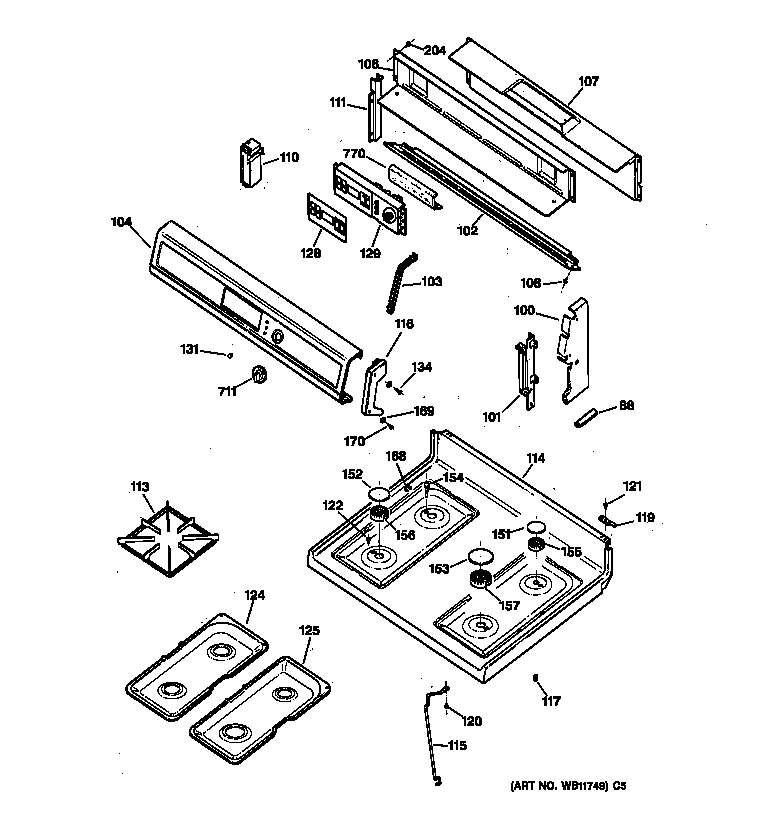

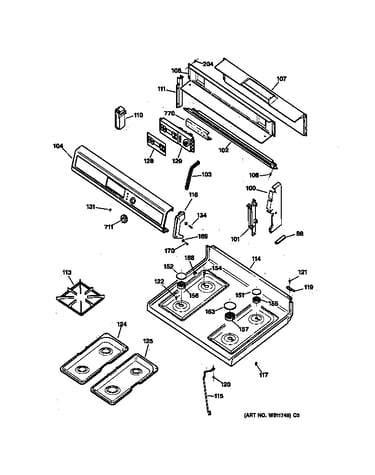

Control panel & cooktop diagram

Range surface burner grate

Part #WB31K10016

$32.16 |
16% OFF Phone Price : $38.16
In Stock
Microwave Door Handle (replaces Wb15x5203) WB15K5076
#365

Door & drawer parts diagram

Microwave door handle (replaces wb15x5203)

Part #WB15K5076

$33.13 |
15% OFF Phone Price : $39.13
In Stock
Trim WB7K384
#359

Door & drawer parts diagram

Trim

Part #WB7K384

Replaced by #WB07K10250

?
Manufacturer substitution
This part replaces WB7K384. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Range Oven Gas Valve (replaces Wb19k0014, Wb19k9) WB19K14
#214

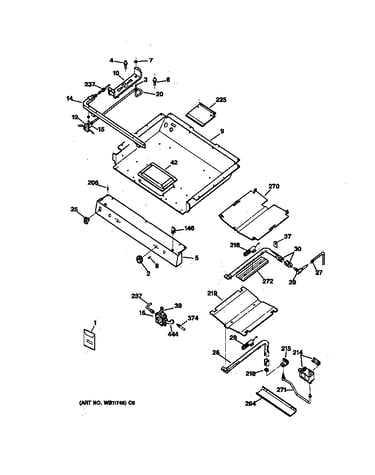

Gas & burner parts diagram

Range oven gas valve (replaces wb19k0014, wb19k9)

Part #WB19K14

$270.87 |
$12.00 OFF Phone Price : $282.87
In Stock
Screw 8-3 WB1K10002
#8

Gas & burner parts diagram

Screw 8-3

Part #WB1K10002

Replaced by #WB01K10002

?
Manufacturer substitution
This part replaces WB1K10002. Substitute parts can look different from the original.
This item is not returnable
$17.51 |
10% OFF Phone Price : $19.51
In Stock
Range Drawer Mounting Bracket WB39K20
#344

Door & drawer parts diagram

Range drawer mounting bracket

Part #WB39K20

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
