Gas Walk-Behind Mower

Model # 917378493 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378493 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Pipe Fitting 132010
#31

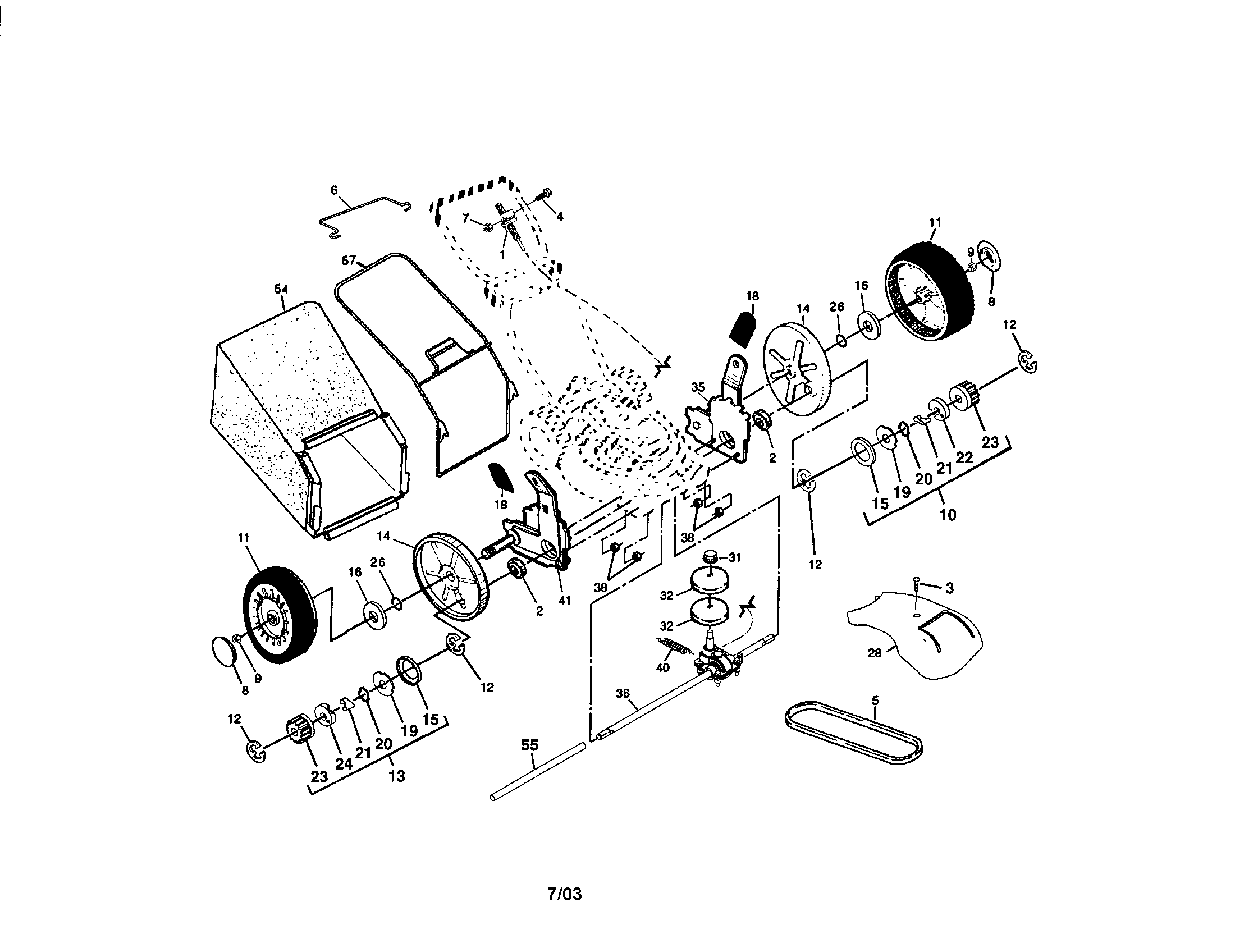

Wheels/tires/bag diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#9

Wheels/tires/bag diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#26

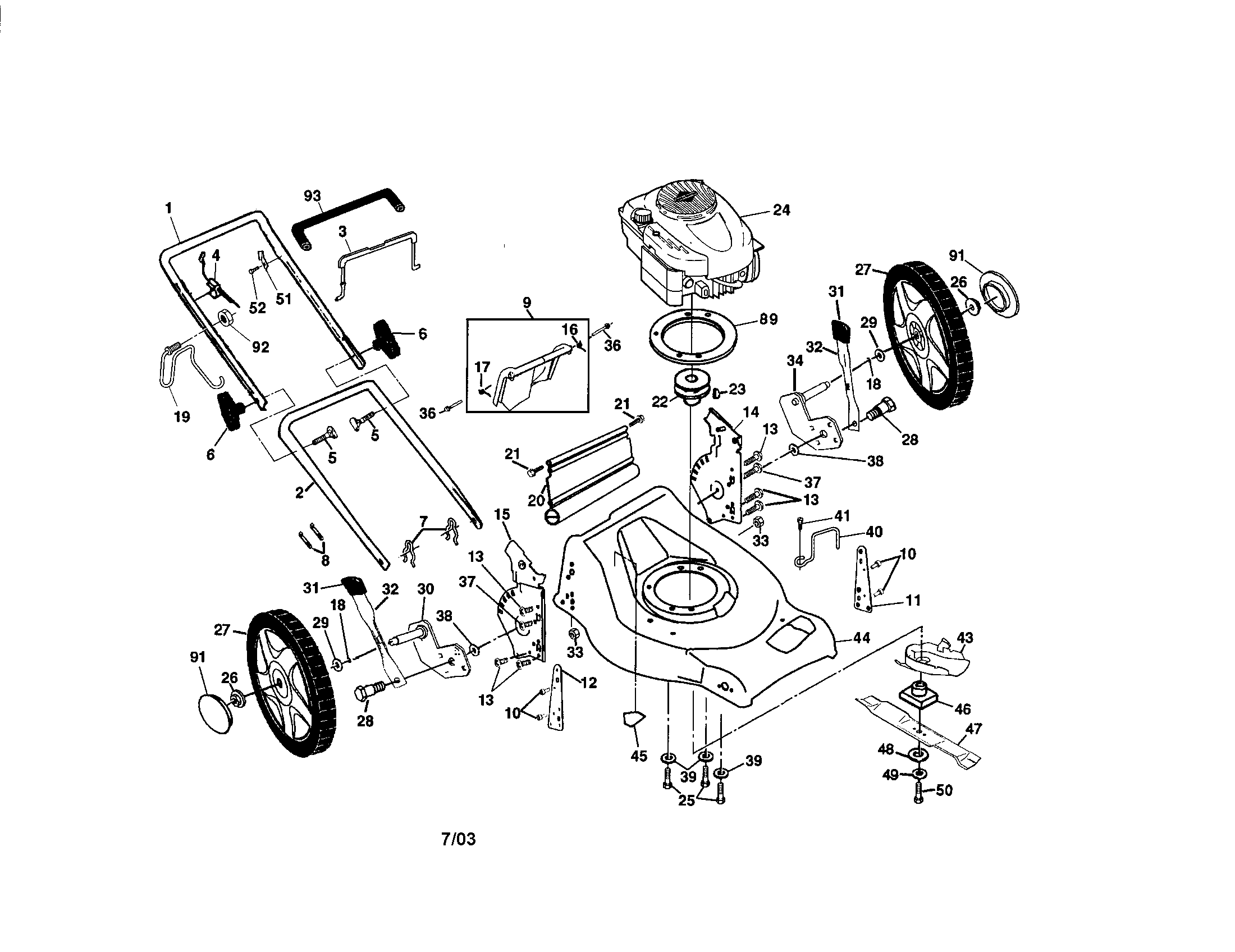

Engine/housing/handle diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Dust Cover 180504
#14

Wheels/tires/bag diagram

Dust cover

Part #180504

Replaced by #581840401

?
Manufacturer substitution
This part replaces 180504. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 73800500
#33

Engine/housing/handle diagram

Lock nut

Part #73800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Spring 188291
#20

Wheels/tires/bag diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Return Spring 182226
#40

Wheels/tires/bag diagram

Return spring

Part #182226

Replaced by #532406558

?
Manufacturer substitution
This part replaces 182226. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#21

Engine/housing/handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Blade Hex Bolt 179617
#50

Engine/housing/handle diagram

Blade hex bolt

Part #179617

Replaced by #532179617

?
Manufacturer substitution
This part replaces 179617. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Drive Wheel, 8 X 2-in (replaces 180767, 532180775, 5321807-75) 180775
#11

Wheels/tires/bag diagram

Lawn mower drive wheel, 8 x 2-in (replaces 180767, 532180775, 5321807-75)

Part #180775

Replaced by #532180775

?
Manufacturer substitution
This part replaces 180775. Substitute parts can look different from the original.
$39.98
In Stock
