Model # 5000 Official DEK generator

Here are the diagrams and repair parts for Official DEK 5000 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

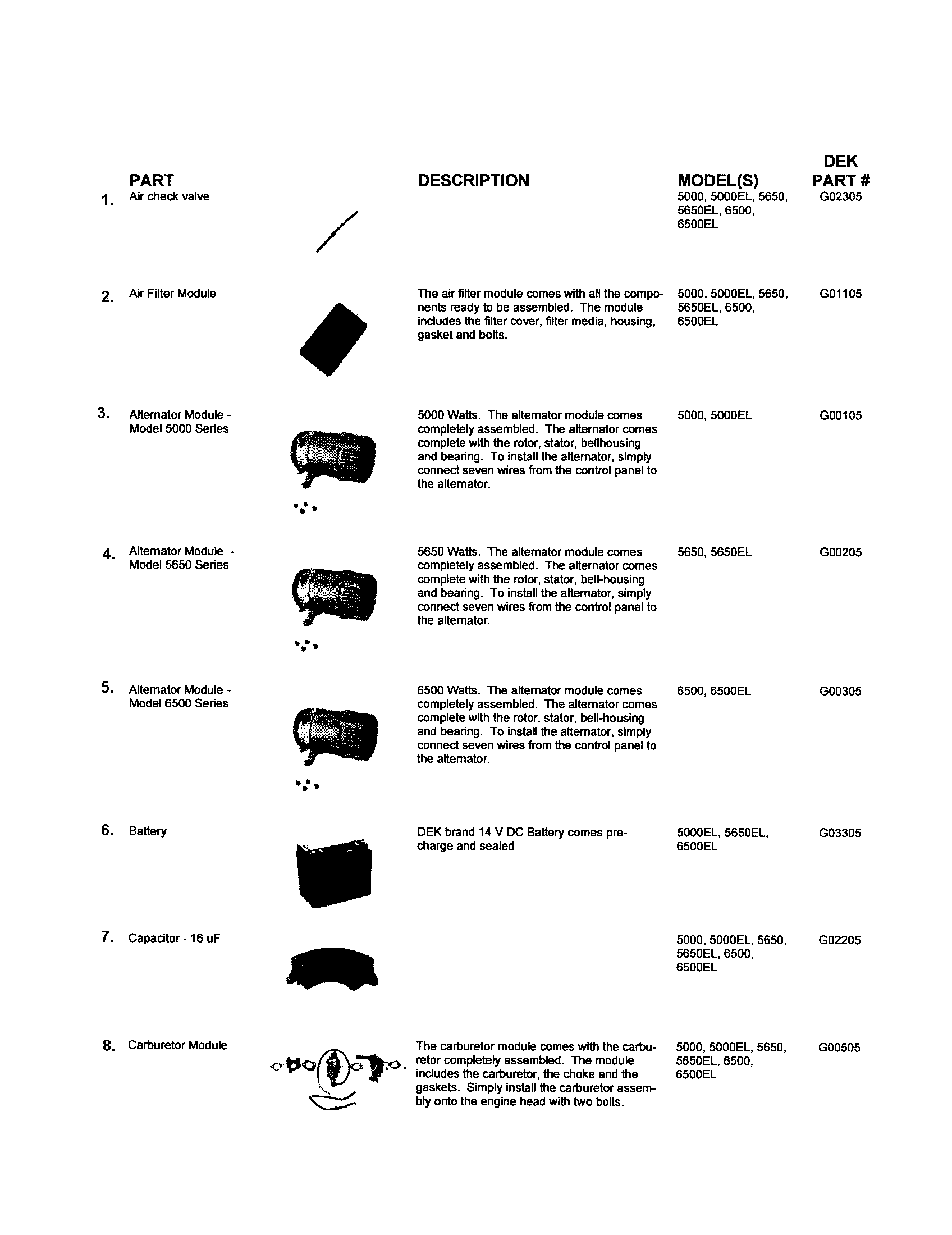

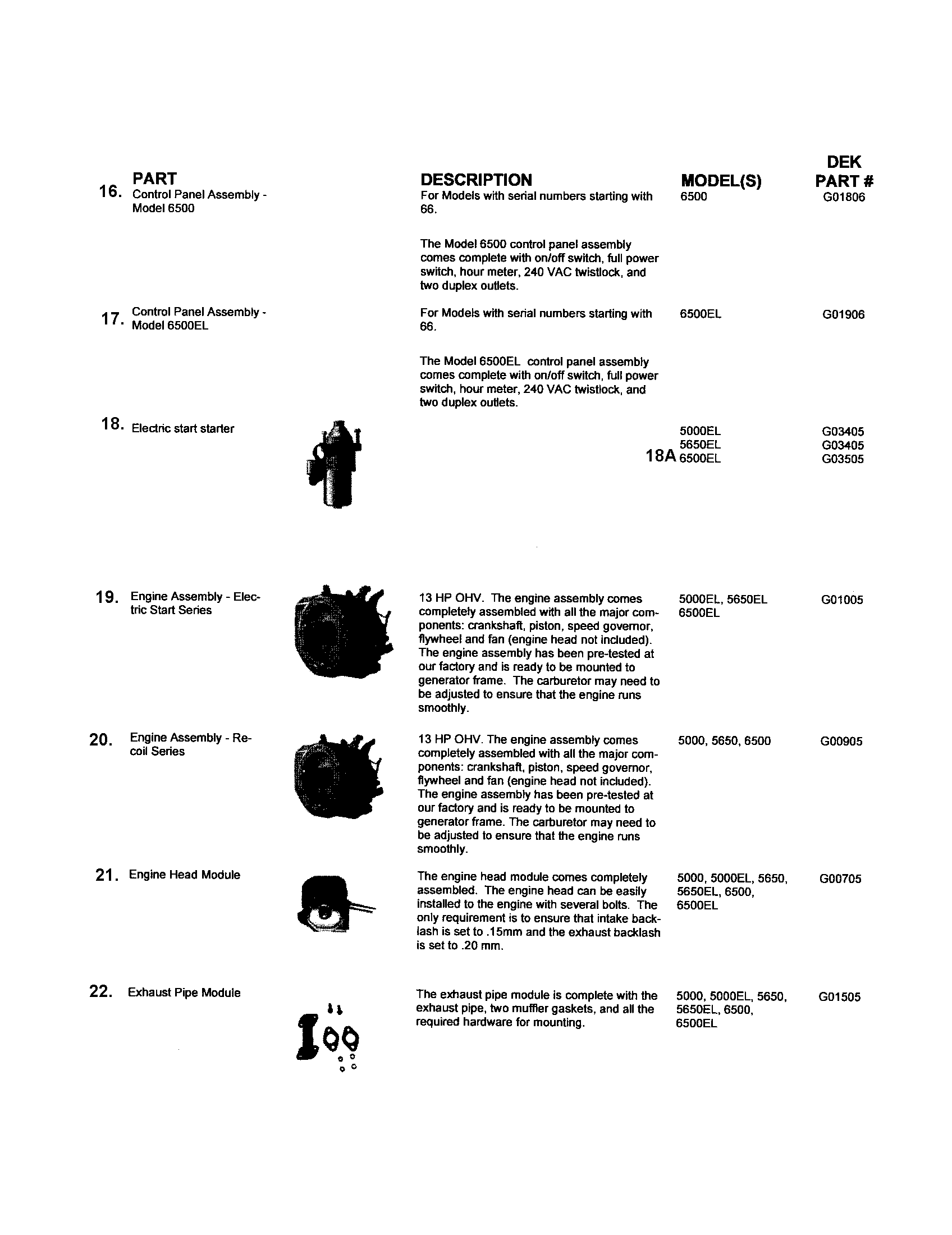

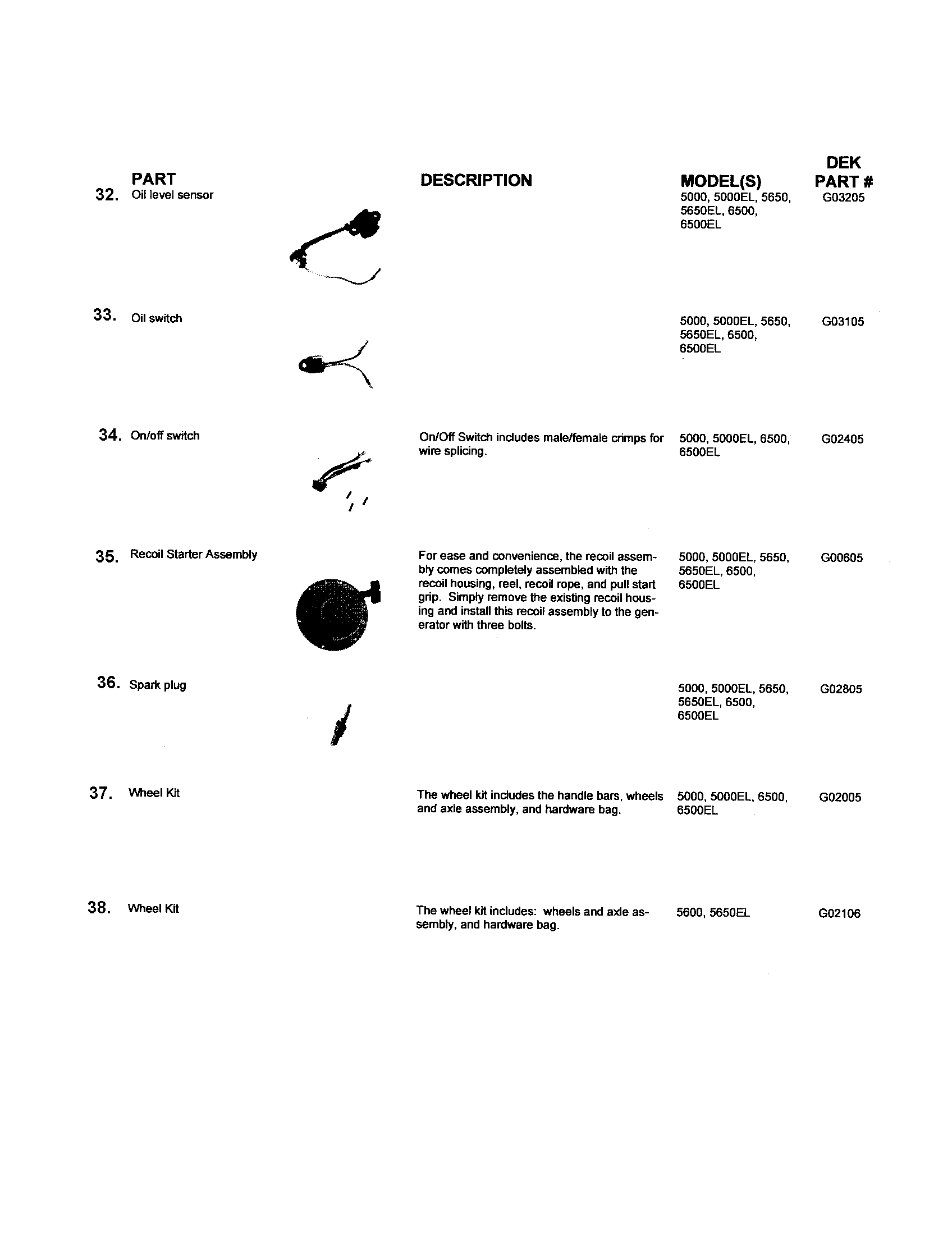

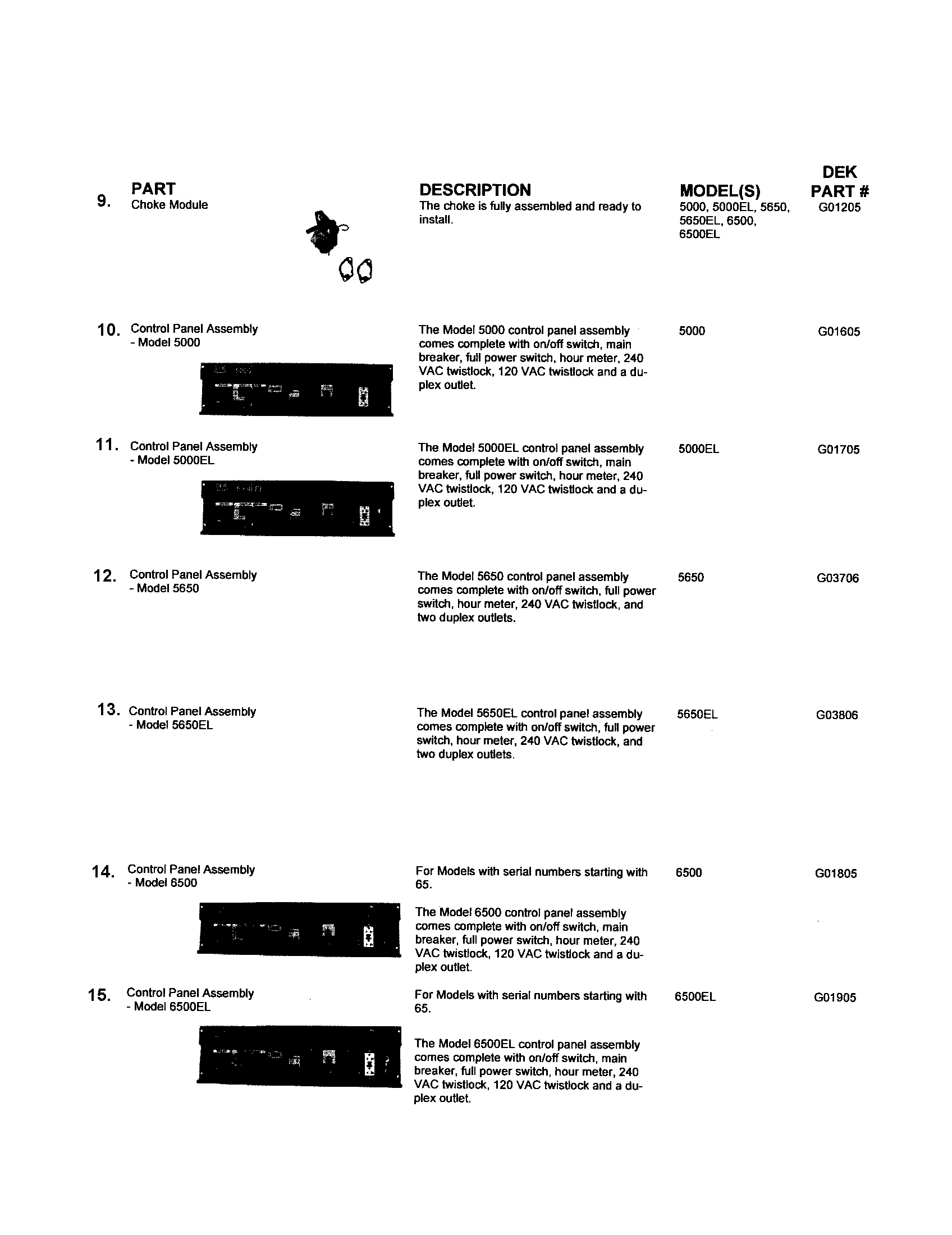

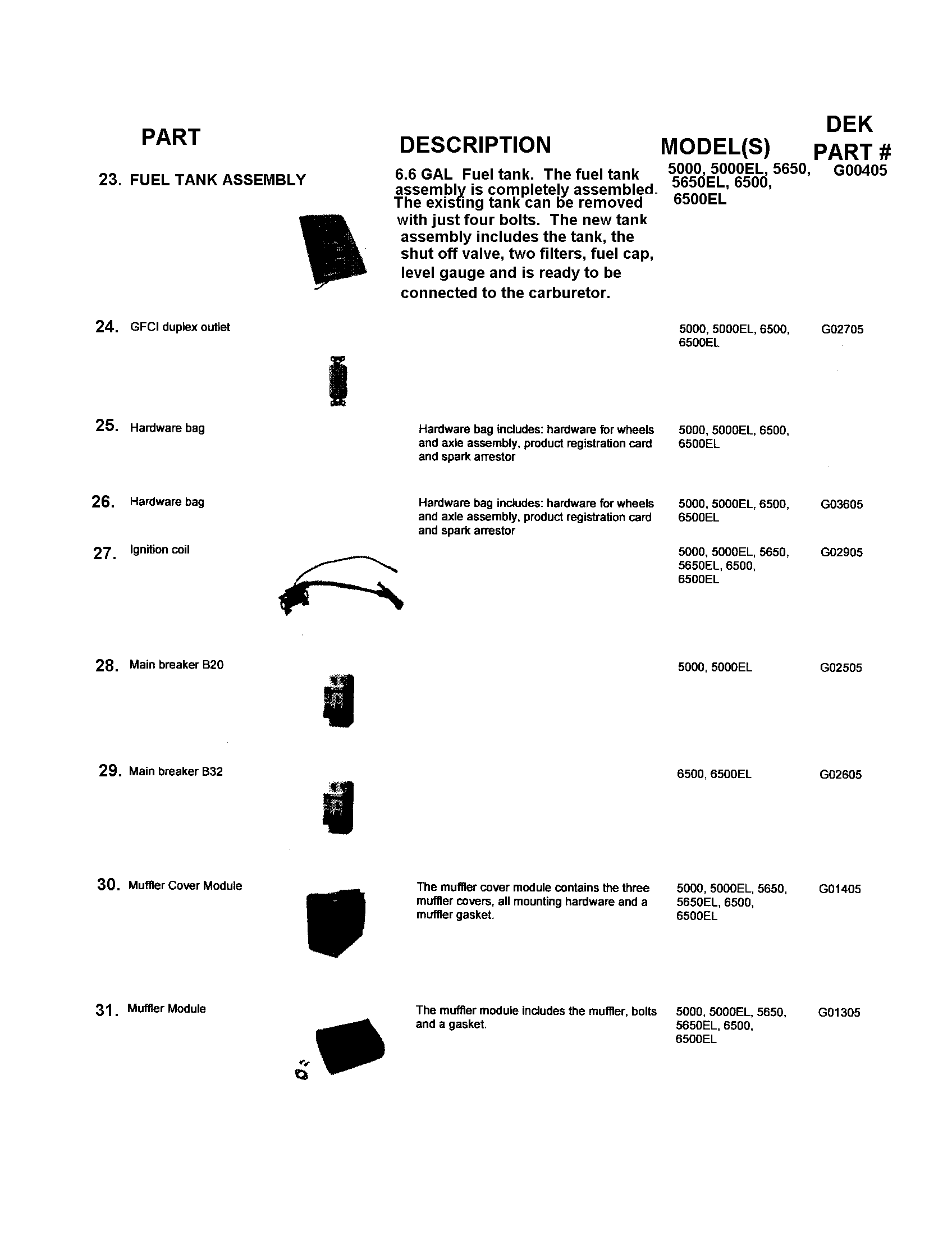

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Control Panel G01906
#17

Engine/exhaust pipe module diagram

Control panel

Part #G01906

The manufacturer no longer makes this part, and there's no substitute part

Main Breaker G02505
#28

Fuel tank/main breaker/muffler diagram

Main breaker

Part #G02505

The manufacturer no longer makes this part, and there's no substitute part

Ignition Coil G02905
#27

Fuel tank/main breaker/muffler diagram

Ignition coil

Part #G02905

The manufacturer no longer makes this part, and there's no substitute part

Capacitor G02205
#7

Air filter/alternator/battery diagram

Capacitor

Part #G02205

The manufacturer no longer makes this part, and there's no substitute part

Gfci Duplex G02705
#24

Fuel tank/main breaker/muffler diagram

Gfci duplex

Part #G02705

The manufacturer no longer makes this part, and there's no substitute part

Electric Starter G03505
#18A

Engine/exhaust pipe module diagram

Electric starter

Part #G03505

The manufacturer no longer makes this part, and there's no substitute part

Head Engine G00705
#21

Engine/exhaust pipe module diagram

Head engine

Part #G00705

The manufacturer no longer makes this part, and there's no substitute part

On/off Switch G02405
#34

Oil switch/recoil starter/wheel kit diagram

On/off switch

Part #G02405

The manufacturer no longer makes this part, and there's no substitute part

Muffler Cover G01405
#30

Fuel tank/main breaker/muffler diagram

Muffler cover

Part #G01405

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug G02805
#36

Oil switch/recoil starter/wheel kit diagram

Spark plug

Part #G02805

The manufacturer no longer makes this part, and there's no substitute part
