Model # AGM499L Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen AGM499L dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

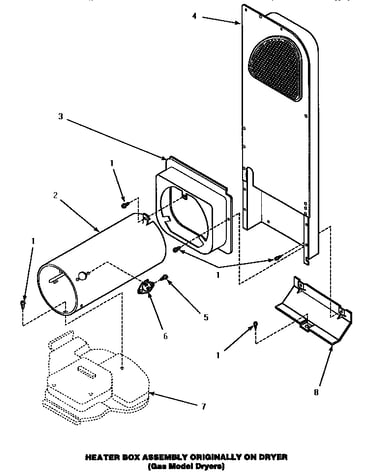

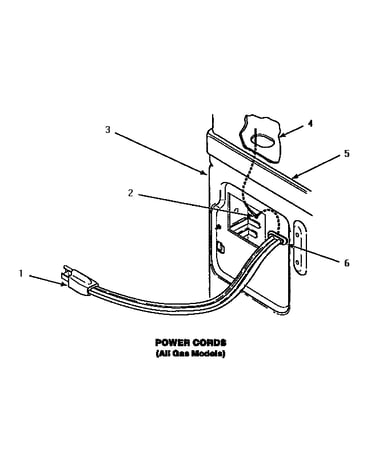

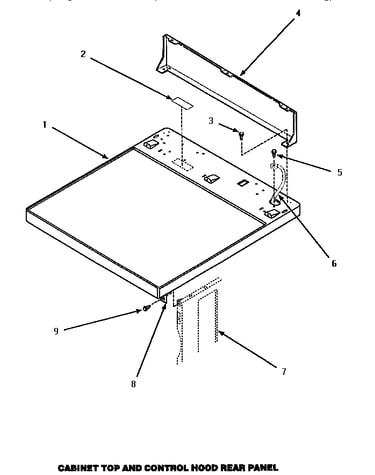

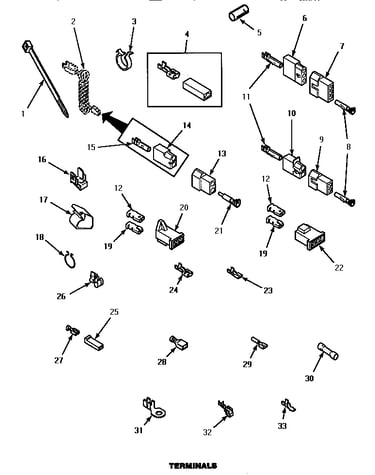

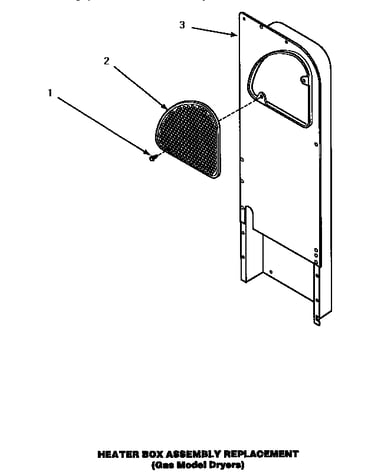

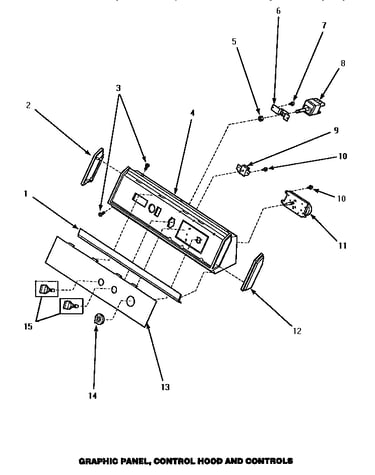

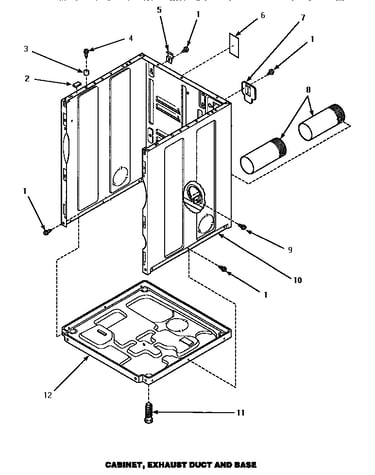

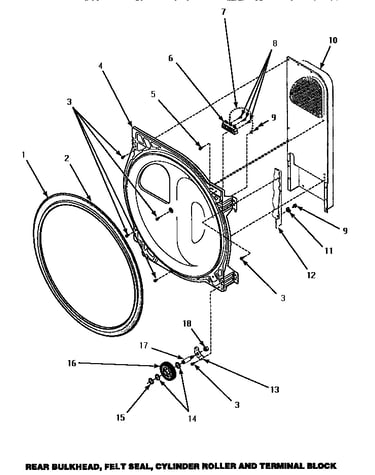

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Belt 59174
#9

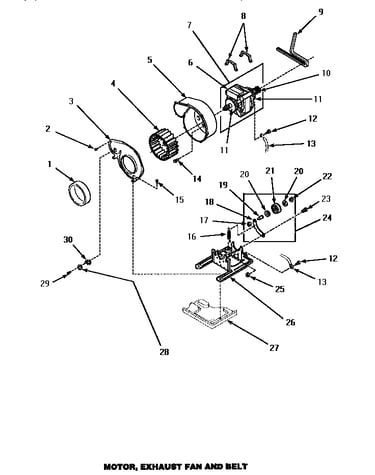

Motor, exhaust fan & belt (agm479w) (agm499l) (agm499w) diagram

Belt

Part #59174

Replaced by #661570V

?
Manufacturer substitution
This part replaces 59174. Substitute parts can look different from the original.
BEST SELLER
$19.35 |
9% OFF Phone Price : $21.35
In Stock
Sendor 56231
#12

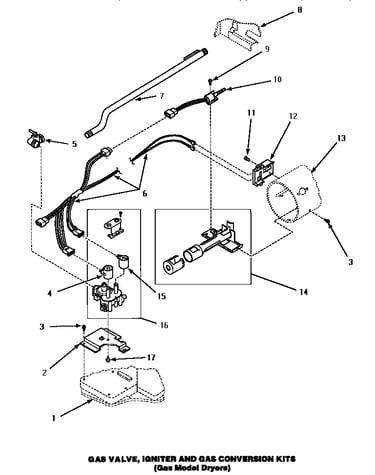

Gas valve, igniter & gas conversion kits (agm479w) (agm499l) (agm499w) diagram

Sendor

Part #56231

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 56231. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Idler Assembly 500269
#24

Motor, exhaust fan & belt (agm479w) (agm499l) (agm499w) diagram

Idler assembly

Part #500269

Replaced by #WP37001287

?
Manufacturer substitution
This part replaces 500269. Substitute parts can look different from the original.
BEST SELLER
$32.66 |
16% OFF Phone Price : $38.66
In Stock
Clamp 58047
#8

Motor, exhaust fan & belt (agm479w) (agm499l) (agm499w) diagram

Clamp

Part #58047

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 58047. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Glide Drum 501676
#14

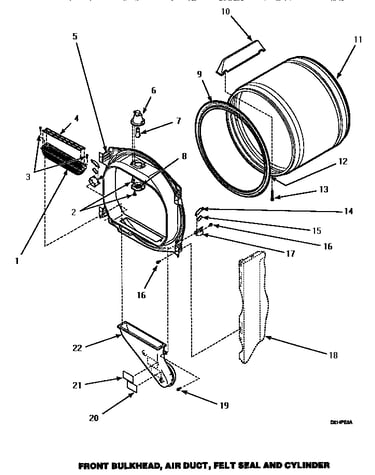

Front bulkhead, air duct, felt seal & cylinder (agm479w) (agm499l) (agm499w) diagram

Glide drum

Part #501676

Replaced by #WP37001298

?
Manufacturer substitution
This part replaces 501676. Substitute parts can look different from the original.
BEST SELLER
$8.94 |
10% OFF Phone Price : $9.94
In Stock
Screw 501668
Screw

Part #501668

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 501668. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Catch 54660
#1

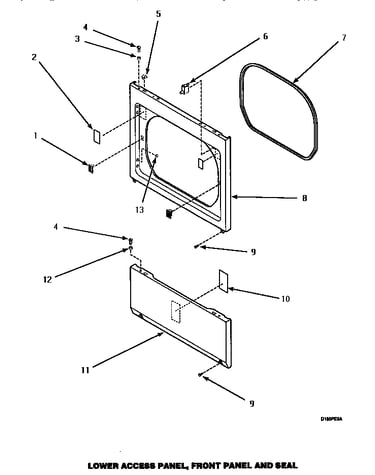

Lower access panel, front panel & seal (agm479w) (agm499l) (agm499w) diagram

Door catch

Part #54660

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54660. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Strike 500039
#4

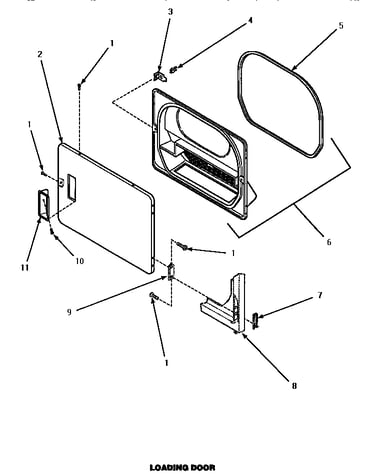

Loading door (agm479w) (agm499l) (agm499w) diagram

Strike

Part #500039

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 500039. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Speed Queen Coil 58804A
#4

Gas valve, igniter & gas conversion kits (agm479w) (agm499l) (agm499w) diagram

Speed queen coil

Part #58804A

$38.69
In Stock
Speed Queen Lp Gas Orifice 58755

#NI

All parts diagram

Speed queen lp gas orifice

Part #58755

$26.63
In Stock
